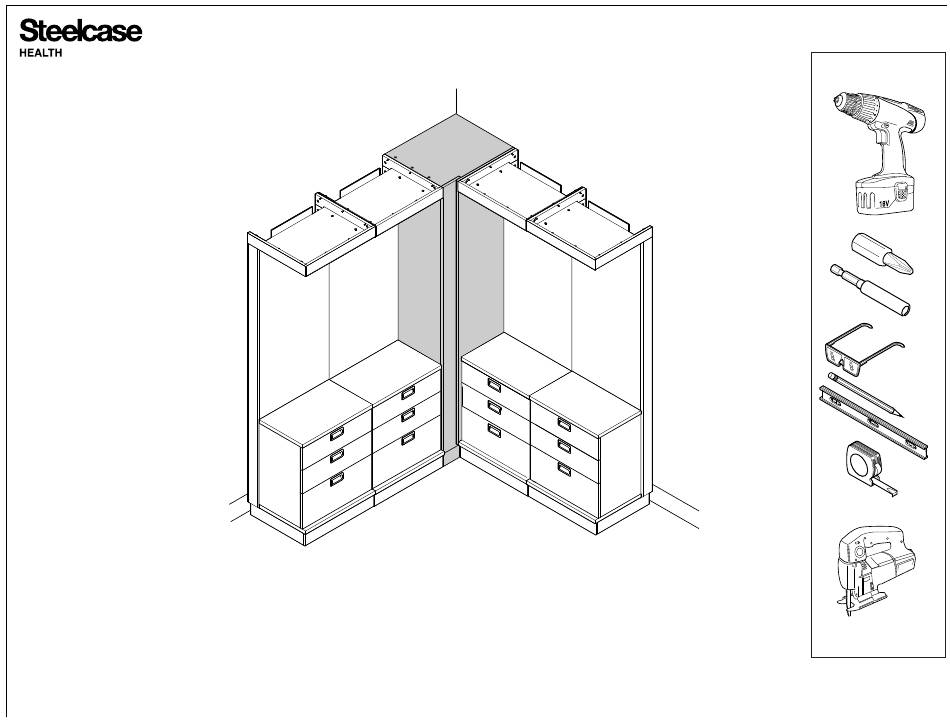

Opus™ Adjustable Corner Trim Unit
®
If you have a problem, question, or request, call
your local dealer, or Steelcase Line 1 at
888.STEELCASE (888.783.3522)
for immediate action by people who want to help you.
(Outside the U.S.A., Canada, Mexico, Puerto Rico,
and the U.S. Virgin Islands, call: 1.616.247.2500)
Or visit our website: www.steelcase.com
©
2014 Steelcase Inc.
Grand Rapids, MI 49501
U.S.A.
Page 1 of 12
Printed in U.S.A.
939500290 Rev C

Advertisement

loading
Need help?

Need help?

Do you have a question about the Opus and is the answer not in the manual?

Questions and answers

Related Manuals for Steelcase Opus

Summary of Contents for Steelcase Opus

  • Page 1 Opus™ Adjustable Corner Trim Unit ® If you have a problem, question, or request, call your local dealer, or Steelcase Line 1 at 888.STEELCASE (888.783.3522) for immediate action by people who want to help you. (Outside the U.S.A., Canada, Mexico, Puerto Rico, and the U.S.

  • Page 2: End Panel

    NOTE: Determine which base unit will END PANEL have the side panel attached. Turn base assembly on it's side. Lower the end panel onto the base assembly as shown (1a). Make sure there is a 1/8" offset at the top of the base assembly and make sure the front of the end panel is 3/4"...
  • Page 3 FLUSH THREE (3) 1-1/4" WOOD SCREWS Align gussets at end of toeboard (3a) and secure using four (4) 5/8" FLUSH wood screws (3b). Align toeboard with toeboard side and gussets (3c). Attach toeboard with four (4) 5/8" wood screws though gussets and into toeboard (3d).
  • Page 4 Push base unit into place. Level base unit. Secure units together and place in position against wall. Refer to assembly direction #939500801. Install storage cabinet. Refer to assembly direction #939500811. BASE UNIT Page 4 of 12 939500290 Rev C...
  • Page 5 Secure end panel to lower storage cabinet using two (2) 1-1/4" wood screws. Insert (5) shoulder screws into the holes on the filler panel. FILLER PANEL SHOULDER SCREWS TWO (2) 1-1/4" WOOD SCREWS Page 5 of 12 939500290 Rev C...
  • Page 6 Align filler panel with end panel (11a) and insert the shoulder screws into the modeeze clips (11b) located on the front of the end panel. Push the panel downward (11c), until shoulder screw is securely seated (11d). Page 6 of 12 939500290 Rev C...
  • Page 7 Turn the other base assembly on it's side. Lower the end panel onto the base assembly as shown (12a). Make sure the top of the base assembly and the top of the end panel is flush (12b), also make sure the side of the end panel is flush with the front of the canopy assembly and square to the...
  • Page 8 Slide units together. Secure units together Secure end panel to lower storage cabinet using and place in position against wall. Refer to two (2) 1-1/4" wood screws. assembly direction #939500801. Install storage cabinet. Refer to assembly direction #939500811. TWO (2) 1-1/4" WOOD SCREWS Page 8 of 12 939500290 Rev C...
  • Page 9 Slide the two units next to adjoining assembly (18a). Level base unit (18b). Attach using one (1) wood screw as shown (18c). Page 9 of 12 939500290 Rev C...
  • Page 10 Determine a level line on corner wall and mark with pencil (19a). Attach dust cover attachment support using two (2) screws (19b). DUST COVER ATTACHMENT SUPPORT Page 10 of 12 939500290 Rev C...
  • Page 11 Determine the width of the dust cover (20a). Using a jig saw, cut the dust cover to width (20b). DUST COVER WIDTH MEASUREMENT Mark, with a pencil, a 3/4" x 7" corner of the dust cover as shown. Using a jig saw, cut dust cover according to the measurements.

  • Page 12: Dust Cover

    DUST COVER Lower dust cover into place (22a) and attach using three (3) 1-1/4" wood screws (22b). THREE (3) 1-1/4” WOOD SCREWS Page 12 of 12 939500290 Rev C...
