Troubleshooting Guide

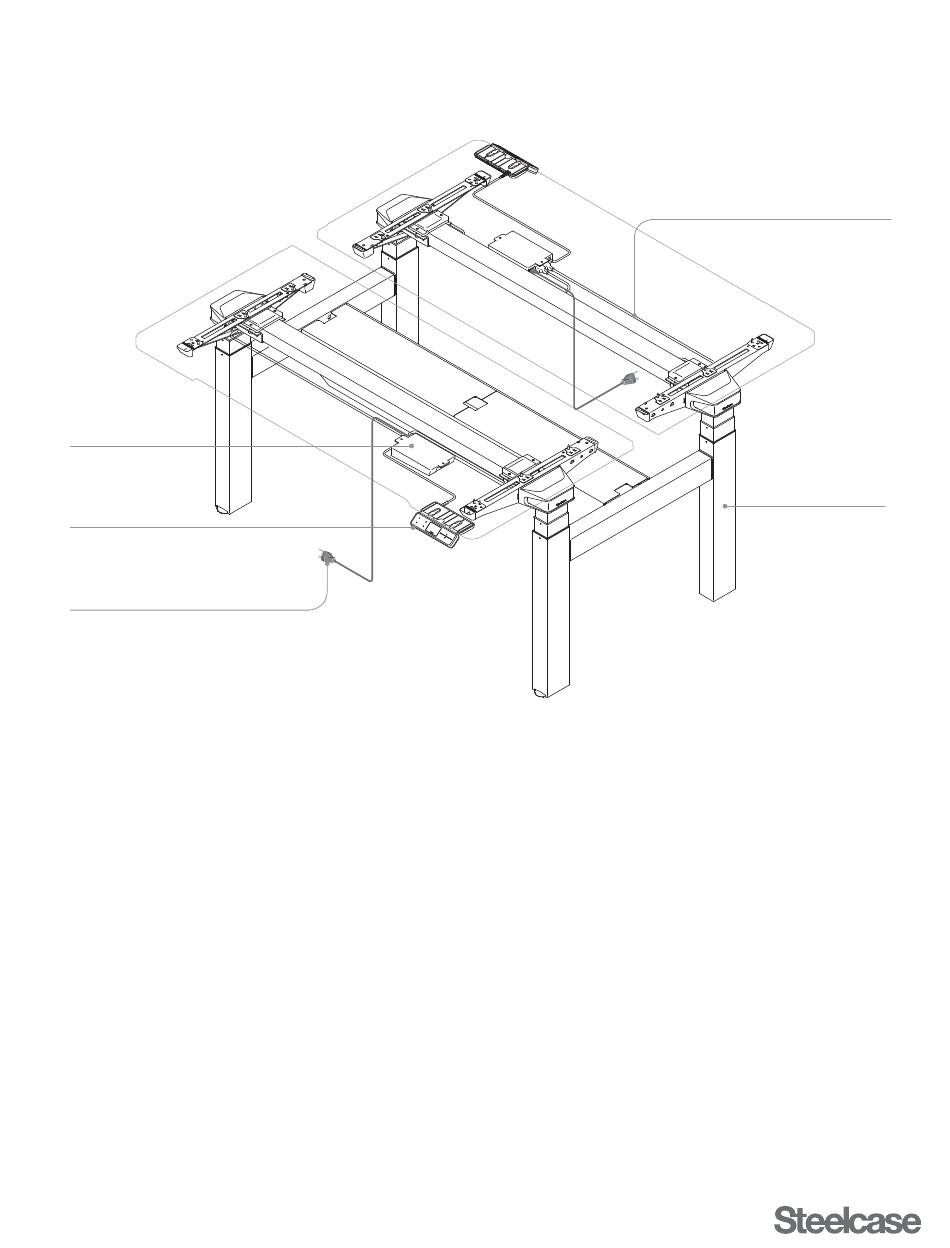

Control box
Preset controller
Power Cable
OLOGY BENCH
HOW IT WORKS
· Each Lifting Column contains an individual motorized lift mechanism.
· The Control Box contains a power transformer. This converts high-voltage AC current from the wall
outlet to low-voltage 24v DC current, which powers the Lifting Columns.
· Only the main power cable carries high voltage. All other cables carry low voltage.
· The Control Box contains a computer processor, with embedded software controllers.
· The Control Box controls all aspects of Desk motion, and synchronizes motion of the individual
Lifting Columns.
· The Control Box will shut down the entire Desk if a fault is detected. For example, if one Lifting
Column is binding or trapped, it will draw signifi cantly more current than the other Lifting Column,
and the Control Box will shut down the entire Desk to prevent further damage.
· The Controller is the user interface to the Desk, and directs all Desk movements via the Up-Down
buttons and the Preset buttons.
· Preset data is stored in the Control Box, not in the Controller itself.
Published 10/2017
Low Voltage Cables
Lifting column
