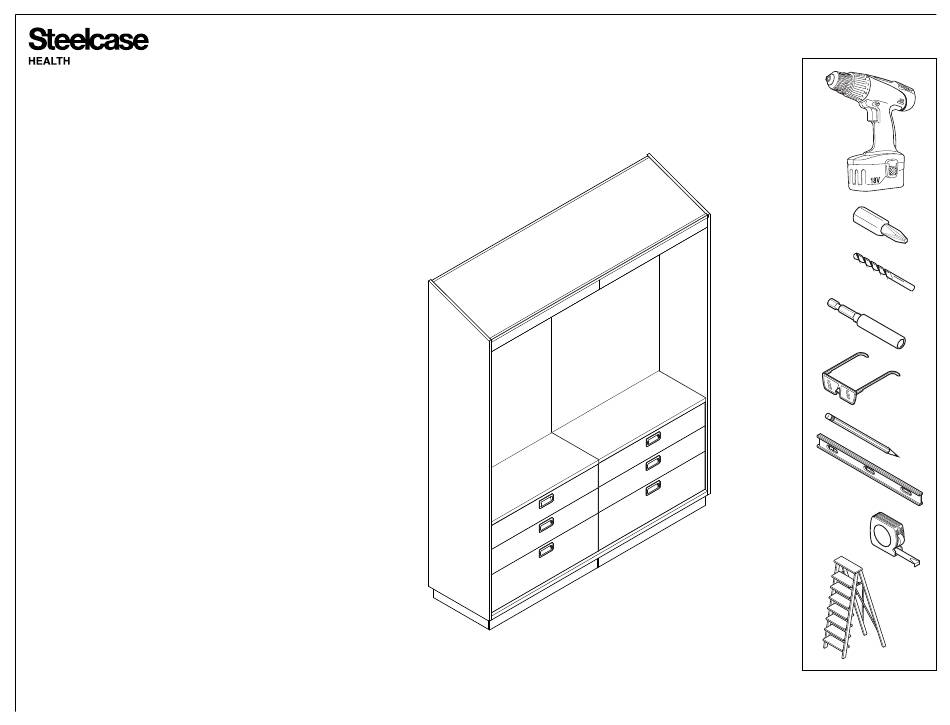

Opus™ Sloped Fascia
3/16" Drill
If you have a problem, question, or request, call
your local dealer, or Steelcase Line 1 at
888.STEELCASE (888.783.3522)
for immediate action by people who want to help you.
(Outside the U.S.A., Canada, Mexico, Puerto Rico,
and the U.S. Virgin Islands, call: 1.616.247.2500)
Or visit our website: www.steelcase.com
©
2015 Steelcase Inc.
Grand Rapids, MI 49501
Page 1 of 8
U.S.A.
Printed in U.S.A.
939500295 Rev E

Advertisement

loading
Need help?

Need help?

Do you have a question about the Opus and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Steelcase Opus

  • Page 1 Opus™ Sloped Fascia 3/16" Drill If you have a problem, question, or request, call your local dealer, or Steelcase Line 1 at 888.STEELCASE (888.783.3522) for immediate action by people who want to help you. (Outside the U.S.A., Canada, Mexico, Puerto Rico, and the U.S.
  • Page 2 PAPER BACKING Installing the Units Lay units onto saw horses. Peal paper backing from pad (1a). Place pad onto back of base assembly as shown (1b). Cut excess pad when finished. Page 2 of 8 939500295 Rev E...
  • Page 3 Place the sloped end panel on a clean, abrasive Align the aluminum extrusion with the sloped end panel. resistant surface. Place the base assembly on it's side as shown. SLOPED END PANEL ALUMINUM EXTRUSION Page 3 of 8 939500295 Rev E...
  • Page 4 Secure side panel to base assembly using six (6) 1-1/4" wood screws. TIP: Insert screw through extrusion to hold into place. SIX (6) 1-1/4" WOOD SCREWS Page 4 of 8 939500295 Rev E...
  • Page 5 Stand base units 8" upright and gang base units together (see assembly instruction 939500801). Place units against wall and level. NOTE: When drilling the rear Install upper hole for a bolt, make sure the storage if applicable hole is drilled 8" in from the back of the unit.
  • Page 6: Wood Screws

    SUPPORT BLOCK TIP: Remove dust cover supports by Install three (3) simply breaking off. support blocks as shown (10a) and attach each support block using two (2) screws (10b). #8 x 1-1/4" WOOD SCREWS Install fascia into the aluminum extrusion at an angle (11a) and then place SUPPORT BLOCK...
  • Page 7 #8-15 x 5/8" PAN HEAD SCREW STRAP Situation where a Seam is Present Flip fascia over and locate pilot holes. Align strap with pilot holes and scure using three (3) #8-15 x 5/8" pan head screws. Install fascia into the aluminum extrusion at an angle (2a) and then place downward (2b).
  • Page 8 Remove protective tape backing from the PROTECTIVE TAPE BACKING adhesive pad on the back of the wall trim (12a) and install as shown (12b). Trim if needed. ADHESIVE PAD Page 8 of 8 939500295 Rev E...
