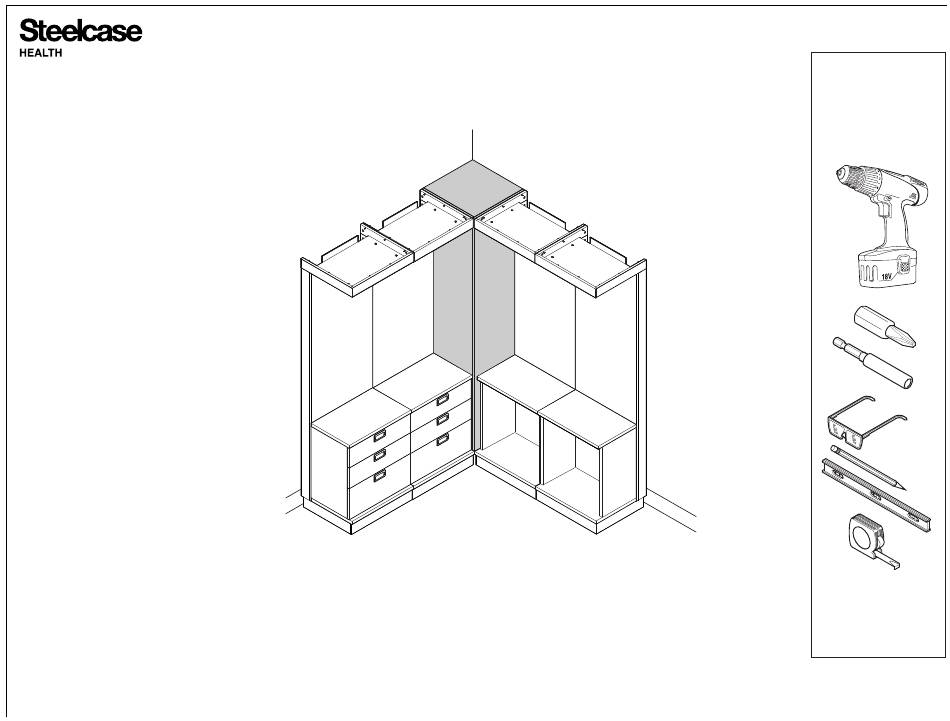

Opus™ Standard Corner Trim Unit
®
If you have a problem, question, or request, call
your local dealer, or Steelcase Line 1 at
888.STEELCASE (888.783.3522)
for immediate action by people who want to help you.
(Outside the U.S.A., Canada, Mexico, Puerto Rico,
and the U.S. Virgin Islands, call: 1.616.247.2500)
Or visit our website: www.steelcase.com
©
2014 Steelcase Inc.
Grand Rapids, MI 49501
U.S.A.
Page 1 of 9
Printed in U.S.A.
939500289 Rev B

Advertisement

loading
Need help?

Need help?

Do you have a question about the Opus and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Steelcase Opus

Summary of Contents for Steelcase Opus

  • Page 1 Opus™ Standard Corner Trim Unit ® If you have a problem, question, or request, call your local dealer, or Steelcase Line 1 at 888.STEELCASE (888.783.3522) for immediate action by people who want to help you. (Outside the U.S.A., Canada, Mexico, Puerto Rico, and the U.S.
  • Page 2 NOTE: Determine which base assembly will get end panel alignment brackets. On back of base assembly, place two (2) end panel alignment brackets, spaced as shown (1a) and attach using two (2) wood screws per bracket (1b). FOAM TAPE Peel paper backing from foam tape (2a). Place foam tape onto back of base assembly as shown (2b).
  • Page 3 Turn unit around and push 20-1/4” base unit into place next to adjoining unit. Level base unit. Secure units together and place in position against wall. Leave a 20-1/4” space between unit and other wall. Refer to assembly direction #939500801. Install storage cabinet.
  • Page 4 CONNECTOR BOLT For the second set of assemblies, turn the base assembly on it's side. Lower the end panel onto the base assembly as shown (7a). Make sure the top of the base assembly and the top of the end panel is flush (7b), also make sure the side of the end panel is flush with the front of the canopy assembly (7c) and make parallel to the base unit upright.
  • Page 5 END PANEL Align the end panel side assembly with the end panel assembly (10a). Make sure holes on the end panel side assembly accept the connector bolts on the end panel assembly (10b). Draw each cam lock, in a clockwise direction, into the center of the cam 0º...
  • Page 6 Slide units together. Secure units together and place in position against wall. Refer to assembly direction #939500801. Install lower storage unit. Refer to assembly direction #939500811. Secure lower storage unit to the end panel using two (2) 1-1/4" wood screws. TWO (2) 1-1/4"...
  • Page 7 Slide the two units next to adjoining assembly (14a). Make sure the end panel side assembly is engaged securely with both end panel alignment brackets (14b). END PANEL ALIGNMENT BRACKET END PANEL SIDE ASSEMBLY Page 7 of 9 939500289 Rev B...
  • Page 8 Push units tight to both walls. Level the units (15a). Secure using two (2) wood screws at the top as shown (15b). Remove drawers (16a). Secure using two (2) wood screws inside case (16b) and reinstall drawers. Determine a level line on corner wall and mark with pencil (17a).
  • Page 9 Lower dust cover into place. DUST COVER Page 9 of 9 939500289 Rev B...
