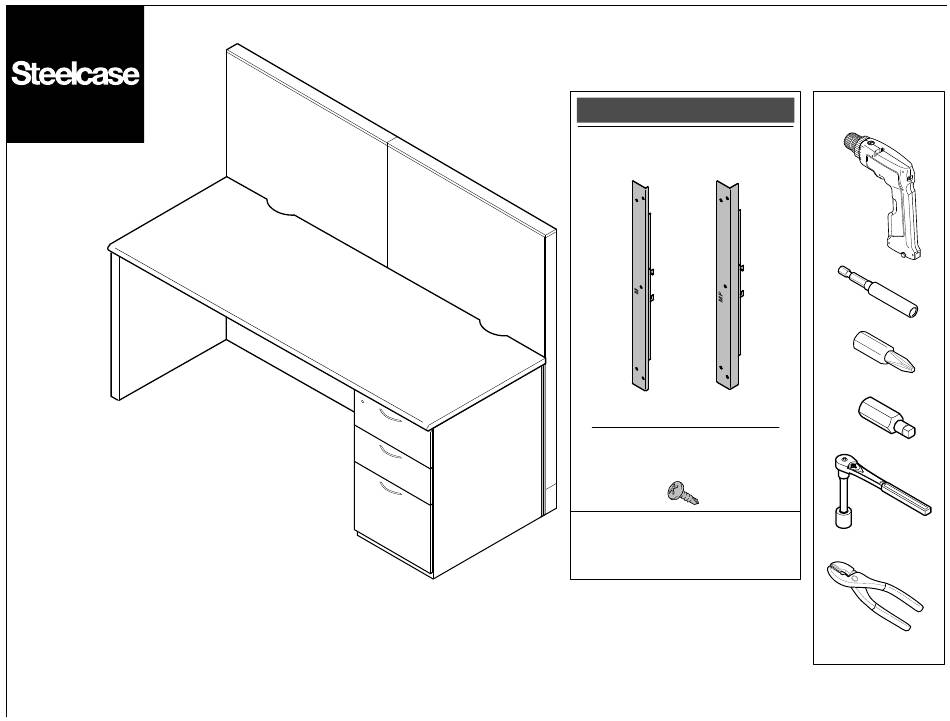

On-Module Pedestal Filler Installation
NOTE: These pedestal fillers provide only limited stability for
panels. They may not be substituted for end panels when upper
storage is used. See specification guide for application topics.
NOTE: For pedestals manufactured prior to Feb 2004,
see assembly direction 939504417.
For Use With Montage
Components
Filler Bracket
Proud Front
Flush Front
Pedestals
Pedestals
Stamped
Stamped
"M"
"MF"
#10-16 x 1/2"
Self Drilling Screw
(GQTFC)
For Package of all
Components above
Proud Front Pedestals (RPXFMONPP)
Flush Front Pedestals (RPXFMONFP)
®
Page 1 of 8
939503239 Rev F
Advertisement
Related Manuals for Steelcase On-Module Pedestal Filler
Summary of Contents for Steelcase On-Module Pedestal Filler
- Page 1 Proud Front Pedestals (RPXFMONPP) If you have a problem, question, or request, call Flush Front Pedestals (RPXFMONFP) your local dealer, or Steelcase Line 1 at 888.STEELCASE (888.783.3522) for immediate action by people who want to help you. NOTE: These pedestal fillers provide only limited stability for (Outside the U.S.A., Canada, Mexico, Puerto Rico,...
- Page 2 A. For left hand pedestal applications break off the tab marked "R". B. For right hand pedestal applications break off this tab, keeping the tab marked "R". NOTE: Right hand pedestal application shown in step 2. FILLER Place the filler against the back of the pedestal.
- Page 3 Fasten the filler to the back of the pedestal by using five (5) 1/2" self-drilling screws and following the sequence indicated. Page 3 of 8 939503239 Rev F...
- Page 4 Pull drawer forward. Push drawer rails back into pedestal. Push on tab on each side of the drawer rails. Remove remaining drawers. TIP: Mark all drawers so they can be Remove drawer completely. easily re-installed in their original positions. Page 4 of 8 939503239 Rev F...
- Page 5 Move pedestal toward the wall and engage the hook on the filler into the slot in the panel. Page 5 of 8 939503239 Rev F...
- Page 6 Adjust pedestal glides until they contact the floor. Place worksurface onto the pedestal. Page 6 of 8 939503239 Rev F...
- Page 7 Attach worksurface to pedestal by fastening four (4) 1" pan head screws (855010168MP) through the pedestal body and mount to the bottom of the worksurface. 1" PAN HEAD SCREWS Page 7 of 8 939503239 Rev F...
- Page 8 Drawer Re-Assembly NOTE: Remember to re-install drawers in their original positions. Verify that drawer rails are pushed back into pedestal. Pull ball cages on drawer rails to front of drawer rails. Carefully align drawer portion of rail with ball cage of pedestal portion of rail and gently push drawer back into pedestal.
