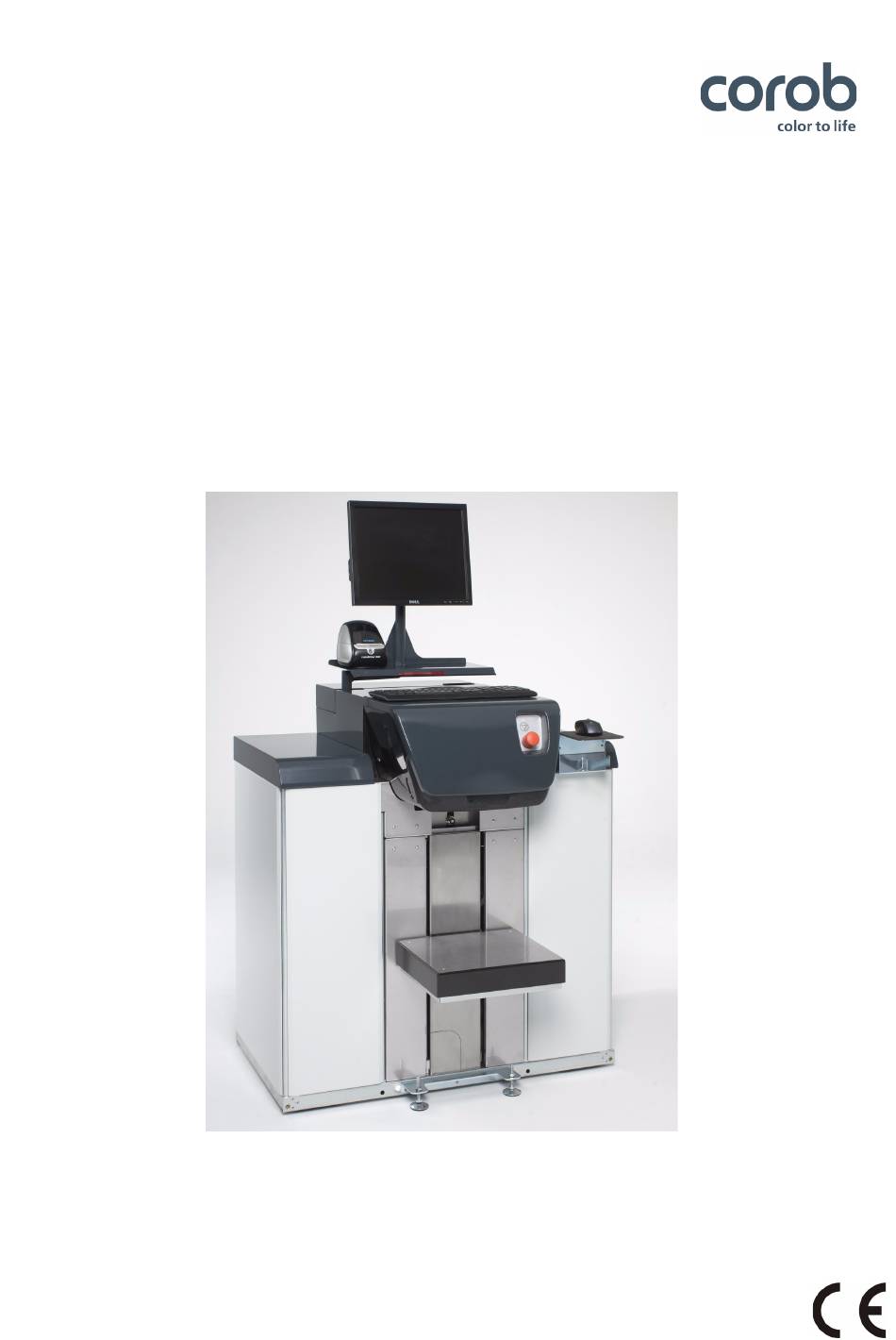

- Page 1 EVOFLX-LW User manual V1.0 - RB (2019)
- Page 2 COROB™ is a registered trademark and/or commercial trademark used on an exclusive basis by COROB Oy and its affiliated companies (hereinafter “COROB”). A failure of a trademark to appear hereunder does not mean that COROB does not use the trademark in question nor does it constitute a waiver by COROB of any related intellectual property rights.
-
Page 3: Table Of Contents
8.5 Cleaning the nozzle center (humidifier cap) ..........................31 8.6 Cleaning the nozzle center (INV) ..............................32 8.7 Cleaning and moistening the sponge (humidifier cap) ....................32 8.8 Checking and replacing the puncher ............................35 8.9 Refilling the humidifier bottle ................................. 36 - 1 - COROB EVOFLX-LW... - Page 4 9 TECHNICAL SPECIFICATIONS............................37 9.1 Technical information ..................................37 9.2 Dimensions and weight..................................38 9.3 Declaration of conformity .................................. 38 9.4 Warranty ........................................39 APPENDIX: EC DECLARATION ............................40 - 2 - COROB EVOFLX-LW...
-
Page 5: Quick Guide
Refill the canisters. • Update the canister filling levels in the management software. • Shut down the computer. Do not shut off the machine. It i s recommended to careful ly rea d the user’ s manual. - 3 - COROB EVOFLX-LW... -
Page 6: General Information
MAINTENANCE TECHNICIAN / INSTALLATION TECHNICIAN Specialist prepared and trained in a technical field (mechanical and electrical) and assigned by the manufacturer to work on the machine to perform machine installation, adjustments, repair breakdowns or carry out mainteance. - 4 - COROB EVOFLX-LW... -
Page 7: Features

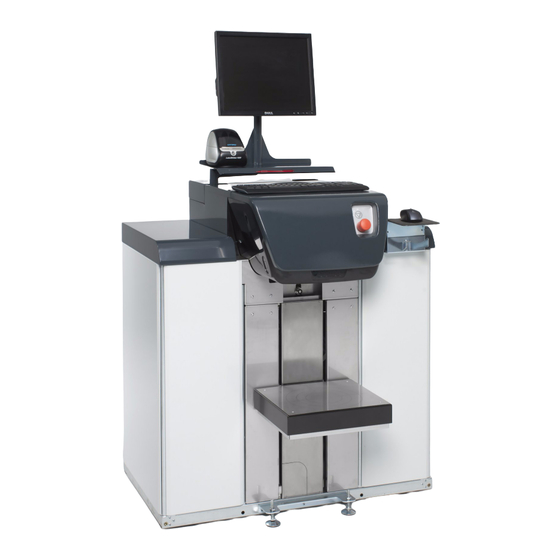

The manufacturer can also supply a wide range of software applications to manage all of the machine’s functions. Some of the pictures in this manual were taken from prototypes; some details may differ in machines in standard production. - 5 - COROB EVOFLX-LW... -
Page 8: Description Of Units
Can centerin g dev ice It is useful for placing the cans under the nozzle center, so that the can lid is punched in the middle and dispensing takes place precisely into the hole created. - 6 - COROB EVOFLX-LW... - Page 9 The solvent, contained in a small tank inside the cap, keeps the nozzles area constantly saturated. The two systems can be present individually or together according to the tinting system used on the machine. - 7 - COROB EVOFLX-LW...
-
Page 10: Usable Cans
70 mm [2.8”] 70 mm [2.8”] 500 mm [19.7”] 380 mm[14.96”] Semiautomatic 460 mm[17.7”] with 130mm [5.1”] 110 mm [4.3”] punch with punch 380 mm[14.96”] 70 mm [2.8”] 500 mm [19.7”] 240 mm [9.45”] 54 mm [2.1”] - 8 - COROB EVOFLX-LW... -
Page 11: Intended Use And Reasonably Foreseeable Misuse
• Manufacturer’s name and address • Marking • Machine model • Month and year of manufacture • Serial number (S/N) • Electrical specifications Do not remove or tamper with the identification plate in any way. - 9 - COROB EVOFLX-LW... -
Page 12: Safety
The machine is isolated from the power supply line when the power cable is disconnected; it must therefore be installed near an easily accessible mains socket outlet. • Do not use extension cords to power the machine. - 10 - COROB EVOFLX-LW... -
Page 13: Warnings On The Use Of Colorants
In case of accidental product leaks or spills, thoroughly ventilate the area and proceed as indicated in this manual and in the instructions provided with the product itself. Do not dispose of colorant in the sewage system. Follow local regulations when disposing of waste. - 11 - COROB EVOFLX-LW... -
Page 14: Residual Risks
4.2-5- Equipment used may cause poisoning and/or colorants used. The MSDS must be sensitization during canister refilling provided by the colorant manufacturer. specified operations, machine cleaning and Keep the room suitably ventilated. in MSDS. disposal. - 12 - COROB EVOFLX-LW... -
Page 15: Position Of Labels
7. Label “Canister filling levels” 8. Label “Serial number” Do not remove or make illegible the safety or instruction labels. Replace any label has become illegible or is missing, by requesting it to the manufacturer. - 13 - COROB EVOFLX-LW... -
Page 16: Safety Devices
The emergency button does not completely cut off power to the entire machine. The power supply unit box inside the machine still remains powered. To completely remove power from the machine it is necessary to shut it off and unplug the power supply cable from the wall socket outlet - 14 - COROB EVOFLX-LW... -
Page 17: Requirements Of The Installation Site
When using colorants containing volatile solvents the room in which the machine is installed must be spacious, with good ventilation (air exchange) and no type of parts must be leant against or stocked close to the machine. Avoid naked flames or material that may create sparks and cause a fire. - 15 - COROB EVOFLX-LW... -
Page 18: Shipping And Handling
Lower the feet to support and level the machine properly, and make sure that the wheels are not resting. To repack the machine, follow the unpacking instructions in reverse order. We recommend reusing the original packing any time the machine must be moved or shipped. - 16 - COROB EVOFLX-LW... -
Page 19: Standard Material Supplied
Depending on the options specified on the purchase order, you may also find: • Management software. • Any accessories to be installed on the machine. Make sure that all of the above items are included in the packing; if not, contact the manufacturer. - 17 - COROB EVOFLX-LW... -
Page 20: Preparing The Shelf For Use
For the colorants remaining in the canisters, for the machine components most soiled with colorant and if any products have been used on the machine that require special disposal procedures, follow local regulations when disposing of waste. - 18 - COROB EVOFLX-LW... -
Page 21: Start-Up
Auxiliary sockets (optional) - Power supply to the computer and other equipment (calibration scale or label printer) USB serial port - For the connection to the management computer. Control panel - With the off-line button and the signal lamps. Buttons to move the shelf (two-handed control). - 19 - COROB EVOFLX-LW... -
Page 22: Buttons And Lamps
, when it reaches the bottom down position. Buttons to move With puncher - When the GREEN lamp is on, pressing the four buttons at the same time will the shelf cause the shelf to move up, and punch the can lid. - 20 - COROB EVOFLX-LW... -
Page 23: Off-Line Button And White Lamp
Very little power is used by the machine itself when inactive or during a stirring cycle. 1. Turn the power switch OFF (0) 2. Plug the mains plug from the earthed wall socket. - 21 - COROB EVOFLX-LW... -
Page 24: Using The Dispenser
Release the handle to lock the shelf in the desired position. Rotating cap: Place the can on the shelf, push the opening bar and the cap opens. Sliding cap: Place the can on the shelf, making sure that photocell A is obscured. - 22 - COROB EVOFLX-LW... -
Page 25: Loading The Can - Semiautomatic Shelf
Press and hold down the two buttons at the same time, to raise the shelf, which stops when the can is correctly positioned. If necessary, lower the shelf by pressing the two buttons at the same time. - 23 - COROB EVOFLX-LW... -
Page 26: Loading The Can - Automatic Shelf
After having correctly positioned the can so as to obscure photocell A, the laser beams will switch on. Position the can in such a way that the hole on the lid is in the center of the laser beams. - 24 - COROB EVOFLX-LW... -
Page 27: Punching The Can With Semiautomatic Puncher
When an automatic process is in progress, the machine can still be used; the process will be suspended and restarted after a few seconds that the machine is inactive. - 25 - COROB EVOFLX-LW... -
Page 28: Refilling The Canisters
Failure to update the colorant levels in the canisters may compromise the accuracy of the hue produced or, worse yet, lead to emptying the machine canisters and circuits. recommend that you keep the canisters full at all times by topping up frequently. - 26 - COROB EVOFLX-LW... - Page 29 After topping up the colorant, it is advisable to carry out the stirring process using the functions provided in the management software, to eliminate any air that may be emulsified and incorporated into the colorant. - 27 - COROB EVOFLX-LW...
- Page 30 - 28 - COROB EVOFLX-LW...
-
Page 31: Troubleshooting
The machine does not work After removing the cause of the error, restore the An error has occured. and the RED lamp blinks. machine by sending a reset command. If the problem persists, contact the authorized technical service. - 29 - COROB EVOFLX-LW... -
Page 32: Ordinary Maintenance
Solvent-based colorants Slow‐evaporating solvent, compatible with the colorants used Water-based colorants Water The choice depends on the type of vehicles used to produce the Mixed system colorants; for more information, contact the dealer or colorant manufacturer - 30 - COROB EVOFLX-LW... -
Page 33: External Cleaning
3. Accurately clean the nozzles using a sharp tool; remove any dried colorant residue delicately, to avoid damaging the ends of the circuits. 4. Connect power supply and switch on the machine (chapter 6.6). 5. Close the humidifier cap. 6. Carry out purge using the command in the management software. - 31 - COROB EVOFLX-LW... -
Page 34: Cleaning The Nozzle Center (Inv)
Check the condition of the sponge. If it is very dirty, remove the sponge from the cap and wash it thoroughly. In all cases, if the sponge is severely damaged, replace it. Re-install the sponge holding lid. Connect power supply and switch on the machine (chapter 6.6). Close the cap. - 32 - COROB EVOFLX-LW... - Page 35 - 33 - COROB EVOFLX-LW...
- Page 36 - 34 - COROB EVOFLX-LW...
-
Page 37: Checking And Replacing The Puncher
Reassemble the puncher following the above steps in reverse order. 7. Connect power supply and switch on the machine (chapter 6.6). If the can punching is inadequate because the cutting edge of the puncher is excessively worn, replace the worn puncher. - 35 - COROB EVOFLX-LW... -
Page 38: Refilling The Humidifier Bottle
LEVEL. To reduce the risk of lime encrustations due to hard water, it is recommended to use distilled water. Re-place the cap and firmly tighten. Connect power supply and switch on the machine (chapter 6.6). - 36 - COROB EVOFLX-LW... -
Page 39: Technical Specifications
The data shown are valid for the machine only. Hole diameter for pre-punched cans = flow diameter + 15 mm (0.59"). The diameter may also vary based on the partition of water/solvent circuits of the machine. - 37 - COROB EVOFLX-LW... -
Page 40: Dimensions And Weight
542 lb 243 kg min 280 kg 536 lb 617 lb The machine equipped with Integrated Nozzle Valve System (INV ) has additional weight of 5 kg (11 lb). Declaration of conformity See Appendix: EC Declaration. - 38 - COROB EVOFLX-LW... -
Page 41: Warranty
Failure to observe the instructions and maintenance rules set forth in the manual. • Making or having changes and/or repairs made on the machine by personnel outside the service organization authorized by the manufacturer and/or made using non‐original spare parts. - 39 - COROB EVOFLX-LW... -
Page 42: Appendix: Ec Declaration
APPENDIX: EC DECLARATION - 40 - COROB EVOFLX-LW... - Page 43 - 41 - COROB EVOFLX-LW...
