INSTALLATION

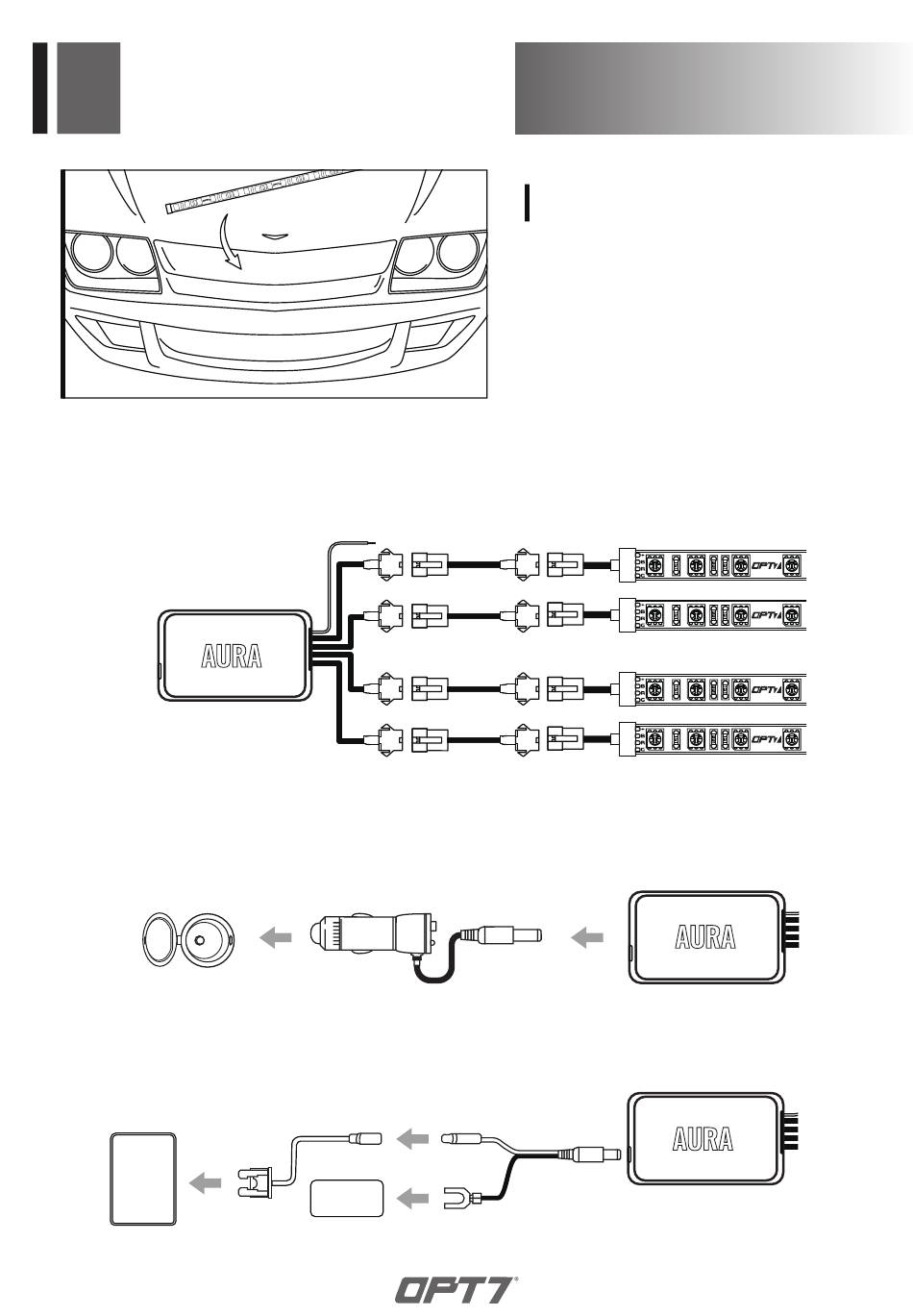

As shown below, connect all light pods to the control box with the included
extension cables.
Once connected, plug the control box Cigarette Power Adapter into an available
12 volt charging port.
12 VOLT CHARGING PORT
or, connect the positive wire to the fuse tap and connector the open negative wire to a
ground (any metal surface). Then plug the fuse tap into the 10amp switched fuse.
POWER SOURCE
FUSE
BOX
AUXILIARY WIRE EXTENSION WIRE
TM
CIGARETTE POWER ADAPTER
FUSE TAP
GROUND

STEP 1

Decide where to locate the light
strips and ensure wiring has enough
length for control box to be installed
in desired location.
