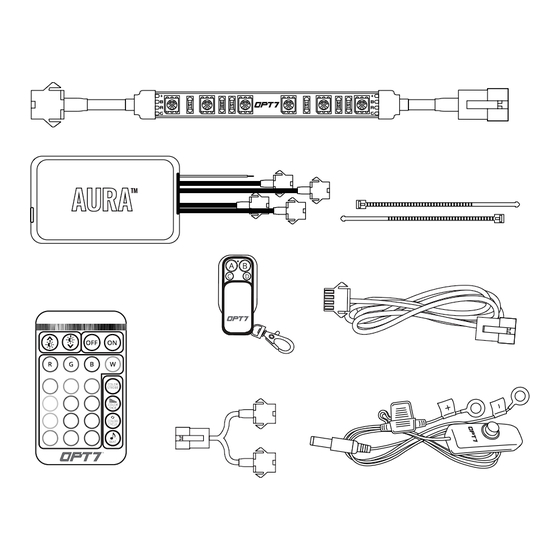

- Page 1 INSTALLATION GUIDE COMPONENTS LIGHT STRIPS ZIPTIES AURA CONTROL BOX KEYCHAIN REMOTE VARIOUS EXTENSION WIRES POWER HARNESS Y SPLITTERS HAND HELD REMOTE WITH ON/OFF SWITCH...
- Page 2 INSTALLATION STEP 1 Decide where to locate the light strips and ensure wiring has enough length for control box to be installed in desired location. EXAMPLES EXTENSION WIRE EXTENSION AUXILIARY Y-SPLITTER WIRE WIRE FUSE BATTERY IMPORTANT NOTE!! Before You Start We provide multiple sets of extension wires for you to configure.
- Page 3 INSTALLATION STEP 2 Secure Control box in desired location with Velcro or zip ties. * CONTROL BOX NOT WATERPROOF Ensure the control box is safely and securely hidden from exposing elements of moisture. STEP 3 Secure the light strips using the zip ties to tie all the wiring away from the moving components.
- Page 4 ASSIST SOLID BRIGHTNESS DISCLAIMER OPT7 Lighting is not liable for damages or personal injuries while installing this product. The Installation Guide is intended as assistance to reduce setup time. OPT7 Lighting assumes no responsibility for improper installation. If you are unfamiliar with your vehicle or inexperienced with aftermarket upgrades, please seek professional assistance.
