DREAMCOLOR
UNDERGLOW

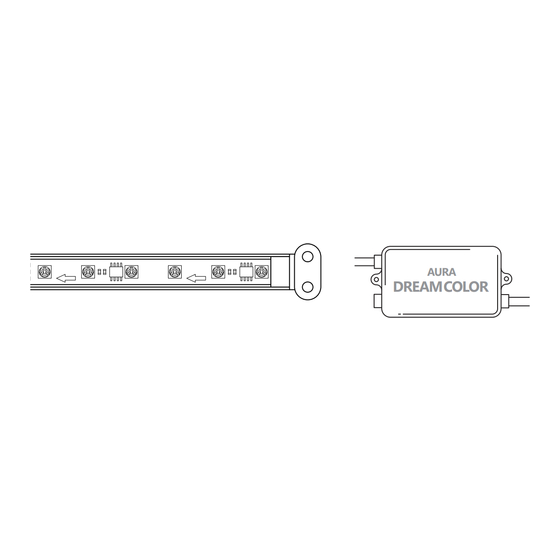

MAIN COMPONENTS
FLEXIBLE LIGHT STRIPS 36''×2 + 48''×2
HARDWIRE POWER HARNESS
ADHESIVE
BOOSTER
INCLUDES -
WIRE MOUNTS, SELF-TAPPING
SCREWS, BOOSTER, VELCRO, ZIP TIES
MOUNTING KIT
AURA
GLOW
FLEXIBLE / 4PC
INSTALLATION GUIDE
HAND HELD REMOTE
TM
AURA
DREAM
COLOR
CONTROL BOX
(SCAN QR CODE FOR APP USER GUIDE)
ON
AUTO
S+
M+
S-
M-
OFF
Advertisement
Related Manuals for OPT7 Aura Glow Dreamcolor Underglow
Summary of Contents for OPT7 Aura Glow Dreamcolor Underglow
- Page 1 AURA GLOW DREAMCOLOR UNDERGLOW FLEXIBLE / 4PC INSTALLATION GUIDE MAIN COMPONENTS AURA DREAM COLOR CONTROL BOX FLEXIBLE LIGHT STRIPS 36''×2 + 48''×2 (SCAN QR CODE FOR APP USER GUIDE) AUTO HARDWIRE POWER HARNESS ADHESIVE BOOSTER INCLUDES - WIRE MOUNTS, SELF-TAPPING SCREWS, BOOSTER, VELCRO, ZIP TIES HAND HELD REMOTE MOUNTING KIT...
- Page 2 INSTALLATION Inspect the kit has all the contents included and power the unit to test the lights STEP 1 function properly with the 12 volt adapter provided. STEP 2 Decide where to locate the control box and ensure wiring has enough length for light LEFT LEFT strips to be installed in desired location.
- Page 3 INSTALLATION HOW TO CONNECT POWER HARNESS TO YOUR VEHICLE Connect the Red wire (+) of power harness to the vehicle battery's positive terminal. Connect the Black wire (-) of power harness to the vehicle battery's negative terminal or an unpainted area on your vehicle's frame.
- Page 4 INSTALLATION STEP 5 Secure the light bars using the zip ties to tie all the wiring away from the moving components. STEP 6 AUTO Using the included E-Z Remote, select your desired color or pattern. Power-ON Automatic Color Change Power-OFF Speed +/- 10Levels Mode +/- 20 Mode Dimmer 10 Levels...
- Page 5 Please scan to see the OPT7 GLOW user guide. https://wintis.ladesk.com/362302-OPT7-AURA-Glow-Application-User-Guide DISCLAIMER OPT7 Lighting is not liable for damages or personal injuries while installing this product. The Installation Guide is intended as assistance to reduce setup time. OPT7 Lighting assumes no responsibility for improper installation.
