OPT7 Aura Instruction Manual

HOW TO USE THE APP
BLEDIM APP BUTTONS
Once you've downloaded the BLEDIM App, you will then turn on your
Smartphone's Bluetooth connection and connect to the app.
You can use the App for up to 30 feet away from your boat.
Click Top Left Bluetooth Icon.
2 1
Search the Bluetooth devices and it will appear the name of
"Bluetooth_Dimmer".
Click to connect it., and then the connection will successful .
Begin using the color listings to change the LED colors.
OTHER MENU SETTINGS
3
1. Power button
2. Quick Connect
3. Scene Modes
4. DIY Mode
5. Controlling mode
6. SoundSync Mode
5 4 6

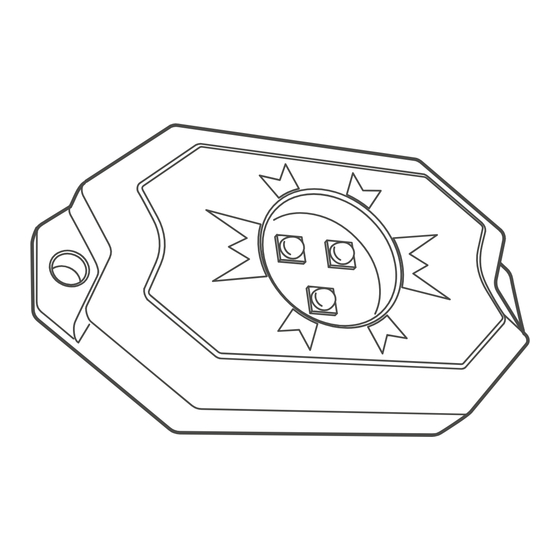

LED BOAT LIGHT POD DIMENSIONS
72.5 mm (2.85 inch)
4.2 mm
(0.17 inch)
64.2 mm (2.53 inch)
BOAT LIGHT FREE DOWNLOADABLE APP
Download the free
BLEDIM app by taking
a photo of the QR
Code below, or go to
either of these links:
TM
40.3 mm
(1.59 inch)
IOS 7.0 Android 4.3
https://apps.apple.co https://play.google.com
m/us/app/bledim/id1 /store/apps/details?id=
027450939 com.forwell.bledim
LED BOAT INTERIOR LIGHT
INSTRUCTION MANUAL
Boat Light Bluetooth
Durable DIY Design Control Features
Input Voltage DC12~24V
input Power 9.6 Watts
12LEDs 3 Tri-Core Cree per pod
Downloadable Simple to Follow
QR Code Installation Guide
for Smartphone
Raw Lumens 400 LM(All 4Pods combined)
Waterproof IP68(Only Pod)
Operating Temperature -5℉~120℉
