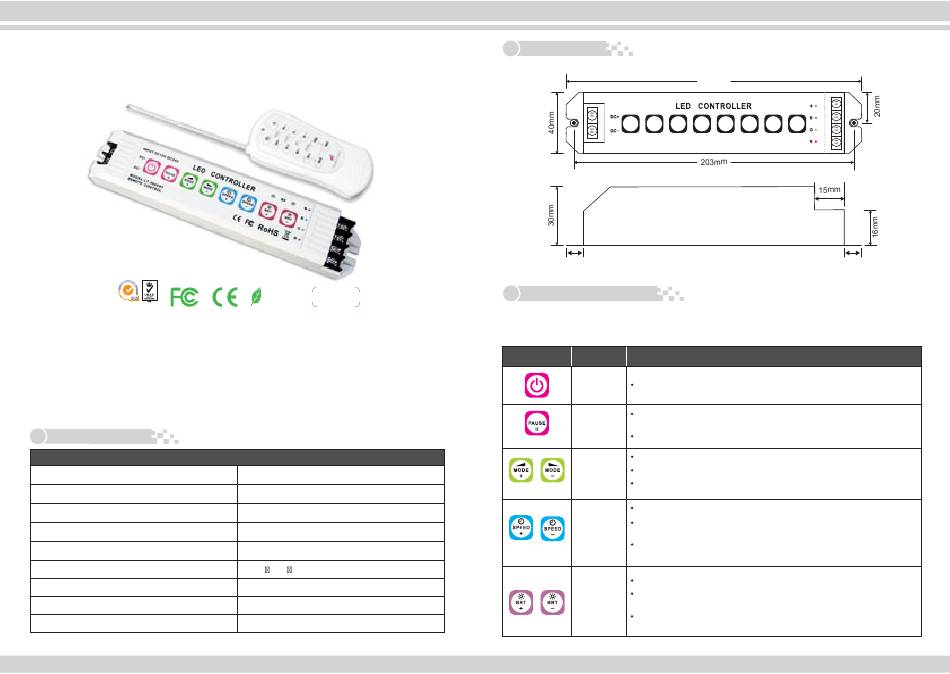

Ltech LT-3900 Quick Start Manual

LT-3900
LED RGB Controller
ISO9001:2008

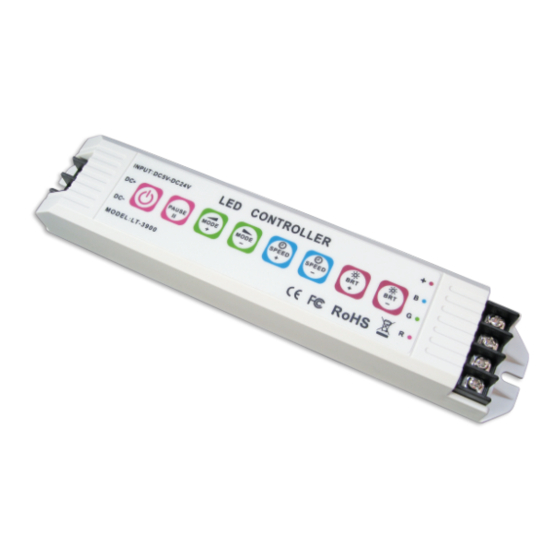

LT-3900 is a multi-functional RGB controller, built-in 32 modes, adopts advanced PWM (Pluse-
Width Modulation) control technique, smooth changing effect, without flicker. Adopting hi-power
MOS driver, RGB 3 channels output and total current up to 18A; With unique touch technique,
the controller has 8 touch buttons, which are used for choosing ON/OFF, PAUSE, MODE+/-,
SPEED+/-,BRT+/-. It can automatically adapt to DC5-24V input, suitable for most conventional
RGB LED products, such as LED strips, LED modules, etc. and all low-power RGB LED lights
whose current is limited by resistors can be controlled.
1. Technical Specs:
LT-3900
Power Supply Chosen
Input Voltage
Max. Load Current
Max. Load Power
Grey Scale
Working Temperature
Product Size
Packing Size
Weight (G.W.)
RoHS
warranty
3 years
COMPLIANT
CV LED Power Supply
〜
DC5V DC24V
6A/CH x3CHs
90W/216W/432W(5V/12V/24V)
256 Steps per RGB
-30 ~55
L211×W40×H30(mm)
L215×W43×H32(mm)
180g
1
2. Product Size:
10mm
3. Detailed Key Functions:
There are 8 f unction keys on the controller.
ON/OFF PAUSE MODE+ MODE- SPEED+
、 、 、 、
Sign
Button
Turn on/off the LED light.
ON/OFF
Press the key to rest at current color, it will continue to change if
PAUSE press again.
Press in 3 seconds, the buzzer can be on or off.
Press the keys to select the change modes.
MODE+
Press MODE+ over 3 seconds to enter cycle mode automatically.
MODE-
Press MODE- over 3 seconds to enter DIY cycle mode automatically.
Press the keys to quicken or slower speed.
SPEED+
Press SPEED+ over 3 seconds, all speed change is restored to
default status.
SPEED-
Press SPEED- over 3 seconds, the current speed change is
restored to default status.
Press the keys to increase or decrease brightness.
Press BRT+ over 3 seconds, all brightness modes is restored to
BRT+
default status(the brightest).
BRT-
Press BRT- over 3 seconds, the current brightness modes is
restored to default status(the brightest).
211mm
10mm
SPEED- 、 BRT+ BRT-
、 、
Description
2
