Ltech LT-3700 Manual

LTECH
LT -3700
LED RGB Controller
(Common Cathode)
ISO9001:2008

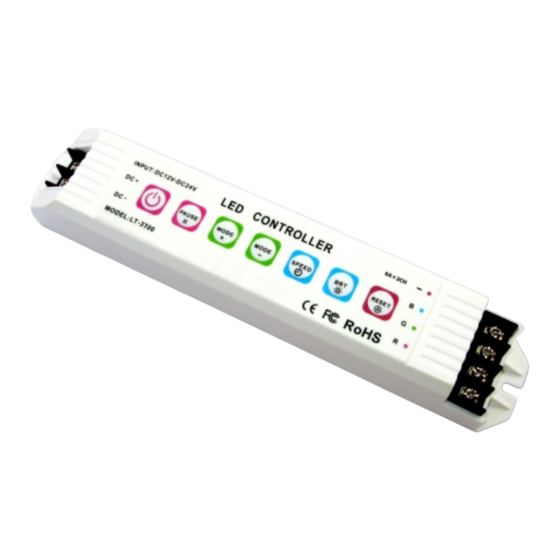

LT-3700 multi-functional LED controller is a universal RGB controller with
high-performance, adopted the most advanced PWM control technology.
It's dedicated to control entire RGB color changes of LED lights with 4
wires (common cathode).
1. Technical Specs
LT-3700 (Common Cathode)
Power supply chosen
Input voltage
Max current load
Output power max
Grey Scale
Working temperature
Dimension
Package Size
Weight (G.W)
ZHUHAI LTECH ELECTRONIC TECHNOLOGY CO., LTD.
LT-3700 LED RGB Controller Manual
RoHS
warranty
3 years
COMPLIANT
DC CV SMPS
DC12V～DC24V
6A/CH 3CH 18A Max ×
220W/450W(12V/24V)
256 levels
℃ ℃
-30 -55
L211 W40 H30(mm) × ×
L215 W43 H33(mm) × ×
160g
1
Tel: +86 756 620 8823
LTECH
2. Product size
10mm
3. Operating instructions
The controller, there are 7 function keys:
ON/OFF、PAUSE、MODE+、MODE-、SPEED、BRT、RESET
Sign
Button RF
ON/OFF：Turn on/off the controller
1
ON/OFF
Any button can start the controller at off status.
Pause：Press this button will rest at current color,
PAUSE
2
MODE+ 3
Mode+：Press this button to select next mode.
MODE- 4
Mode-：Press this button & back to previous mode
SPEED 5 Speed：Press this button to select 1-8 speed changing levels.
Brightness：Press this button to select 1-8 brightness
BRT 6
Reset：Press it a second, enter Cycle mode；Press this
RESET
Fax: +86 756 620 8833
LT@LTECHONLINE.COM
LT-3700 LED RGB Controller Manual
211mm
10mm
Description
press it again, will continue to change.
adjustment levels.
button over 3 seconds，if LED flickers twice, it
means it has restored to Default status successfully.
2
WWW.LTECHONLINE.COM
