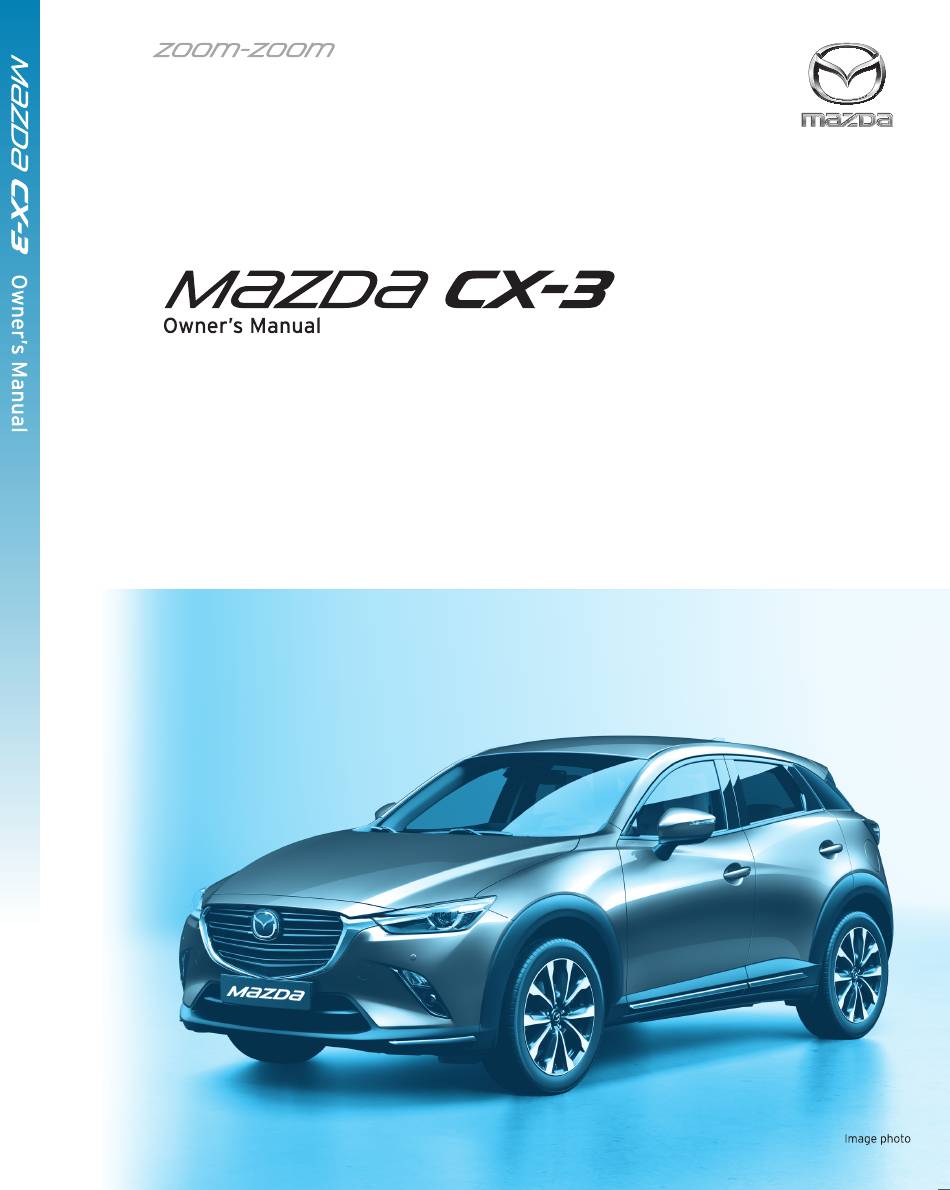

Mazda CX-3 Owner's Manual

Zoom-zoom
Hide thumbs Also See for CX-3:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
445
446
447
448
449
450
451
452
453
454
455
456
457
458
459
460
461
462
463
464
465
466
467
468
469
470
471
472
473
474
475
476
477
478
479
480
481
482
483
484
485
486
487
488
489
490
491
492
493
494
495
496
497
498
499
500
501
502
503
504
505
506
507
508
509
510
511
512
513
514
515
516
517
518
519
520
521
522
523
524
525
526
527
528
529
530
531
532
533
534
535
536
537
538
539
540
541
542
543
544
545
546
547
548
549
550
551
552
553
554
555
556
557
558
559
560
561
562
563
564
565
566
567
568
569
570
571
572
573
574
575
576
577
578
579
580
581
582
583
584
585
586
587
588
589
590
591
592
593
594
595
596
597
598
599
600
601
602
603
604
605
606
607
608
609
610
611
612
613
614
615
616
617
618
619
620
621
622
623
624
625
626
627
628
629
630
631
632
633
634
635
636
637
638
639
640
641
642
643
644
645
646
647
648
649
650
651
652
653
654
655
656
657
658
659
660
661
662
663
664
665
666
667
668
669
670
671
672
673
674
675
676
677
678
679
680
681
682
683
684
685
686
687
688
689
690
691
692
693
694
695
696
697
698
699
700
701
702
703
704
705
706
707
708
709
710
711
712
713
714
715
716
717
718
719
720
721
722
723
724
725
726
727
728
729
730
731
732
733
734
735
736
737
738
739
740
741
742
743
744
745
746
747
748
749
750
751
752
753
754
755
756
757
758
759
760
761
762
763
764
765
766
767
768
769
770
771
772
773
774
775
776
777
778
779
780
781
782
783
784
785
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents

Troubleshooting

loading
Need help?

Need help?

Do you have a question about the CX-3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mazda CX-3

Summary of Contents for Mazda CX-3

  • Page 2 CX-3̲8GT4EE18D̲Edition8̲QuickGuide.indb   1 CX-3̲8GT4EE18D̲Edition8̲QuickGuide.indb   1 2019/11/22   9:08:00 2019/11/22   9:08:00...
  • Page 3 Quick Guide This Quick Guide is provided as a simple explanation of how to operate some of the features equipped on your Mazda CX-3. For more information regarding the following sections, refer to the main owner's manual. Essential Safety Equipment...
  • Page 4 To lower the head restraint, press the stop-catch release, then push the head restraint down. Adjust the head restraint so that the centre is even with the top of the passenger's ears. Front outboard seat Rear outboard seat Rear centre seat For details, refer to Section 2, “Seats”. CX-3̲8GT4EE18D̲Edition8̲QuickGuide.indb   3 CX-3̲8GT4EE18D̲Edition8̲QuickGuide.indb   3 2019/11/22   9:08:00 2019/11/22   9:08:00...
  • Page 5 3. Attempt to push the steering wheel up and down to make sure it's locked before driving. Lock release lever For details, refer to Section 3, “Advanced Keyless Entry and Start System”, “Doors and Locks” or “Steering Wheel”. CX-3̲8GT4EE18D̲Edition8̲QuickGuide.indb   4 CX-3̲8GT4EE18D̲Edition8̲QuickGuide.indb   4 2019/11/22   9:08:00 2019/11/22   9:08:00...
  • Page 6 Front passenger's window switch Master control switches Rear window switches Driver's window Close Left rear window Open Front passenger's window Right rear window For details, refer to Section 3, “Mirrors” or “Windows”. CX-3̲8GT4EE18D̲Edition8̲QuickGuide.indb   5 CX-3̲8GT4EE18D̲Edition8̲QuickGuide.indb   5 2019/11/22   9:08:00 2019/11/22   9:08:00...
  • Page 7 10.6 Imp gal) 4WD: 44.0 L (11.6 US gal, 9.68 Imp gal) When refuelling, always add at least 10 L (2.6 US gal, 2.2 Imp gal) of fuel. For details, refer to Section 3, “Fuel and Emission”. CX-3̲8GT4EE18D̲Edition8̲QuickGuide.indb   6 CX-3̲8GT4EE18D̲Edition8̲QuickGuide.indb   6 2019/11/22   9:08:00 2019/11/22   9:08:00...
  • Page 8 5. To close the fuel-filler cap, turn it clockwise until a click is heard. 6. To close, press the fuel-filler flap until it locks securely. For details, refer to Section 3, “Fuel and Emission”. CX-3̲8GT4EE18D̲Edition8̲QuickGuide.indb   7 CX-3̲8GT4EE18D̲Edition8̲QuickGuide.indb   7 2019/11/22   9:08:00 2019/11/22   9:08:00...
  • Page 9 • The starter does not rotate until the glow indicator light turns off. For details, refer to Section 4, “Start/Stop Engine”. CX-3̲8GT4EE18D̲Edition8̲QuickGuide.indb   8 CX-3̲8GT4EE18D̲Edition8̲QuickGuide.indb   8 2019/11/22   9:08:01 2019/11/22   9:08:01...
  • Page 10 • When engine idling is stopped. • The i-stop indicator light (green) turns off when the engine is restarted. The i-stop function restart conditions differ depending on the system used. For details, refer to Section 4, “Start/Stop Engine”. CX-3̲8GT4EE18D̲Edition8̲QuickGuide.indb   9 CX-3̲8GT4EE18D̲Edition8̲QuickGuide.indb   9 2019/11/22   9:08:01 2019/11/22   9:08:01...
  • Page 11 If the driver's door is opened while engine idling is stopped, the warning sound operates to notify the driver that engine idling is stopped. It stops when the driver's door is closed. For details, refer to Section 4, “Start/Stop Engine”. CX-3̲8GT4EE18D̲Edition8̲QuickGuide.indb   10 CX-3̲8GT4EE18D̲Edition8̲QuickGuide.indb   10 2019/11/22   9:08:01 2019/11/22   9:08:01...
  • Page 12 Adjusting the display brightness and position while driving the vehicle is dangerous as doing so could distract your attention from the road ahead and lead to an accident. Active driving display For details, refer to Section 4, “Instrument Cluster and Display”. CX-3̲8GT4EE18D̲Edition8̲QuickGuide.indb   11 CX-3̲8GT4EE18D̲Edition8̲QuickGuide.indb   11 2019/11/22   9:08:01 2019/11/22   9:08:01...
  • Page 13 Engine Oil Warning Light Mazda Radar Cruise Control (MRCC) High Engine Coolant Temperature Warning Light Warning Light (Red) Mazda Radar Cruise Control with Stop (Amber) Power Steering Malfunction Indicator & Go function (MRCC with Stop & Go Light function) Warning Light...
  • Page 14 Indicator Light (Green) Mazda Radar Cruise Control (MRCC) i-ELOOP Indicator Light Set Indicator Light (Green) Mazda Radar Cruise Control with Stop (Green) Vehicle Speed Alarm Indication & Go function (MRCC with Stop & Go function) Set Indicator Light Shift Position Indication...
  • Page 15 Pull the drive selection switch back (“ ”) to cancel the sport mode. Select Mode Indicator Light When the sport mode is selected, the select mode indicator light turns on in the instrument cluster. For details, refer to Section 4, “Transaxle”. CX-3̲8GT4EE18D̲Edition8̲QuickGuide.indb   14 CX-3̲8GT4EE18D̲Edition8̲QuickGuide.indb   14 2019/11/22   9:08:01 2019/11/22   9:08:01...
  • Page 16 Stop on the windscreen and turns the wipers on or Intermittent (With intermittent wiper) Auto control (With auto-wiper control) off automatically. Low speed High speed For details, refer to Section 4, “Switches and Controls”. CX-3̲8GT4EE18D̲Edition8̲QuickGuide.indb   15 CX-3̲8GT4EE18D̲Edition8̲QuickGuide.indb   15 2019/11/22   9:08:01 2019/11/22   9:08:01...
  • Page 17 If the accelerator pedal is depressed with the parking brake applied and all of the following conditions met, the parking brake is released automatically. For the operation conditions, refer to the main owner's manual. For details, refer to Section 4, “Brake” CX-3̲8GT4EE18D̲Edition8̲QuickGuide.indb   16 CX-3̲8GT4EE18D̲Edition8̲QuickGuide.indb   16 2019/11/22   9:08:01 2019/11/22   9:08:01...
  • Page 18 Variable DC-DC converter voltage alternator Capacitor CAUTION High-current electricity flows through the following parts, therefore do not touch them. • Variable voltage alternator • DC-DC converter • Capacitor For details, refer to Section 4, “i-ELOOP”. CX-3̲8GT4EE18D̲Edition8̲QuickGuide.indb   17 CX-3̲8GT4EE18D̲Edition8̲QuickGuide.indb   17 2019/11/22   9:08:01 2019/11/22   9:08:01...
  • Page 19 Displays the status of the electricity stored in the rechargeable battery and being supplied to the electrical devices (whole vehicle in display is illuminated simultaneously). For details, refer to Section 4, “Fuel Economy Monitor”. CX-3̲8GT4EE18D̲Edition8̲QuickGuide.indb   18 CX-3̲8GT4EE18D̲Edition8̲QuickGuide.indb   18 2019/11/22   9:08:01 2019/11/22   9:08:01...
  • Page 20 Full-surround recognition 360°View Monitor Driver support systems Inter-vehicle distance Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) Mazda Radar Cruise Control (MRCC) Speed control Adjustable Speed Limiter (ASL) For details, refer to Section 4, “i-ACTIVSENSE”.
  • Page 21 Smart City Brake Support [Forward] (SCBS F) Advanced Smart City Brake Support (Advanced SCBS) Reverse driving Smart City Brake Support [Reverse] (SCBS R) Collision damage reduction in medium/high speed range Smart Brake Support (SBS) For details, refer to Section 4, “i-ACTIVSENSE”. CX-3̲8GT4EE18D̲Edition8̲QuickGuide.indb   20 CX-3̲8GT4EE18D̲Edition8̲QuickGuide.indb   20 2019/11/22   9:08:01 2019/11/22   9:08:01...
  • Page 22 40 km/h (25 mph). Highway mode This feature shifts the illumination angle of the light cast by the headlights upward while driving on highways. For details, refer to Section 4, “i-ACTIVSENSE”. CX-3̲8GT4EE18D̲Edition8̲QuickGuide.indb   21 CX-3̲8GT4EE18D̲Edition8̲QuickGuide.indb   21 2019/11/22   9:08:01 2019/11/22   9:08:01...
  • Page 23 • When the luggage compartment is loaded with heavy objects or the rear passenger seats are occupied. • When visibility is reduced due to a vehicle ahead spraying water from its tyres onto your windscreen. For details, refer to Section 4, “i-ACTIVSENSE”. CX-3̲8GT4EE18D̲Edition8̲QuickGuide.indb   22 CX-3̲8GT4EE18D̲Edition8̲QuickGuide.indb   22 2019/11/22   9:08:01 2019/11/22   9:08:01...
  • Page 24 Authorised Mazda Repairer. • The TSR operates only if the navigation system SD card (Mazda genuine) is inserted in the SD card slot. Consult an expert repairer, we recommend an Authorised Mazda Repairer for details.
  • Page 25 Check the surrounding conditions and adjust the vehicle speed to the legal speed using the appropriate operation such as depressing the brake pedal. For details, refer to Section 4, “i-ACTIVSENSE”. CX-3̲8GT4EE18D̲Edition8̲QuickGuide.indb   24 CX-3̲8GT4EE18D̲Edition8̲QuickGuide.indb   24 2019/11/22   9:08:01 2019/11/22   9:08:01...
  • Page 26 Displays the image of the front of the Displays the image of the rear of the vehicle (wide-area). vehicle (wide-area). Side view Displays the image of the left and right sides of the vehicle. For details, refer to Section 4, “i-ACTIVSENSE”. CX-3̲8GT4EE18D̲Edition8̲QuickGuide.indb   25 CX-3̲8GT4EE18D̲Edition8̲QuickGuide.indb   25 2019/11/22   9:08:01 2019/11/22   9:08:01...
  • Page 27 Switch camera icon Top view/Front view Front wide view Side view For details, refer to Section 4, “i-ACTIVSENSE”. CX-3̲8GT4EE18D̲Edition8̲QuickGuide.indb   26 CX-3̲8GT4EE18D̲Edition8̲QuickGuide.indb   26 2019/11/22   9:08:01 2019/11/22   9:08:01...
  • Page 28 The displayed screen can be switched by pressing the commander knob or by touching the switch camera icon on the screen while the top view/rear view, rear wide view is displayed. Switch camera icon Top view/Rear view Rear wide view For details, refer to Section 4, “i-ACTIVSENSE”. CX-3̲8GT4EE18D̲Edition8̲QuickGuide.indb   27 CX-3̲8GT4EE18D̲Edition8̲QuickGuide.indb   27 2019/11/22   9:08:02 2019/11/22   9:08:02...
  • Page 29 *1 Headway Control: Control of the distance between your vehicle and the vehicle ahead detected by the Mazda Radar Cruise Control (MRCC) system. Additionally, if your vehicle starts closing in on the vehicle ahead such as if the...
  • Page 30 When Driving Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) system WARNING Do not use the MRCC with Stop & Go function system in the following locations, using the MRCC with Stop & Go function system at the following locations may result in an unexpected accident: •...
  • Page 31 When Driving Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) Display Indication The MRCC with Stop & Go function setting status and operation conditions are indicated on the active driving display. Vehicle ahead display...
  • Page 32 When Driving Setting the Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) How to Set the Speed 1. Adjust the vehicle speed to the desired setting using the accelerator pedal. 2. Headway control begins when the SET + or SET - switch is pressed. The set speed and the inter-vehicle distance display filled with white lines are displayed.
  • Page 33 When Driving Setting the Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) How to Change the Set Vehicle Speed To accelerate/decelerate using the SET switch When you press the SET + switch, the vehicle accelerates and when you press the SET - switch, it decelerates.
  • Page 34 If you do not resume driving within a few seconds after the vehicle ahead starts moving, the active driving display vehicle-ahead indication flashes to urge the driver to resume driving. For details, refer to Section 4, “i-ACTIVSENSE”. CX-3̲8GT4EE18D̲Edition8̲QuickGuide.indb   33 CX-3̲8GT4EE18D̲Edition8̲QuickGuide.indb   33 2019/11/22   9:08:02 2019/11/22   9:08:02...
  • Page 35 The Advanced SCBS system operates in response to a vehicle ahead or a pedestrian. The system does not operate in response to obstructions such as a wall, 2-wheeled vehicles, or animals. For details, refer to Section 4, “i-ACTIVSENSE”. CX-3̲8GT4EE18D̲Edition8̲QuickGuide.indb   34 CX-3̲8GT4EE18D̲Edition8̲QuickGuide.indb   34 2019/11/22   9:08:02 2019/11/22   9:08:02...
  • Page 36 • The vehicle speed is between about 2 to 8 km/h (2 to 4 mph). • The SCBS R is not turned off. • The DSC is not malfunctioning. For details, refer to Section 4, “i-ACTIVSENSE”. CX-3̲8GT4EE18D̲Edition8̲QuickGuide.indb   35 CX-3̲8GT4EE18D̲Edition8̲QuickGuide.indb   35 2019/11/22   9:08:02 2019/11/22   9:08:02...
  • Page 37 Always verify the safety of the surrounding area and depress the brake pedal or accelerator pedal while keeping a safer distance from vehicles ahead or on-coming vehicles. For details, refer to Section 4, “i-ACTIVSENSE”. CX-3̲8GT4EE18D̲Edition8̲QuickGuide.indb   36 CX-3̲8GT4EE18D̲Edition8̲QuickGuide.indb   36 2019/11/22   9:08:02 2019/11/22   9:08:02...
  • Page 38 • Pedestrians or non-metallic objects such as standing trees. Collision Warning If there is the possibility of a collision with a vehicle ahead, the beep sounds continuously and a warning is indicated in the active driving display. For details, refer to Section 4, “i-ACTIVSENSE”. CX-3̲8GT4EE18D̲Edition8̲QuickGuide.indb   37 CX-3̲8GT4EE18D̲Edition8̲QuickGuide.indb   37 2019/11/22   9:08:02 2019/11/22   9:08:02...
  • Page 39 • A tyre or wheel is replaced. • The battery is replaced or completely drained. • The tyre pressure monitoring system warning light is illuminated. For details, refer to Section 4, “Tyre Pressure Monitoring System” or “Diesel Particulate Filter”. CX-3̲8GT4EE18D̲Edition8̲QuickGuide.indb   38 CX-3̲8GT4EE18D̲Edition8̲QuickGuide.indb   38 2019/11/22   9:08:02 2019/11/22   9:08:02...
  • Page 40 4. Press the A/C switch to operate the air conditioner (turn indicator light on). 5. Set the temperature control dial to the desired position. 6. To turn off the system, set the fan control dial to the 0 position. For details, refer to Section 5, “Air-Conditioning System”. CX-3̲8GT4EE18D̲Edition8̲QuickGuide.indb   39 CX-3̲8GT4EE18D̲Edition8̲QuickGuide.indb   39 2019/11/22   9:08:02 2019/11/22   9:08:02...
  • Page 41 Engine oil-filler cap SKYACTIV-D 1.5 and SKYACTIV-D 1.8 Brake/Clutch fluid reservoir Windscreen washer fluid reservoir Fuse block Engine oil dipstick Battery Engine oil-filler cap Engine coolant reservoir Cooling system cap For details, refer to Section 6, “Owner Maintenance”. CX-3̲8GT4EE18D̲Edition8̲QuickGuide.indb   40 CX-3̲8GT4EE18D̲Edition8̲QuickGuide.indb   40 2019/11/22   9:08:02 2019/11/22   9:08:02...
  • Page 42 Otherwise the wrench indicator light or engine oil warning light may turn on. To reset the engine control unit, consult an expert repairer, we recommend an Authorised Mazda Repairer or refer to the vehicle engine control unit reset procedure.
  • Page 43 • Towing Description We recommend that towing be done only by an expert repairer, we recommend an Authorised Mazda Repairer or a commercial tow-truck service. • Warning Lights and Warning Sounds If a warning light illuminates or flashes or a warning sound is heard, check for details concerning the warning light or sound in this guide.
  • Page 44 MEMO CX-3̲8GT4EE18D̲Edition8̲QuickGuide.indb   43 CX-3̲8GT4EE18D̲Edition8̲QuickGuide.indb   43 2019/11/22   9:08:02 2019/11/22   9:08:02...
  • Page 45 MEMO CX-3̲8GT4EE18D̲Edition8̲QuickGuide.indb   44 CX-3̲8GT4EE18D̲Edition8̲QuickGuide.indb   44 2019/11/22   9:08:02 2019/11/22   9:08:02...
  • Page 46 MEMO CX-3̲8GT4EE18D̲Edition8̲QuickGuide.indb   45 CX-3̲8GT4EE18D̲Edition8̲QuickGuide.indb   45 2019/11/22   9:08:02 2019/11/22   9:08:02...
  • Page 47 MEMO CX-3̲8GT4EE18D̲Edition8̲QuickGuide.indb   46 CX-3̲8GT4EE18D̲Edition8̲QuickGuide.indb   46 2019/11/22   9:08:02 2019/11/22   9:08:02...
  • Page 48 MEMO CX-3̲8GT4EE18D̲Edition8̲QuickGuide.indb   47 CX-3̲8GT4EE18D̲Edition8̲QuickGuide.indb   47 2019/11/22   9:08:02 2019/11/22   9:08:02...
  • Page 49 MEMO CX-3̲8GT4EE18D̲Edition8̲QuickGuide.indb   48 CX-3̲8GT4EE18D̲Edition8̲QuickGuide.indb   48 2019/11/22   9:08:03 2019/11/22   9:08:03...
  • Page 50 HIROSHIMA, JAPAN Important Notes About This Manual Keep this manual in the glove compartment as a handy reference for the safe and enjoyable use of your Mazda. Should you resell the vehicle, leave this manual with it for the next owner.
  • Page 51 Illustrations complement the words of the manual to best explain how to enjoy your NOTE Mazda. By reading your manual, you can A NOTE provides information and find out about the features, important sometimes suggests how to make better safety information, and driving under use of your vehicle.

  • Page 52: Table Of Contents

    Table of Contents Pictorial Index Interior, exterior views and part identification of your Mazda. Essential Safety Equipment Important information about safety equipment, including seats, seat belt system, child-restraint systems and SRS air bags. Before Driving Use of various features, including keys, doors, mirrors and windows.
  • Page 53 CX-3_8GT4-EE-18D_Edition8_old 2019-11-14 12:53:52...

  • Page 54: Pictorial Index

    Pictorial Index Interior, exterior views and part identification of your Mazda. Interior Overview (Left-Hand Drive Interior Overview (Right-Hand Drive Model)..........1-2 Model)..........1-6 Interior Equipment (View A)..1-2 Interior Equipment (View A)..1-6 Interior Equipment (View B)..1-3 Interior Equipment (View B)..1-7 Interior Equipment (View C)..1-4 Interior Equipment (View C)..1-8...
  • Page 55 Pictorial Index Interior Overview (Left-Hand Drive Model) Interior Equipment (View A) ① Door-lock knob..................... page 3-18 ② Turn and lane-change signal..................page 4-68 ③ Lighting control.....................page 4-59 ④ Wiper and washer lever..................page 4-69 ⑤ TCS OFF switch....................page 4-90 ⑥ Tyre pressure monitoring system set switch............page 4-232 ⑦...
  • Page 56 ① Audio control switches..................page 5-16 ② Instrument cluster....................page 4-21 ③ Instrument panel illumination knob..............page 4-27 ④ Mazda Radar Cruise Control (MRCC) switches........page 4-144, 4-155 ⑤ Cruise control switches..................page 4-225 ⑥ Seat warmer switches....................page 2-6 ⑦ Heated steering wheel switch................page 3-31 ⑧...
  • Page 57 Pictorial Index Interior Overview (Left-Hand Drive Model) Interior Equipment (View C) ① SRS air bags......................page 2-40 ② Active driving display................... page 4-32 ③ Air-conditioning system..................page 5-4 ④ Rear window defogger switch................page 4-74 ⑤ Audio system....................page 5-22, 5-73 ⑥ CD player..................... page 5-29, 5-85 ⑦...
  • Page 58 Pictorial Index Interior Overview (Left-Hand Drive Model) Interior Equipment (View D) ① Seat belts....................... page 2-15 ② SRS air bag......................page 2-40 ③ Bottle holders......................page 5-151 ④ Sunvisor......................page 5-146 ⑤ Vanity mirror.......................page 5-146 ⑥ Overhead lights....................page 5-146 ⑦ Sunroof switch...................... page 3-40 ⑧...
  • Page 59 Pictorial Index Interior Overview (Right-Hand Drive Model) Interior Equipment (View A) ① Wiper and washer lever..................page 4-69 ② Turn and lane-change signal..................page 4-68 ③ Lighting control.....................page 4-59 ④ Door-lock knob..................... page 3-18 ⑤ Power window switches..................page 3-38 ⑥ Power window lock switch................... page 3-38 ⑦...
  • Page 60 ④ Audio control switches..................page 5-16 ⑤ Instrument cluster....................page 4-21 ⑥ Instrument panel illumination knob..............page 4-27 ⑦ Mazda Radar Cruise Control (MRCC) switches........page 4-144, 4-155 ⑧ Cruise control switches..................page 4-225 ⑨ Remote fuel-filler flap release................page 3-29 ⑩ Bonnet release handle................... page 6-21 ⑪...
  • Page 61 Pictorial Index Interior Overview (Right-Hand Drive Model) Interior Equipment (View C) ① SRS air bags......................page 2-40 ② Audio system....................page 5-22, 5-73 ③ Air-conditioning system..................page 5-4 ④ Rear window defogger switch................page 4-74 ⑤ Active driving display................... page 4-32 ⑥ CD player..................... page 5-29, 5-85 ⑦...
  • Page 62 Pictorial Index Interior Overview (Right-Hand Drive Model) Interior Equipment (View D) ① Rearview mirror....................page 3-35 ② Sunvisor......................page 5-146 ③ Vanity mirror.......................page 5-146 ④ Overhead lights....................page 5-146 ⑤ Sunroof switch...................... page 3-40 ⑥ Bottle holders......................page 5-151 ⑦ SRS air bag......................page 2-40 ⑧...
  • Page 63 Pictorial Index Exterior Overview ① Bonnet........................page 6-21 ② Windscreen wiper blades..................page 6-33 ③ Sunroof........................page 3-40 ④ Door and key......................page 3-10 ⑤ Fuel-filler flap....................... page 3-29 ⑥ Wheels and Tyres....................page 6-42 ⑦ Exterior lights......................page 6-46 ⑧ Rear window wiper blade..................page 6-35 ⑨...
  • Page 64 Essential Safety Equipment Important information about safety equipment, including seats, seat belt system, child-restraint systems and SRS air bags. Seats............ 2-2 SRS Air Bags........2-40 Seat Precautions......2-2 Supplementary Restraint System Front Seat........2-5 (SRS) Precautions.......2-40 Rear Seat........2-9 Front Passenger Air Bag Head Restraints......2-12 Deactivation Switch ....

  • Page 65: Essential Safety Equipment

    The front seats contain air bag components essential to the supplementary restraint system. Such modifications could damage the supplementary restraint system and result in serious injury. Consult an expert repairer (we recommend an Authorised Mazda Repairer) if there is any need to remove or reinstall the front seats.
  • Page 66 Essential Safety Equipment Seats Do not drive with either front seats reclined: Sitting in a reclined position while the vehicle is moving is dangerous because you do not get the full protection from seat belts. During sudden braking or a collision, you can slide under the lap belt and suffer serious internal injuries.
  • Page 67 Essential Safety Equipment Seats (Manual Seat) When moving the seats forward and rearward or returning a rear-reclined seatback to its upright position, make sure you hold onto the seatback with your hand while operating. If the seatback is not held, the seat will move suddenly and could cause injury. When inserting your hand under the seat to clean the cabin or pick up something you dropped under the seat, be careful not to hurt yourself.
  • Page 68 Essential Safety Equipment Seats Front Seat ▼ Seat Operation Power operation Seat Slide (Manual Seat) To move a seat forward or backward, raise the lever and slide the seat to the desired position and release the lever. Make sure the lever returns to its original position and the seat is locked in place by attempting to push it forward and backward.
  • Page 69 Essential Safety Equipment Seats Seat Recline (Manual Seat) To change the seatback angle, lean forward slightly while raising the lever. Then lean back to the desired position and release the lever. Make sure the lever returns to its original position and the seatback is locked in place by attempting to push it forward and backward.
  • Page 70 Essential Safety Equipment Seats Do not place heavy objects with sharp Active driving display (display position, projections on the seat, or insert needles or brightness level, display information) pins into it: Refer to Active Driving Display on page This could cause the seat to become 4-32.
  • Page 71 Essential Safety Equipment Seats Programming NOTE If the driving position movement is not 1. Make sure the parking brake is on. changed, only the beep sounds. 2. (Automatic transaxle) A seat position can be called up even Make sure the selector lever is in the P with the engine not running.
  • Page 72 Essential Safety Equipment Seats Programming button 1 or 2 is pressed. Rear Seat The key button or button is operated. ▼ Split Folding the Seatbacks The vehicle starts moving. The active driving display is adjusted. By lowering the rear seatbacks the luggage compartment space can be expanded.
  • Page 73 Essential Safety Equipment Seats When transporting cargo, do not allow the 2. Press the push knob to fold down the cargo to exceed the height of the seatback. seatbacks. Transporting cargo stacked higher than the seatbacks is dangerous as visibility to the rear and sides of the vehicle is reduced which could interfere with driving operations and lead to an accident.
  • Page 74 Essential Safety Equipment Seats When returning a seatback to its upright ▼ Armrest position, make sure that it is firmly locked The rear armrest in the centre of the rear and the red indication is not visible. seatback can be used (no occupant in the If the red indication is visible behind the centre seat) or placed upright.
  • Page 75 Essential Safety Equipment Seats When storing the armrest, return the cup Head Restraints holder to its original position. If the armrest is stored without returning the Your vehicle is equipped with head cup holder to its original position, the restraints on all outboard seats and the rear cup holder could be deformed or centre seat.
  • Page 76 Essential Safety Equipment Seats Front outboard seat ▼ Removal/Installation To remove the head restraint, pull it up while pressing the stop-catch. To install the head restraint, insert the legs into the holes while pressing the stop-catch. WARNING Always drive with the head restraints installed when seats are being used and Rear outboard seat make sure they are properly installed:...
  • Page 77 Essential Safety Equipment Seats The head restraints on each of the front and rear seats are specialized to each seat. Do not switch around the head restraint positions. If a head restraint is not installed to its correct seat position, the effectiveness of the head restraint during a collision will be compromised which could cause injury.
  • Page 78 Seat belts help to decrease the possibility of severe injury during accidents and sudden stops. Mazda recommends that the driver and all passengers always wear seat belts. All the seats have lap/shoulder belts. These belts also have retractors with inertia locks that keep them out of the way when not in use.
  • Page 79 Have your seat belts changed immediately if the pretensioner or load limiter has been expended: Always have an expert repairer (we recommend an Authorised Mazda Repairer) immediately inspect the seat belt pretensioners and air bags after any collision. Like the air bags, the seat belt pretensioners and load limiters will only function once and must be replaced after any collision that caused them to deploy.
  • Page 80 Essential Safety Equipment Seat Belt Systems CAUTION Belt retraction may become difficult if the belts and rings are soiled, so try to keep them clean. For more details about cleaning the seat belts, refer to "Seat Belt Maintenance" (page 6-67). Ring ▼...
  • Page 81 If a belt does not fully retract, inspect it for kinks and twists. If it is still not retracting properly, have it inspected at an expert repairer (we recommend an Authorised Mazda Repairer). Take up slack Keep low on ▼ Front Shoulder Belt Adjuster...
  • Page 82 Essential Safety Equipment Seat Belt Systems Seat Belt Warning Systems Seat Belt Pretensioner and Load Limiting Systems If it detects that the occupant seat belt is unfastened, the warning light or beep For optimum protection, the front seat alerts the occupant. belts and rear outboard seat belts Refer to Taking Action on page 7-41.
  • Page 83 Wear seat belts only as recommended in result. Have an expert repairer (we this owner's manual: recommend an Authorised Mazda Incorrect positioning of the seat belts is Repairer) safely dispose of the pretensioner dangerous. Without proper positioning, the...
  • Page 84 Essential Safety Equipment Child Restraint Child-Restraint Precautions Mazda strongly urges the use of child-restraint systems for children small enough to use them. Mazda recommends use of a Mazda genuine child-restraint system or one that complies with the UN-R 44 or UN-R 129 regulation. If you would like to purchase a Mazda genuine child-restraint system, please contact an Authorised Mazda Repairer.
  • Page 85 Essential Safety Equipment Child Restraint Follow the manufacturer's instructions and always keep the child-restraint system buckled down: An unsecured child-restraint system is dangerous. In a sudden stop or a collision it could move causing serious injury or death to the child or other occupants. Make sure any child-restraint system is properly secured in place according to the child-restraint system manufacturer's instructions.
  • Page 86 Essential Safety Equipment Child Restraint Even in a moderate collision, the child-restraint system can be hit by a deploying air bag and moved violently backward resulting in serious injury or death to the child. If your vehicle is equipped with a front passenger air bag deactivation switch, always set the switch to the OFF position when installing a rear-facing child-restraint system on the front passenger seat.
  • Page 87 To avoid burning yourself or a child, check them before you or your child touches them. NOTE Your Mazda is equipped with ISOFIX anchors for attachment of ISOFIX child-restraint systems on the rear seats. When using these anchors to secure a child-restraint system, refer to “Using ISOFIX Anchor” (page 2-38).
  • Page 88 Essential Safety Equipment Child Restraint Child-Restraint System Installation ▼ Categories of Child-Restraint Systems NOTE When purchasing, ask the manufacturer of the child-restraint system which type of child-restraint system is appropriate for your child and vehicle. (Europe and countries conforming to the UN-R 44 and UN-R 129 regulation) Child-restraint systems are classified into the following 5 groups according to the UN-R 44 regulation.
  • Page 89 Essential Safety Equipment Child Restraint Due to variations in the design of (Europe) child-restraint systems, vehicle seats Recommended child-restraint system: and seat belts, all child-restraint systems Britax Römer Duo Plus may not fit all seating positions. Before purchasing a child-restraint system, it should be tested in the specific vehicle seating position (or positions) where it is intended to be used.
  • Page 90 Essential Safety Equipment Child Restraint The child-restraint system can be hit by the ▼ Baby Seat Installation Position deploying air bag and knocked out of A baby seat is used in the rear-facing position. A child in the child-restraint position only. system could be seriously injured or killed.
  • Page 91 Essential Safety Equipment Child Restraint The child-restraint system can be hit by the Rear-facing type deploying air bag and knocked out of WARNING position. A child in the child-restraint system could be seriously injured or killed. If your vehicle is equipped with a front Always install a rear-facing child seat in the passenger air bag deactivation switch, correct seat position:...
  • Page 92 Essential Safety Equipment Child Restraint Do not install a front-facing child-restraint ▼ Junior Seat Installation Position system on the front passenger seat unless it A junior seat is used in the front-facing is unavoidable: position only. In a collision, the force of a deploying air bag could cause serious injury or death to the child.
  • Page 93 Essential Safety Equipment Child Restraint Do not install a front-facing child-restraint system on the front passenger seat unless it is unavoidable: In a collision, the force of a deploying air bag could cause serious injury or death to the child. If installing a front-facing child-restraint system on the front passenger seat is unavoidable, move the front passenger seat as far back as possible...
  • Page 94 Essential Safety Equipment Child Restraint Child-Restraint System Suitability for Various Seat Positions Table (Europe and countries conforming to the UN-R 16 regulation) Provided information in the table shows your child-restraint system suitability for various seating position. For installation suitability of other manufacturer child-restraint system, carefully consult the manufacturer's instructions which accompany the child-restraint system.
  • Page 95 Essential Safety Equipment Child Restraint Europe and other countries(Except Taiwan) Passenger Seating position Rear (Left) Rear (Centre) Rear (Right) Airbag de-acti‐ Airbag activated vated Seating position suitable for uni‐ Yes (UF) Yes (U) Yes (U) Yes (U) versal belted (Yes/No) i-Size seating po‐...
  • Page 96 Vehicles with the seat height adjustment function. (Vehicles without the seat height adjustment function are indicated by an “X”, and a child-restraint system cannot be installed.) A Mazda genuine child-restraint system can be installed. Regarding child-restraint systems which can be installed, refer to the accessories catalog.
  • Page 97 IL = suitable for particular ISOFIX child-restraint systems (CRS). These ISOFIX CRS are those of the “specific vehicle”, “restricted” or “semi-universal” categories. A Mazda genuine child-restraint system can be installed. Regarding child-restraint systems which can be installed, refer to the accessories catalog.
  • Page 98 Essential Safety Equipment Child Restraint i-Size child-restraint systems An i-Size child-restraint system can be installed to the specified seat as follows: Front passenger seat Rear seat (outboard) Rear seat (centre) i-Size child-restraint sys‐ tems Key of letters to be inserted in the above table: X = Seating position not suitable for i-Size “universal”...
  • Page 99 Essential Safety Equipment Child Restraint (Other countries) Regarding child-restraint systems which can be installed to your Mazda, consult an expert repairer (we recommend an Authorised Mazda Repairer). A child-restraint system with a support leg cannot be installed on the rear centre seat position.
  • Page 100 Essential Safety Equipment Child Restraint Always remove the head restraint and Installing Child-Restraint install child-restraint system: Systems Installing a child-restraint system without removing the head restraint is dangerous. The child-restraint system cannot be ▼ Anchor Bracket installed correctly which may result in Anchor brackets for securing death or injury to the child in a collision.
  • Page 101 Essential Safety Equipment Child Restraint Make sure there are no seat belts or foreign ▼ Using ISOFIX Anchor objects near or around the ISOFIX anchor-secured child-restraint system: WARNING Not following the child-restraint system manufacturer's instructions when Follow the manufacturer's instructions for installing the child-restraint system is the use of the child-restraint system: dangerous.
  • Page 102 Essential Safety Equipment Child Restraint Always remove the head restraint and NOTE install child-restraint system (except when The markings above the ISOFIX installing a booster seat): anchors indicate the locations of the Installing a child-restraint system without ISOFIX anchors for the attachment of removing the head restraint is dangerous.
  • Page 103 Essential Safety Equipment SRS Air Bags Supplementary Restraint System (SRS) Precautions The front and side supplementary restraint systems (SRS) include different types of air bags. Please verify the different types of air bags which are equipped on your vehicle by locating the “SRS AIRBAG”...
  • Page 104 Essential Safety Equipment SRS Air Bags WARNING Seat belts must be worn in air bag equipped vehicles: Depending only on the air bags for protection during an accident is dangerous. Alone, air bags may not prevent serious injuries. The appropriate air bags can be expected to inflate only in the first accident, such as frontal, near frontal or side collisions that are at least moderate.
  • Page 105 Essential Safety Equipment SRS Air Bags Sit in the centre of the seat and wear seat belts properly: Sitting too close to the side air bag modules or placing hands on them, or sleeping up against the door or hanging out the windows is extremely dangerous. The side and curtain air bags inflate with great force and speed directly expanding along the door on the side the car is hit.
  • Page 106 It also includes installing extra electrical equipment on or near system components or wiring. An expert repairer (we recommend an Authorised Mazda Repairer) can provide the special care needed in the removal and installation of front seats. It is important...
  • Page 107 Should you sell your Mazda, we urge you to tell the new owner of its air bag systems and that familiarization with all instructions about them, from the Owner's Manual, is important.
  • Page 108 Essential Safety Equipment SRS Air Bags (Taiwan, except front passenger seat, if equipped with the following label) The highly-visible labels warn against the use of a rear-facing child-restraint system on the seat protected by an air bag. 2-45 CX-3_8GT4-EE-18D_Edition8_old 2019-11-14 12:53:52...
  • Page 109 Essential Safety Equipment SRS Air Bags Front Passenger Air Bag Deactivation Switch WARNING Do not deactivate the front passenger air bag unnecessarily: Unnecessary deactivation of the front passenger air bag is dangerous. If turned off unnecessarily, the front passenger will not receive the added protection of the air bag. Serious injuries or even death could occur.
  • Page 110 NOTE Have the front passenger air bag deactivation switch inspected by an expert repairer (we recommend an Authorised Mazda Repairer) if any of these conditions occur: The front passenger air bag deactivation indicator light does not illuminate for a specified period of time when the ignition is switched ON.
  • Page 111 Essential Safety Equipment SRS Air Bags Front passenger front air bag, side air bag, and front passenger seat belt pretensioner do not operate. Switching to OFF position 1. Insert the key into the front passenger air bag deactivation switch and turn the key clockwise until the key points to OFF.
  • Page 112 Essential Safety Equipment SRS Air Bags Supplementary Restraint System Components * Some models Driver/Front passenger inflators and air bags Crash sensors, and diagnostic module (SAS unit) Seat belt pretensioners (page 2-19) Front air bag sensors Side crash sensors Air bag/seat belt pretensioner system warning light (page 4-35) Side and curtain inflators and air bags Front passenger air bag deactivation indicator light (page 2-46)
  • Page 113 SRS Air Bags How the SRS Air Bags Work Your Mazda is equipped with the following types of SRS air bags. SRS air bags are designed to work together with the seat belts to help to reduce injuries during an accident.
  • Page 114 Essential Safety Equipment SRS Air Bags ▼ Driver Air Bag The driver's air bag is mounted in the steering wheel. When air bag crash sensors detect a frontal impact of greater than moderate force, the driver's air bag inflates quickly helping to reduce injury mainly to the driver's head or chest caused by directly hitting the steering wheel.
  • Page 115 Essential Safety Equipment SRS Air Bags ▼ Front Passenger Air Bag The front passenger air bag is mounted in the front passenger instrument panel. The inflation mechanism for the front passenger air bag is the same as the driver's air bag. For more details about air bag deployment, refer to "SRS Air Bag Deployment Criteria"...
  • Page 116 Essential Safety Equipment SRS Air Bags ▼ Curtain Air Bags The curtain air bags are mounted in the front and rear window pillars, and the roof edge along both sides. When the air bag crash sensors detect a side impact of greater than moderate force, the curtain air bag inflates quickly and helps to reduce injury mainly to the rear outboard passenger's head caused by directly hitting interior parts such as a door or window.
  • Page 117 Essential Safety Equipment SRS Air Bags SRS Air Bag Deployment Criteria This chart indicates the applicable SRS equipment that will deploy depending on the type of collision. (The illustrations are the representative cases of collisions.) Types of collision A severe frontal/near frontal collision A severe side collision A rear collision SRS equip‐...
  • Page 118 Essential Safety Equipment SRS Air Bags Limitations to SRS Air Bag In severe collisions such as those described previously in "SRS Air Bag Deployment Criteria", the applicable SRS air bag equipment will deploy. However, in some accidents, the equipment may not deploy depending on the type of collision and its severity. Limitations to front/near front collision detection: The following illustrations are examples of front/near front collisions that may not be detected as severe enough to deploy the SRS air bag equipment.
  • Page 119 Essential Safety Equipment SRS Air Bags Limitations to side collision detection: The following illustrations are examples of side collisions that may not be detected as severe enough to deploy the SRS air bag equipment. Side impacts involving trees or poles Side impacts with two-wheeled vehicles Roll-over 2-56...
  • Page 120 Essential Safety Equipment SRS Air Bags Constant Monitoring The following components of the air bag systems are monitored by a diagnostic system: Front air bag sensors Crash sensors, and diagnostic module (SAS unit) Side crash sensors Air bag modules Seat belt pretensioners Air bag/Seat belt pretensioner system warning light Related wiring (With Front Passenger Air Bag Deactivation Switch)
  • Page 121 MEMO 2-58 CX-3_8GT4-EE-18D_Edition8_old 2019-11-14 12:53:52...
  • Page 122 Before Driving Use of various features, including keys, doors, mirrors and windows. Keys............ 3-2 Security System....... 3-43 Keys..........3-2 Modification and Add-On Keyless Entry System....3-3 Equipment........3-43 Immobilizer System....3-43 Theft-Deterrent System .....3-45 Advanced Keyless Entry System..........3-8 Advanced Keyless Entry System ..Driving Tips........3-49 ............

  • Page 123: Before Driving

    If your key (auxiliary key) is lost, consult The key contacts or is covered by a an expert repairer (we recommend an metal object. Authorised Mazda Repairer), and have The key is near electronic devices such your code number ready. as personal computers.

  • Page 124: Keyless Entry System

    (we recommend an Authorised Mazda Repairer). If your key is lost or stolen, consult an expert repairer (we recommend an Authorised Mazda Repairer) as soon as possible for a replacement and to make the lost or stolen key inoperative. CX-3_8GT4-EE-18D_Edition8_old...
  • Page 125 Before Driving Keys Additional keys can be obtained at an CAUTION Authorised Mazda Repairer. Up to 6 keys can be used with the keyless Changes or modifications not expressly functions per vehicle. Bring all keys to approved by the party responsible for...
  • Page 126 Before Driving Keys The volume of the beep sound can also (With the advanced keyless function be changed. (Except European models)) Refer to Personalisation Features on A beep sound will be heard once. page 9-13. Use the following procedure to change the setting.
  • Page 127 Before Driving Keys Unlock button Intrusion sensor cancel button To unlock the doors and the liftgate, press To cancel the intrusion sensor (part of the the unlock button and the hazard warning theft-deterrent system), press the intrusion lights will flash twice. sensor cancel button within 20 seconds (With the advanced keyless function after pressing the lock button and the...
  • Page 128 Before Driving Keys With the advanced keyless function Interior aerial Operational range Without the advanced keyless function Interior aerial Operational range NOTE The engine may not start if the key is placed in the following areas: Around the instrument panel In the storage compartments such as the glove compartment or the centre console ▼...

  • Page 129: Advanced Keyless Entry

    (we recommend an Authorised Before using the key near people who use Mazda Repairer) for details. If the medical devices, ask the medical device advanced keyless entry system has been manufacturer or your physician if radio deactivated, you can start the engine by waves from the key will affect the device.

  • Page 130: Operational Range

    Before Driving Advanced Keyless Entry System Operational Range NOTE The system may not operate if you are The system operates only when the driver too close to the windows or door is in the vehicle or within operational handles, or liftgate. range while the key is being carried.

  • Page 131: Doors And Locks

    Before Driving Doors and Locks Always confirm the safety around the Door Locks vehicle before opening a door and the liftgate: WARNING Suddenly opening a door and the liftgate is dangerous. A passing vehicle or a pedestrian could be hit and cause an Always take all children and pets with you accident.
  • Page 132 If you have any problems with the double liftgate are automatically unlocked after locking system, consult an expert repairer about 6 seconds have elapsed from the (we recommend an Authorised Mazda time of the accident. Repairer). The doors and the liftgate may not...
  • Page 133 Before Driving Doors and Locks NOTE WARNING You can also activate the system by pressing the lock button on the Never activate the double locking system transmitter twice within 3 seconds. with passengers, especially children, still (With the advanced keyless inside the vehicle: function) Activating the system with passengers,...
  • Page 134 Before Driving Doors and Locks Front doors NOTE Confirm that all doors and the liftgate are securely locked. For the liftgate, move it without pressing the electric liftgate opener to verify that the liftgate has not been left ajar. Req uest switch (European models) All doors and the liftgate cannot be locked when any door is open.
  • Page 135 Before Driving Doors and Locks 3. Within 30 seconds of opening the (Walk-away auto lock function) driver's door, press and hold the A beep sound is heard when all doors LOCK button on the key for 5 and the liftgate are closed while the seconds or longer.
  • Page 136 Before Driving Doors and Locks ▼ Locking, Unlocking with ▼ Auto Lock/Unlock Function Transmitter WARNING All doors and the liftgate can be locked/ unlocked by operating the keyless entry system transmitter, refer to Keyless Entry Do not pull the inner handle on a front System (page 3-3).
  • Page 137 Other settings for the auto door lock function are Function Function available at an expert repairer (we recommend number an Authorised Mazda Repairer). For details The auto door-lock function is disa‐ consult an expert repairer (we recommend an bled. Authorised Mazda Repairer). Refer to Personalisation Features on page 9-13.
  • Page 138 Before Driving Doors and Locks 5. Three seconds after the function NOTE setting has been changed, a beep sound The doors and the liftgate cannot be will beep in the amount of the selected locked or unlocked while the setting function number.
  • Page 139 Before Driving Doors and Locks ▼ Locking, Unlocking with Door-Lock Operation from outside Knob To lock the rear and front passenger doors with the door-lock knob from the outside, Operation from inside press the door-lock knob to the lock (With door-lock switch) position and close the door (holding the To lock any door from the inside, press the door handle in the open position is not...

  • Page 140: Liftgate

    Before Driving Doors and Locks ▼ Rear Door Child Safety Locks Liftgate These locks are intended to help prevent children from accidentally opening the WARNING rear doors. Use them on both rear doors whenever a child rides in the rear seat of Never allow a person to ride in the luggage the vehicle.
  • Page 141 The liftgate can be closed when the damper stay. Consult an expert repairer doors are locked with the key left in the (we recommend an Authorised Mazda vehicle. However, to prevent locking the Repairer) if a liftgate damper stay is...
  • Page 142 Before Driving Doors and Locks When the liftgate latch is released by Closing the liftgate pressing the electric liftgate opener, the liftgate raises slightly. If the liftgate is CAUTION not operated for a certain period of time, the liftgate cannot be raised. (With luggage board) To open When closing the liftgate, return the...
  • Page 143 Before Driving Doors and Locks NOTE CAUTION Confirm that the liftgate is securely closed. The liftgate, move it without pressing the Make sure the luggage compartment cover electric liftgate opener to verify that the is firmly secured. If it is not firmly secured, it liftgate has not been left ajar.

  • Page 144: Fuel And Emission

    Before Driving Fuel and Emission Fuel and Engine Exhaust Precautions ▼ Fuel Requirements (SKYACTIV-G 2.0) Vehicles with catalytic converters or oxygen sensors must use ONLY UNLEADED FUEL, which will reduce exhaust emissions and keep spark plug fouling to a minimum. The vehicle will perform best with fuel listed in the table.
  • Page 145 The use of E10 fuel with 10 % ethanol in Europe is safe for your vehicle. Damage to your vehicle may occur when ethanol exceeds this recommendation. Never add fuel system additives, otherwise the emission control system could be damaged. Consult an expert repairer (we recommend an Authorised Mazda Repairer) for details. NOTE (Premium unleaded fuel (within E85)) To maintain good engine startability and performance, the following points must be observed.
  • Page 146 Authorised Mazda Dealer. If a deposit cleaner other than the Mazda genuine product is used, it could result in damage to the fuel system or the engine internally; therefore use only the Mazda genuine product.
  • Page 147 Either condition will damage the converter and cause poor performance. USE ONLY UNLEADED FUEL. Do not drive your Mazda with any sign of engine malfunction. Do not coast with the ignition switched off. Do not descend steep grades in gear with the ignition switched off.
  • Page 148 Either condition will damage the converter and cause poor performance. Do not drive your Mazda with any sign of engine malfunction. Do not coast with the ignition switched off. Do not descend steep grades in gear with the ignition switched off.
  • Page 149 When inhaled, it can cause loss of consciousness and death. If you smell exhaust gas inside the vehicle, keep all windows fully open and contact an expert repairer (we recommend an Authorised Mazda Repairer) immediately. Do not run the engine when inside an enclosed area: Running the engine inside an enclosed area, such as a garage, is dangerous.

  • Page 150: Fuel-Filler Flap And Cap

    Before Driving Fuel and Emission Fuel-Filler Flap and Cap CAUTION Always use only a designated Mazda WARNING fuel-filler cap or an approved equivalent, available at an expert repairer (we When removing the fuel-filler cap, loosen recommend an Authorised Mazda the cap slightly and wait for any hissing to Repairer).
  • Page 151 Before Driving Fuel and Emission 3. Attach the removed cap to the inner side of the fuel-filler flap. Fuel-filler flap Fuel-filler cap 4. Insert the refuelling nozzle all the way and begin refuelling. Pull out the refuelling nozzle after the refuelling stops automatically.

  • Page 152: Steering Wheel

    Before Driving Steering Wheel Steering Wheel 2. Tilt the steering wheel and/or adjust the steering column length to the desired positions, then push the lever WARNING up to lock the column. 3. Attempt to push the steering wheel up and down to make sure it's locked Never adjust the steering wheel while the before driving.
  • Page 153 Before Driving Steering Wheel CAUTION The following types of persons should be careful not to touch the steering wheel. Otherwise, it could cause a low-temperature burn. Infants, small children, elderly people, and physically challenged people People with delicate skin People who are excessively fatigued People who are intoxicated People who have taken sleep-inducing medicine such as sleeping pills or cold...

  • Page 154: Mirrors

    Before Driving Mirrors Mirrors The perceived distance of objects in the outer and inner regions of the wide Before driving, adjust the inside and angle mirror is different. Objects outside mirrors. appearing in the outer region are actually further away than they are in ▼...
  • Page 155 Before Driving Mirrors Use the switch to set the mirror to the Folding outside mirror on-road position: Setting the power folding outside mirror to WARNING the on-road position by hand is dangerous. The mirror will not lock in position and will Always return the outside mirrors to the prevent effective rearview visibility.
  • Page 156 Before Driving Mirrors Type B Engine-off outside mirror operation To fold the mirrors, press the mark on The outside mirrors can be operated for the outside mirror folding switch. about 40 seconds after the ignition is To return the mirrors to their on-road switched from ON to off.
  • Page 157 Before Driving Mirrors Reducing glare from headlights Manual antidazzle mirror Push the antidazzle lever forward for day driving. Pull it back to reduce glare of headlights from vehicles at the rear. Antidazzle lever Night Auto-dimming mirror The auto-dimming mirror automatically reduces the glare of headlights from vehicles at the rear when the ignition is switched ON.

  • Page 158: Windows

    Before Driving Windows Power Windows The windows can be opened/closed by operating the power window switches. WARNING Make sure the opening is clear before closing a window: Closing a power window is dangerous. A person's hands, head, or even neck could be caught by the window and result in serious injury or even death.
  • Page 159 Before Driving Windows ▼ Opening/Closing Windows The window opens while the switch is pressed and it closes while the switch is pulled up with the ignition switched ON. Do not open or close three or more windows at the same time.
  • Page 160 Before Driving Windows ▼ Auto-opening/Closing ▼ Jam-safe Window To fully open the window automatically, If foreign matter is detected between the press the switch completely down, then window and the window frame while the release. The window will fully open window is closing automatically (refer to automatically.

  • Page 161: Sunroof

    This could cause serious injury or death. Before leaving the vehicle or washing your Mazda, make sure the sunroof is Never allow children to play with the tilt/ completely closed so that water does not slide switch: get inside the cabin area.
  • Page 162 Before Driving Windows Tilt Operation Slide Operation The rear of the sunroof can be tilted open To fully open automatically, momentarily to provide more ventilation. press the tilt/slide switch in the backward direction. To fully tilt automatically, momentarily To stop sliding partway, press the tilt/slide press the tilt/slide switch.
  • Page 163 Before Driving Windows ▼ Sunshade The sunshade can be opened and closed by hand. The sunshade opens at the same time as the sunroof slides open, but it must be closed by hand. Sunshade 3-42 CX-3_8GT4-EE-18D_Edition8_old 2019-11-14 12:53:52...

  • Page 164: Security System

    Immobilizer System Equipment The immobilizer system allows the engine to start only with a key the system Mazda cannot guarantee the immobilizer recognises. and the theft-deterrent systems' operation if the system has been modified or if any If someone attempts to start the engine add-on equipment has been installed.
  • Page 165 ON with the correct possible. programmed key. The security indicator If you lose a key, an Authorised Mazda light illuminates for about 3 seconds and Repairer, will reset the electronic codes then turns off. If the engine does not start...

  • Page 166: Theft-Deterrent System

    Theft-Deterrent System intrusion sensor or the intrusion sensor bezel. If the theft-deterrent system detects an Do not install seats that are not Mazda inappropriate entry into the vehicle or the genuine products. intrusion sensor detects movement in the To prevent obstruction of intrusion...
  • Page 167 Before Driving Security System The system will be triggered again (up to The hazard warning lights will flash 10 times) if one of the above conditions once. remains. (With the advanced keyless function) Press a request switch. (With the intrusion sensor) Disconnecting the battery terminal (the The security indicator light in the hazard warning lights do not flash).
  • Page 168 Before Driving Security System ▼ Cancelling the Intrusion Sensor NOTE If any door or the liftgate remains closed (With Intrusion Sensor) for 30 seconds, all the doors and the If the theft deterrent system has been liftgate automatically re-lock and the theft armed while any of the following deterrent system arms even if a window conditions are present, cancel the intrusion...
  • Page 169 Before Driving Security System ▼ To Turn Off an Armed System An armed system can be turned off using any one of the following methods: Pressing the unlock button on the transmitter. Starting the engine with the push button start. (With the advanced keyless function) Pressing a request switch on the doors.

  • Page 170: Driving Tips

    Environment No special running-in is necessary, but a few precautions in the first 1,000 km (600 How you operate your Mazda determines miles) may add to the performance, how far it will travel on a tank of fuel. Use economy, and life of the vehicle.

  • Page 171: Hazardous Driving

    Driving Tips Hazardous Driving Floor Mat We recommend the use of Genuine WARNING Mazda floor mats. WARNING Be extremely careful if it is necessary to downshift on slippery surfaces: Make sure the floor mats are secured with Downshifting into lower gear while driving on slippery surfaces is dangerous.

  • Page 172: Rocking The Vehicle

    Before Driving Driving Tips Do not install two floor mats, one on top of Rocking the Vehicle the other, on the driver's side: Installing two floor mats, one on top of the WARNING other, on the driver's side is dangerous as the retention pins can only keep one floor mat from sliding forward.

  • Page 173: Winter Driving

    Ask an expert repairer (we recommend an times until the brake performance Authorised Mazda Repairer) to check the returns to normal. following: ▼ Snow Tyres Have the proper ratio of antifreeze in the radiator.
  • Page 174 Before Driving Driving Tips ▼ Tyre Chains Tyre chain selection (Europe) Mazda recommends hexagon type steel Check local regulations before using tyre ring chains. Select the proper type chains. according to your tyre size. CAUTION Chains may affect handling. Do not go faster than 50 km/h (30 mph) or the chain manufacturer's recommended limit, whichever is lower.

  • Page 175: Driving In Flooded Area

    3. Retighten the chains after driving damage or stalling from water absorption. 1/2―1 km (1/4―1/2 mile). If the vehicle has been immersed in water, consult an expert repairer (we recommend an Authorised Mazda Repairer). 3-54 CX-3_8GT4-EE-18D_Edition8_old 2019-11-14 12:53:52...

  • Page 176: Turbocharger Information (Skyactiv-D 1.5, Skyactiv-D 1.8)

    Before Driving Driving Tips Turbocharger Information (SKYACTIV-D 1.5, SKYACTIV-D 1.8) CAUTION After driving at freeway speeds or up a long hill, trailer towing for a long time, idle the engine at least 30 seconds before stopping it. Otherwise, the turbocharger could be damaged.

  • Page 177: Towing

    Mazda Repairer) if you need further details. CAUTION Do not tow a trailer during the first 1,000 km (600 miles) of your new Mazda. If you do, you may damage the engine, transaxle, differential, wheel bearings, and other power train components.
  • Page 178 Before Driving Towing CAUTION Be aware of the towing load weight differences when towing at high altitudes. For altitudes exceeding 1,000 meter (3,280 ft 10 in), always reduce the towing load by 10% for every 1,000 meter (3,280 ft 10 in) increase in altitude from the load indicated under the gross combination weight heading in the maximum trailer towing-load table.
  • Page 179 Before Driving Towing Germany and Austria/Gradient up to 8% TOTAL TRAILER GROSS COMBI‐ MODEL WEIGHT NATION WEIGHT Emis‐ i-ELOO i-stop Trailer with‐ Trailer with Engine Transaxle sion lev‐ P sys‐ Trailer with brake system out brake brake Manual SKYACTIV-G 625 kg 1,200 kg transaxle EURO6...
  • Page 180 Before Driving Towing South Africa/Gradient up to 12% TOTAL TRAILER GROSS COMBI‐ MODEL WEIGHT NATION WEIGHT i-stop Drive Trailer with‐ Trailer with Engine Transaxle Sunroof Trailer with brake system system out brake brake SKYACTIV-G Manual 630 kg 850 kg ― ―...
  • Page 181 ▼ Trailer Hitch When towing a trailer, use an appropriate trailer hitch. We recommend using a genuine Mazda trailer hitch. Use the original holes drilled by the vehicle manufacturer for securing the trailer hitch. Contact your Authorised Mazda Repairer, for more information.
  • Page 182 ▼ Trailer Lights CAUTION Do not connect a trailer lighting system directly to the lighting system of your Mazda. This may damage your vehicle's electrical system and lighting systems. To connect the lighting system, consult an expert repairer (we recommend an Authorised Mazda Repairer).
  • Page 183 Stop and re-inspect all lights and connections after driving a short distance. Driving Your Mazda will handle differently with a trailer in tow, so practice turning, backing, and stopping in a traffic-free area. Take time to get accustomed to the extra weight and length.
  • Page 184 Before Driving Towing 5. If the vehicle has an automatic transaxle, put the selector lever in P position. If it has a manual transaxle, place the gear shift in 1 or R position. Starting on an Incline 1. Start the engine (page 4-5). 2.
  • Page 185 MEMO 3-64 CX-3_8GT4-EE-18D_Edition8_old 2019-11-14 12:53:52...
  • Page 186 When Driving Information concerning safe driving and stopping. Start/Stop Engine......4-4 Switches and Controls.....4-59 Ignition Switch......4-4 Lighting Control......4-59 Starting the Engine....... 4-5 Front Fog Lights ....... 4-66 Turning the Engine Off....4-11 Rear Fog Light ......4-67 i-stop ......... 4-12 Turn and Lane-Change Signals........
  • Page 187 Fuel Economy Monitor....4-94 Mazda Radar Cruise Control with Stop & Go function (MRCC with Fuel Economy Monitor ..... 4-94 Stop & Go function) ....4-152 Adjustable Speed Limiter (ASL) ..Drive Selection.......4-101 ..........4-165 Drive Selection ....... 4-101 Advanced Smart City Brake Support (Advanced SCBS) ....4-172...
  • Page 188 Parking Sensor System....4-242 Parking Sensor System ... 4-242 *Some models. CX-3_8GT4-EE-18D_Edition8_old 2019-11-14 12:53:52...

  • Page 189: When Driving

    When Driving Start/Stop Engine Ignition Switch The power supply to electrical devices ▼ Push Button Start Positions turns off and the push button start indicator light (amber) also turns off. The system operates only when the driver In this position the steering wheel is is in the vehicle or within operational locked.

  • Page 190: Starting The Engine

    This does not indicate an abnormality. the key. Consult an expert repairer (we recommend an Authorised Mazda Repairer) for details. If the push button start system functions have been deactivated, you can start the engine by following the procedure indicated when the key battery goes dead.
  • Page 191 When Driving Start/Stop Engine After starting a cold engine, the engine 6. Verify that the KEY indicator light speed increases and a whining sound (green) in the instrument cluster and from the engine compartment can be the push button start indicator light heard.
  • Page 192 ON. Have your vehicle inspected at an engine can be force-started. Press expert repairer (we recommend an and hold the push button start until Authorised Mazda Repairer) as soon as the engine starts. Other procedures possible. necessary for starting the engine,...
  • Page 193 (automatic transaxle) is released expert repairer (we recommend an before the engine starts, depress Authorised Mazda Repairer) (page the clutch pedal (manual 7-25). transaxle) or the brake pedal (SKYACTIV-D 1.5, SKYACTIV-D (automatic transaxle) again and 1.8)
  • Page 194 When Driving Start/Stop Engine The driver's seat belt is If the engine cannot be started due to a unfastened. dead key battery, the engine can be started The clutch pedal is not released using the following procedure: completely after the engine stalled. 1.
  • Page 195 (we button start indicator light (amber) recommend an Authorised Mazda flashes. In this case, the engine may Repairer) as soon as possible. If this start, however, have the vehicle occurs, the engine can be force-started.

  • Page 196: Turning The Engine Off

    When Driving Start/Stop Engine Turning the Engine Off NOTE (SKYACTIV-G 2.0) The cooling fan in the engine WARNING compartment could turn on for a few minutes after the ignition is switched Do not stop the engine while the vehicle is from ON to OFF, whether or not the A/C moving: is on or off, to cool the engine...

  • Page 197: I-Stop

    When engine idling is stopped. Automatic transaxle (AUTOHOLD operation turned off and When not using Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function)) 1. Engine idling stops when the brake...
  • Page 198 Start/Stop Engine (When the vehicle is stopped by the 3. If the selector lever is in the N or P Mazda Radar Cruise Control with Stop position, the engine does not restart & Go function (MRCC with Stop & Go when the brake pedal is released.
  • Page 199 When Driving Start/Stop Engine (Automatic air-conditioning) When the vehicle is stopped by the Mazda Radar Cruise Control with The temperature setting dial of the air Stop & Go function (MRCC with conditioner is in a position other than Stop & Go function) stop hold control...
  • Page 200 When Driving Start/Stop Engine (SKYACTIV-D 1.5) Engine restarts automatically while engine idling is stopped The fuel injection amount learning is Under the following conditions, the engine being performed. (The i-stop indicator restarts automatically. light (green) turns off when the vehicle speed before stopping is The i-stop OFF switch is pressed until approx.
  • Page 201 Consult unfastened, the driver's door is an expert repairer (we recommend an opened, or the bonnet is opened. Authorised Mazda Repairer). (Automatic transaxle) With the selector lever in the P or N position, or the D/M range, the...
  • Page 202 NOTE A problem in the system may be indicated under the following conditions. Have your vehicle inspected at an expert repairer (we recommend an Authorised Mazda Repairer). The light does not turn on when the ignition is switched ON. The light continues to remain on even though the i-stop OFF switch has been pressed while the engine is running.
  • Page 203 When the light is flashing The light continues to flash if the system has a malfunction. Have your vehicle inspected at an expert repairer (we recommend an Authorised Mazda Repairer). i-stop indicator light (green) When the light is turned on The light turns on while engine idling is stopped and turns off when the engine is restarted.
  • Page 204 When Driving Start/Stop Engine ▼ Vehicle Roll Prevention Function (Automatic transaxle) Vehicles with the i-stop function are equipped with a vehicle roll prevention function. This function prevents the vehicle from rolling, such as when releasing the brake pedal while on a slope under the following conditions: While engine idling is stopped (prevents the vehicle from rolling back) When the engine restarts after releasing the brake pedal (prevents the vehicle's sudden...
  • Page 205 When Driving Start/Stop Engine Note that the vehicle may move suddenly after the vehicle roll prevention function is released while the vehicle is under the following conditions: The selector lever is in the N position. If the selector lever is shifted to the N position and the brake pedal is released while the i-stop function is operating, the brake force is gradually released.

  • Page 206: Instrument Cluster And Display

    When Driving Instrument Cluster and Display Meters and Gauges Instrument Cluster Type A (Digital Speed Meter Type) Type B (Analog Speed Meter Type (With Tachometer)) Type C (Analog Speed Meter Type (Without Tachometer)) Steering Switch Some models. ① Speedometer......................page 4-22 ②...
  • Page 207 When Driving Instrument Cluster and Display ⑧ Adjustable Speed Limiter (ASL) Display............. page 4-28 ⑨ Trip Computer and INFO Switch................page 4-29 ⑩ Active Driving Display..................page 4-32 ⑪ Speed Unit Selector....................page 4-22 ⑫ Odometer, Trip Meter, Trip Computer and Trip Meter Selector......page 4-24 ▼...
  • Page 208 When Driving Instrument Cluster and Display NOTE NOTE When the ignition is switched to ACC or (Vehicles with type B audio) off, the odometer or trip meters cannot be If TRIP A is reset using the trip meter displayed, however, pressing the selector when the function which synchronizes can inadvertently switch the trip meters or (resets) the fuel economy monitor and...
  • Page 209 When Driving Instrument Cluster and Display ▼ Odometer, Trip Meter, Trip Trip meter Computer and Trip Meter Selector The trip meter can record the total distance of two trips. One is recorded in trip meter The display mode can be changed between A, and the other is recorded in trip meter trip meter A and trip meter B by pressing the selector while one of them is...
  • Page 210 If you have any problems with your trip This mode displays the current fuel computer, consult an expert repairer (we economy by calculating the amount of fuel recommend an Authorised Mazda consumption and the distance travelled. Repairer). Current fuel economy will be calculated Distance-to-empty mode and displayed every 2 seconds.
  • Page 211 When Driving Instrument Cluster and Display Type A Full Striped zone Red zone 1/4 Full Empty The range varies depending on the type of gauge. Type B If the low fuel warning light illuminates or the fuel level is very low, refuel as soon as Striped zone possible.
  • Page 212 When Driving Instrument Cluster and Display ▼ Instrument Panel Illumination The brightness increases by rotating the knob to the right. (Without auto-light control) When the position lights are turned on with the ignition switched ON, the brightness of the instrument panel illumination is dimmed.
  • Page 213 When Driving Instrument Cluster and Display ▼ Outside Temperature Display Outside Temperature Warning When the outside temperature is low, the When the ignition is switched ON, the indication flashes and a beep sound is outside temperature is displayed. heard to warn the driver of the possibility of icy roads.
  • Page 214 If you have any problems with your trip distance-to empty/range may differ from computer, consult an expert repairer (we the amount indicated. recommend an Authorised Mazda Repairer). Average fuel economy mode This mode displays the average fuel Distance-to-empty mode...
  • Page 215 When Driving Instrument Cluster and Display If TRIP A is reset using the trip meter Average vehicle speed mode when the function which synchronizes This mode displays the average vehicle (resets) the fuel economy monitor and the speed by calculating the distance and the trip meter (TRIP A) is on, the displayed time travelled since connecting the battery past data is reset.
  • Page 216 When Driving Instrument Cluster and Display NOTE Always set the vehicle speed according to the laws and regulations of the country/city in which the vehicle is driven. In addition, always verify the speed of the vehicle using the speedometer. The vehicle speed alarm function can be set between 30 and 250 km/h (20 and 150 mph).

  • Page 217: Active Driving Display

    When Driving Instrument Cluster and Display Active Driving Display Mirror Combiner Optical receiver WARNING Always adjust the display brightness and position with the vehicle stopped: Adjusting the display brightness and position while driving the vehicle is dangerous as doing so could distract your attention from the road ahead and lead to an accident. CAUTION Do not try to adjust the angle or open/close the active driving display manually.
  • Page 218 Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) Operation Conditions and Warnings Refer to Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) on page 4-152. Mazda Radar Cruise Control (MRCC) Operation Conditions and Warnings Refer to Mazda Radar Cruise Control (MRCC) on page 4-141.
  • Page 219 When Driving Instrument Cluster and Display Vehicle Speed Each setting/adjustment for the active driving display can be performed on the centre display. 1. Select the icon on the home screen and display the Settings screen. 2. Select the AD-Disp tab. 3.

  • Page 220: Warning/Indicator Lights

    When Driving Instrument Cluster and Display Warning/Indicator Lights Instrument Cluster varies depending on model and specifications. Instrument Cluster Type A (Digital Speed Meter Type) Type B (Analog Speed Meter Type (With Tachometer)) Type C (Analog Speed Meter Type (Without Tachometer)) ▼...
  • Page 221 When Driving Instrument Cluster and Display Signal Warning Page 7-33 Engine Oil Warning Light 7-33 High Engine Coolant Temperature Warning Light (Red) Power Steering Malfunction Indicator Light 7-33 Master Warning Light 7-36 7-36 Electric Parking Brake (EPB) Warning Light Flashing 4-82 Brake Pedal Operation Demand Warning Light Buzzer &...
  • Page 222 Instrument Cluster and Display Signal Warning Page Mazda Radar Cruise Control (MRCC) Warning Light 7-36 Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop 7-36 (Amber) & Go function) Warning Light 7-36 LED Headlight Warning Light Low Fuel Warning Light...
  • Page 223 When Driving Instrument Cluster and Display ▼ Indicator Lights These lights turn on or flash to notify the user of the system operation status or a system malfunction. Signal Indicator Lights Page 2-46 Passenger Air Bag Deactivation Indicator Light Seat Belt Indicator Light (Rear seat) 2-19 (Green) KEY Indicator Light...
  • Page 224 Electric Parking Brake (EPB) Indicator Light Brake Pedal Operation demand Indicator Light 4-78 (Green) 4-84 AUTOHOLD Active Indicator Light Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop 4-161 & Go function) indicator Light Front Fog Light Indicator Light 4-66 4-67...
  • Page 225 4-117 4-136 Driver Attention Alert (DAA) Indication 4-144 Mazda Radar Cruise Control (MRCC) Set Indicator Light Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop 4-155 (Green) & Go function) Set Indicator Light Advanced Smart City Brake Sup‐...
  • Page 226 If the light does not turn on or remains turned on, have the vehicle inspected at an expert repairer (we recommend an Authorised Mazda Repairer). 2 The light turns on continuously when the parking brake is applied.
  • Page 227 An expert repairer (we recommend an When the ignition is switched ON, the Authorised Mazda Repairer) will be wrench indicator light turns on and then able to reset the engine control unit or turns off after a few seconds.
  • Page 228 A problem in the system might be indicated under the following conditions. Have your vehicle inspected by an expert repairer (we recommend an Authorised Mazda Repairer). The glow indicator light does not turn on when the ignition is switched ON or it remains on.

  • Page 229: Manual Transaxle Operation

    When Driving Manual Transaxle Operation Manual Transaxle Shift WARNING Pattern Do not use sudden engine braking on slippery road surfaces or at high speeds: Shifting down while driving on wet, snowy, or frozen roads, or while driving at high speeds causes sudden engine braking, which is dangerous.
  • Page 230 When Driving Manual Transaxle Operation NOTE ▼ Gear Shift Indicator (GSI) If shifting to R is difficult, shift back into The GSI supports you to obtain optimum neutral, release the clutch pedal, and try fuel economy and smooth driving. It again.
  • Page 231 When Driving Manual Transaxle Operation The clutch is not fully engaged when accelerating from a stop. The clutch pedal remains depressed for 2 seconds or longer while driving. 4-46 CX-3_8GT4-EE-18D_Edition8_old 2019-11-14 12:53:52...

  • Page 232: Automatic Transaxle

    When Driving Automatic Transaxle Automatic Transaxle Controls Lock-release button Various Lockouts: Indicates that you must depress the brake pedal and hold in the lock-release button to shift (The ignition must be switched ON). Indicates the shift lever can be shifted freely into any position. Indicates that you must hold in the lock-release button to shift.

  • Page 233: Shift-Lock System

    When Driving Automatic Transaxle Shift-Lock System Take the vehicle to an expert repairer (we recommend an Authorised Mazda The shift-lock system prevents shifting out Repairer) to have the system checked. of P unless the brake pedal is depressed. Type B 1.

  • Page 234: Transaxle Ranges

    When Driving Automatic Transaxle Transaxle Ranges NOTE (With parking sensor system) When the selector lever is shifted to the R The shift position indicator light in the instrument cluster illuminates. position with the ignition switched ON, the parking sensor system is activated and a Refer to Warning/Indicator Lights on page 4-35.
  • Page 235 When Driving Automatic Transaxle NOTE ▼ Active Adaptive Shift (AAS) Apply the parking brake or depress the Active Adaptive Shift (AAS) brake pedal before moving the selector automatically controls the transaxle shift lever from N position to prevent the points to best suit the road conditions and vehicle from moving unexpectedly.

  • Page 236: Manual Shift Mode

    When Driving Automatic Transaxle Manual Shift Mode ▼ Indicators Manual shift mode indication The manual shift mode gives you the feel of driving a manual transaxle vehicle by In manual shift mode, the “M” of the shift allowing you to operate the selector lever position indication in the instrument panel manually.
  • Page 237 When Driving Automatic Transaxle Type C ▼ Gear Shift Indicator (GSI) The GSI supports you to obtain optimum fuel economy and smooth driving. It displays the selected gear position in the instrument cluster as well as notifies the driver to change to the most suitable gear position corresponding to the actual driving condition.
  • Page 238 When Driving Automatic Transaxle ▼ Manually Shifting Up WARNING You can shift gears up by operating the selector lever or the steering shift Keep your hands on the steering wheel rim switches when using fingers on the steering shift M1 → M2 → M3 → M4 → M5 → M6 switches: Putting your hands inside the rim of the Using selector lever...
  • Page 239 When Driving Automatic Transaxle ▼ Manually Shifting Down WARNING You can shift gears down by operating the selector lever or the steering shift Do not use engine braking on slippery road switches surfaces or at high speeds: M6 → M5 → M4 → M3 → M2→ M1 Shifting down while driving on wet, snowy, or frozen roads, or while driving at high Using selector lever...
  • Page 240 When Driving Automatic Transaxle ▼ Second Gear Fixed Mode When the selector lever is moved back while the vehicle speed is about 10 km/h (6.2 mph) or less, the transaxle is set in the second gear fixed mode. The gear is fixed in second while in this mode for easier acceleration from a stop and driving on slippery roads such as snow-covered...
  • Page 241 When Driving Automatic Transaxle ▼ Shift Gear (Shifting) Speed Limit For each gear position while in the manual mode, the speed limit is set as follows: When the selector lever is operated within the range of the speed limit, the gear is shifted. Shift up The gear does not shift up while the vehicle speed is lower than the speed limit.

  • Page 242: Direct Mode

    When Driving Automatic Transaxle Type B Direct Mode Direct mode can be used for temporarily switching gears by operating the steering shift switch while the vehicle is being driven with the selector lever in the D position. While in direct mode, the D and M indication illuminate and the gear position in use is illuminated.

  • Page 243: Driving Tips

    When Driving Automatic Transaxle Driving Tips Climbing steep grades from a stop To climb a steep grade from a stopped position: WARNING 1. Depress the brake pedal. 2. Shift to D or M1, depending on the Do not let the vehicle move in a direction load weight and grade steepness.

  • Page 244: Switches And Controls

    When Driving Switches and Controls Lighting Control ▼ Headlights Turn the headlight switch to turn the headlights, other exterior lights and instrument panel illumination on or off. When the lights are turned on, the lights-on indicator light in the instrument cluster turns on. NOTE To prevent discharging the battery, do not leave the lights on while the engine is off unless safety requires them.
  • Page 245 When Driving Switches and Controls The lights are turned on while the vehicle is driven. The lights are turned on continuously if the ignition is switched from ON to any other position with the lights turned on. The lights are turned off when the driver's door is opened or 30 seconds have elapsed since the lights turned on.
  • Page 246 When Driving Switches and Controls (Type B) Ignition Position ACC or OFF Switch Position AUTO AUTO Headlights Running lights *2*4 *3*4 Auto Auto Tail lights Position lights Number plate lights The light switch returns to the AUTO position automatically. During the daytime, the running lights turn on automatically. During the nighttime, the headlights, position lights, tail lights, and the number plate lights turn on automatically.
  • Page 247 To adjust the brightness of the instrument panel illumination: Refer to Instrument Panel Illumination on page 4-27. The sensitivity of the AUTO lights may be changed by an Authorised Mazda Repairer. Refer to Personalisation Features on page 9-13.
  • Page 248 When Driving Switches and Controls ▼ Headlight High-Low Beam ▼ Flashing the Headlights The headlights switch between high and Can be used when the ignition is switched low beams by moving the lever forward or backward. To flash the headlights, pull the lever fully towards you (the headlight switch does not need to be on).
  • Page 249 When Driving Switches and Controls ▼ Coming Home Light ▼ Leaving Home Light The coming home light turns on the The leaving home light turns on the lights headlights (low beams) when the lever is when the transmitter unlock button is operated.
  • Page 250 When Driving Switches and Controls ▼ Headlight Levelling ▼ Running Lights The number of passengers and weight of Some countries require moving vehicles to cargo in the luggage compartment change have their lights on (running lights) during the angle of the headlights. the daytime.

  • Page 251: Front Fog Lights

    When Driving Switches and Controls To turn the front fog lights off, do any of Front Fog Lights the following: The front fog lights can be used when the Rotate the fog light switch to the ignition is switched ON. position.

  • Page 252: Rear Fog Light

    When Driving Switches and Controls To turn the rear fog light off, do any of the Rear Fog Light following: The rear fog light can be used when the Rotate the fog light switch to the ignition is switched ON. position again (the fog light switch The rear fog light helps your vehicle to be returns to the...

  • Page 253: Turn And Lane-Change Signals

    When Driving Switches and Controls ▼ Type B (Without Front Fog Light) Turn and Lane-Change Signals The headlights must be turned on to turn on the rear fog light. The ignition must be switched ON to use the turn and lane-change signals. To turn the rear fog light on, rotate the fog light switch to the position (the fog...

  • Page 254: Windscreen Wipers And Washer

    When Driving Switches and Controls NOTE Windscreen Wipers and If an indicator light stays on without Washer flashing or if it flashes abnormally, one of the direction indicator bulbs may be The ignition must be switched ON to use burned out. the wipers.
  • Page 255 If the wipers do not operate even though the wiper switch is turned to a position other than OFF, consult an expert repairer (we recommend an Authorised Mazda Repairer) as soon as possible. INT ring ▼ Windscreen Wipers...
  • Page 256 When Driving Switches and Controls When the wiper lever is in the AUTO Auto-wiper control position and the ignition is switched ON, When the wiper lever is in the AUTO the wipers may move automatically in position, the rain sensor senses the amount the following cases: of rainfall on the windscreen and turns the If the windscreen above the rain sensor...
  • Page 257 (page 6-32). If the fluid level sensor uses an optical sensor. It is is normal, consult an expert repairer (we recommended that the auto-wiper lever recommend an Authorised Mazda be switched to the OFF position other Repairer). than when driving the vehicle under rainy conditions.

  • Page 258: Rear Window Wiper And Washer

    If the washer does not work, inspect the fluid level (page 6-32). If the fluid level is normal and the washer still does not work, consult an expert repairer (we recommend an Authorised Mazda Repairer). 4-73 *Some models. CX-3_8GT4-EE-18D_Edition8_old...

  • Page 259: Rear Window Defogger

    When Driving Switches and Controls Rear Window Defogger CAUTION The rear window defogger clears fog from Do not use sharp instruments or window the rear window. cleaners with abrasives to clean the inside of the rear window surface. They The ignition must be switched ON to use may damage the defogger grid inside the the defogger.

  • Page 260: Horn

    When Driving Switches and Controls Horn ▼ Mirror Defogger The mirror defoggers defrost the outside To sound the horn, press the mark on mirrors. the steering wheel. The mirror defoggers operate in conjunction with the rear window defogger. To turn on the mirror defoggers, switch the ignition ON and press the rear window defogger switch (page 4-74).

  • Page 261: Hazard Warning Flasher

    When Driving Switches and Controls Hazard Warning Flasher If the brake pedal is depressed while driving on slippery roads, the The hazard warning lights should always emergency stop signal system could be used when you stop on or near a operate causing all the turn and lane roadway in an emergency.

  • Page 262: Brake

    When Driving Brake Dry off brakes that have become wet by Brake System driving slowly, releasing the accelerator pedal and lightly applying the brakes ▼ Foot Brake several times until the brake performance This vehicle has power-assisted brakes returns to normal: that adjust automatically through normal Driving with wet brakes is dangerous.
  • Page 263 When Driving Brake Wear shoes appropriate for driving in If the EPB is repeatedly applied and order to avoid your shoe contacting the released it may stop operating to brake pedal when depressing the prevent overheating of the motor. If this accelerator pedal.
  • Page 264 When Driving Brake When applying the parking brake Parking brake manual release The parking brake can be applied Firmly depress the brake pedal and press regardless of the ignition switch position. the EPB switch. Securely depress the brake pedal and pull up the EPB switch.
  • Page 265 Brake (Automatic transaxle) When you hear this noise, consult an expert repairer (we recommend an Selector lever is in the D, M, or R Authorised Mazda Repairer) as soon as position possible. NOTE WARNING If something such as the driver's foot...
  • Page 266 When Driving Brake When the brake pedal is depressed hard or depressed more quickly, a motor/ pump operation noise may be heard. This is a normal effect of the brake assist and does not indicate a malfunction. The brake assist equipment does not supersede the functionality of the vehicle's main braking system.

  • Page 267: Autohold

    When Driving Brake AUTOHOLD The AUTOHOLD function automatically holds the vehicle stopped, even if you take your foot off the brake pedal. This function can be best used while stopped in traffic or at a traffic light. The brakes are released when you resume driving the vehicle such as by releasing the clutch pedal with the shift lever shifted to a position other than the neutral position (manual transaxle vehicle) or depressing the accelerator pedal (automatic transaxle vehicle).
  • Page 268 NOTE Under the following conditions, a problem with the AUTOHOLD is occurring. Have your vehicle inspected at an expert repairer (we recommend an Authorised Mazda Repairer) as soon as possible. The brake pedal operation demand warning light (red) in the instrument cluster flashes and the warning sound is activated for about 5 seconds while the AUTOHOLD is operating or when you press the AUTOHOLD switch.
  • Page 269 When Driving Brake ▼ AUTOHOLD System is Turned On 2. The AUTOHOLD active indicator light in the instrument cluster turns on Press the AUTOHOLD switch and when and the brakes are held. the AUTOHOLD standby indicator light turns on, the AUTOHOLD function turns AUTOHOLD standby indicator light 3.
  • Page 270 When Driving Brake To release AUTOHOLD and start When about 10 minutes or longer have driving the vehicle passed since the AUTOHOLD operation started, the parking brake is If you do any of the following actions to automatically applied. Because the resume driving the vehicle, the brakes AUTOHOLD is restored when releasing release automatically and the...

  • Page 271: Emergency Stop Signal System

    When Driving Brake If the AUTOHOLD switch is pressed Emergency Stop Signal without depressing the brake pedal System while the AUTOHOLD is operating (AUTOHOLD active indicator light is If you apply the brakes suddenly while turned on), the brake pedal operation driving at a speed of about 55 km/h (34 demand indicator light (green) in the mph) or faster, the emergency stop signal...

  • Page 272: Hill Launch Assist (Hla)

    TCS/DSC indicator light is illuminated. shift lever is in a position other than the Refer to Contact Authorised Mazda reverse (R) position. Repairer and Have Vehicle Inspected on For vehicles with an automatic transaxle, page 7-36.

  • Page 273: Abs/Tcs/Dsc

    The warning light turns on when the system has a malfunction. Refer to Contact Authorised Mazda Repairer and Have Vehicle Inspected on page 7-36. WARNING Do not rely on ABS as a substitute for safe...

  • Page 274: Traction Control System (Tcs)

    ▼ TCS/DSC Indicator Light The warning light turns on when the system has a malfunction. Refer to Contact Authorised Mazda Repairer and Have Vehicle Inspected on page 7-36. This indicator light stays on for a few seconds when the ignition is switched ON.
  • Page 275 TCS is not switched off, take your vehicle Press the switch again to turn the TCS to an expert repairer (we recommend an back on. The TCS OFF indicator light will Authorised Mazda Repairer). The DSC turn off. may have a malfunction. NOTE...

  • Page 276: Dynamic Stability Control (Dsc)

    When Driving ABS/TCS/DSC Use tyres of the correct size specified Dynamic Stability Control for your Mazda on all 4 wheels. (DSC) Use tyres of the same manufacturer, brand and tread pattern on all 4 The Dynamic Stability Control (DSC) wheels.

  • Page 277: I-Eloop

    High-current electricity flows through the following parts, therefore do not touch them. Variable voltage alternator DC-DC converter Capacitor If the capacitor is to be disposed of, always consult an expert repairer (we recommend an Authorised Mazda Repairer). For details, go to the following URL. http://www.mazda.com/csr/environment/recycling 4-92 *Some models.
  • Page 278 When Driving i-ELOOP ▼ i-ELOOP Indicator Light/Control Status Display The driver is notified of the i-ELOOP power generating status and the vehicle conditions by the i-ELOOP indicator light (green) and the control status display. i-ELOOP indicator light (green) (vehicle without type B audio) The light turns on during power generation.

  • Page 279: Fuel Economy Monitor

    When Driving Fuel Economy Monitor Fuel Economy Monitor For vehicles with type B audio, the Control Status, Fuel Consumption, and Effectiveness are switched and displayed by operating each icon in the display. In addition, after completing a trip, the total energy efficiency to date is displayed in the ending display when the ending display is turned on.
  • Page 280 When Driving Fuel Economy Monitor ▼ Fuel Consumption Display Information regarding the fuel economy is displayed. Indication on display Control status Displays the fuel economy for the past 60 minutes. Displays the fuel economy every minute for the past 1 to 10 minutes. Displays the fuel economy every 10 minutes for the past 10 to 60 minutes.
  • Page 281 When Driving Fuel Economy Monitor ▼ Control Status Display (With i-stop Function) The i-stop operation status and the i-ELOOP power generating status are displayed. Indication on display Control status With i-ELOOP system Displays the level of electricity generated by regen‐ erative braking.
  • Page 282 When Driving Fuel Economy Monitor Indication on display Control status With i-ELOOP system Displays the readiness status as to whether opera‐ tion of the i-stop function is available. Displays the operation readiness status of the i-stop function on the vehicle side (engine, battery, and A/C) Without i-ELOOP system using icon colouring.
  • Page 283 When Driving Fuel Economy Monitor Indication on display Control status With i-ELOOP system Displays the i-stop function status while the vehicle is stopped. Indicates the operations required by the driver to operate the i-stop function while it is not operating. Displays the current amount of time that the i-stop function has been operating and the accumulated amount of time that it has been operating.
  • Page 284 When Driving Fuel Economy Monitor ▼ Effectiveness Display (With i-stop Function) The actual performance of the energy efficiency is displayed. Indication on display Control status The leaf graphic grows according to the amount of emissions reduced by the system effects. The cu‐ mulative total amount of leaf growth is indicated in terms of the number of tree graphics.
  • Page 285 When Driving Fuel Economy Monitor ▼ Fuel Economy Data Reset and Trip Meter (TRIP A) Synchronization (Linking) Because the average fuel economy indication on the instrument cluster display is linked with the “Average (Since Reset)” indication on the centre display, when one is reset the other is also reset.

  • Page 286: Drive Selection

    Drive mode cannot be switched in the following conditions: ABS/TCS/DSC is operating The Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) System/Mazda Radar Cruise Control (MRCC) system/cruise control is operating. Steering wheel is being operated abruptly ▼...
  • Page 287 When Driving Drive Selection ▼ Select Mode Indicator Light When the sport mode is selected, the select mode indicator light turns on in the instrument cluster. NOTE If the drive selection cannot be switched to sport mode, the select mode indicator light flashes to notify the driver.

  • Page 288: I-Activ Awd

    A system malfunction or operation conditions are indicated by a warning. When replacing tyres, always replace all Refer to Contact Authorised Mazda front and rear tyres at the same time. Repairer and Have Vehicle Inspected on All tyres must be of the same size, page 7-36.
  • Page 289 When Driving i-ACTIV AWD Tyre chains Install tyre chains to the front tyres. Do not use tyre chains on the rear wheels. Do not drive the vehicle faster than 30 km/h (19 mph) with the tyre chains installed. Do not drive the vehicle with tyre chains on road conditions other than snow or ice.

  • Page 290: Power Steering

    If the steering feels stiffer than usual during normal driving or the steering vibrates, consult an expert repairer (we recommend an Authorised Mazda Repairer). The warning light notifies the driver of system abnormalities and operation conditions.
  • Page 291 Driver Attention Alert (DAA)................. page 4-135 Rear obstruction detection when leaving a parking space Rear Cross Traffic Alert (RCTA)................page 4-137 Full-surround recognition 360°View Monitor....................page 4-187 Driver support systems Inter-vehicle distance Mazda Radar Cruise Control (MRCC)..............page 4-141 4-106 *Some models. CX-3_8GT4-EE-18D_Edition8_old 2019-11-14 12:53:52...

  • Page 292: I-Activsense

    Smart City Brake Support [Forward] (SCBS F) Smart Brake Support (SBS) Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) The Forward Sensing Camera (FSC) is installed at the top of the windscreen near the rearview mirror.
  • Page 293 The radar sensor (front) functions by detecting the radio waves reflected off a vehicle ahead sent from the radar sensor. The following systems also use the radar sensor (front). Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) Mazda Radar Cruise Control (MRCC)

  • Page 294: Adaptive Front Lighting System (Afs)

    A system malfunction or operation conditions are indicated by a warning. Refer to Contact Authorised Mazda Repairer and Have Vehicle Inspected on page 7-36. NOTE Headlights do not blind drivers approaching in the opposite direction no matter what side of the road you must drive your vehicle (left-hand or right-hand traffic).

  • Page 295: High Beam Control System (Hbc)

    Camera (FSC) The warning light turns on when the system has a malfunction. Refer to Contact Authorised Mazda Repairer and Have Vehicle Inspected on page 7-36. CAUTION Do not adjust the vehicle height, modify the headlight units, or remove the camera, otherwise the system will not operate normally.
  • Page 296 When Driving i-ACTIVSENSE NOTE The timing in which the system switches the headlights changes under the following conditions. If the system does not switch the headlights appropriately, manually switch between high and low beams according to the visibility as well as road and traffic conditions.

  • Page 297: Adaptive Led Headlights (Alh)

    When Driving i-ACTIVSENSE ▼ Manual Switching Adaptive LED Headlights Switching to low beams (ALH) Shift the lever to the low beam position. The ALH are a system which uses the The HBC indicator light (green) turns off. Forward Sensing Camera (FSC) to Switching to high beams determine the situation of a vehicle ahead or a vehicle approaching in the opposite...
  • Page 298 When Driving i-ACTIVSENSE Wide-Range Low Beam NOTE Under the following conditions, the ALH This feature extends the illumination range may not operate normally. Manually of the light cast by the low beams while switch between the high and low beams driving at a speed less than about 40 km/h according to the visibility, and the road (25 mph).
  • Page 299 When Driving i-ACTIVSENSE ▼ To Operate the System ▼ Manual Switching The system switches the headlights to the Switching to low beams high beams after the ignition is switched Shift the lever to the low beam position. ON and the headlight switch is in the The ALH indicator light (green) turns off.

  • Page 300: Lane Departure Warning System (Ldws)

    When Driving i-ACTIVSENSE Lane Departure Warning System (LDWS) The LDWS notifies the driver that the vehicle may be deviating from its lane. The system detects the white or yellow lines on the traffic lane using the Forward Sensing Camera (FSC) and if it determines that the vehicle may be deviating from its lane, it notifies the driver using the active driving display (vehicles with active driving display), and by flashing the LDWS warning light and activating the LDWS warning beep.
  • Page 301 When Driving i-ACTIVSENSE The functions of the LDWS have limitations: Always stay on course using the steering wheel and drive with care. The system is not designed to compensate for a driver’s lack of caution and if you rely too much on the LDWS it could lead to an accident.
  • Page 302 When Driving i-ACTIVSENSE A misleading line is picked up on the road such as a temporary line for construction, or because of shade, lingering snow, or grooves filled with water. The surrounding brightness suddenly changes such as when entering or exiting a tunnel.
  • Page 303 When Driving i-ACTIVSENSE NOTE The brake pedal is depressed abruptly. The accelerator pedal is depressed The LDWS does not operate until the abruptly. system detects a white or yellow line on The direction indicator lever is operated either the left or right. (after the direction indicator lever is When the system detects a white or returned, the LDWS may not operate for...
  • Page 304 When Driving i-ACTIVSENSE ▼ Lane Departure Warning System The type of warning sound (rumble (LDWS) Warning beep) on the LDWS can be changed. Refer to Personalisation Features on If the system determines that there is the page 9-13. possibility of a lane departure, the LDWS warning beep activates and the LDWS 1 A rumble strip is a series of grooves in warning light flashes.

  • Page 305: Blind Spot Monitoring (Bsm)

    When Driving i-ACTIVSENSE Blind Spot Monitoring (BSM) The BSM is designed to assist the driver in checking the area to the rear of the vehicle on both sides during lane changes by notifying the driver of the presence of vehicles approaching from the rear in an adjacent lane.
  • Page 306 If the BSM OFF indicator light remains illuminated, have the vehicle inspected at an expert repairer (we recommend an Authorised Mazda Repairer) as soon as possible. Some problem with the system including the BSM warning indicator lights is detected.
  • Page 307 When Driving i-ACTIVSENSE When there is a difference in the height between your driving lane and the adjacent lane. Directly after the BSM system becomes operable by changing the setting. If the road width is extremely narrow, vehicles 2 lanes over may be detected. The detection area of the radar sensors (rear) is set according to the road width of expressways.
  • Page 308 When Driving i-ACTIVSENSE ▼ Blind Spot Monitoring (BSM) Warning Indicator Lights/Blind Spot Monitoring (BSM) Warning Beep The BSM or Rear Cross Traffic Alert (RCTA) system notifies the driver of the presence of vehicles in adjacent lanes or at the rear of the vehicle using the BSM warning indicator light, the warning sound and the display indicator (vehicles with active driving display) (BSM) while the systems are operational.
  • Page 309 When Driving i-ACTIVSENSE Function for cancelling illumination dimmer If the BSM warning indicator lights turn on when the position lights are turned on, the brightness of the BSM warning indicator lights is dimmed. If the BSM warning indicator lights are difficult to see due to glare from surrounding brightness when travelling on snow-covered roads or under foggy conditions, press the dimmer cancellation button to cancel the dimmer and increase the brightness of BSM warning indicator lights when they turn on.
  • Page 310 When Driving i-ACTIVSENSE ▼ Cancelling Operation of Blind Spot Vehicles without BSM OFF switch Monitoring (BSM) The BSM system can be set to inoperable. Refer to Personalisation Features on page The BSM and Rear Cross Traffic Alert 9-13. (RCTA) systems are turned off and the When the BSM is set to inoperable, the BSM OFF indicator light in the instrument BSM and Rear Cross Traffic Alert...

  • Page 311: Traffic Sign Recognition System (Tsr)

    (we recommend an Authorised Mazda Repairer). The TSR operates only if the navigation system SD card (Mazda genuine) is inserted in the SD card slot. Consult an expert repairer (we recommend an Authorised Mazda Repairer) for details.
  • Page 312 When Driving i-ACTIVSENSE WARNING Always check the traffic signs visually while driving. The TSR helps prevent the driver from overlooking traffic signs and provides support for safer driving. Depending on the weather conditions or problems with traffic signs, a traffic sign may not be recognised or a traffic sign different from the actual traffic sign may be displayed.
  • Page 313 When Driving i-ACTIVSENSE A traffic sign is too bright or too dark (including electronic traffic signs). A traffic sign is too big or too small. There is an object similar to the traffic sign being read (such as another traffic sign or other signs resembling it).
  • Page 314 When Driving i-ACTIVSENSE The Forward Sensing Camera (FSC) recognises an inclement weather speed limit sign as a sign targeted for your vehicle and the vehicle passes it. The inclement weather speed limit sign is lower than the currently displayed speed limit sign. The windscreen wipers are operated.
  • Page 315 When Driving i-ACTIVSENSE Do not enter signs A do not enter sign is displayed when all of the following conditions are met. The vehicle speed is about 80 km/h (50 mph) or slower. The Forward Sensing Camera (FSC) recognises a do not enter sign as a sign targeted for your vehicle and the vehicle passes it.
  • Page 316 When Driving i-ACTIVSENSE ▼ Excessive Speed Warning If the vehicle speed exceeds the speed limit sign displayed in the active driving display, the area around the speed limit sign flashes 3 times in amber and the warning sound is activated 3 times at the same time.
  • Page 317 When Driving i-ACTIVSENSE Warning pattern Off: The excessive speed warning is not activated. Visual: The area around the speed limit sign displayed in the display flashes 3 times in amber, and if the vehicle speed continues to exceed the displayed speed limit sign, the indication stops flashing and remains on.

  • Page 318: Distance Recognition Support System (Drss)

    When Driving i-ACTIVSENSE Distance Recognition Support System (DRSS) The DRSS measures the distance between your vehicle and a vehicle ahead using a radar sensor (front) while the vehicle speed is about 30 km/h (19 mph) or faster, and if your vehicle approaches a vehicle ahead more closely than what is appropriate for maintaining distance between the vehicles according to the vehicle speed, a notification in the active driving display is indicated to advise you to keep a safe distance from the vehicle ahead.
  • Page 319 The DRSS operation status is indicated in the active driving display. Regarding malfunctions, check the vehicle conditions or have it inspected by an expert repairer (we recommend an Authorised Mazda Repairer) according to the content of the displayed message. Refer to Warning/Indicator Lights on page 4-35.

  • Page 320: Driver Attention Alert (Daa)

    When Driving i-ACTIVSENSE Driver Attention Alert (DAA) The DAA is a system which detects driver fatigue and decreased attentiveness, and encourages the driver to take a rest. When the vehicle is driven inside traffic lane lines at about 65 to 140 km/h (41 to 86 mph), the DAA estimates the amount of accumulated fatigue and decreased attentiveness of the driver based on the information from the Forward Sensing Camera (FSC) and other vehicle information, and encourages the driver to take a rest using an indication on the active...
  • Page 321 When Driving i-ACTIVSENSE NOTE The DAA operates when all of the following conditions are met. The vehicle speed is about 65 to 140 km/h (41 to 86 mph). The system detects white (yellow) lane lines. The system has completed learning of the driver’s driving data. The DAA does not operate under the following conditions.

  • Page 322: Rear Cross Traffic Alert (Rcta)

    When Driving i-ACTIVSENSE Rear Cross Traffic Alert (RCTA) The RCTA system is designed to assist the driver in checking the area to the rear of the vehicle on both sides while the vehicle is reversing by alerting the driver to the presence of vehicles approaching the rear of the vehicle.
  • Page 323 In the following cases, the Blind Spot Monitoring (BSM) OFF Indicator Light turns on and operation of the system is stopped. If the Blind Spot Monitoring (BSM) OFF Indicator Light remains illuminated, have the vehicle inspected at an expert repairer (we recommend an Authorised Mazda Repairer) as soon as possible. 4-138 CX-3_8GT4-EE-18D_Edition8_old...
  • Page 324 When Driving i-ACTIVSENSE Some problem with the system including the Blind Spot Monitoring (BSM) warning indicator lights has occurred. A large deviation in the installation position of a radar sensor (rear) on the vehicle has occurred. There is a large accumulation of snow or ice on the rear bumper near a radar sensor (rear).
  • Page 325 When Driving i-ACTIVSENSE (Without Blind Spot Monitoring (BSM) OFF switch) Directly after the Blind Spot Monitoring (BSM) system becomes operable using the personalisation feature. Radio wave interference from a radar sensor equipped on a nearby parked vehicle. In the following cases, it may be difficult to view the illumination/flashing of the Blind Spot Monitoring (BSM) warning indicator lights equipped on the door mirrors.

  • Page 326: Mazda Radar Cruise Control (Mrcc)

    When Driving i-ACTIVSENSE Mazda Radar Cruise Control (MRCC) The MRCC system is designed to maintain headway control with a vehicle ahead according to your vehicle's speed using a radar sensor (front) to detect the distance to the vehicle ahead and a preset vehicle speed without you having to use the accelerator or brake pedals.
  • Page 327 When Driving i-ACTIVSENSE Slopes with a steep gradient (The vehicle ahead may not be detected correctly, your vehicle may slide while stopped by the stop hold control, and it may accelerate suddenly after it starts moving.) For safety purposes, switch the MRCC system off when it is not being used. CAUTION If your vehicle is towed or you are towing something, switch the MRCC system off to prevent a miss-operation.
  • Page 328 When Driving i-ACTIVSENSE ▼ Mazda Radar Cruise Control (MRCC) Display Indication The MRCC setting status and operation conditions are indicated on the active driving display. Vehicle ahead display MRCC Distance between vehicle display MRCC Set vehicle speed If there is a problem with the MRCC system, MRCC warning light (amber) turns on. Check the centre display to verify the problem and then have your vehicle inspected by an expert repairer (we recommend an Authorised Mazda Repairer).
  • Page 329 When Driving i-ACTIVSENSE ▼ Setting the System The MRCC system operates when all of the following conditions are met. The vehicle speed is as follows: (European models) About 30 km/h (19 mph) to 200 km/h (124 mph) (Except European models) About 30 km/h (19 mph) to 145 km/h (90 mph) The MRCC is turned on.
  • Page 330 When Driving i-ACTIVSENSE When the MODE switch is pressed once, the MRCC system turns on, and the MRCC main indication (white) turns on and the vehicle speed and the distance between the vehicles while in headway control can be set. In addition, the MRCC system display indication is displayed on the active driving display at the same time.
  • Page 331 When Driving i-ACTIVSENSE NOTE If a vehicle ahead is detected while travelling at a constant speed, the vehicle-ahead indication is displayed and headway control is performed. Additionally, when a vehicle ahead is no longer detected, the vehicle-ahead indication turns off and the system switches back to travel at constant speed.
  • Page 332 When Driving i-ACTIVSENSE How to change the set vehicle speed NOTE When accelerating using the SET To accelerate/decelerate using the SET switch while in headway control, the set switch vehicle speed can be adjusted but When you press the SET switch, the acceleration is not possible.
  • Page 333 When Driving i-ACTIVSENSE (Automatic transaxle) Resuming control The selector lever is in the P (Park), N If the MRCC system is cancelled, you can (Neutral), or R (Reverse) position. resume control at the previously set speed by pressing the RES switch and after all of Under the following conditions, the the operation conditions have been met.
  • Page 334 When Driving i-ACTIVSENSE ▼ Shift-up/Shift-down Request Display (Manual Transaxle) The shift-up or shift-down request display in the active driving display may be indicated while the MRCC is operating. When this occurs, shift gears because the gear position is not appropriate. Request Display Shift up...
  • Page 335 When Driving i-ACTIVSENSE Switching to cruise control function The speed will continue increasing while the SET switch is pressed and held. When the MODE switch is pressed until The speed will continue decreasing the system switches to the cruise main while the SET switch is pressed and indication (white) while the MRCC held.
  • Page 336 When Driving i-ACTIVSENSE Cancelling the function When the vehicle speed is less than 21 km/h (13 mph), the cruise control Cancelling using OFF/CANCEL switch function is cancelled. In this case, the When the OFF/CANCEL switch is vehicle speed will not return to the pressed once, the cruise control function is original set speed even if the vehicle is cancelled.

  • Page 337: Mazda Radar Cruise Control With Stop & Go Function (Mrcc With Stop & Go Function)

    When Driving i-ACTIVSENSE Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) The MRCC with Stop & Go function system is designed to maintain headway control with a vehicle ahead according to your vehicle's speed using a radar sensor (front) to detect the distance to the vehicle ahead and a preset vehicle speed without you having to use the accelerator or brake pedals.
  • Page 338 When Driving i-ACTIVSENSE Roads where frequent and repetitive acceleration and deceleration occur (Driving under these conditions using the MRCC with Stop & Go function system is not possible). When entering and exiting interchanges, service areas, and parking areas of highways (If you exit a highway while headway control is in use, the vehicle ahead will no longer be tracked and your vehicle may accelerate to the set speed).
  • Page 339 ▼ Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) Display Indication The MRCC with Stop &...
  • Page 340 When Driving i-ACTIVSENSE NOTE In the following cases, the warnings and brakes may not operate even if your vehicle starts closing in on the vehicle ahead. You are driving your vehicle at the same speed as the vehicle ahead. Directly after the MRCC with Stop & Go function system has been set. Directly after the accelerator pedal is released.
  • Page 341 When Driving i-ACTIVSENSE Turning on the system switch SET+ switch RES switch switch SET- switch MODE switch CANCEL switch OFF switch When the MODE switch is pressed once, the MRCC with Stop & Go function system turns on, and the MRCC with Stop & Go function main indication (white) turns on and the vehicle speed and the distance between the vehicles while in headway control can be set.
  • Page 342 When Driving i-ACTIVSENSE How to set the speed 1. Adjust the vehicle speed to the desired setting using the accelerator pedal. 2. Headway control begins when the SET or SET switch is pressed. The set speed and the inter-vehicle distance display filled with white lines is displayed. The MRCC with Stop &...
  • Page 343 When Driving i-ACTIVSENSE Distance-between-vehicles guideline Display (at 80 km/h (50 mph) vehicle speed) Medium (about 40 m (131 ft)) Short (about 30 m (98 ft)) Extremely short (about 25 m (82 ft)) NOTE The distance-between-vehicles differs depending on the vehicle speed, and the slower the vehicle speed, the shorter the distance.
  • Page 344 When Driving i-ACTIVSENSE Cancelling the system CAUTION If any of the following operations is done, The warnings and brake control do not the MRCC with Stop & Go function operate while the accelerator pedal is cancels temporarily, the MRCC with Stop depressed.
  • Page 345 When Driving i-ACTIVSENSE The radar sensor (front) cannot detect target objects (during rain, fog, snow or other inclement weather conditions, or when the radiator grille is dirty). Resuming control If the MRCC with Stop & Go function system is cancelled, you can resume control at the previously set speed by pressing the RES switch and after all of the operation conditions have been met.
  • Page 346 When Driving i-ACTIVSENSE ▼ Stop Hold Control While in headway control using the MRCC with Stop & Go function system, your vehicle will stop when a vehicle ahead stops. When the vehicle is stopped and the stop hold control operates, the MRCC with Stop & Go function indicator light turns on. NOTE If the MRCC with Stop &...
  • Page 347 When Driving i-ACTIVSENSE If the vehicle ahead starts moving within 3 seconds after your vehicle is stopped by the stop hold control, headway control will resume even if you do not resume driving your vehicle, such as by depressing the accelerator pedal. Resume driving information If you do not resume driving within a few seconds after the vehicle ahead starts moving, the active driving display vehicle-ahead indication flashes to urge the driver to resume driving.
  • Page 348 When Driving i-ACTIVSENSE To increase speed using accelerator WARNING pedal Depress the accelerator pedal and press the Always turn off the cruise control function SET or SET switch at the desired when it is not in use: speed. Leaving the cruise control function turned If the switch is not operated, the system on when it is not in use is dangerous as it returns to the set speed after you release...
  • Page 349 When Driving i-ACTIVSENSE NOTE If the vehicle speed decreases by about 15 km/h (9.4 mph) or more than the set speed, the cruise control function may be cancelled. When the vehicle speed is less than 21 km/h (13 mph), the cruise control function is cancelled.

  • Page 350: Adjustable Speed Limiter (Asl)

    The system consists of the ASL display and the speed limiter switch on the steering wheel. Active Driving Display Display in the instrument cluster Cruise control system Mazda Radar Cruise Control (MRCC) or Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) MODE switch SET+ switch RES/+ switch...
  • Page 351 The setting status of the ASL is displayed in the active driving display (Type A instrument cluster ) or the display in the instrument cluster (Type B instrument cluster 1 To determine which instrument cluster is equipped on your Mazda, Refer to Meters and Gauges on page 4-21. Stand-by display Displays when the speed limiter switch is operated and the system is turned on.
  • Page 352 When Driving i-ACTIVSENSE Cancel display Displays when any of the following operations is done and the system is temporarily cancelled. OFF/CANCEL switch is operated Accelerator pedal is strongly depressed Active Driving Display Display in the instrument cluster ▼ Adjustable Speed Limiter (ASL) Main Indication (White), Adjustable Speed Limiter (ASL) Set Indication (White)/Indicator Light (Green) ASL main indication (white) The ASL main indication (white) is displayed in the instrument cluster when the ASL is...
  • Page 353 3 km/h (2 mph). Be careful not to drive over the set speed. (With Mazda Radar Cruise Control (MRCC) or Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function))
  • Page 354 Press the MODE switch to operate the system. The ASL screen is displayed, and the ASL main indication (white) turns on. NOTE When the cruise control or Mazda Radar Cruise Control (MRCC) system becomes operable after pressing the MODE switch, press the mode switch again to switch to the ASL. Deactivation...
  • Page 355 RES/ switch 4 of the surrounding area and keep a safer times. distance between vehicles ahead and (With Mazda Radar Cruise Control behind you. (MRCC) or Mazda Radar Cruise Control with Stop & Go function 1. Press the MODE switch to turn the (MRCC with Stop &...
  • Page 356 When Driving i-ACTIVSENSE (With Mazda Radar Cruise Control ▼ Temporarily Cancelling the System (MRCC) or Mazda Radar Cruise The system is temporarily cancelled Control with Stop & Go function (stand-by status) when any of the (MRCC with Stop & Go function))

  • Page 357: Advanced Smart City Brake Support (Advanced Scbs)

    When Driving i-ACTIVSENSE Advanced Smart City Brake Support (Advanced SCBS) The Advanced SCBS alerts the driver of a possible collision using the display and a warning sound when the Forward Sensing Camera (FSC) detects a vehicle ahead or pedestrian and determines that a collision with the object is unavoidable while the vehicle is driven at a vehicle speed of about 4 to 80 km/h (2 to 50 mph) if the object is a vehicle ahead and about 10 to 80 km/h (6.2 to 50 mph) if the object is a pedestrian.
  • Page 358 When Driving i-ACTIVSENSE CAUTION In the following cases, turn the system off to prevent a mis-operation: The vehicle is being towed or when towing another vehicle. The vehicle is on a chassis roller. When driving on rough roads such as in areas of dense grass or off-road. Refer to Stopping the Advanced Smart City Brake Support (Advanced SCBS) System Operation on page 4-174 on how to turn off the Advanced SCBS system.
  • Page 359 When Driving i-ACTIVSENSE (Manual transaxle) If the vehicle is stopped by the SCBS operation and the clutch pedal is not depressed, the engine stops. ▼ Smart City Brake Support (SCBS) NOTE Indicator Light (Red) The collision warning beep sounds intermittently while the Advanced SCBS If the Advanced SCBS is operating, the brake or brake assist (Advanced SCBS indicator light (red) flashes.
  • Page 360 When Driving i-ACTIVSENSE Without SCBS OFF switch Refer to Personalisation Features on page 9-13. NOTE When the Advanced SCBS system is set to inoperable, the Smart City Brake Support [Reverse] (SCBS R) system and the Smart Brake Support (SBS) are also set to inoperable.

  • Page 361: Smart City Brake Support [Forward] (Scbs F)

    When Driving i-ACTIVSENSE Smart City Brake Support [Forward] (SCBS F) The SCBS F system alerts the driver of a possible collision using an indication in the display and a warning sound when the Forward Sensing Camera (FSC) detects a vehicle ahead and determines that a collision with a vehicle ahead is unavoidable while the vehicle is being driven at a vehicle speed of about 4 to 80 km/h (2 to 50 mph).
  • Page 362 When Driving i-ACTIVSENSE CAUTION In the following cases, turn the system off to prevent a mis-operation: The vehicle is being towed or when towing another vehicle. The vehicle is on a chassis roller. When driving on rough roads such as in areas of dense grass or off-road. Refer to Stopping the Smart City Brake Support [Forward] (SCBS F) system Operation on page 4-179 on how to turn off the SCBS F system.
  • Page 363 Refer to Personalisation Features on page 9-13. (With SCBS OFF switch) The operation distance and volume of the collision warning can be changed. Consult an expert repairer (we recommend an Authorised Mazda Repairer). 4-178 CX-3_8GT4-EE-18D_Edition8_old 2019-11-14 12:53:52...
  • Page 364 When Driving i-ACTIVSENSE ▼ Stopping the Smart City Brake With SCBS OFF switch Support [Forward] (SCBS F) Press the SCBS OFF switch to turn off the System Operation system. The Smart City Brake Support (SCBS) OFF indicator light in the The SCBS F system can be temporarily instrument cluster will illuminate.

  • Page 365: Smart City Brake Support [Reverse] (Scbs R)

    (rear), stop using the SCBS R system immediately and have your vehicle inspected by an expert repairer (we recommend an Authorised Mazda Repairer). If the vehicle continues to be driven with cracks or scratch marks left around an ultrasonic sensor, the system may operate unnecessarily and cause an unexpected accident.
  • Page 366 When Driving i-ACTIVSENSE Do not apply a strong force to an ultrasonic sensor (rear): When washing the vehicle, do not spray highly pressurised water against an ultrasonic sensor (rear), or rub it strongly. In addition, do not hit the rear bumper forcefully when loading and unloading cargo Otherwise, the sensors may not detect obstructions correctly which could cause the SCBS R system to not operate normally, or it could operate unnecessarily.
  • Page 367 When Driving i-ACTIVSENSE The obstruction is small. The obstruction is thin such as a signpost. The obstruction is positioned away from the centre of the vehicle. The surface of the obstruction is not pointed vertically relative to the vehicle. The obstruction is soft such as a hanging curtain or snow stuck to a vehicle. The obstruction is shaped irregularly.
  • Page 368 When Driving i-ACTIVSENSE Refer to Warning Lights on page 4-35. ▼ Smart City Brake Support (SCBS) ▼ Stopping the Smart City Brake Indicator Light (Red) Support [Reverse] (SCBS R) System Operation If the Smart City Brake Support (SCBS) is operating, the indicator light (red) flashes. The SCBS R system can be temporarily deactivated.

  • Page 369: Smart Brake Support (Sbs)

    When Driving i-ACTIVSENSE Smart Brake Support CAUTION (SBS) In the following cases, turn the system off to prevent a mis-operation: The SBS system alerts the driver of a possible collision using a display and The vehicle is being towed or when warning sound if the radar sensor (front) towing another vehicle.
  • Page 370 When Driving i-ACTIVSENSE When warnings and messages, such as a dirty windscreen, related to the Forward Sensing Camera (FSC) are being displayed in the centre display. Although the objects which activate the system are four-wheeled vehicles, the radar sensor (front) could detect the following objects, determine them to be an obstruction, and operate the SBS system.
  • Page 371 When Driving i-ACTIVSENSE ▼ Smart Brake Support (SBS) Indicator Light (Red) If the SBS is operating, the indicator light (red) flashes. ▼ Collision Warning If there is the possibility of a collision with a vehicle ahead, the beep sounds continuously and a warning is indicated in the active driving display.

  • Page 372: 360° View Monitor

    When Driving i-ACTIVSENSE 360° View Monitor The 360° View Monitor consists of the following functions which assist the driver in checking the area surrounding the vehicle using various indications in the centre display and a warning sound while the vehicle is being driven at low speeds or while parking. Top view The top view displays an image of the vehicle from directly above on the centre display by combining the images taken from the 4 cameras set on all sides of the vehicle.
  • Page 373 When Driving i-ACTIVSENSE 360°View Monitor Range : Cameras : Ultrasonic sensors : Radar sensors (rear) WARNING Always confirm the safety of the area around the vehicle with the mirrors and directly with your eyes when driving. The 360°View Monitor is an auxiliary device which assists the driver in checking the safety of the area around the vehicle.
  • Page 374 Do not rub the camera lens forcefully, or clean it with an abrasive or hard brush. Otherwise, it could scratch the camera lens and negatively affect the images. Consult an expert repairer (we recommend an Authorised Mazda Repairer) for repair, painting, or replacement of the front/rear camera, front bumper and door mirrors.
  • Page 375 When Driving i-ACTIVSENSE The 360°View Monitor has limitations. Objects under the bumper or near both ends of the bumper cannot be displayed. Obstructions above the upper image range of the camera are not displayed. Under the following conditions, the screen might be difficult to view, however this does not indicate a problem.
  • Page 376 When Driving i-ACTIVSENSE Front wide view Displays the image of the front of the vehicle (wide-area). Side view Displays the image of the left and right sides of the vehicle. Top view/Rear view Displays the image of the area around the vehicle and the rear of the vehicle. Top view screen Rear view screen 4-191...
  • Page 377 When Driving i-ACTIVSENSE Rear wide view Displays the image of the rear of the vehicle (wide-area). ▼ How to Use the System Top view/Front view, Front wide view, Side view Indication Images are displayed on the screen when the 360°View Monitor switch is pressed with all of the following conditions met.
  • Page 378 When Driving i-ACTIVSENSE Display switching You can change the displayed screen by pressing the commander knob or by touching the switch camera icon on the screen while the top view/front view, front wide view, or the side view is displayed. Switch camera icon Top view/Front view Front wide view...
  • Page 379 When Driving i-ACTIVSENSE NOTE When the shift lever/selector lever is in R position, the displayed screen does not switch to the top view/front view, front wide view, or the side view. Display of the top view/front view, front wide view, or the side view stops even with the display conditions met if any of the following conditions occurs.
  • Page 380 When Driving i-ACTIVSENSE Top view/Rear view, Rear wide view The top view/rear view, rear wide view displays when all of the following conditions are met. The ignition is switched ON. Shift lever/selector lever is in R position. Display switching The displayed screen can be switched by pressing the commander knob or by touching the switch camera icon on the screen while the top view/rear view, rear wide view is displayed.
  • Page 381 When Driving i-ACTIVSENSE Screen operation/icon WARNING Always stop the vehicle when adjusting the 360°View Monitor image quality. Do not adjust the 360°View Monitor image quality while driving. If you adjust the 360° View Monitor image quality (such as brightness, contrast, tone, and colour density) while driving, it could lead to an unexpected accident.
  • Page 382 When Driving i-ACTIVSENSE ▼ Top View/Front View Use the top view/front view to assist in checking the safety of the surrounding area when accelerating from a stop, parking, or stopping the vehicle. Display range (Screen display) (Actual condition) Target object NOTE In the top view screen, the areas in black at the front and rear of the vehicle image and the seams where each of the camera images merge are blind spots.
  • Page 383 When Driving i-ACTIVSENSE Viewing the screen Display/Icon Content Parking sensor view Displays the parking sensor detection condition when the parking sensor is activated. For details, refer to the parking sensor obstruction detection indication and warning sound. Refer to Parking Sensor System on page 4-242. Tyre icon Indicates the tyre direction.
  • Page 384 When Driving i-ACTIVSENSE CAUTION The parking sensor detection range has limitations. For example, obstructions closing in from the side and objects short in height may not be detected. Always confirm the safety around the vehicle visually when driving. For details, refer to the parking sensor obstruction detection indication and warning sound. Refer to Parking Sensor System on page 4-242.
  • Page 385 When Driving i-ACTIVSENSE ▼ Front Wide View Use the front wide view to assist in checking the safety of the surrounding area when accelerating from a stop or entering a T-shaped intersection and intersection. Display range (Screen display) (Actual condition) Target object 4-200 CX-3_8GT4-EE-18D_Edition8_old...
  • Page 386 When Driving i-ACTIVSENSE Viewing the screen Display/Icon Content Extended vehicle width lines and dis‐ Indicates the approximate width of the vehicle and the distance tance guide lines (red/blue) (from front end of bumper) in front of the vehicle. The red lines indicate the points up to about 0.5 m (20 in) from the front end of the bumper.
  • Page 387 When Driving i-ACTIVSENSE Viewing the screen Display/Icon Content Parking sensor view Displays the parking sensor detection condition when the parking sensor is activated. For details, refer to the parking sensor obstruction detection indication and warning sound. Refer to Parking Sensor System on page 4-242. Projected vehicle path lines (amber) Indicates the approximate projected path of the vehicle.
  • Page 388 When Driving i-ACTIVSENSE How to use the projected vehicle path line function (Screen display) (Actual condition) Make sure that there are no obstructions within the projected vehicle path lines. Turn the steering wheel so that the projected vehicle path lines travel inside of the obstruction (A), and drive the vehicle forward until it passes the obstruction.
  • Page 389 When Driving i-ACTIVSENSE ▼ Top View/Rear View Use the top view/rear view to assist in checking the safety of the surrounding area when accelerating from a stop, parking, or stopping the vehicle. Range of displayed screen image (Screen display) (Actual condition) Target object NOTE In the top view screen, the areas in black at the front and rear of the vehicle image and the...
  • Page 390 When Driving i-ACTIVSENSE Viewing the screen Display/Icon Content Parking sensor view Displays the parking sensor detection condition when the parking sensor is activated. For details, refer to the parking sensor obstruction detection indication and warning sound. Refer to Parking Sensor System on page 4-242. Tyre icon Indicates the tyre direction.
  • Page 391 When Driving i-ACTIVSENSE NOTE The setting can be changed so that the projected vehicle path lines are not displayed. Refer to Personalisation Features on page 9-13. How to use the projected vehicle path line function CAUTION The front of the vehicle swings out wide when turning the steering wheel while reversing. Maintain sufficient distance between the vehicle and an obstruction.
  • Page 392 When Driving i-ACTIVSENSE 1. Back the vehicle into the parking space by turning the steering wheel so that the vehicle enters the centre of the parking space. (Screen display) (Actual condition) 2. After the vehicle starts entering the parking space, stop and adjust the steering wheel so that the distance between the vehicle width lines and the sides of the parking space on the left and right are roughly equal, and then continue backing up slowly.
  • Page 393 When Driving i-ACTIVSENSE ▼ Rear Wide View Use the rear wide view to assist in checking the safety of the surrounding area when accelerating from a stop, parking, or stopping the vehicle. Range of displayed screen image (Screen display) (Actual condition) Target object 4-208 CX-3_8GT4-EE-18D_Edition8_old...
  • Page 394 When Driving i-ACTIVSENSE Viewing the screen Display/Icon Content Extended vehicle width lines and dis‐ These guide lines indicate the approximate width of the vehi‐ tance guide lines (red/blue) cle and distance to a point measured from the rear of the vehi‐ cle (from the end of the bumper).
  • Page 395 When Driving i-ACTIVSENSE Front camera Obstruction Margin of error Side camera Obstruction Margin of error Rear camera Margin of error Obstruction There is a steep up or down grade in the road at the front or rear of the vehicle If there is a steep up or down grade in the road at the front or rear of the vehicle, obstructions picked up by the camera can appear farther or closer than the actual distance from the vehicle.
  • Page 396 When Driving i-ACTIVSENSE Front camera Appears further than actual distance Appears closer than actual distance Actual obstruction Obstruction appearing Obstruction appearing on screen on screen Actual obstruction A: Distance of obstruction being viewed on screen B: Actual distance of obstruction from vehicle Side camera Appears further than actual distance Appears closer than actual distance...
  • Page 397 When Driving i-ACTIVSENSE NOTE If the vehicle is on a slope, obstructions taken by the camera can appear farther or closer than the actual distance from the vehicle. Three-dimensional object at vehicle front or rear Because the vehicle front end guide lines (side camera) or the distance guide lines (rear camera) are displayed based on a flat surface, the distance to the three-dimensional object displayed on the screen is different from the actual distance.

  • Page 398: Forward Sensing Camera (Fsc)

    Traffic Sign Recognition System (TSR) Advanced Smart City Brake Support (Advanced SCBS) Smart City Brake Support [Forward] (SCBS F) Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) Smart Brake Support (SBS) Forward Sensing Camera (FSC) The Forward Sensing Camera (FSC) determines the conditions ahead of the vehicle while travelling at night and detects traffic lanes.
  • Page 399 Always keep the windscreen glass around the camera clean by removing dirt or fogging. Use the windscreen defroster to remove fogging on the windscreen. Consult an expert repairer (we recommend an Authorised Mazda Repairer) regarding cleaning the interior side of the windscreen around the Forward Sensing Camera (FSC).
  • Page 400 Advanced Smart City Brake Support (Advanced SCBS) Smart City Brake Support [Forward] (SCBS F) Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) Smart Brake Support (SBS) The direction in which the Forward Sensing Camera (FSC) is pointed has been finely adjusted.
  • Page 401 Adaptive LED Headlights (ALH) warning light (amber) Lane Departure Warning System (LDWS) warning light Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) warning light Smart Brake Support/Smart City Brake Support (SBS/SCBS) warning light (amber)
  • Page 402 Adaptive LED Headlights (ALH) warning light (amber) Lane Departure Warning System (LDWS) warning light Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) warning light Smart Brake Support/Smart City Brake Support (SBS/SCBS) warning light (amber)

  • Page 403: Radar Sensor (Front)

    Your vehicle is equipped with a radar sensor (front). The following systems also use the radar sensor (front). Mazda Radar Cruise Control (MRCC) Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) Distance Recognition Support System (DRSS) Smart Brake Support (SBS) The radar sensor (front) functions by detecting the radio waves reflected off a vehicle ahead or an obstruction sent from the radar sensor.
  • Page 404 (front) may have moved. Stop the system immediately and always have the vehicle inspected at an expert repairer (we recommend an Authorised Mazda Repairer). Do not use the front bumper to push other vehicles or obstructions such as when pulling out of a parking space.
  • Page 405 When Driving i-ACTIVSENSE To prevent incorrect operation of the system, use tyres of the same specified size, manufacturer, brand, and tread pattern on all 4 wheels. In addition, do not use tyres with significantly different wear patterns or tyre pressures on the same vehicle (Including the temporary spare tyre).

  • Page 406: Radar Sensors (Rear)

    If the rear bumper receives a severe impact, the system may no longer operate normally. Stop the system immediately and have the vehicle inspected at an expert repairer (we recommend an Authorised Mazda Repairer). NOTE The detection ability of the radar sensors (rear) has limitations. In the following cases, the detection ability may lower and the system may not operate normally.
  • Page 407 For repairs or replacement of the radar sensors (rear), or bumper repairs, paintwork, and replacement near the radar sensors, consult an expert repairer (we recommend an Authorised Mazda Repairer). Turn off the system while pulling a trailer or while an accessory such as a bicycle carrier is installed to the rear of the vehicle.

  • Page 408: Ultrasonic Sensor (Rear)

    When Driving i-ACTIVSENSE Ultrasonic Sensor (Rear) The ultrasonic sensors (rear) function by emitting ultrasonic waves which are reflected off obstructions at the rear and the returning ultrasonic waves are picked up by the ultrasonic sensors (rear). Ultrasonic sensor (rear) The ultrasonic sensors (rear) are mounted in the rear bumper. 4-223 *Some models.

  • Page 409: Front Camera/Side Cameras/Rear Camera

    When Driving i-ACTIVSENSE Front Camera/Side Cameras/Rear Camera Your vehicle is equipped with a front camera, side cameras, and a rear camera. The 360° View Monitor uses each camera. The front camera, side cameras, and rear camera shoot images of the area surrounding the vehicle.

  • Page 410: Cruise Control

    NOTE If your Mazda has the following steering switch, your Mazda is equipped the Mazda Radar Cruise Control (MRCC) system or the Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) system.
  • Page 411 When Driving Cruise Control Refer to Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) on page 4-152. switch SET+ switch RES switch switch SET- switch MODE switch CANCEL switch OFF switch ▼ Cruise Main Indication (White), ▼...
  • Page 412 When Driving Cruise Control 3. Set the cruise control by pressing the WARNING SET/ switch at the desired speed. The cruise control is set at the moment the Always turn off the cruise control system SET/ switch is pressed. Release the when it is not in use: accelerator pedal simultaneously.
  • Page 413 When Driving Cruise Control The cruise control may cancel at about ▼ To Decrease Cruising Speed 15 km/h (9 mph) below the preset speed Press the SET/ switch and hold it. The such as when climbing a long, steep vehicle will gradually slow. grade.
  • Page 414 When Driving Cruise Control If the RES/ switch is pressed when the ▼ To Deactivate vehicle speed is 25 km/h (16 mph) or When a cruising speed has been set higher, the system reverts to the previously (cruise set indication (white) is set speed.

  • Page 415: Tyre Pressure Monitoring System

    When Driving Tyre Pressure Monitoring System Tyre Pressure Monitoring System The Tyre Pressure Monitoring System (TPMS) monitors the air pressure of all four tyres. If the air pressure of one or more tyres is too low, the system warns the driver by indicating the tyre pressure monitoring system warning light in the instrument cluster and operating a beep sound.
  • Page 416 When Driving Tyre Pressure Monitoring System Please note that the TPMS is not a substitute for proper tyre maintenance, and it is the driver's responsibility to maintain correct tyre pressure, even if under-inflation has not reached the level to trigger illumination of the TPMS low tyre pressure telltale. Your vehicle has also been equipped with a TPMS malfunction indicator to indicate when the system is not operating properly.
  • Page 417 When Driving Tyre Pressure Monitoring System ▼ Tyre Pressure Monitoring System CAUTION Initialization If the system initialization is performed In the following cases, system without adjusting the tyre pressure, the initialization must be performed so that the system cannot detect the normal tyre system operates normally.

  • Page 418: Diesel Particulate Filter

    Diesel Particulate Filter Diesel Particulate Filter When flashing Contact an expert repairer (we recommend (SKYACTIV-D 1.5 and an Authorised Mazda Repairer). SKYACTIV-D 1.8) CAUTION The diesel particulate filter collects and removes most of the particulate matter If the vehicle is continually driven as usual (PM) in the exhaust gas of a diesel engine.

  • Page 419: Rear View Monitor

    When Driving Rear View Monitor Rear View Monitor The rear view monitor provides visual images of the rear of the vehicle when reversing. WARNING Always drive carefully confirming the safety of the rear and the surrounding conditions by looking directly with your eyes: Reversing the vehicle by only looking at the screen is dangerous as it may cause an accident or a collision with an object.
  • Page 420 Rear View Monitor When replacing the tyres, consult an expert repairer (we recommend an Authorised Mazda Repairer). Replacing the tyres could result in deviation of the guide lines which appear on the display. If the vehicle's front, side, or rear has been involved in a collision, the alignment of the rear view parking camera (location, installation angle) may have deviated.
  • Page 421 When Driving Rear View Monitor ▼ Displayable Range on the Screen The images on the screen may be different from the actual conditions. (Screen display) Garnish Obstruction detection indication in parking sensor system. Bumper (Actual view) Object Some models NOTE The displayable range varies depending on the vehicle and road conditions.
  • Page 422 When Driving Rear View Monitor ▼ Viewing the Display Guide lines which indicate the width of the vehicle (yellow) are displayed on the screen as a reference to the approximate width of the vehicle in comparison to the width of the parking space you are about to back into.
  • Page 423 When Driving Rear View Monitor 1. Shift the shift lever/selector lever to R to switch the display to the rear view monitor display. 2. Confirming the surrounding conditions, reverse the vehicle. (Display condition) (Vehicle condition) 3. After your vehicle begins entering the parking space, continue backing up slowly so that the distance between the vehicle width lines and the sides of the parking space on the left and right are roughly equal.
  • Page 424 When Driving Rear View Monitor NOTE If the parking space has division lines, straighten the wheels when the vehicle width guide lines are parallel to them. Because there may be a difference between the displayed image, such as indicated below, and the actual conditions when parking, always verify the safety at the rear of the vehicle and the surrounding area directly with your eyes.
  • Page 425 When Driving Rear View Monitor When there is a steep grade behind the vehicle When there is a steep upgrade (downgrade) behind the vehicle, the object displayed on the screen appears farther (downgrade: closer) than the actual distance. Appears Appears closer than farther than actual...
  • Page 426 When Driving Rear View Monitor ▼ Picture Quality Adjustment WARNING Always adjust the picture quality of the rear view monitor while the vehicle is stopped: Do not adjust the picture quality of the rear view monitor while driving the vehicle. Adjusting the picture quality of the rear view monitor such as brightness, contrast, colour, and tint while driving the vehicle is dangerous as it could distract your attention from the vehicle operation which could lead to an accident.
  • Page 427 When Driving Parking Sensor System Parking Sensor System The parking sensors use ultrasonic sensors which detect obstructions around the vehicle when the vehicle is driven at low speeds, such as during garage or parallel parking, and a buzzer sound and detection indicator notify the driver of the approximate distance from the vehicle to the surrounding obstruction.
  • Page 428 Small, short objects Always have the system inspected at an expert repairer (we recommend an Authorised Mazda Repairer) if any shock is applied to the bumpers, even in a minor accident. If the sensors are deviated, they cannot detect obstructions.
  • Page 429 When Driving Parking Sensor System ▼ Sensor Detection Range The sensors detect obstructions within the following range. Rear corner sensor detection range Front sensor detection range A: About 55 cm (About 21.7 in) B: About 55 cm (About 21.7 in) C: About 100 cm (About 39.3 in) D: About 150 cm (About 59.0 in) Rear sensor detection range...
  • Page 430 When Driving Parking Sensor System Display Distance between vehicle and obstruction Without 360° view monitor With 360° view Front Sensor /Front Rear Sensor/Rear Without front sen‐ With front sensor monitor Corner Sensor Corner Sensor sor and front cor‐ and front corner ner sensor sensor Yellow...
  • Page 431 When Driving Parking Sensor System ▼ Park Assist Sensor System Operation Vehicles without front sensor/front corner sensor The parking sensors can be used when the shift lever/selector lever is shifted to the R position with the ignition switched ON. Vehicles with front sensor/front corner sensor When the parking sensor switch is pressed with the ignition switched ON, the buzzer sounds and the indicator light turns on.
  • Page 432 When Driving Parking Sensor System Operation conditions The parking sensor system can be used when all of the following conditions are met: The ignition is switched ON. The parking sensor switch is turned on. NOTE (Automatic transaxle vehicle) The detection indicator and buzzer of the front sensors/front corner sensors do not operate when the selector lever is in the P position.
  • Page 433 Frost/ shown. If the system does soiling not recover, have the vehi‐ cle inspected at an expert repairer (we recommend an Authorised Mazda Re‐ pairer). 4-248 CX-3_8GT4-EE-18D_Edition8_old 2019-11-14 12:53:52...
  • Page 434 When Driving Parking Sensor System ▼ Parking Sensor Warning Beep The beeper sounds as follows while the system is operating. Front Sensor , Rear Sensor Distance between vehicle and obstruction Distance Detec‐ Beeper sound tion area Front Sensor Rear Sensor Approx.
  • Page 435 The system may have a malfunction. Have the vehicle inspected at an expert The beep sound is not heard. repairer (we recommend an Authorised Mazda Repairer) as soon as possible. Remove any foreign material from the sensor area. If the system does not re‐...
  • Page 436 Interior Features Use of various features for ride comfort, including air-conditioning and audio system. Air-Conditioning System....5-4 Audio Set [Type A (non- Operating Tips......5-4 touchscreen)]........5-22 Vent Operation......5-5 Power/Volume/Sound Manual Type......... 5-7 Controls........5-22 Fully Automatic Type....5-12 Clock...........5-24 Operating the Radio....5-25 Operating the Compact Disc (CD) Before Using the Audio System..5-16 Player...
  • Page 437 Audio Set [Type B Appendix........5-133 (touchscreen)]........5-73 Things You Need to Know..5-133 Basic Operation Method.....5-73 Home screen....... 5-77 Interior Equipment....... 5-146 Volume/Display/Sound Sunvisors........5-146 Controls........5-78 Interior Lights......5-146 Operating the Radio....5-80 Accessory Socket..... 5-148 Operating the Digital Audio Cup Holder....... 5-149 Broadcasting (DAB) Radio ..5-83 Bottle Holder......
  • Page 438 MEMO CX-3_8GT4-EE-18D_Edition8_old 2019-11-14 12:53:52...

  • Page 439: Interior Features

    For details, consult an expert repairer inlet in the cowl grille to improve the (we recommend an Authorised Mazda system efficiency. Repairer). Use the air-conditioning system to defog Label the windows and dehumidify the air.

  • Page 440: Vent Operation

    Interior Features Air-Conditioning System Vent Operation Airflow direction adjustment ▼ Adjusting the Vents Directing airflow To adjust the direction of airflow, move the adjustment knob. NOTE Knob When using the air conditioner under Centre vents (front passenger) humid ambient temperature conditions, Air vent open/close the system may blow fog from the vents.
  • Page 441 Interior Features Air-Conditioning System ▼ Selecting the Airflow Mode Instrument panel Vents Defroster and Floor Vents Defroster Vents Instrument panel and Floor Vents Floor Vents NOTE The location airflow exits the air vents and the airflow amount may change depending on the open or close status of the air vents.

  • Page 442: Manual Type

    Interior Features Air-Conditioning System Manual Type Type A Rear window defogger switch Temperature control dial Fan control dial A/C switch Mode selector dial Air intake selector (outside air position) Air intake selector (recirculated air position) Type B Rear window defogger switch Temperature control dial Fan control dial A/C switch...
  • Page 443 Interior Features Air-Conditioning System ▼ Control Switches (Type B) Press the A/C switch to turn the air Temperature control dial conditioner on. The indicator light on the switch will illuminate when the fan control This dial controls temperature. Turn it dial is set at position 1, 2, 3, or 4.
  • Page 444 Interior Features Air-Conditioning System Air intake selector (Type B) ▼ Heating This lever controls the source of air 1. Set the mode selector dial to the entering the vehicle. position. 2. (Type A) It is recommended that under normal Set the air intake selector to the outside conditions the switch be kept in the air position.
  • Page 445 Interior Features Air-Conditioning System ▼ Cooling (Type B) When maximum cooling is desired, set 1. Set the mode selector dial to the the temperature control dial to the position. extreme cold position and set the air 2. Set the temperature control dial to the intake selector to the recirculated air cold position.
  • Page 446 Interior Features Air-Conditioning System ▼ Windscreen Defrosting and (Type B) For maximum defrosting, turn on the air Defogging conditioner, set the temperature control 1. Set the mode selector dial to the dial to the extreme hot position, and the position. fan control dial to position 4.

  • Page 447: Fully Automatic Type

    Interior Features Air-Conditioning System Fully Automatic Type European model Temperature control dial Fan control dial Mode selector dial A/C switch Air intake selector switch Rear window defogger switch Except European model Temperature control dial Fan control dial Mode selector dial A/C switch Air intake selector switch Rear window defogger switch...
  • Page 448 Interior Features Air-Conditioning System ▼ Control Switches NOTE With the airflow mode set to the Temperature control dial position and the temperature control This dial controls temperature. Turn it dial set at a medium temperature, clockwise for hot and anticlockwise for heated air is directed to the feet and air cold.
  • Page 449 Interior Features Air-Conditioning System Outside air position (indicator light 6. To turn off the system, set the fan turned off) control dial to the 0 position. Outside air is allowed to enter the cabin. NOTE Use this mode for ventilation or Setting the temperature to maximum hot windscreen defrosting.
  • Page 450 Interior Features Air-Conditioning System ▼ Sunlight/Temperature Sensor Sunlight sensor Do not place objects on the sunlight sensor. Otherwise, the interior temperature may not adjust correctly. Sunlight sensor Interior temperature sensor Do not cover the interior temperature sensor. Otherwise, the interior temperature may not adjust correctly.

  • Page 451: Before Using The Audio System

    Interior Features Before Using the Audio System ▼ Adjusting the Volume Audio Control Switch To increase the volume, press up the ® Without Bluetooth Hands-Free volume switch ( ). To decrease the volume, press down the volume switch ( ). ▼...
  • Page 452 Interior Features Before Using the Audio System ▼ Seek Switch ® USB Audio/Bluetooth Audio Press the seek switch ( ) to skip forward /FM radio to the beginning of the next track. Press the seek switch ( , ). The radio Press the seek switch ( ) within a few switches to the next/previous stored seconds after playback begins to track...

  • Page 453: Aux/Usb Mode

    The SD card slot is for the navigation system. For vehicles with the navigation Auxiliary jack system, the SD card (Mazda genuine) with stored map data is inserted into the SD card slot and used. Type A (Without CD player)
  • Page 454 Interior Features Before Using the Audio System ① How to use AUX mode (Type Use a commercially-available, non-impedance (3.5 ) stereo mini plug A)........... page 5-32 for connecting the portable audio unit to ② How to use USB mode (Type the auxiliary jack.
  • Page 455 Interior Features Before Using the Audio System Type A (With CD player) Connecting a device 1. If there is a cover on the AUX jack or USB port Auxiliary jack USB port, remove the cover. 2. Connect the connector on the device to the USB port.

  • Page 456: Aerial

    Interior Features Before Using the Audio System Aerial ▼ Type A The aerial is embedded into the window glass. CAUTION When washing the inside of the window which has an aerial, use a soft cloth dampened in lukewarm water, gently wiping the aerial lines.

  • Page 457: Audio Set [Type A (Non-Touchscreen)]

    Interior Features Audio Set [Type A (non-touchscreen)] Power/Volume/Sound Controls Audio display Menu button Power/Volume/Audio control dial Setting value ▼ Power ON/OFF Indication Turn Anti‐ Turn clockwise Clockwise Switch the ignition to ACC or ON. Press the power/volume dial to turn the audio Level de‐...
  • Page 458 Interior Features Audio Set [Type A (non-touchscreen)] NOTE BT SETUP mode If not operated for several seconds, the Music and other audio such as voice data display returns to the previous display. To recorded on portable audio devices and reset bass, treble, fade, and balance, press mobile phones available on the market the menu button ( ) for 2 seconds.

  • Page 459: Clock

    Interior Features Audio Set [Type A (non-touchscreen)] Clock :00 button Audio control dial Audio display Clock button Menu button Hour/Minute set switch ▼ Setting the time NOTE When the :00 button (1) is pressed, the The clock can be set at any time when the seconds will start at “00”.

  • Page 460: Operating The Radio

    Interior Features Audio Set [Type A (non-touchscreen)] Operating the Radio Without Radio Data System (RDS) Audio display Channel preset buttons Tuning button Scan button Auto memory button Band selector button With Radio Data System (RDS) Audio display Channel preset buttons Tuning button Scan button Programme-type information button...
  • Page 461 Interior Features Audio Set [Type A (non-touchscreen)] Seek tuning 3. Repeat this operation for the other stations and bands you want to store. Automatic search for radio stations starts To tune one in the memory, select AM when the tuning button ( , ) is pressed (Without Radio Data System (RDS)), until a beep sound is heard.
  • Page 462 Interior Features Audio Set [Type A (non-touchscreen)] Programme-type information (PTY) ▼ Radio Data System (RDS) Some FM stations transmit NOTE programme-type codes. This code enables The radio data system (RDS) does not alternative stations transmitting the same function if it is out of the system's service programme-type code to be found quickly.
  • Page 463 Interior Features Audio Set [Type A (non-touchscreen)] (To store programme types in the channel preset buttons:) 1. Press the Programme-type information button ( , ) when the programme-type code is displayed. 2. Press the Programme-type information button ( , ) and select the programme type.

  • Page 464: Operating The Compact Disc (Cd) Player

    Interior Features Audio Set [Type A (non-touchscreen)] Operating the Compact Disc (CD) Player Repeat button Text button Play/Pause button Random button Audio display Folder up button Track down/ Reverse button Folder down button Media/Scan button Track up/ Fast-forward button CD eject button CD slot Ejecting the CD Type...
  • Page 465 Interior Features Audio Set [Type A (non-touchscreen)] Fast-forward/Reverse During MP3/WMA/AAC CD playback Press and hold the fast-forward button ( ) This function scans the titles in a folder to advance through a track at high speed. currently being played and plays 10 Press and hold the reverse button ( ) to seconds of each song to aid you in finding reverse through a track at high speed.
  • Page 466 Interior Features Audio Set [Type A (non-touchscreen)] (Folder repeat) (CD random) 1. Press the repeat button (1) during 1. Press the random button (2) during playback, and then press the button playback, and then press the button again within 3 seconds to play the again within 3 seconds to play the tracks in the current folder repeatedly.

  • Page 467: Audio System

    Interior Features Audio Set [Type A (non-touchscreen)] NOTE How to use AUX mode The information viewable in the display 1. Switch the ignition to ACC or ON. is only CD information (such as artist 2. Press the power/volume dial to turn the name, song title) which has been audio system on.

  • Page 468: How To Use Usb Mode

    Interior Features Audio Set [Type A (non-touchscreen)] How to use USB mode Random button Audio display Repeat button Text button Play/Pause button Track down/Reverse button Folder up button Media/Scan button Track up/Fast-forward button Folder down button Do not remove the USB device while in Type Playable data the USB mode.
  • Page 469 Interior Features Audio Set [Type A (non-touchscreen)] Folder search Random playback To change to the previous folder, press the Tracks are randomly selected and played. folder down button ( ), or press the folder Folder random up button ( ) to advance to the next 1.
  • Page 470 Interior Features Audio Set [Type A (non-touchscreen)] ▼ Switching the display The information displayed on the audio display changes as follows each time the text button (3) is pressed during playback. Information displayed Button on audio display File number/Elapsed time Folder number/File num‐...

  • Page 471: How To Use Ipod Mode

    Interior Features Audio Set [Type A (non-touchscreen)] How to use iPod mode Audio display Text button Play/Pause button Random button Category down button Repeat button Category up button Track down/Reverse button List up button Track up/Fast-forward button List down button Media/Scan button An iPod may not be compatible depending Pause...
  • Page 472 Interior Features Audio Set [Type A (non-touchscreen)] NOTE Random playback The types of categories include Playlist, Tracks are randomly selected and played. Artist, Album, Song, Podcast, Genre, Song random Composer, and Audio book. 1. Press the random button (2) during List search playback to play the tracks in the list Press the list down button ( ) to select the...

  • Page 473: Error Indications

    If you cannot clear the error indication, take the vehicle Information displayed Button on audio display to an expert repairer (we recommend an Authorised Mazda Repairer). File number/Elapsed time CHECK CD File number If “CHECK CD” is displayed, it means Category name that there is some CD malfunction.

  • Page 474: Bluetooth

    CAUTION ® Some Bluetooth mobile devices are not compatible with the vehicle. Consult an expert repairer (we recommend an Authorised Mazda Repairer), Mazda's call centre or Web support ® centre for information regarding Bluetooth mobile device compatibility: Phone: (Germany) 0800 4263 738 (8:00―18:00 Central European Time)
  • Page 475 Interior Features Audio Set [Type A (non-touchscreen)] (Worldwide) 49 721 5099 8198 (8:00―18:00 Central European Time) Web: http://www.mazdahandsfree.com ® Applicable Bluetooth specification (Recommended) Ver. 2.0 ▼ Component Parts Audio unit Talk button, Pick-up button and Hang-up button Talk button Pick-up button Hang-up button Microphone Microphone...
  • Page 476 Interior Features Audio Set [Type A (non-touchscreen)] Hang-up button Ends the call or refuses an incoming call. In addition, it ends the voice recognition operation. Volume adjustment The power/volume dial of the audio unit is used to adjust the volume. Turn the dial to the right to increase volume, to the left to decrease it.

  • Page 477: Bluetooth ® Preparation

    Interior Features Audio Set [Type A (non-touchscreen)] 7. Prompt: “Your current pin code is ® Bluetooth Preparation XXXX. Do you want to change it to a different pairing pin code?” NOTE 8. Say: [Beep] “Yes” The language used for the words 9.
  • Page 478 For the operation of the device, refer phone. to its instruction manual. Since the communication range of a 10. Select “Mazda” from the device list ® Bluetooth equipped device is about 10 searched by the device.
  • Page 479 Interior Features Audio Set [Type A (non-touchscreen)] 13. Say: [Beep] “XXXX - - -” (Speak a Registered device read-out “device tag”, an arbitrary name for the ® Bluetooth Hands-Free can read-out the device.) devices registered to its system. Example: “Stan's device.” NOTE NOTE Do this function only when parked.
  • Page 480 Interior Features Audio Set [Type A (non-touchscreen)] “Delete”: Deletes the registered 8. Say: [Beep] “Yes” device when the talk button is 9. Prompt: “XXXXX... (Ex. device B...) short-pressed. (Device tag) selected.” “Previous”: Returns to the previous (Music player) device in read-out when the talk 1.
  • Page 481 Interior Features Audio Set [Type A (non-touchscreen)] ® ▼ Registered device editing ▼ Deleting a device (Bluetooth ® Hands-Free) (Bluetooth Hands-Free) Registered devices (Mobile phone) can be 1. Press the pick-up button or talk button deleted individually or collectively. with a short press. 2.
  • Page 482 Interior Features Audio Set [Type A (non-touchscreen)] Without Radio Data System (RDS) 2. Turn the audio control dial and select a desired mode. Display Mode Function ® PAIR DE‐ Bluetooth audio de‐ Pairing mode VICE vice pairing LINK Link change Changing link to Blue‐...
  • Page 483 Interior Features Audio Set [Type A (non-touchscreen)] NOTE ® 3. Input the PIN code of your Bluetooth audio device by pressing channel ® If a Bluetooth device has already been preset buttons 1 to 4 while “PIN 0000” paired to the vehicle as a hands-free is displayed.
  • Page 484 Interior Features Audio Set [Type A (non-touchscreen)] If the pairing failed, “Err” flashes 6. When the pairing is completed, “ ” for 3 seconds. and “PAIR SUCCESS” are displayed Pairing cannot be performed while after about 10 — 30 seconds, after the vehicle is moving.
  • Page 485 Interior Features Audio Set [Type A (non-touchscreen)] ® 4. Turn the audio control dial to select the ▼ Device selection (Bluetooth Audio) name of the device you would like to If several devices have been paired, the link. ® Bluetooth unit links the device last paired.
  • Page 486 Interior Features Audio Set [Type A (non-touchscreen)] If a hands-free type mobile phone How to confirm the device currently has been the most recently paired linked ® device, the Bluetooth unit links this Switch to the link-change mode. (Refer to device.
  • Page 487 Interior Features Audio Set [Type A (non-touchscreen)] NOTE ® ▼ Bluetooth audio device information Only the names of paired devices can display be displayed. If only one device is 1. Using the audio control dial, select the paired, only the name for this device is pair device information display mode displayed.

  • Page 488: Available Language

    Interior Features Audio Set [Type A (non-touchscreen)] (Method 1) Available Language 1. Press the pick-up button or talk button with a short press. NOTE 2. Say: [Beep] “Setup” The language used for the word 3. Prompt: “Select one of the following: “password”...

  • Page 489: Security Setting

    Interior Features Audio Set [Type A (non-touchscreen)] (Method 2) Security Setting 1. Press the pick-up button or talk button with a short press. NOTE (Except Thailand) The language used for the word Say: [Beep] “French” (Say the “password” appearing in the Security desired language: “English”, Setting, differs depending on the market.
  • Page 490 Interior Features Audio Set [Type A (non-touchscreen)] ® Confirmation Prompts Using Bluetooth Hands-Free with a password The confirmation prompt confirms the command content to the user before 1. Press the pick-up button or talk button advancing to the operation requested by with a short press.

  • Page 491: Bluetooth ® Audio

    Interior Features Audio Set [Type A (non-touchscreen)] If a general mobile phone device is USB ® Bluetooth Audio connected during music playback over ® the Bluetooth connection, the ® Applicable Bluetooth specification ® Bluetooth connection is disconnected. (Recommended) Ver. 2.0 For this reason, you cannot have music ®...
  • Page 492 Interior Features Audio Set [Type A (non-touchscreen)] If the current device version is lower Reverse than AVRCP Ver. 1.3: “BT Audio” is Press and hold the reverse down button displayed. If the current device is AVRCP Ver. 1.3: ▼ Switching the display (only AVRCP The playback time is displayed.

  • Page 493: Bluetooth ® Hands-Free

    Interior Features Audio Set [Type A (non-touchscreen)] ® ▼ Bluetooth audio device information ® Bluetooth Hands-Free display ▼ Making a Call ® If a Bluetooth audio device is connected, the following information is displayed in Phonebook Usage the audio display. Telephone calls can be made by saying the name of a person (voice tag) whose phone AVRCP Ver.
  • Page 494 Interior Features Audio Set [Type A (non-touchscreen)] 1. Press the pick-up button or talk button 16. (Registration) with a short press. Press the pick-up button or say 2. Say: [Beep] “Phonebook” “Enter”, then go to Step 17. 3. Prompt: “Select one of the following: (Adding/inputting telephone New entry, edit, list names, delete, number)
  • Page 495 Interior Features Audio Set [Type A (non-touchscreen)] 5. Prompt: “The hands free system is 3. Prompt: “Select one of the following: ready to receive a contact from the New entry, edit, list names, delete, phone; only a home, work, mobile erase all or import contact.”...
  • Page 496 Interior Features Audio Set [Type A (non-touchscreen)] 14. (Number Change) 7. Prompt: “Deleting XXXXX... (Ex. Press the pick-up button, then go to “John's phone”) (Registered voice tag) Step 15. Home (Registered location). Is this (Adding/inputting telephone correct?” number) 8. Say: [Beep] “Yes” Say, “XXXX”...
  • Page 497 Interior Features Audio Set [Type A (non-touchscreen)] Read-out of names registered to the Redial Function ® Bluetooth Hands-Free phonebook Redialing the number of the person previously dialed using the phone is ® Bluetooth Hands-Free can read out the possible. list of names registered to its phonebook. 1.
  • Page 498 Interior Features Audio Set [Type A (non-touchscreen)] (Telephone number correction) ▼ Mute Say, “Go Back”. The prompt replies, The microphone can be muted during a “Go Back. The last entered numbers call. have been removed.”. Then go back to 1. Press the talk button with a short press. Step 3.
  • Page 499 Interior Features Audio Set [Type A (non-touchscreen)] ▼ Call interrupt Making a call using a telephone number 1. Press the talk button with a short press. A call can be interrupted to receive an 2. Say: [Beep] “Dial” incoming call from a third party. 3.

  • Page 500: Voice Recognition

    Interior Features Audio Set [Type A (non-touchscreen)] Redialing function Voice Recognition 1. Press the talk button with a short press. In this section, the basic operation of the 2. Say: [Beep] “Redial” voice recognition is explained. 3. Prompt: “Dialing” Activating Voice Recognition Ending the current call To Activate the Main Menu: Press the Press the hang-up button during the call.
  • Page 501 Interior Features Audio Set [Type A (non-touchscreen)] Commands useable anytime during Speak clearly, without pausing between voice recognition words or numbers. Close the windows and/or the sunroof to “Help” or “Go Back” are commands reduce loud noises from outside the which can be used at anytime during voice vehicle, or turn down the airflow of the recognition.

  • Page 502: Voice Recognition Learning Function (Speaker Enrolment)

    Interior Features Audio Set [Type A (non-touchscreen)] Voice Recognition 5. The voice guidance reads out the voice input command number (refer to the Learning Function voice input command list for voice recognition learning). (Ex. “Please (Speaker Enrolment) read phrase 1”) 6.
  • Page 503 Interior Features Audio Set [Type A (non-touchscreen)] 8. Say: [Beep] “0123456789” (Say the NOTE voice input command for voice The applicable phrase appears in the recognition learning (1 to 8) according audio display. to the voice guidance.) After user voice registration is 9.

  • Page 504: Troubleshooting

    Perform pairing using the following procedure. The pairing information paired to Pairing cannot be performed again the Bluetooth ® unit or device is not Clear “Mazda” stored in the de‐ recognised correctly. vice. Perform pairing again. Unable to perform pairing ® The Bluetooth...
  • Page 505 Bluetooth unit. If you pair your phone which has already been paired to your vehicle more than once in the past, you need to delete “Mazda” on your mobile device. Then, execute the ® Bluetooth search on your mobile device once again, and pair to a newly detected “Mazda”.
  • Page 506 There is a malfunction in the micro‐ Poor voice recognition curred. Consult an expert repairer phone. (we recommend an Authorised Mazda Repairer). If there is any malfunction after There is a problem with the connec‐ Phone-related voice recognition is checking the pairing situation, check ®...
  • Page 507 Interior Features Audio Set [Type A (non-touchscreen)] Regarding problems with calls Symptom Cause Solution method For about 3 seconds after starting a ® When starting a call, vehicle noise call, the Bluetooth unit's Noise This does not indicate a problem from the other party can be heard with the device.

  • Page 508: Audio Set [Type B (Touchscreen)]

    Additionally, depending on future software updates, the content may successively change without notice. For additional information regarding Mazda Connect, please refer to the following Website. http://infotainment.mazdahandsfree.com/ Audio Set (Type B) has 3 different human interfaces.
  • Page 509 Interior Features Audio Set [Type B (touchscreen)] Switches around commander knob The following operations can be done by pressing the switches around the commander knob. : Displays the home screen. : Displays the Entertainment screen. : Displays the Navigation screen (Only navigation-equipped vehicles). For operation of the Navigation screen, refer to the navigation system manual.
  • Page 510 Interior Features Audio Set [Type B (touchscreen)] ▼ Touch panel operation CAUTION Do not press the screen strongly or press it with a sharp-pointed object. Otherwise, the screen could be damaged. NOTE For safety reasons, operation of the centre display is disabled while the vehicle is being driven.
  • Page 511 Interior Features Audio Set [Type B (touchscreen)] Slide (USB audio only) 1. Touch the setting item displaying a slider bar. 2. Touch the slider with your finger and move to the desired level. Swipe 1. Touch the screen with your finger and move up or down. 2.

  • Page 512: Home Screen

    Interior Features Audio Set [Type B (touchscreen)] Home screen Icon Function Applications Information such as average fuel economy, maintenance, and warnings can be verified. Depending on the grade and specification, the screen display may differ. Entertainment Operates audio such as the radio and CDs. The audio source most recently used is dis‐ played.

  • Page 513: Volume/Display/Sound Controls

    Interior Features Audio Set [Type B (touchscreen)] Volume/Display/Sound Controls Audio control switch Commander switch Volume dial Volume switch ▼ Volume adjustment Daytime/nighttime (Mode) screen setting Turn the commander switch volume dial. The daytime or nighttime screen can be The volume switch on the steering switch selected.
  • Page 514 Interior Features Audio Set [Type B (touchscreen)] Contrast adjustment ALC (Automatic volume adjustment) The automatic level control (ALC) is a Adjust the centre display contrast using feature that automatically adjusts audio the slider. volume and sound quality according to the Display setting reset vehicle speed.

  • Page 515: Operating The Radio

    Interior Features Audio Set [Type B (touchscreen)] Operating the Radio ▼ Radio ON Select the icon on the home screen to display the Entertainment screen. When selecting the desired radio, the following icons are indicated in the lower part of the centre display. AM/FM Radio Icon Function...
  • Page 516 Interior Features Audio Set [Type B (touchscreen)] NOTE 5. Select (With Radio Data System (RDS)) Changing Favourites list order When the icon is selected while FM is selected, each programme is 1. Select the icon to display the selected. Favourites list. 2.
  • Page 517 Interior Features Audio Set [Type B (touchscreen)] Traffic announcement (TA) NOTE It may take longer to display the station Select during FM/AM reception to list depending on the reception conditions. switch to the TA mode. 1. Select the icon to display the radio If a TA broadcast is received while in the station list.

  • Page 518: Operating The Digital Audio Broadcasting (Dab) Radio

    Interior Features Audio Set [Type B (touchscreen)] Operating the Digital Audio Broadcasting (DAB) Radio ▼ What is DAB radio? DAB radio is a digital broadcasting system for radio. DAB radio provides a high-quality radio sound source using an auto frequency switching function in boundary areas.
  • Page 519 Interior Features Audio Set [Type B (touchscreen)] Icon Function Displays sound settings to adjust audio quality level. Refer to Volume/Display/Sound Controls on page 5-78. Example of use (Update station list and ▼ DAB radio setting listen to DAB radio) 1. Select the icon while using DAB 1.

  • Page 520: Operating The Compact Disc (Cd) Player

    Interior Features Audio Set [Type B (touchscreen)] Operating the Compact Disc (CD) Player CD eject button CD slot Ejecting the CD Type Playable data Music/MP3/WMA/AA Music data (CD-DA) Press the CD eject button ( ) to eject the C CD player MP3/WMA/AAC file NOTE If a disc has both music data (CD-DA) and...
  • Page 521 Interior Features Audio Set [Type B (touchscreen)] ▼ Playback Select the icon on the home screen with a CD inserted and display the Entertainment screen. When is selected, the following icons are indicated in the lower part of the centre display.
  • Page 522 Interior Features Audio Set [Type B (touchscreen)] Icon Function If selected within a few seconds of a song which has started to play, the previous song is selected. If more than a few seconds have elapsed after a song has begun to play, the song currently being played is replayed from the beginning.

  • Page 523: Operating The Digital Versatile Disc (Dvd) Player

    Interior Features Audio Set [Type B (touchscreen)] Operating the Digital Versatile Disc (DVD) Player DVD eject button DVD slot Ejecting the DVD Type Playable data DVD VIDEO/ DVD VIDEO/DVD-VR Press the DVD eject button ( ) to eject the DVD-VR player file DVD.
  • Page 524 Interior Features Audio Set [Type B (touchscreen)] ▼ Playback Select the icon on the home screen with a DVD inserted and display the Entertainment screen. When is selected, the DVD top menu screen and the controller are displayed. When starting the playback by operating the controller, the following icons are displayed at the bottom of the screen.
  • Page 525 Interior Features Audio Set [Type B (touchscreen)] NOTE ▼ Setting image quality For safety reasons, images are not Brightness, contrast, tint, colour density displayed while the vehicle is being can be adjusted. driven. When the icon is selected, the following Slide the of the controller to move tabs are displayed at the bottom of the...

  • Page 526: How To Use Aux Mode

    Interior Features Audio Set [Type B (touchscreen)] How to use AUX mode ▼ Playback 1. Select the icon on the home screen to display the Entertainment screen. 2. Select to switch to the AUX mode. The following icons are displayed in the lower part of the centre display.

  • Page 527: How To Use Usb Mode

    Interior Features Audio Set [Type B (touchscreen)] How to use USB mode Type Playable data USB mode MP3/WMA/AAC/OGG file This unit does not support a USB 3.0 device. In addition, other devices may not be supported depending on the model or OS version. The recommended capacity of the USB memory is 32 GB or less.
  • Page 528 Interior Features Audio Set [Type B (touchscreen)] Icon Function Displays sound settings to adjust audio quality level. Refer to Volume/Display/Sound Controls on page 5-78. NOTE If a file name in the USB memory is too long, it could cause operation problems such as not being able to playback the song.
  • Page 529 Interior Features Audio Set [Type B (touchscreen)] Example of use (to play all tracks in USB device) (Method 1) 1. Select to display the category list. 2. Select All the tracks in the USB device are displayed. 3. Select a desired track. The selected track is played.
  • Page 530 ® For information related to the most recent Gracenote database which can be used and how to install it, go to the Mazda Hands Free Website: http://www.mazdahandsfree.com Introduction Gracenote, the Gracenote logo and logotype are either a registered trademark or a trademark of Gracenote, Inc.
  • Page 531 Interior Features Audio Set [Type B (touchscreen)] You agree that your non-exclusive license to use the Gracenote Data, the Gracenote Software, and Gracenote Servers will terminate if you violate these restrictions. If your license terminates, you agree to cease any and all use of the Gracenote Data, the Gracenote Software, and Gracenote Servers.
  • Page 532 . The list of the update package stored in the USB device and the version are displayed. 5. Select the package to use the update. 6. Select NOTE ® Gracenote can be downloaded from the Mazda Hands-free Website. 5-97 CX-3_8GT4-EE-18D_Edition8_old 2019-11-14 12:53:52...

  • Page 533: Bluetooth

    CAUTION ® Some Bluetooth mobile devices are not compatible with the vehicle. Consult an expert repairer (we recommend an Authorised Mazda Repairer), Mazda's call centre or Web support ® centre for information regarding Bluetooth mobile device compatibility: Phone: (Germany) 0800 4263 738 (8:00―18:00 Central European Time)
  • Page 534 Interior Features Audio Set [Type B (touchscreen)] (Except Germany) 00800 4263 7383 (8:00―18:00 Central European Time) (Worldwide) 49 721 5099 8198 (8:00―18:00 Central European Time) Web: http://www.mazdahandsfree.com ® Applicable Bluetooth specification (Recommended) Ver. 1.1/1.2/2.0 EDR/2.1 EDR/3.0 (conformity) ▼ Component Parts Audio unit Talk button, Pick-up button and Hang-up button Talk button...
  • Page 535 Interior Features Audio Set [Type B (touchscreen)] Pick-up button Responds to incoming calls. In addition, after selecting a contact or dialing a number, it places the call when the button is pressed. Hang-up button Ends the call or refuses an incoming call. In addition, it ends the voice recognition operation.

  • Page 536: Bluetooth ® Preparation

    (Peripheral ® the device equipped with Bluetooth device). to be paired to the unit using the following 7. Select “Mazda” from the device list procedure. A maximum of 7 devices searched by the device. ® including Bluetooth audio devices and ®...
  • Page 537 The following functions can be used for If pairing is redone on the same the Hands-free or audio. mobile phone device, first clear Hands-free: Phone calls and ® “Mazda” displayed on the Bluetooth E-mail/SMS setting screen of the mobile device. ® Audio: Bluetooth audio, Aha™, When the OS of the device is updated, Stitcher™...

  • Page 538: Available Language

    Interior Features Audio Set [Type B (touchscreen)] ▼ Deleting a device Available Language Selecting and deleting devices The language can be changed. Refer to Settings on page 5-125. 1. Select the icon on the home screen to display the Settings screen. NOTE 2.

  • Page 539: Bluetooth ® Audio

    Interior Features Audio Set [Type B (touchscreen)] ® Bluetooth Audio AVRCP Function A2DP Ver. Ver. Ver. ® Applicable Bluetooth specification De‐ De‐ (Recommended) pends pends Ver. 1.1/1.2/2.0 EDR/2.1 EDR/3.0 Shuffle — — on de‐ on de‐ (conformity) vice vice Response profile De‐...
  • Page 540 Interior Features Audio Set [Type B (touchscreen)] ® ▼ Switching to Bluetooth audio mode ® To listen to music or voice audio recorded to a Bluetooth audio device, switch to the ® Bluetooth audio mode to operate the audio device using the audio system control panel. ®...
  • Page 541 Interior Features Audio Set [Type B (touchscreen)] Icon Function (AVRCP Ver. 1.3 or higher) Plays songs in the folder in random order. When selected again, the songs on the device are played in random order. Select it again to cancel. Icons change during folder shuffle or device shuffle.

  • Page 542: How To Use Aha

    Interior Features Audio Set [Type B (touchscreen)] How to Use Aha™ ▼ What is Aha™? Aha™ is an application which can be used to enjoy various Internet content such as Internet radio and podcasts. Stay connected to your friends activities by getting updates from Facebook and Twitter. Using the location-based service, nearby services and destinations can be searched or real-time local information can be obtained.
  • Page 543 Interior Features Audio Set [Type B (touchscreen)] Icon Function Dislike Evaluates the current content as “Dislike”. Reverses for 15 seconds. Map (vehicles with navigation system) Displays the destination searched by the location based services on the navigation system. Call A call can be made to the telephone number of a shop searched using the Location Based Services.
  • Page 544 Interior Features Audio Set [Type B (touchscreen)] Switch the tab and select the station category. Function Displays the preset station list set on the device. Presets Select the preset station name to play the station content. Select the desired station. Guidance is provided to the searched destination near the vehicle's posi‐...

  • Page 545: How To Use Stitcher™ Radio

    Interior Features Audio Set [Type B (touchscreen)] How to Use Stitcher™ Radio ▼ What is Stitcher™ Radio? Stitcher™ radio is an application which can be used to listen to Internet radio or stream podcasts. Recommended content is automatically selected by registering content which you put into your favourites, or by pressing the Like or Dislike button.
  • Page 546 Interior Features Audio Set [Type B (touchscreen)] Icon Function Plays the station. Select it again to pause playback. Goes to the next station. Displays sound settings to adjust audio quality level. Refer to Volume/Display/Sound Controls on page 5-78. Station list 1.

  • Page 547: Bluetooth ® Hands-Free

    If the current programme has already been registered to your favourites, the ▼ Making a Call programme can be deleted from your For Mazda Connect, making calls is favourites. possible using any of the following 6 1. Select the icon.
  • Page 548 Interior Features Audio Set [Type B (touchscreen)] Screen operation 6. Download will be started from the mobile phone. 1. Select the icon on the home screen NOTE to display the Communication screen. 2. Select to display the contact If “Import All Contacts” is performed list.
  • Page 549 Interior Features Audio Set [Type B (touchscreen)] Calling a favourite 6. Slide the contact or move it using the commander switch, then select 1. Select the icon on the home screen Changing contact name of your to display the Communication screen. favourites 2.
  • Page 550 Interior Features Audio Set [Type B (touchscreen)] Numeral or symbol entry Use the dial pad. Long-press the to input +. Select to delete the currently input value. Long-press to delete all input values. Redial Function Makes a call to the last person called (latest person on outgoing call record) from the mobile phone/vehicle.
  • Page 551 Interior Features Audio Set [Type B (touchscreen)] ▼ Receiving an Incoming Call When an incoming call is received, the incoming call notification screen is displayed. The “Incoming Call Notifications” setting must be on. Refer to Communication Settings on page 5-121. To accept the call, press the pick-up button on the audio control switch or select the screen.
  • Page 552 Interior Features Audio Set [Type B (touchscreen)] NOTE ▼ Receiving and Replying to Messages (available only with E-mail/SMS If the ignition is switched off during a compatible phones) hands-free call, the line is transferred to the device (Mobile phone) NOTE automatically.
  • Page 553 Interior Features Audio Set [Type B (touchscreen)] (Manually downloading) Receiving messages When the “Auto Download Email” (Method 1) (E-mail) or “Auto Download SMS” (SMS) When a device receives a message, a setting is off, the message is downloaded message received notification is displayed. using the following procedure.
  • Page 554 Interior Features Audio Set [Type B (touchscreen)] The following icons are displayed in the lower part of the details on the message. Icons which can be used differ depending on use conditions. Icon Function Displays the Communication menu. Displays the inbox. Plays back a message.
  • Page 555 Interior Features Audio Set [Type B (touchscreen)] Example of use (verify unread E-mail) Editing preset messages 1. Select the icon on the home screen 1. Select the icon on the home screen to display the Communication screen. to display the Communication screen. 2.
  • Page 556 Interior Features Audio Set [Type B (touchscreen)] ▼ Communication Settings Select the icon on the home screen to display the Communication screen. Select to change the setting. Item Setting Function ® Go to Bluetooth setting menu. ® — Bluetooth ® Refer to Bluetooth Preparation on page 5-101.

  • Page 557: Voice Recognition

    Interior Features Audio Set [Type B (touchscreen)] Voice Recognition To prevent a deterioration in the voice recognition rate and voice quality, the following points should be observed: ▼ Basic Operation Method The voice recognition cannot be Activating Voice Recognition performed while voice guidance or the beep sound is operating.
  • Page 558 Interior Features Audio Set [Type B (touchscreen)] Refer to Troubleshooting on page 5-128. 5-123 CX-3_8GT4-EE-18D_Edition8_old 2019-11-14 12:53:52...
  • Page 559 Interior Features Audio Set [Type B (touchscreen)] ▼ Voice Command List Voice command When the talk button is pressed and the following command is spoken, the audio or navigation can be operated. The commands in the () can be omitted. The specified name and number are put into the {}.

  • Page 560: Settings

    Interior Features Audio Set [Type B (touchscreen)] Settings NOTE Depending on the grade and specification, the screen display may differ. Select the icon on the home screen and display the Settings screen. Switch the tab and select the setting item you want to change. You can customize settings in the setup display as follows: Item Function...
  • Page 561 Interior Features Audio Set [Type B (touchscreen)] Item Function Tool Tips Turns button explanations ON/OFF. Language Changes the language. Changes the setting between Fahrenheit and Temperature Celsius. Changes the setting between miles and kilome‐ Distance tres. ® ® Used to update Gracenote .

  • Page 562: Applications

    Interior Features Audio Set [Type B (touchscreen)] Applications NOTE Depending on the grade and specification, the screen display may differ. Select the icon on the home screen to display the Applications screen. The following information can be verified. Top screen Item Function Fuel Consumption Display...

  • Page 563: Troubleshooting

    ― ® Bluetooth device once, then turn it back on. If pairing is still not possi‐ ble after this, contact an expert re‐ pairer (we recommend an Author‐ ised Mazda Repairer) or Mazda Bluetooth ® Hands-Free Customer Service. 5-128 CX-3_8GT4-EE-18D_Edition8_old...
  • Page 564 Solution method Perform pairing using the following procedure: 1. Delete the applicable Blue‐ tooth ® device on the Mazda Connect. 2. Delete “Mazda” from the Blue‐ ® tooth search screen of the ® Bluetooth device. The pairing information paired to 3.
  • Page 565 Bluetooth unit. If you pair your phone which has already been paired to your vehicle more than once in the past, you need to delete “Mazda” on your mobile device. Then, execute the ® Bluetooth search on your mobile device once again, and pair to a newly detected “Mazda”.
  • Page 566 There is a malfunction in the micro‐ Poor voice recognition. curred. Consult an expert repairer phone. (we recommend an Authorised Mazda Repairer). If there is any malfunction after There is a problem with the connec‐ Phone-related voice recognition is checking the pairing situation, check ®...
  • Page 567 Interior Features Audio Set [Type B (touchscreen)] Regarding problems with calls Symptom Cause Solution method For about 3 seconds after starting a ® When starting a call, vehicle noise call, the Bluetooth unit's Noise This does not indicate a problem from the other party can be heard.

  • Page 568: Appendix

    Interior Features Appendix Things You Need to Know Do not spill any liquid on the audio system. WARNING Always adjust the audio while the vehicle is stopped: Do not adjust the audio control switches while driving the vehicle. Adjusting the Do not insert any objects, other than CDs, into the slot.
  • Page 569 Interior Features Appendix FM characteristics Multipath noise An FM broadcast range is usually about Since FM signals can be reflected by 40―50 km (25―30 miles) from the obstructions, it is possible to receive both source. Because of extra coding needed to the direct signal and the reflected signal at break the sound into 2 channels, stereo FM the same time.
  • Page 570 Interior Features Appendix Weak signal noise Station drift noise In suburban areas, broadcast signals When a vehicle reaches the area of 2 become weak because of distance from the strong stations broadcasting at similar transmitter. Reception in such fringe areas frequencies, the original station may be is characterised by sound breakup.
  • Page 571 Interior Features Appendix ▼ Operating Tips for CD Player If the memory portion of the CD is transparent or translucent, do not use the Condensation phenomenon disc. Immediately after turning on the heater when the vehicle is cold, the CD or optical components (prism and lens) in the CD player may become clouded with condensation.
  • Page 572 Interior Features Appendix CDs bearing the logo shown in the Do not stick paper or tape on the CD. illustration can be played. No other discs Avoid scratching the reverse side (the can be played. side without a label). The disc may not eject resulting in a malfunction.
  • Page 573 Interior Features Appendix This unit may not be able to play certain ▼ Operating Tips for MP3 CD-R/CD-RWs made using a computer MP3 stands for MPEG Audio Layer 3, or music CD recorder due to disc which is standardised voice compression characteristics, scratches, smudges, dirt, established by the ISO working group...
  • Page 574 Interior Features Appendix NOTE ▼ Operating Tips for WMA Supply of this product only conveys a WMA is short for Windows Media license for private, non-commercial use Audio and is the audio compression and does not convey a license nor imply format used by Microsoft any right to use this product in any Audio data can be created and stored at a...
  • Page 575 Interior Features Appendix ▼ Operating Tips for AAC ▼ Operating Tips for OGG AAC stands for Advanced Audio Coding, OGG is the audio compression format for which is standardised voice compression Xiph. Org Foundation. Audio data can be created and stored at a established by the ISO working group higher compression ratio than MP3.
  • Page 576 Interior Features Appendix Handling the DVD player A new DVD may have rough edges on its inner and outer perimeters. If a disc The following precautions should be with rough edges is used, proper setting observed. will not be possible and the DVD player Do not use deformed or cracked DVDs.
  • Page 577 Interior Features Appendix Be sure never to touch the signal surface This unit may not be able to play certain when handling the DVDs. Pick up a DVD-R/DVD R/DVD-RW/DVD DVD by grasping the outer edge or the RWs made using a computer or DVD edge of the hole and the outer edge.
  • Page 578 Interior Features Appendix NOTE Mark Meaning Indicates the region code Video data (DVD-Video/DVD-VR files) for which a disc can be written to DVD/DVD-R/DVD R/ played. DVD-RW/DVD RW can be played. ALL indicates global ap‐ This unit is compatible for playback of plicability, and a number indicates applicability dual-layer DVD/DVD-R.
  • Page 579 Interior Features Appendix Multi-language NOTE Playback may not be possible depending As a function of the DVD player, audio or on the type and condition of the USB subtitles for the same video images can be flash memory even if the audio file stored in multiple languages and the complies with the standard.
  • Page 580 If data in the iPod is lost while it is connected to the unit, Mazda cannot guarantee recovery of any lost data. If the iPod battery is deteriorated, the...

  • Page 581: Interior Equipment

    Interior Features Interior Equipment Sunvisors Interior Lights When you need a sunvisor, lower it for use NOTE in front or swing it to the side. Do not leave the lights on for long periods Sunvisor while the engine is turned off. Otherwise, the battery power could be depleted.
  • Page 582 Interior Features Interior Equipment Map Lights ▼ Illuminated Entry System When the overhead light switch is in the The overhead lights turn on when any of door or off position, press the lens to the following operations is done with the illuminate the map lights, and then press overhead light switch in the DOOR the lens again to turn them off.

  • Page 583: Accessory Socket

    Do not use accessories that are not Accessory Socket genuine Mazda accessories or the equivalent. Only use genuine Mazda accessories or the equivalent requiring no greater than Close the cover when the accessory socket is not in use to prevent foreign 120 W (DC 12 V, 10 A).

  • Page 584: Cup Holder

    Interior Features Interior Equipment Cup Holder Rear Pull up the armrest and press the button on the divider. The flap pops up to hold the WARNING drink cup in place firmly. Never use a cup holder to hold hot liquids while the vehicle is moving: Using a cup holder to hold hot liquids while Flaps...
  • Page 585 Interior Features Interior Equipment When putting a PET bottle or a tall drink Rear cup in the cup holder, make sure it is held To retract the base plate, insert a finger securely. Depending on the height and into the notch of the base plate and pull it shape of the drink cup or bottle, it may not remain held in the cup holder while you are driving the vehicle.

  • Page 586: Bottle Holder

    Interior Features Interior Equipment Bottle Holder Storage Compartments Bottle holders are on the inside of the WARNING doors. Front Keep storage boxes closed when driving: Driving with the storage boxes open is dangerous. To reduce the possibility of injury in an accident or a sudden stop, keep the storage boxes closed when driving.
  • Page 587 Interior Features Interior Equipment ▼ Centre Console ▼ Overhead Console The rear divider can be removed and This console box is designed to store eyeglasses or other accessories. stored. Removing the divider provides a console Push and release to open. box with a wider space.
  • Page 588 Interior Features Interior Equipment ▼ Cargo Securing Loops holders so that the luggage board stands. Use the loops in the luggage compartment to secure cargo with a rope or net. The Luggage board tensile strength of the loops is 196 N (20 kgf, 44 lbf).
  • Page 589 Interior Features Interior Equipment If the luggage board is used improperly, it ▼ Luggage Board cannot be secured properly which could When using the luggage board in the result in damage to the luggage board or upper level an accident. By placing the luggage board on top of the CAUTION luggage mat, more space is available for...

  • Page 590: Removable Ashtray

    Interior Features Interior Equipment NOTE Removable Ashtray When using the luggage board on the lower level, make sure that it is placed The removable ashtray can be fixed and horizontally. used in either of the front cup holders. The front part of the luggage board folds WARNING up on vehicles equipped with the sub-woofer.
  • Page 591 MEMO 5-156 CX-3_8GT4-EE-18D_Edition8_old 2019-11-14 12:53:52...
  • Page 592 Maintenance and Care How to keep your Mazda in top condition. Essential Information......6-2 Appearance Care......6-61 Introduction........6-2 Exterior Care......6-61 Interior Care........6-67 Scheduled Maintenance....6-3 Scheduled Maintenance....6-3 Maintenance Monitor....6-16 Owner Maintenance......6-19 Owner Maintenance Precautions......... 6-19 Bonnet.........6-21 Engine Compartment Overview........6-23 Engine Oil........6-24...

  • Page 593: Maintenance And Care

    If you are unsure about any procedure this manual describes, we strongly urge you to have a reliable and qualified technician perform the work, we recommend an Authorised Mazda Repairer. Authorised Mazda technicians and genuine Mazda parts are dedicated to your vehicle.
  • Page 594 Authorised Mazda Repairer. ▼ Europe My Mazda Service My Mazda Service is the maintenance monitoring feature that alerts you of maintenance needs by turning on the wrench indicator light and/or displaying a specific message in the instrument panel. In any case, every maintenance must be done within 20,000 km or 12 months at the latest after the previous maintenance, whichever of the three events (20,000 km, 12 months or dis‐...
  • Page 595 If the vehicle is operated in very dusty or sandy areas, clean and if necessary, replace the air filter more often than the recommended intervals. Flexible setting is factory preset for some countries in Europe. Consult an Authorised Mazda Repairer for details. Flexible setting can be set if the vehicle is operated mainly where none of the following conditions apply.
  • Page 596 Maintenance and Care Scheduled Maintenance a) Purpose of vehicle use is police car, taxi or driving school car. b) Driving in dusty conditions c) Extended periods of idling or low speed operation d) Driving for long period in cold temperatures or driving regularly at short distance only e) Driving in extremely hot conditions f) Driving in mountainous conditions continually For Diesel engine, reset the engine oil data whenever replacing the engine oil regardless of the message/...
  • Page 597 Maintenance and Care Scheduled Maintenance Number of months or kilometres, whichever comes first Maintenance Interval Months 96 108 120 132 144 ×1000 km 90 105 120 135 150 165 180 Air filter Cooling system Replace at first 195,000 km or 10 years; after that, every Engine coolant 90,000km or 5 years.
  • Page 598 Maintenance and Care Scheduled Maintenance If the vehicle is operated primarily under any of the following conditions, replace the engine oil and oil filter at every 10,000 km or shorter. a) Purpose of vehicle use is police car, taxi or driving school car. b) Driving in dusty conditions c) Extended periods of idling or low speed operation d) Driving for long period in cold temperatures or driving regularly at short distance only...
  • Page 599 Maintenance and Care Scheduled Maintenance Number of months or kilometres, whichever comes first. Maintenance Interval Months 96 108 120 132 144 ×1000 km 90 105 120 135 150 165 180 Russia/ Belarus/ Air filter Kazakhstan Azerbaijan Russia/ Belarus/ Replace every 120,000 km. Fuel filter Kazakhstan Azerbaijan...
  • Page 600 Maintenance and Care Scheduled Maintenance T: Tighten L: Lubricate Remarks: Also inspect the air conditioner drive belts, if installed. If the vehicle is operated primarily under any of the following conditions, inspect the drive belts at every 7,500 km or 6 months. a) Driving in dusty conditions b) Extended periods of idling or low speed operation c) Driving for long period in cold temperatures or driving regularly at short distance only...
  • Page 601 Tanzania Replace every 3,000 km (1,875 miles) or 3 months. Fuel filter Replace every 60,000 km (37,500 miles). affected Clean the fuel system by Mazda genuine deposit cleaner at every 10,000 *4*5 Fuel system countries km (6,250 miles). Evaporative system (if installed) SKYACTIV-D 1.8...
  • Page 602 Maintenance and Care Scheduled Maintenance Number of months or kilometres (miles), whichever comes first. Months 12 18 24 30 36 42 48 54 60 66 72 78 84 90 96 Maintenance Inter‐ ×1000 km 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 ×1000 miles 6.25 12.5 18.75 25 31.25 37.5 43.75 50 56.25 62.5 68.75 75 81.25 87.5 93.75 100 except below countries...
  • Page 603 Extended periods of idling or low speed operation c) Driving in extremely hot conditions Use Mazda genuine deposit cleaner. Using non-genuine deposit cleaner would cause internal failure of the fuel system. Refer to 3-25, 9-6 for the details. Brunei, Cambodia, Indonesia, Laos, Malaysia, Myanmar, Philippines, Thailand, Vietnam Also inspect the air conditioner drive belts, if installed.
  • Page 604 ×1000 miles 6.25 12.5 18.75 25 31.25 37.5 43.75 50 56.25 62.5 68.75 75 81.25 87.5 93.75 100 SKYACTIV-G 2.0 Fuel filter Replace every 60,000 km (37,500 miles). Clean the fuel system by Mazda genuine deposit cleaner at every 10,000 *1*2 Fuel system km (6,250 miles).
  • Page 605 Extended periods of idling or low speed operation c) Driving in extremely hot conditions Use Mazda genuine deposit cleaner. Using non-genuine deposit cleaner would cause internal failure of the fuel system. Refer to 3-25, 9-6 for the details. Implement the fuel injection amount correction.
  • Page 606 Maintenance and Care Scheduled Maintenance Also inspect the air conditioner drive belts, if installed. If the vehicle is operated primarily under any of the following conditions, inspect the drive belts more often than the recommended intervals. a) Driving in dusty conditions b) Extended periods of idling or low speed operation c) Driving for long period in cold temperatures or driving regularly at short distance only d) Driving in extremely hot conditions...
  • Page 607 “Oil Change” with flexible setting is available. Consult an expert repairer (we recommend an Authorised Mazda Repairer) for details . When the engine oil flexible maintenance setting is selected, the wrench indicator light in the instrument cluster will be illuminated when remaining oil life becomes less than 1,000 km (600 mile), or remaining days are less than 15 (Whichever comes first).
  • Page 608 Whenever the engine oil is replaced, the vehicle engine control unit reset is necessary for SKYACTIV-D 1.5 and SKYACTIV-D 1.8. An expert repairer (we recommend an Authorised Mazda Repairer) will be able to reset the engine control unit or refer to the vehicle engine control unit reset procedure on page 6-27.
  • Page 609 Maintenance and Care Scheduled Maintenance Item Explanation Displays the engine oil life until the oil replacement is due. The wrench indication/indicator light in the instrument cluster Oil life (%) will be illuminated when remaining oil life distance is less than 1,000 km (600 mile), or remaining days are less than 15 Oil Change (whichever comes first).
  • Page 610 Improper do-it yourself maintenance during the warranty period may affect warranty coverage. For details, read the separate Mazda Warranty statement provided with the vehicle. If you are unsure about any servicing or maintenance procedure, have it done by an expert repairer, we recommend an Authorised Mazda Repairer.
  • Page 611 Maintenance and Care Owner Maintenance If you must run the engine while working under the bonnet, make certain that you remove all jewellery (especially rings, bracelets, watches, and necklaces) and all neckties, scarves, and similar loose clothing before getting near the engine or cooling fan which may turn on unexpectedly: Working under the bonnet with the engine running is dangerous.
  • Page 612 Maintenance and Care Owner Maintenance Bonnet 2. Insert your hand into the bonnet opening, slide the latch lever to the right, and lift up the bonnet. WARNING Lever Always check that the bonnet is closed and securely locked: A bonnet that is not closed and securely locked is dangerous as it could fly open while the vehicle is moving and block the driver's vision which could result in a...
  • Page 613 Maintenance and Care Owner Maintenance ▼ Closing the Bonnet CAUTION 1. Check under the bonnet area to make When closing the bonnet, do not push it certain all filler caps are in place and excessively such as by applying your all loose items (e.g.
  • Page 614 Maintenance and Care Owner Maintenance Engine Compartment Overview SKYACTIV-G 2.0 Fuse block Windscreen washer fluid reservoir Brake/Clutch fluid reservoir Engine oil dipstick Battery Engine coolant reservoir Cooling system cap Engine oil-filler cap SKYACTIV-D 1.5 and SKYACTIV-D 1.8 Brake/Clutch fluid reservoir Fuse block Windscreen washer fluid reservoir Engine oil dipstick...
  • Page 615 (SKYACTIV-G 2.0) Temperature Range SAE Viscosity Numbers –40 –30 –20 –10 Grade –20 –40 Recommended oils Mazda Original Oil Supra 0W-20 Mazda Original Oil Ultra 5W-30 Alternative Oil Quality 0W-20 API SN or ACEA A5/B5 5W-30 6-24 CX-3_8GT4-EE-18D_Edition8_old 2019-11-14 12:53:52...
  • Page 616 Temperature Range SAE Viscosity Numbers –40 –30 –20 –10 Grade –40 –20 Recommended oils Mazda Original Oil Supra DPF 0W-30 Mazda Original Oil Ultra DPF 5W-30 Alternative Oil Quality 0W-30 ACEA C3 5W-30 Except Europe and Taiwan (SKYACTIV-G 2.0 ) Temperature Range SAE Viscosity Numbers –40...
  • Page 617 Otherwise the wrench indicator light or engine oil warning light may turn on. To reset the engine control unit, consult an expert repairer (we recommend an Authorised Mazda Repairer) or refer to the vehicle engine control unit reset procedure on page 6-27.
  • Page 618 After replacing the engine oil, have a repair shop such as an expert repairer (we recommend an Authorised Mazda Repairer) perform the initialization (engine oil data resetting) of the recorded value. If the value recorded by the computer is not initialized, the wrench indicator light may not turn off or it may turn on earlier than normal.
  • Page 619 Maintenance and Care Owner Maintenance ▼ Inspecting Engine Oil Level NOTE (SKYACTIV-D 1.5 and SKYACTIV-D 1. Be sure the vehicle is on a level 1.8) surface. 2. Warm up the engine to normal When inspecting the engine oil level, operating temperature. pull out the dipstick straight without 3.
  • Page 620 NOTE Changing the coolant should be done by an expert repairer (we recommend an ▼ Inspecting Coolant Level Authorised Mazda Repairer). WARNING Inspect the antifreeze protection and coolant level in the coolant reservoir at least once a year―at the beginning of the Do not use a match or live flame in the winter season―and before travelling...
  • Page 621 (we recommend an Cooling fan Authorised Mazda Repairer). If it is at or near L, add enough coolant to the coolant reservoir to provide freezing and corrosion protection and to bring the level to F or FULL.
  • Page 622 The level normally drops with accumulated distance, a condition associated with wear of brake and clutch linings. If it is excessively low, have the brake/clutch system inspected by an expert repairer (we recommend an Authorised Mazda Repairer). 6-31 CX-3_8GT4-EE-18D_Edition8_old 2019-11-14 12:53:52...
  • Page 623 Maintenance and Care Owner Maintenance Window and Headlight Body Lubrication Washer Fluid All moving points of the body, such as door and bonnet hinges and locks, should ▼ Inspecting Washer Fluid Level be lubricated each time the engine oil is changed.
  • Page 624 Maintenance and Care Owner Maintenance Wiper Blades ▼ Replacing Windscreen Wiper Blades When the wipers no longer clean well, the blades are probably worn or cracked. CAUTION Replace them. Hot waxes applied by automatic car CAUTION washers have been known to affect the wiper's ability to clean windows.
  • Page 625 Maintenance and Care Owner Maintenance 3. Tilt the blade assembly and remove it CAUTION from the arm. Do not bend or discard the stiffeners. You need to use them again. If the metal stiffeners are switched, the blade's wiping efficiency could be reduced.
  • Page 626 Maintenance and Care Owner Maintenance ▼ Replacing Rear Window Wiper 2. Pull down the blade rubber and slide it out of the blade holder. Blade When the wiper no longer cleans well, the blade is probably worn or cracked. Replace it. CAUTION To prevent damage to the wiper arm and other components, do not move the wiper...
  • Page 627 Maintenance and Care Owner Maintenance 4. Carefully insert the new blade rubber. Then install the blade assembly in the reverse order of removal. 6-36 CX-3_8GT4-EE-18D_Edition8_old 2019-11-14 12:53:52...
  • Page 628 Maintenance and Care Owner Maintenance Battery WARNING Read the following precautions carefully before using the battery or inspecting to ensure safe and correct handling: Always wear eye protection when working near the battery: Working without eye protection is dangerous. Battery fluid contains SULPHURIC ACID which could cause blindness if splashed into your eyes.
  • Page 629 Maintenance and Care Owner Maintenance Keep all flames and sparks away from open battery cells because hydrogen gas is produced from open battery cells while charging the battery or adding battery fluid: Flames and sparks near open battery cells are dangerous. Hydrogen gas, produced during normal battery operation, could ignite and cause the battery to explode.
  • Page 630 ▼ Battery Replacement Upper level Contact an Authorised Mazda Repairer for a battery replacement purchase. Lower level Inspect the electrolyte level at least once a week. If it is low, remove the caps and add...
  • Page 631 Replace with a new battery before the Replacing the battery at an expert repairer transmitter becomes unusable. (we recommend an Authorised Mazda Repairer), is recommended to prevent CAUTION damage to the key. If replacing the battery by yourself, follow the instruction.
  • Page 632 Maintenance and Care Owner Maintenance 3. Insert the tape-wrapped flathead CAUTION screwdriver into the gap and slide it in the direction of the arrow. Be careful not to allow the rubber Cover ring shown in the figure to be scratched or damaged. If the rubber ring detaches, reattach it before inserting a new battery.
  • Page 633 Maintenance and Care Owner Maintenance Use only a Mazda-genuine tyre valve cap: Tyres Use of a non-genuine part is dangerous as the correct tyre air pressure cannot be For reasons of proper performance, safety, maintained if the tyre valve becomes and better fuel economy, always maintain damaged.
  • Page 634 Tyre performance will be reduced if vehicle. Have an expert repairer (we rotated from side to side. recommend an Authorised Mazda ▼ Replacing a Tyre Repairer) perform tyre rotation. WARNING...
  • Page 635 This tyre should be used only for an Mazda strongly recommends that you emergency and only for a short distance. replace all four tyres at the same time.
  • Page 636 (inset/outset). For details, contact an expert repairer (we recommend an Authorised Mazda Repairer). Proper tyre balancing provides the best riding comfort and helps reduce tread wear.
  • Page 637 Maintenance and Care Owner Maintenance Light Bulbs With LED Headlights (Without Adaptive LED Headlights (ALH)) (With Adaptive LED Headlights (ALH)) With Halogen Headlights 6-46 CX-3_8GT4-EE-18D_Edition8_old 2019-11-14 12:53:52...
  • Page 638 Maintenance and Care Owner Maintenance Headlights (Low/High beam) Headlights (Wide-range low beam) Headlights (Low beam) Headlights (High beam) Headlights (High beam)/Running lights Running lights/Position lights Position lights Front fog lights Front direction indicator lights Side direction indicator lights Brake lights/Tail lights Rear direction indicator lights Tail lights Reverse lights...
  • Page 639 If a replacement is necessary, consult 2. Lift the bonnet. an expert repairer (we recommend an 3. Disconnect the connector from the unit Authorised Mazda Repairer). by pressing the tab on the connector with your finger and pulling the Headlights (With halogen headlights) connector downward.
  • Page 640 If a replacement is necessary, consult connector downward. an expert repairer (we recommend an Authorised Mazda Repairer). Position lights (With halogen headlights) 1. Make sure the ignition is switched off, and the headlight switch is off.
  • Page 641 The LED bulb has to be replaced with the unit. If a replacement is necessary, consult an expert repairer (we recommend an Authorised Mazda Repairer). 3. Turn the socket and bulb assembly anticlockwise and remove it. 6-50 *Some models.
  • Page 642 The LED bulb has to be replaced with 3. Pull the unit rearward to remove it. the unit. If a replacement is necessary, consult an expert repairer (we recommend an Authorised Mazda Repairer). (Bulb type) 4. Turn the socket and bulb assembly anticlockwise and remove it.
  • Page 643 Maintenance and Care Owner Maintenance Reverse lights (Bulb type) Rear fog light 1. Make sure the ignition is switched off, 1. Make sure the ignition is switched off and the headlight switch is off. and the headlight switch is off. 2.
  • Page 644 Maintenance and Care Owner Maintenance Number plate lights ▼ Replacing Interior Light Bulbs 1. Make sure the ignition is switched off, Overhead lights (Front) /Map lights, and the headlight switch is off. Overhead lights (Rear) 2. Remove the cover. 1. Wrap a small flathead screwdriver with a soft cloth to prevent damage to the lens, and then remove the lens by carefully prying on the edge of the lens...
  • Page 645 Edge If the same fuse blows again, avoid using that system and consult an expert repairer (we recommend an Authorised Mazda 3. Install the new bulb in the reverse Repairer) as soon as possible. order of the removal procedure.
  • Page 646 AUDIO or OUTLET circuit. CAUTION Normal Blown Always replace a fuse with a genuine Mazda fuse or equivalent of the same rating. Otherwise you may damage the electric system. 6. Reinstall the cover and make sure that it is securely installed.
  • Page 647 Owner Maintenance WARNING Do not replace the main fuse by yourself. Have an expert repairer (we recommend an Authorised Mazda Repairer) perform the replacement: Replacing the fuse by yourself is dangerous because the MAIN fuse is a high current fuse. Incorrect...
  • Page 648 Maintenance and Care Owner Maintenance ▼ Fuse Panel Description Fuse block (Engine compartment) FUSE DESCRIPTION PROTECTED COMPONENT RATING C/U IG1 15 A For protection of various circuits ENGINE IG1 7.5 A Engine control system SUNROOF 10 A Sunroof INTERIOR 15 A For protection of various circuits 7.5 A Engine control system...
  • Page 649 Maintenance and Care Owner Maintenance FUSE DESCRIPTION PROTECTED COMPONENT RATING A/C MAG 7.5 A Air conditioner AT PUMP 15 A Transaxle control system 15 A Transaxle control system , Ignition switch D.LOCK 25 A Power door locks H/L RH 20 A Headlight (RH) 7.5 A Engine control system...
  • Page 650 Maintenance and Care Owner Maintenance FUSE DESCRIPTION PROTECTED COMPONENT RATING HEATER 40 A Air conditioner P.WINDOW1 30 A Power windows DCDC DE 40 A For protection of various circuit Fuse block (Left side) FUSE DESCRIPTION PROTECTED COMPONENT RATING ― ― ―...
  • Page 651 Maintenance and Care Owner Maintenance FUSE DESCRIPTION PROTECTED COMPONENT RATING M.DEF 7.5 A Mirror defogger 6-60 *Some models. CX-3_8GT4-EE-18D_Edition8_old 2019-11-14 12:53:52...
  • Page 652 These acids can settle on a vehicle's finish. As the water evaporates, Prevention the acid becomes concentrated and can It is necessary to have your Mazda washed damage the finish. and waxed to preserve its finish according And the longer the acid remains on the to the instructions in this section.
  • Page 653 Maintenance and Care Appearance Care Water Marks Chipped paint can lead to rust forming on your Mazda. Before this happens, Occurrence repair the damage by using Mazda Rain, fog, dew, and even tap water can touch-up paint according to the contain harmful minerals such as salt and instructions in this section.
  • Page 654 Insects, tar, tree sap, bird droppings, NOTE industrial fallout, and similar deposits can damage the finish if not removed Mazda is not responsible for scratches immediately. When prompt washing with caused by automatic car washes or plain water is ineffective, use a mild soap improper washing.
  • Page 655 Maintenance and Care Appearance Care Thoroughly rinse off all soap with When using a high water pressure car lukewarm or cold water. Do not allow wash soap to dry on the finish. High water temperature and high water pressure car washers are available After washing the vehicle, dry it with a depending on the type of car wash clean chamois to prevent water spots from...
  • Page 656 Use tar remover to remove road tar and stone chipping, damage during parking insects. Never do this with a knife or etc., by using Mazda touch-up paint before similar tool. rust begins to form. First, remove the dirt To prevent corrosion on bright-metal and grease with a clean soft cloth.
  • Page 657 Maintenance and Care Appearance Care ▼ Plastic Part Maintenance ▼ Aluminium Wheel Maintenance When cleaning the plastic lenses of the A protective coating is provided over the aluminium wheels. Special care is needed lights, do not use petrol, paraffin, rectified spirit, paint, thinner, highly to protect this coating.
  • Page 658 Rubbing hard with a stiff brush or cloth repairer (we recommend an Authorised may cause damage. Mazda Repairer): If a seat belt is used under such a condition, If the vehicle interior becomes soiled by it cannot function at its full capacity which any of the following, wipe it off could result in serious injury or death.
  • Page 659 Maintenance and Care Appearance Care ▼ Vinyl Upholstery Maintenance 4. Remove moisture with a dry, soft cloth and allow the leather to further dry in a Remove dust and dirt from the vinyl well-ventilated, shaded area. If the upholstery using a brush or vacuum. leather gets wet such as from rain, Remove soiling from vinyl upholstery remove the moisture and dry it as soon...
  • Page 660 Maintenance and Care Appearance Care ▼ Plastic Part Maintenance ▼ Panel Maintenance If a panel becomes soiled, wipe it off with CAUTION a soft cloth soaked in clean water and thoroughly wrung out. Do not use polishing agents. If some areas require further cleaning, use Depending on the product ingredients, the following procedure: they could cause discolouration, stains,...
  • Page 661 MEMO 6-70 CX-3_8GT4-EE-18D_Edition8_old 2019-11-14 12:53:52...
  • Page 662 If Trouble Arises Helpful information on what to do if a problem arises with the vehicle. Parking in an Emergency....7-2 Emergency Towing......7-29 Parking in an Emergency....7-2 Towing Description....7-29 Towing/Tiedown Hooks..... 7-31 Flat Tyre..........7-3 Spare Tyre and Tool Storage..7-3 Warning/Indicator Lights and Warning Sounds......

  • Page 663: If Trouble Arises

    If Trouble Arises Parking in an Emergency Parking in an Emergency The hazard warning lights should always be used when you stop on or near a roadway in an emergency. The hazard warning lights warn other drivers that your vehicle is a traffic hazard and that they must take extreme caution when near it.

  • Page 664: Flat Tyre

    Your vehicle may or may not be equipped with a spare tyre, jack, wheel brace, and tool bag. For details, consult an expert repairer (we recommend an Authorised Mazda Repairer). Spare tyre and tools are stored in the locations illustrated in the diagram.
  • Page 665 If Trouble Arises Flat Tyre With spare tyre Type A Towing eyelet (Long type) Spare tyre hold-down bolt Jack Screwdriver Spare tyre Wheel brace Wrench Towing eyelet (Short type) Tool bag Jack lever Type B Towing eyelet (Long type) Spare tyre hold-down bolt Jack Screwdriver Spare tyre...
  • Page 666 If Trouble Arises Flat Tyre 4. Remove the cargo sub compartment. ▼ Jack To remove the jack 1. (With luggage board) Lift up the luggage board. 2. (With luggage board) Pull the luggage board outward a little and insert the opposite end into the holders so that the luggage board stands.
  • Page 667 To secure the jack ▼ Spare Tyre 1. Insert the wing bolt into the jack with Your Mazda has a temporary spare tyre. the jack screw pointing down and turn The temporary spare tyre is lighter and the wing bolt clockwise to temporarily smaller than a conventional tyre, and is tighten it.
  • Page 668 Do not use your temporary spare tyre on any other vehicle, it has been designed only for your Mazda. 3. Lift the luggage mat. Use only one temporary spare tyre on your vehicle at the same time.
  • Page 669 If Trouble Arises Flat Tyre 4. For vehicles equipped with a For vehicles not equipped with a sub-woofer, uncouple the connector. sub-woofer, turn the spare tyre hold-down bolt anticlockwise and remove the spare tyre. Spare tyre hold-down bolt Connector NOTE Extra strength may be required to To secure the spare tyre uncouple the connector.

  • Page 670: Emergency Flat Tyre Repair Kit

    The emergency flat tyre repair kit includes The emergency flat tyre repair kit included the following items. with your Mazda is for a temporary repair of a slightly damaged flat tyre resulting from running over nails or similar sharp objects on the road surface.
  • Page 671 Authorised Mazda Repairer. The emergency flat tyre repair kit cannot be used in the following cases. Consult an expert repairer (we recommend an Authorised Mazda Repairer). The period of effective use for the tyre sealant has expired. (The period of...
  • Page 672 If Trouble Arises Flat Tyre NOTE CAUTION The tyre sealant can be used at outside temperatures down to － 30 °C ( － If there is air remaining in the tyre when 22 °F). In extremely cold temperatures the valve core is removed, the valve (0 °C (32 °F) or below), the tyre core could fly out.
  • Page 673 (we recommend an Authorised dangerous. The sticker could interfere Mazda Repairer) when replacing the with air bag inflation and cause serious tyre. The empty tyre sealant bottle will injury.
  • Page 674 Contact an expert Before pulling out the compressor repairer (we recommend an plug from the electrical socket, make Authorised Mazda Repairer). sure the compressor power switch is If the tyre has been over-inflated, off. loosen the screw cap on the...
  • Page 675 Authorised Mazda Drive carefully to an expert repairer Repairer). (we recommend an Authorised Mazda Repairer) and keep the vehicle NOTE speed below 80 km/h (50 mph). When checking the tyre inflation If the vehicle is driven 80 km/h (50...

  • Page 676: Changing A Flat Tyre (With Spare Tyre)

    Stopping in traffic or on the shoulder of a sealant replaced at an expert repairer (we recommend an Authorised Mazda busy road is dangerous. Repairer) before the period of effective use WARNING has expired.
  • Page 677 If Trouble Arises Flat Tyre 1. Park on a hard, level surface off the ▼ Removing a Flat Tyre right-of-way and firmly set the parking brake. WARNING 2. Put a vehicle with an automatic transaxle in Park (P), a manual When jacking-up a vehicle, always shift the transaxle in Reverse (R) or 1, and turn shift lever to 1st or R position (manual...
  • Page 678 If Trouble Arises Flat Tyre 4. Turn the jack screw in the direction CAUTION shown in the figure and adjust the jack head so that it is close to the jack-up Align the notch on the wheel cover with position. the valve stem when installing it.
  • Page 679 Use only the jack provided with your Mazda: Using a jack that is not designed for Jacking position your Mazda is dangerous. The vehicle could slip off the jack and seriously injure someone. Never place objects under the jack: Jacking the vehicle with an object under the jack is dangerous.
  • Page 680 ▼ Mounting the Spare Tyre your Mazda is firmly in position and that it cannot slip or move. 1. Remove dirt and grime from the mounting surfaces of the wheel and hub, including the hub bolts, with a cloth.
  • Page 681 If you are unsure of how tight the nuts should be, have them inspected at an WARNING expert repairer (we recommend an Authorised Mazda Repairer). Do not apply oil or grease to wheel nuts and bolts and do not tighten the wheel Nut tightening torque nuts beyond the recommended 108―147 (12―14,...
  • Page 682 Do not drive with any tyres that have Because the wheel studs and wheel incorrect air pressure: nuts on your Mazda have metric Driving on tyres with incorrect air pressure threads, using a non-metric nut is is dangerous. Tyres with incorrect pressure dangerous.

  • Page 683: Battery Runs Out

    If Trouble Arises Battery Runs Out Jump-Starting Jump-starting is dangerous if done incorrectly. So follow the procedure carefully. If you feel unsure about jump-starting, we strongly recommend that you have a competent service technician do the work. WARNING Follow These Precautions Carefully: To ensure safe and correct handling of the battery, read the following precautions carefully before using the battery or inspecting it.
  • Page 684 If Trouble Arises Battery Runs Out Route the jumper leads away from parts that will be moving: Connecting a jumper lead near or to moving parts (cooling fans, belts) is dangerous. The lead could get caught when the engine starts and cause serious injury. CAUTION Use only a 12 V booster system.
  • Page 685 7. Disconnect the jumper leads in the reverse order of their connection. 8. Install the battery cover. 9. Have your vehicle inspected by an expert repairer (we recommend an Authorised Mazda Repairer) as soon as possible. 7-24...

  • Page 686: Emergency Starting

    If Trouble Arises Emergency Starting Starting a Flooded Engine Push-Starting (SKYACTIV-G 2.0) Do not push-start your Mazda. If the engine fails to start, it may be WARNING flooded (excessive fuel in the engine). Never tow a vehicle to start it: Follow this procedure: Towing a vehicle to start it is dangerous.

  • Page 687: Running Out Of Fuel (Skyactiv-D 1.5 And Skyactiv-D 1.8)

    If the engine does not start the first time, try starting it several more times. If it still does not start, contact an expert repairer (we recommend an Authorised Mazda Repairer). 7-26 CX-3_8GT4-EE-18D_Edition8_old 2019-11-14 12:53:52...

  • Page 688: Overheating

    Stop the under pressure and cause serious injury. engine and call an expert repairer (we recommend an Authorised Mazda Open the bonnet ONLY after steam is no Repairer). longer escaping from the engine: 6.
  • Page 689 Coolant reservoir the radiator and hoses. If you find a leak or other damage, or if coolant is still leaking: Stop the engine and call an expert repairer (we recommend an Authorised Mazda Cooling fan Repairer). SKYACTIV-G 2.0 Cooling system cap...

  • Page 690: Emergency Towing

    Always tow a 4WD vehicle with all four by an expert repairer (we recommend an wheels off the ground: Authorised Mazda Repairer) or a Towing a 4WD vehicle with either the front commercial tow-truck service. or rear wheels on the ground is dangerous...
  • Page 691 If Trouble Arises Emergency Towing Do not tow with sling-type equipment. CAUTION This could damage your vehicle. Use wheel-lift or flatbed equipment. Follow these instructions when towing the vehicle with all wheels on the ground. 1. Shift to neutral (Manual transaxle), or the N position (Automatic transaxle).

  • Page 692: Towing/Tiedown Hooks

    If Trouble Arises Emergency Towing Towing/Tiedown Hooks CAUTION Do not use excessive force as it may CAUTION damage the cap or scratch the painted bumper surface. The towing eyelet should be used in an emergency (to get the vehicle out of a NOTE ditch or a snow bank, for example).
  • Page 693 If Trouble Arises Emergency Towing Towing eyelet (Long type) CAUTION Store it in the position shown in the following figure. When using the hook in such emergency cases, observe the following so as not to Retainers damage the tiedown hook or the vehicle body.

  • Page 694: Warning/Indicator Lights And Warning Sounds

    WARNING Do not drive with the brake system warning light illuminated. Contact an expert repair‐ er (we recommend an Authorised Mazda Repairer) to have the brakes inspected as soon as possible: Brake System Warning Driving with the brake system warning light illuminated is dangerous. It indicates that Light your brakes may not work at all or that they could completely fail at any time.
  • Page 695 Do not drive with both the ABS warning light and brake warning light illuminated. Warning Have the vehicle towed to an expert repairer (we recommend an Authorised Mazda Re‐ pairer) to have the brakes inspected as soon as possible: Driving when the brake system warning light and ABS warning light are illuminated simultaneously is dangerous.
  • Page 696 If the light illuminates/flashes, stop the vehicle in a safe place and do not operate the steering wheel. There is no problem if the light turns off after a while. Contact an ex‐ pert repairer (we recommend an Authorised Mazda Repairer) if the light illuminates/ flashes continuously.
  • Page 697 ▼ Contact Authorised Mazda Repairer and Have Vehicle Inspected If any of the following warning lights turns on/flashes, the system may have a malfunction. Contact an expert repairer (we recommend an Authorised Mazda Repairer) to have your vehicle inspected. Signal...
  • Page 698 The fuel tank level being very low or approaching empty. If the check engine light remains on, or it flashes continuously , do not drive at high speeds and consult an expert repairer (we recommend an Authorised Mazda Repairer) as soon as possible.
  • Page 699 If the automatic transaxle warning light illuminates, the transaxle has an electrical prob‐ axle Warning Light lem. Continuing to drive your Mazda in this condition could cause damage to your trans‐ axle. Consult an expert repairer (we recommend an Authorised Mazda Repairer) as soon as possible.
  • Page 700 ON. If any of these occur, consult an expert repairer (we recommend an Authorised Mazda Repairer) as soon as possible. The system may not operate in an accident.
  • Page 701 The warning light remains turned on if there is a problem with the system. Have your vehicle inspected at an expert repairer (we recommend an Authorised Mazda Repairer). The LDWS does not operate when the warning light illuminates.
  • Page 702 (The Blind Spot Monitoring (BSM) OFF indicator light in the instrument cluster illuminates). However, it does not indicate a malfunction. The warning light turns on if there is a malfunction in the system while the Mazda Radar (Amber) Cruise Control (MRCC) system is on.
  • Page 703 If Trouble Arises Warning/Indicator Lights and Warning Sounds Signal Warning Action to be taken The seat belt warning light turns on if the driver or front passenger's seat is occupied and the seat belt is not fastened with the ig‐ nition switched ON.
  • Page 704 Smart City Brake Sup‐ spected at an expert repairer (we recom‐ port (SBS/SCBS) mend an Authorised Mazda Repairer). Warning Light Vehicles with type A audio If the reason why the warning light is illu‐ minated is due to a dirty windscreen, clean the windscreen.
  • Page 705 (we recommend an Authorised Mazda Repairer) or a tyre repair station.
  • Page 706 If Trouble Arises Warning/Indicator Lights and Warning Sounds KEY Warning Light Take the appropriate action and verify that the warning light turns off. Signal Cause Action to be taken The advanced key battery is dead. Replace the key battery (page 6-40). The advanced key is not within the opera‐...

  • Page 707: Message Indicated On Display

    If the following messages are displayed in the centre display (Type B audio), a vehicle system may be malfunctioning. Stop the vehicle in a safe place and contact an expert repairer (we recommend an Authorised Mazda Repairer). Display Indicated Condition Displays if the engine coolant temperature has increased excessively.
  • Page 708 If Trouble Arises Warning/Indicator Lights and Warning Sounds ▼ Verify Display Content Displays in the following cases: Display Indicated Condition/Action to be taken The following message is displayed when the temperature around the centre display is high. Lowering the temperature in the cabin or the temperature around the centre display by avoiding direct sunlight is recommended.

  • Page 709: Warning Sound Is Activated

    Have your vehicle inspected at an expert the “Ignition Not Switched Off (STOP) repairer (we recommend an Authorised Warning Beep” (page 7-49) overrides Mazda Repairer) as soon as possible. the lights-on reminder. WARNING A personalised function is available to change the sound volume for the lights-on reminder.
  • Page 710 If Trouble Arises Warning/Indicator Lights and Warning Sounds ▼ Seat Belt Warning Beep ▼ Ignition Not Switched Off (STOP) Warning Beep Front seat European models If the vehicle speed exceeds about 20 If the driver's door is opened with the km/h (12 mph) with the driver or front ignition switched to ACC, a beep will be passenger's seat belt unfastened, a warning...
  • Page 711 If Trouble Arises Warning/Indicator Lights and Warning Sounds NOTE ▼ Key Left-in-vehicle Warning Beep Because the key utilizes low-intensity (With the advanced keyless radio waves, the Key Removed From function) Vehicle Warning may activate if the key is If all the doors and luggage compartment carried together with a metal object or it are locked using another key while the key is placed in a poor signal reception area.
  • Page 712 ▼ 120 km/h Warning Beep your vehicle inspected at an expert repairer (we recommend an Authorised If the vehicle speed exceeds 120 km/h, a Mazda Repairer). chime sounds for 5 seconds. ▼ Tyre Inflation Pressure Warning ▼ Outside Temperature Warning...
  • Page 713 If Trouble Arises Warning/Indicator Lights and Warning Sounds ▼ Power Steering Warning Buzzer ▼ Lane Departure Warning Sound If the power steering system has a While the system is operating, if the malfunction, the power steering system determines that the vehicle may malfunction indicator light turns on or depart from the lane, it sounds a warning flashes and the buzzer operates at the same...
  • Page 714 If Trouble Arises Warning/Indicator Lights and Warning Sounds ▼ Mazda Radar Cruise Control ▼ Mazda Radar Cruise Control with Stop & Go function (MRCC with (MRCC) System Warnings Stop & Go function) System The Mazda Radar Cruise Control (MRCC) Warnings...
  • Page 715 Operate the accelerator and shift gears (With Mazda Radar Cruise Control (MRCC) according to the driving conditions so that or Mazda Radar Cruise Control with Stop & the buzzer does not sound. If the engine Go function (MRCC with Stop & Go...

  • Page 716: When Liftgate Cannot Be Opened

    2. Remove cover on the interior surface of the liftgate using a flathead screwdriver. Cover After performing this emergency measure, have the vehicle inspected at an expert repairer (we recommend an Authorised Mazda Repairer) as soon as possible. 7-55 CX-3_8GT4-EE-18D_Edition8_old 2019-11-14 12:53:52...

  • Page 717: Active Driving Display Does Not Operate

    If the active driving display does not operate even with the engine restarted, have the vehicle inspected at an expert repairer (we recommend an Authorised Mazda Repairer). 7-56 *Some models. CX-3_8GT4-EE-18D_Edition8_old...

  • Page 718: Important Consumer Information Including Warranties And Add-On Equipment

    Customer Information Important consumer information including warranties and add-on equipment. Warranty..........8-2 Declaration of Conformity....8-6 Registering Your Vehicle in A Declaration of Conformity... 8-6 Foreign Country......8-2 Add-On Non-Genuine Parts and Electromagnetic Compatibility..8-32 Accessories........8-3 Electromagnetic Compatibility......8-32 Cell Phones.........8-4 Cell Phones Warning....8-4 Collection/Disposal of Old Equipment/ Used Battery........8-34 Collection and Processing of Data in...

  • Page 719: Customer Information

    Parts, servicing techniques, and tools necessary to maintain and repair your vehicle may be unavailable. There might not be an Authorised Mazda Repairer in the country you plan to take your vehicle. The Mazda warranty is valid only in certain countries.

  • Page 720: Add-On Non-Genuine Parts And Accessories

    Other parts and accessories than those mentioned above have not been examined and approved by Mazda unless explicitly stated by Mazda. We cannot certify the suitability of such products. Mazda is not liable for any damage caused by the use of such products. WARNING...

  • Page 721: Cell Phones

    Customer Information Cell Phones Cell Phones Warning WARNING Please comply with the legal regulations concerning the use of communication equipment in vehicles in your country: Use of any electrical devices such as cell phones, computers, portable radios, vehicle navigation or other devices by the driver while the vehicle is moving is dangerous. Dialing a number on a cell phone while driving also ties-up the driver's hands.

  • Page 722: Collection And Processing Of Data In The Vehicle

    (including Mazda Motor Corporation and, if necessary, other companies and affiliated with the Mazda group) using special diagnostic devices. Once an error has been resolved, the information in the error memory will be deleted or overwritten.

  • Page 723: Declaration Of Conformity

    Customer Information Declaration of Conformity Declaration of Conformity ▼ Keyless Entry System/Immobilizer System CX-3_8GT4-EE-18D_Edition8_old 2019-11-14 12:53:52...
  • Page 724 Customer Information Declaration of Conformity CX-3_8GT4-EE-18D_Edition8_old 2019-11-14 12:53:52...
  • Page 725 Customer Information Declaration of Conformity CX-3_8GT4-EE-18D_Edition8_old 2019-11-14 12:53:52...
  • Page 726 Customer Information Declaration of Conformity ▼ Blind Spot Monitoring (BSM) System CX-3_8GT4-EE-18D_Edition8_old 2019-11-14 12:53:52...
  • Page 727 Customer Information Declaration of Conformity 8-10 CX-3_8GT4-EE-18D_Edition8_old 2019-11-14 12:53:52...
  • Page 728 Customer Information Declaration of Conformity 8-11 CX-3_8GT4-EE-18D_Edition8_old 2019-11-14 12:53:52...
  • Page 729 Customer Information Declaration of Conformity 8-12 CX-3_8GT4-EE-18D_Edition8_old 2019-11-14 12:53:52...
  • Page 730 Customer Information Declaration of Conformity 8-13 CX-3_8GT4-EE-18D_Edition8_old 2019-11-14 12:53:52...
  • Page 731 Customer Information Declaration of Conformity ▼ Radio System Type A 8-14 CX-3_8GT4-EE-18D_Edition8_old 2019-11-14 12:53:52...
  • Page 732 Customer Information Declaration of Conformity 8-15 CX-3_8GT4-EE-18D_Edition8_old 2019-11-14 12:53:52...
  • Page 733 Customer Information Declaration of Conformity 8-16 CX-3_8GT4-EE-18D_Edition8_old 2019-11-14 12:53:52...
  • Page 734 Customer Information Declaration of Conformity Type B 8-17 CX-3_8GT4-EE-18D_Edition8_old 2019-11-14 12:53:52...
  • Page 735 Customer Information Declaration of Conformity 8-18 CX-3_8GT4-EE-18D_Edition8_old 2019-11-14 12:53:52...
  • Page 736 Customer Information Declaration of Conformity 8-19 CX-3_8GT4-EE-18D_Edition8_old 2019-11-14 12:53:52...
  • Page 737 Customer Information Declaration of Conformity ® ▼ Bluetooth Hands-Free Type A 8-20 CX-3_8GT4-EE-18D_Edition8_old 2019-11-14 12:53:52...
  • Page 738 Customer Information Declaration of Conformity 8-21 CX-3_8GT4-EE-18D_Edition8_old 2019-11-14 12:53:52...
  • Page 739 Customer Information Declaration of Conformity 8-22 CX-3_8GT4-EE-18D_Edition8_old 2019-11-14 12:53:52...
  • Page 740 Customer Information Declaration of Conformity Type B 8-23 CX-3_8GT4-EE-18D_Edition8_old 2019-11-14 12:53:52...
  • Page 741 Customer Information Declaration of Conformity 8-24 CX-3_8GT4-EE-18D_Edition8_old 2019-11-14 12:53:52...
  • Page 742 Customer Information Declaration of Conformity 8-25 CX-3_8GT4-EE-18D_Edition8_old 2019-11-14 12:53:52...
  • Page 743 Customer Information Declaration of Conformity 8-26 CX-3_8GT4-EE-18D_Edition8_old 2019-11-14 12:53:52...
  • Page 744 Customer Information Declaration of Conformity 8-27 CX-3_8GT4-EE-18D_Edition8_old 2019-11-14 12:53:52...
  • Page 745 Customer Information Declaration of Conformity ▼ Smart Brake Support (SBS)/Mazda Radar Cruise Control (MRCC)/Distance Recognition Support System (DRSS) 8-28 CX-3_8GT4-EE-18D_Edition8_old 2019-11-14 12:53:52...
  • Page 746 Customer Information Declaration of Conformity 8-29 CX-3_8GT4-EE-18D_Edition8_old 2019-11-14 12:53:52...
  • Page 747 Customer Information Declaration of Conformity 8-30 CX-3_8GT4-EE-18D_Edition8_old 2019-11-14 12:53:52...
  • Page 748 Customer Information Declaration of Conformity For Vehicles sold in Moldova MODEL: DNMWR006 8-31 CX-3_8GT4-EE-18D_Edition8_old 2019-11-14 12:53:52...

  • Page 749: Electromagnetic Compatibility

    10 regulation as related to electromagnetic compatibility. Radio Frequency (RF) transmitter equipment (e.g. cellular telephones, amateur radio transmitters, etc.) may only be fitted to your Mazda if they comply with the parameters shown in the table below. 1 UN-R stands for United Nations Regulation.
  • Page 750 Customer Information Electromagnetic Compatibility Frequency Band (MHz) Maximum output power (Wattage) Aerial Positions 1885 ― 2025 2400 ― 2500 0.01 In a cabin ® Only for Bluetooth NOTE After the installation of RF transmitters, check for disturbances from and to all electrical equipment in the vehicle, both in the standby and transmit modes.

  • Page 751: Collection/Disposal Of Old Equipment/Used Battery

    Customer Information Collection/Disposal of Old Equipment/Used Battery Information for Users on Collection and Disposal of Old Equipment and Used Batteries When disposing your old battery, please refer to the information as follows. ▼ Information on Disposal in the European Union These crossed-out wheeled bin symbols on the products, packaging, and/or accompanying documents mean that used electronic products and batteries should not be mixed with general household waste.
  • Page 752 Customer Information Collection/Disposal of Old Equipment/Used Battery ▼ Information on Disposal in Other Countries Outside the European Union The above symbols are only valid in the European Union. If you wish to discard old products and used batteries, please contact your local authorities, your waste disposal service or the point of sales where you purchased the items, and ask for the correct method of disposal.
  • Page 753 MEMO 8-36 CX-3_8GT4-EE-18D_Edition8_old 2019-11-14 12:53:52...
  • Page 754 Specifications Technical information about your Mazda. Identification Numbers..... 9-2 Personalisation Features....9-13 Vehicle Information Labels..9-2 Personalisation Features..... 9-13 Specifications........9-4 Specifications....... 9-4 CX-3_8GT4-EE-18D_Edition8_old 2019-11-14 12:53:52...

  • Page 755: Specifications

    Specifications Identification Numbers Vehicle Information ▼ Chassis Number/Vehicle Identification Number (Swaziland, Labels Namibia, Botswana, Lesotho, Ireland, U.K.) ▼ Vehicle Identification Number Chassis Number (South Africa, Arab Gulf Open the cover shown in the figure to Cooperation Council) check the chassis number. The vehicle identification number legally identifies your vehicle.
  • Page 756 Specifications Identification Numbers ▼ Vehicle Emission Control ▼ Engine Number Information Label (Thailand, SKYACTIV-G 2.0 Philippines) Forward SKYACTIV-D 1.5, SKYACTIV-D 1.8 ▼ Tyre Pressure Label Left-hand drive model Forward ▼ Conformity Plate (Arab Gulf Cooperation Council) Production year and month are shown on Right-hand drive model this plate.
  • Page 757 N-55 (S), Q-85 or S-95 is designed for i-stop system (FOR STOP & START)/i-ELOOP system. Only N-55 (S), Q-85 or S-95 should be used to ensure correct operation of i-stop system (FOR STOP & START)/i-ELOOP system. Consult an expert repairer (we recommend an Authorised Mazda Repairer) for details. Not for i-stop system/i-ELOOP system.
  • Page 758 Mazda Original Oils are specially designed/tested for the respective engine. For optimum performance we recommend to use Mazda Original Oils at all times. If you are unable to find a Mazda Original Oil, alternative oils meeting the listed specification may also be used.
  • Page 759 Cleaner Europe Except Europe Mazda genuine deposit cleaner Deposit Cleaner (K002 W0 001) Use Mazda genuine deposit cleaner. Using non-genuine deposit cleaner would cause internal failure of the fuel system. Refer to 3-25, 6-3 for the details. CX-3_8GT4-EE-18D_Edition8_old 2019-11-14 12:53:52...
  • Page 760 Specifications Specifications ▼ Capacities (Approximate Quantities) Item Capacity With oil filter replacement 4.2 L (4.4 US qt, 3.7 Imp qt) SKYACTIV-G Without oil filter replacement 4.0 L (4.2 US qt, 3.5 Imp qt) Engine oil SKYACTIV-D With oil filter replacement 5.1 L (5.4 US qt, 4.5 Imp qt) 1.5, SKYAC‐...
  • Page 761 Specifications Specifications ▼ Light Bulbs Exterior light Category Light bulb Wattage UN-R (SAE) With running lights H15 (―) 15/55 High Halogen head‐ beam Without running lights HB3 (9005) lights Low beam H11 (H11) Headlights High beam/Low beam ― (―) LED head‐ Wide-range low beam (With adap‐...
  • Page 762 Specifications Specifications Interior light Category Light bulb Wattage UN-R Luggage compartment light ― Overhead lights (Front)/Map lights ― Overhead light (Rear) ― UN-R stands for United Nations Regulation. ▼ Tyres Sample tyre mark and its meaning Nominal section width Mud and snow Nominal aspect ratio in % Speed symbol Construction code...
  • Page 763 The tyres have been optimally matched with the chassis of your vehicle. When replacing tyres, Mazda recommends that you replace tyres of the same type originally fitted to your vehicle. For details, contact an expert repairer (we recommend an Authorised Mazda Repairer).
  • Page 764 Specifications Specifications (SKYACTIV-D 1.8) Inflation pressure Tyre size Up to 3 persons ―Full load Front 250 kPa (2.5 bar, 36 psi) 260 kPa (2.6 bar, 38 psi) 215/60R16 95V 230 kPa (2.3 bar, 33 psi) 330 kPa (3.3 bar, 48 psi) Rear 250 kPa (2.5 bar, 36 psi) 350 kPa (3.5 bar, 51 psi)
  • Page 765 ▼ Brakes If you require information regarding the wear limit specification for the brake disc plates and the measurement method, please contact an expert repairer (we recommend an Authorised Mazda Repairer). The information is made freely available. 9-12 CX-3_8GT4-EE-18D_Edition8_old 2019-11-14 12:53:52...
  • Page 766 Personalisation Features The following personalisation features can be set or changed by the customer or an Author‐ ised Mazda Repairer. Consult an Authorised Mazda Repairer for details. Additionally, some of the personalisation features can be changed by the customer depend‐...
  • Page 767 Specifications Personalisation Features Settings Change Factory Set‐ Item Feature Available Settings Method ting The warning sound for the Lane Departure Warning Sys‐ Beep Beep/Rumbl. A ― tem (LDWS) can be changed. The volume of the Rumbl. High/Mid/Low A ― warning sound for the Lane Departure Warning System Beep...
  • Page 768 Specifications Personalisation Features Settings Change Factory Set‐ Item Feature Available Settings Method ting The system can be changed so that Distance Recognition Sup‐ On/Off A ― port System (DRSS) does not Distance Recognition Sup‐ operate. port System (DRSS) (page The distance at which the vehi‐ 4-133) cle ahead and your vehicle indi‐...
  • Page 769 Specifications Personalisation Features Settings Change Factory Set‐ Item Feature Available Settings Method ting 90 seconds/ Time for locking door automat‐ 30 seconds 60 seconds/ A ― ically 30 seconds Walk-away auto lock function On/Off A ― operation/non-operational Advanced keyless entry Europe‐...
  • Page 770 Specifications Personalisation Features Settings Change Factory Set‐ Item Feature Available Settings Method ting Europe‐ an mod‐ Leaving home light (page Operational/ On/Off A ― Except 4-64) non-operational Europe‐ an mod‐ Direction indicator (page Beep volume High High/Low A ― 4-68) Three-flash turn signal Operational/non-operational On or Off...
  • Page 771 On/Off C ― Though these systems can be turned Off, doing so will defeat the purpose of the system and Mazda recommends that these systems remain On. For vehicles with an audio system other than the on-screen function type, the warning sound cannot be changed.

  • Page 772: Index

    Index 10-1 CX-3_8GT4-EE-18D_Edition8_old 2019-11-14 12:53:52...
  • Page 773 Index Manual Type........5-7 Operating Tips....... 5-4 Accessory Socket......5-148 Vent Operation.......5-5 Active Driving Display..... 4-32 Ambient Temperature Display..4-28 Adaptive Front Lighting System Antilock Brake System (ABS)..4-88 (AFS)..........4-109 Ashtray..........5-155 Adaptive LED Headlights (ALH)... 4-112 Audio Control Switch Add-On Non-Genuine Parts and Adjusting the Volume....5-16 Accessories..........8-3 Mute Switch........
  • Page 774 Index Appendix........5-133 Bluetooth® Preparation....5-42 Audio Control Switch....5-16 Bluetooth® [Type B (touchscreen)] Audio Set [Type A (non- Bluetooth® Audio..... 5-104 touchscreen)]....... 5-22 Bluetooth® Hands-Free.....5-112 Audio Set [Type B Bluetooth® Preparation.....5-101 (touchscreen)]......5-73 Body Lubrication......6-32 AUX/USB mode......5-18 Bonnet Release........6-21 Before Using the Audio Bottle Holder........5-151 System.........
  • Page 775 Index Cruise main indication (white)............... 4-226 Effectiveness Display......4-99 Cruise set indication (white)/indicator Electric parking brake (EPB).... 4-78 light (green)....... 4-226 Electric Parking Brake (EPB) Warning Cruise Control Set Vehicle Speed Beep...........7-51 Display..........4-28 Electronic steering lock warning Cup Holder........5-149 beep...........
  • Page 776 Index Plastic Part Maintenance..... 6-66 Undercoating....... 6-65 Gauges..........4-21 Glove Compartment......5-152 Flasher Hazard warning......4-76 Hazardous Driving......3-50 Headlights........4-59 Hazard Warning Flasher....4-76 Flat Tyre..........7-3 Headlights Mounting the Spare Tyre.....7-19 Coming home light......4-64 Removing a Flat Tyre....7-16 Control......... 4-59 Floor Mat..........
  • Page 777 (HBC)........4-110 Inspecting Washer Fluid Level..6-32 Lane Departure Warning System Instrument Cluster......4-21 (LDWS)........4-115 Instrument Panel Illumination...4-27 Mazda Radar Cruise Control with Interior Care........6-67 Stop & Go function (MRCC with Active driving display Stop & Go function)....4-152 maintenance......... 6-69 Mazda Radar Cruise Control Cleaning the window interiors..6-69...
  • Page 778 Jump-Starting........7-22 Information........6-2 Scheduled........6-3 Maintenance Monitor......6-16 Map Lights........5-146 Keyless Entry System......3-3 Mazda Radar Cruise Control with Stop & Keys.............3-2 Go function (MRCC with Stop & Go Key suspend function....3-7 function).......... 4-152 Transmitter........3-4 Close proximity warning... 4-154 Key left-in-luggage compartment Cruise control function....4-162...
  • Page 779 Index Overhead Console......5-152 Switching to the rear view monitor Overhead Lights......5-146 display........4-235 Overheating........7-27 Variance between actual road Over Rev. buzzer.......7-54 conditions and displayed Owner Maintenance Image......... 4-239 Closing the Bonnet......6-22 Viewing the display....4-237 Engine Compartment Rear Window Defogger....4-74 Overview........
  • Page 780 Index Seat belt warning beep......7-49 Steering Wheel........3-31 Security System Horn..........4-75 Immobilizer system..... 3-43 Storage Compartments....5-151 Theft-deterrent system....3-45 Cargo sub-compartment.... 5-153 Smart Brake Support (SBS).... 4-184 Centre console......5-152 Collision warning...... 4-186 Glove compartment....5-152 Smart Brake Support (SBS) indicator Overhead console......
  • Page 781 Tyre Inflation Pressure....6-42 Lane Departure Warning sound... 7-52 Tyre Rotation....... 6-43 Lights-on reminder...... 7-48 Tyre inflation pressure warning Mazda Radar Cruise Control with beep........... 7-51 Stop & Go function (MRCC with Tyre Pressure Monitoring System... 4-230 Stop & Go function) system warnings........7-53...
  • Page 782 Index Rear wide view......4-208 Side view........4-201 120 km/h warning beep....7-51 Top view/Front view....4-197 360°View Monitor......4-187 Top view/Rear view....4-204 Front wide view......4-200 Types of images displayed on the How to use the system....4-192 screen......... 4-190 Margin of error between road surface on screen and actual road surface........4-209 10-11...
  • Page 783 10-12 CX-3_8GT4-EE-18D_Edition8_old 2019-11-14 12:53:52...
  • Page 784 10-13 CX-3_8GT4-EE-18D_Edition8_old 2019-11-14 12:53:52...
  • Page 785 10-14 CX-3_8GT4-EE-18D_Edition8_old 2019-11-14 12:53:52...
