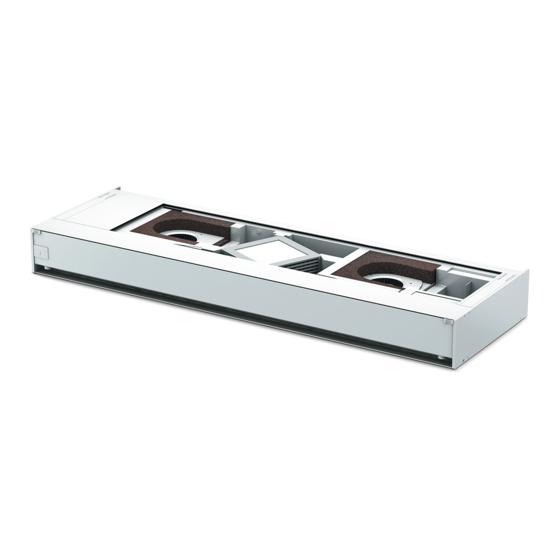

Sound absorbing ventilator with heat recovery.
W i n d o W h a r d Wa r e
D o o r h a r D wa r e
S l i d i n g d o o r h a r d wa r e
V e n t i l at i o n t e c h n o lo g y
b u i l d i n g t e c h n o lo g y
A s s e m b ly I n s t r u c t I o n s
V e n t i l at i o n t e c h n o lo g y
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Siegenia AEROMAT VT WRG 1000
Summary of Contents for Siegenia AEROMAT VT WRG 1000
- Page 1 A s s e m b ly I n s t r u c t I o n s AEROMAT VT WRG 1000. Sound absorbing ventilator with heat recovery. W i n d o W h a r d Wa r e...
-
Page 2: Table Of Contents
AEROMAT VT WRG 1000 Assembly Instructions Contents Target group of this documentation ..............................3 Intended use ....................................3 Safety notices ....................................4 Installation ....................................... 5 Mains supply ....................................8 Technical specifications .................................. 9 Liability ......................................10 Last update: 10.2014... -
Page 3: Target Group Of This Documentation
911 HW Horizontal 911 HW-g (verdeckter Einbau Brüstung) Horizontal 911 CW Horizontal 911 HS Vertical 911 CS Vertical • Do not use the AEROMAT VT WRG 1000 in environments with corrosive or explosive atmospheres (dust, vapour or gas). Last update: 10.2014... -
Page 4: Safety Notices
3. • If the AEROMAT VT WRG 1000 is to be used in a room with a heating unit that draws air from the room, prior authorisation must be obtained from the proper authorities, such as the officially appointed district chimney sweep. -
Page 5: Installation
Assembly Instructions AEROMAT VT WRG 1000 Installation Prerequisites for installation • The position from which the outdoor air is drawn in must be selected so that any nearby emission sources have as little impact as possible on the quality of the air being drawn in. - Page 6 AEROMAT VT WRG 1000 does not have locking bolts, tape up the recesses in the front panel with film. 3. Make sure that no debris or liquids get into the AEROMAT VT WRG 1000 or its included weather grille until it has been installed into the exterior insulation and cladding.
- Page 7 Screw on the mounting bracket in the area indicated (marker tape) or fasten it to the casing profiles with a rivet. We recommend that you use SIEGENIA aluminium mounting brackets. AEROMAT VT WRG 1000 with 911 CW weather grille AEROMAT VT WRG 1000 with 911 HW weather grille...
-
Page 8: Mains Supply
Mains supply Depending on the design, the AEROMAT VT WRG 1000 is connected to a suitable socket of the 230-V AC mains power supply using the Euro plug or directly to the 230-V AC mains power supply using an external switch. -
Page 9: Technical Specifications
Assembly Instructions AEROMAT VT WRG 1000 Technical specifications Specifications for a heat recovery unit Sound absorption (with locking bolts open) = 46 dB w-1,9 = 53 dB n,e,w Max. permissible area load per running metre of ventilator length 1.000 kg... -
Page 10: Liability
Environmental protection Although our products do not fall within the scope of the German Electrical and Electronic Equipment Act, SIEGENIA will continue to meet the requirements of this Act and will endeavour to completely eliminate the use of substances that are hazardous to the environment as soon as this becomes technically feasible. - Page 12 Switzerland Phone: +41 33 3461010 Germany Phone: +49 271 39310 Turkey Phone: +90 216 5934151 You can fi nd address details for our Great Britain Phone: +44 2476 622000 Ukraine Phone: +380 44 4637979 international sites at: www.siegenia.com Contact your dealer:...
