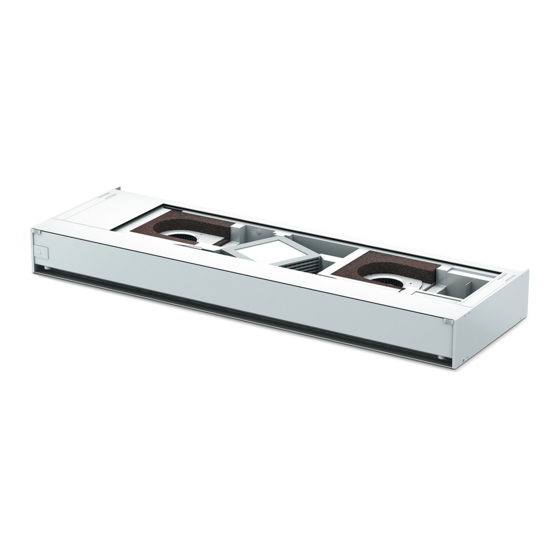

- Page 1 ORIGINAL OPERATING INSTRUCTIONS AERO AEROMAT VT WRG 1100 Sound absorbing ventilator with heat recovery. Window systems Door systems Comfort systems...
-
Page 3: Table Of Contents
Original operating instructions AEROMAT VT WRG 1100 Contents 1. Target group of this documentation ............................4 2. Intended use....................................4 3. Dimensions ....................................5 4. Safety notes ....................................5 5. Scope of delivery / equipment ..............................6 6. Installation ....................................7 7. -
Page 4: Target Group Of This Documentation
3. • If the AEROMAT VT WRG 1100 is to be used in a room with a heating unit that draws air from the room, prior authorisation must be obtained from the proper authorities, such as the officially appointed district chimney sweep. -
Page 5: Dimensions
• Please do not put any objects on top of the unit. • If the AEROMAT VT WRG 1100 is fitted with filters, you must make sure that these cannot become the source of elements that are odorous and harmful to health; this also includes regular inspection and replacement of filters. -
Page 6: Scope Of Delivery / Equipment
Temperature and humidity sensor Operation via SIEGENIA Comfort app — — Optional electrical locking slider * The quick start instructions for the SIEGENIA Comfort app are located behind the front panel (To open the front panel, see page 19). 10.2018... -
Page 7: Installation
AEROMAT VT 6.2 Additional requirements for AEROMAT VT WRG 1100 smart • The AEROMAT VT WRG 1100 smart should be installed to be as free from interference as possible. The following interferences can have a negative influence on the WLAN signal:... - Page 8 AEROMAT VT WRG 1100 does not have sliders, tape up the recesses in the front panel with film. 3. Make sure that no dirt and liquids can get inside the AEROMAT VT WRG 1100 including the weather grille prior to the installation of the exterior insulation or cladding.
- Page 9 Screw on the mounting bracket in the area indicated (marker tape) or fasten it to the casing profiles with a rivet. We recommend that you use SIEGENIA aluminium mounting angles. AEROMAT VT WRG 1100 with 911 CW weather grille AEROMAT VT WRG 1100 with 911 HW weather grille...
-
Page 10: Mains Supply
7. Mains supply Depending on the design, the AEROMAT VT WRG 1100 is connected to a suitable socket of the 230-V AC mains power supply using the Euro plug or directly to the 230-V AC mains power supply using an external switch. - Page 11 Original operating instructions AEROMAT VT WRG 1100 7.3 Wiring diagram AEROMAT VT WRG 1100 (3-stage rotary switch and changeover switch if required) Switch Value Blower level 0, 1, 2, 3 Automatic* Colour Value Black Blower level 1 Grey Blower level 2...
-
Page 12: Unit Function
8.3 Operation in automatic mode (only for AEROMAT VT WRG 1100 Var. 2 and Var. 4 - with sensors) • AEROMAT VT WRG 1100 automatically switches to blower levels 0, 1 or 2 according to the air quality, the temperature and the air humidity. -
Page 13: Membrane Key And Led Display
Original operating instructions AEROMAT VT WRG 1100 9. Membrane key and LED display 9.1 Operating status Membrane key/LED Operating status 2 LEDs flash red Membrane key flashes Calibration of the sensors blue Blower level 0 (device is switched off) 1 LED lights up red... -
Page 14: Commissioning
10.1 Automatic calibration of the air quality sensor (AEROMAT VT WRG 1100 Var. 2 and Var. 4) • The sensors are calibrated automatically as soon as the AEROMAT VT WRG 1100 is connected to the power supply (and also following a power failure). - Page 15 • The automatic mode is only available in designs with sensors (AEROMAT VT WRG 1100 Var. 2 and Var. 4). • Following a power failure, the AEROMAT VT WRG 1100 switches to the last level to be used (automatic sensor calibration is performed first in units with sensors, see page 14).
- Page 16 • The automatic mode is only available in designs with sensors (AEROMAT VT WRG 1100 Var. 2 and Var. 4). • Following a power failure, the AEROMAT VT WRG 1100 switches to the last level to be used (sensor calibration is performed first in units with sensors, see page 14).
- Page 17 AEROMAT VT WRG 1100 11.3 Operation via smartphone or tablet (AEROMAT VT WRG 1100 smart only) AEROMAT VT WRG 1100 smart can be controlled via tablet or smartphone and offers additional device functions via the SIEGENIA Comfort app. 11.3.1 Teaching in the device Please follow the enclosed quick start instructions (H47.MOTS005EN) to integrate the device in your home WIFI.
-
Page 18: Care And Maintenance
• Never use cleaning agents that are aggressive or contain solvents, or sharp-edged objects, as these may damage the surfaces of the casing. • Never clean the unit with a high-pressure cleaner or steam-jet cleaner. • Clean the AEROMAT VT WRG 1100 with a cloth moistened with a mild soap solution or cleaning agent. 12.2 Maintenance intervals Component... - Page 19 AEROMAT VT WRG 1100 12.3 Removing the front panel The figure below shows the opening direction for a AEROMAT VT WRG 1100 that has been installed horizontally. 1. Open the locking bolts on the right and left 2. Pull out the front panel 3.
- Page 20 3. Remove the exhaust air filter and dispose of it as household waste 4. Insert a new exhaust air filter 5. Reassemble the AEROMAT VT WRG 1100 in the reverse order 6. Hold down the membrane key for 5 seconds to reset the LED indicator (filter replacement indicator)
- Page 21 9. Remove the insect grille, vacuum it and, if necessary, clean it under running water and leave it to dry 10. Insert the cleaned insect grille 11. Insert the foam padded wedge 12. Insert a new outside air filter 13. Reassemble the AEROMAT VT WRG 1100 in the reverse order 10.2018...
- Page 22 6. Remove the heat exchanger and clean it thoroughly under running water 7. Leave the heat exchanger to dry completely 8. Insert the cleaned heat exchanger so that it is sealed on all sides in the casing 9. Reassemble the AEROMAT VT WRG 1100 in the reverse order 10.2018...
-
Page 23: Rectification Of Malfunctions
In case of a malfunction, do not open the device or try to repair it under any circumstances. If the problem is not listed in the table below, please contact your installation firm or SIEGENIA directly: Tel. +49 271 3931-0... -
Page 24: Technical Specifications
AEROMAT VT WRG 1100 Original operating instructions 15. Technical specifications The values can vary according to the specific equipment configuration. AEROMAT VT WRG 1100 Var. 1 Var. 2 Var. 3 Var. 4 Sensors ― ― WLAN module ― ― Sound absorption (with sliders open) = 48 dB w-1.9... -
Page 25: Feedback On Documentation
Original operating instructions AEROMAT VT WRG 1100 15.2 Product data sheet (in accordance with EU Regulation 1254/2014) a Manufacturer SIEGENIA b Model identification AEROMAT VT WRG 1100 Var. 1 Var. 3 Var. 2 Var. 4 c Energy consumption (SEV); ‒7.9 kWh/(m² · a); F ‒13.5 kWh/(m²... -
Page 26: Eu Declaration Of Conformity With Regard To Ce Marking
17. EU Declaration of Conformity with regard to CE marking For our product AEROMAT VT WRG 1100, we confirm that the general safety of the defined product, in accordance with Directive 2001/95/EC, is compliant with the relevant protection requirements which are laid down in the Council Directives about electrical and electronic products. - Page 28 Phone: + Industriestraße Telefax: + Wilnsdorf info@sie enia.com GERMANY www.sie enia.com Hun ary Phone: + SIEGENIA worldwide: Austria Phone: + Italy Phone: + Belarus Phone: + Poland Phone: + Benelux Phone: + Russia Phone: + China Phone: + South Korea Phone: +...
