MODEL RTA-3841SU
A02 180925

Advertisement

loading
Need help?

Need help?

Do you have a question about the Techni Mobili RTA-3841SU and is the answer not in the manual?

Questions and answers

Summary of Contents for RTA Techni Mobili RTA-3841SU

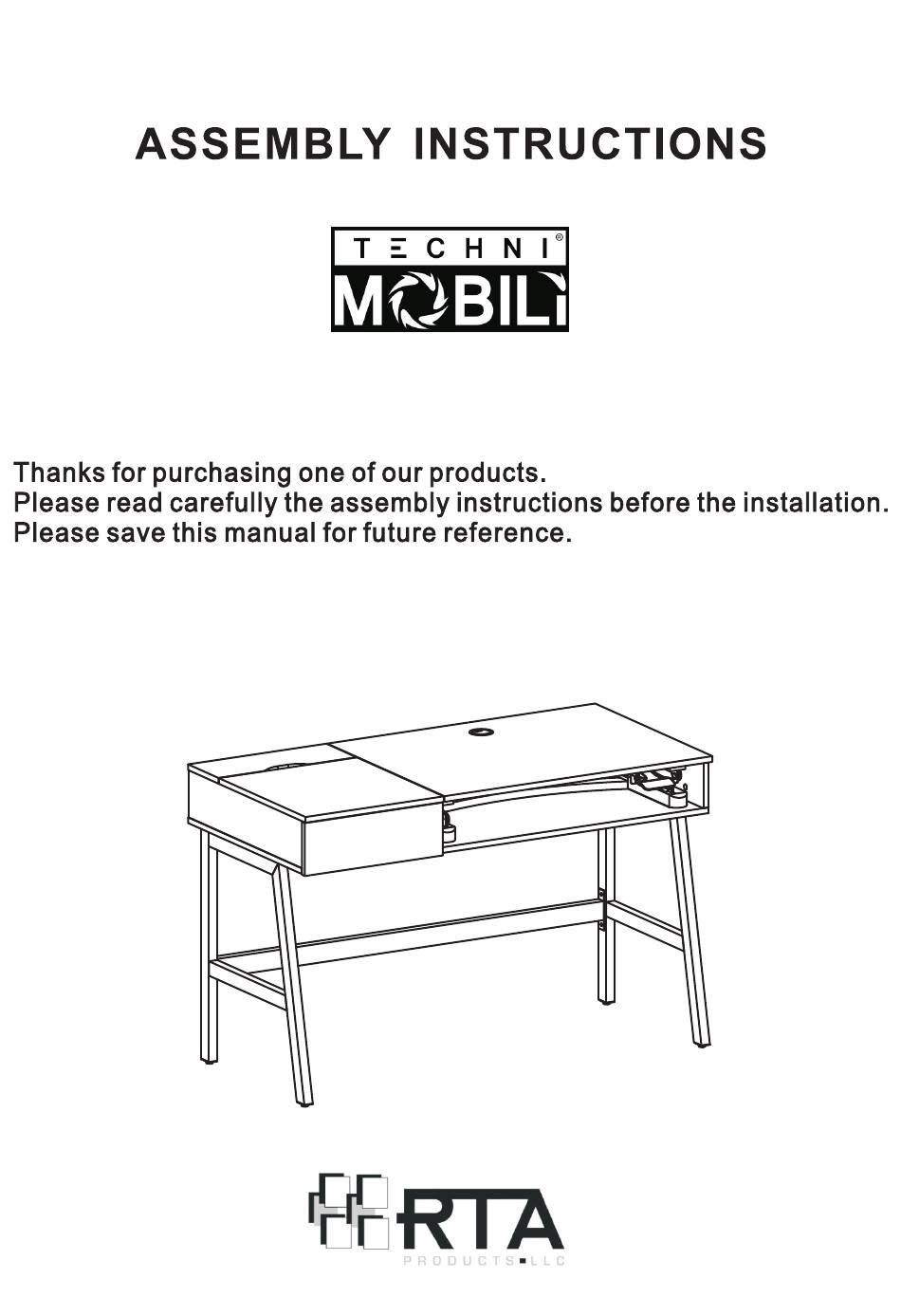

  • Page 1 MODEL RTA-3841SU A02 180925...
  • Page 2 Drawers Inside Space: " " " " Product Size:47 WX23.5 DX(30.5 -43.5 H) 13.5"WX14"DX3"H 15 Lbs 30 Lbs 10 Lbs...
  • Page 3: Parts List

    RTA-3841SU PARTS LIST Top horizontal bar Right structure Left structure Back horizontal bar Drawer front panel Drawer left panel Drawer Right panel Studs...
  • Page 4 RTA-3841SU Drawer back panel Sliders Drawer connector Drawer bottom panel X2 (1 Set) Left back panel Middle panel Right side panel Left side panel Bottom panel Right back panel Left top panel Left partition panel Sit to stand desktop Hinge...
  • Page 5: Screws List

    RTA-3841SU SCREWS LIST PART QTY. ITEM PART QTY. ITEM 6X40 MM 6X50 MM 3X15 MM 4X8 MM 4X35 MM 5X40 MM 6X15 MM 6X25 MM 6X35 MM 4X16 MM...
  • Page 6 RTA-3841SU...
  • Page 7: Assembly Steps

    RTA-3841SU ASSEMBLY STEPS: Attach the Studs (5) to the bottom legs on the Structures (1) and (2) as shown. SCREWS Assemble the Top horizontal bar (3) and the Back horizontal 6X15 MM bar (4) in between the structures (1) and (2) using screws (D).
  • Page 8 RTA-3841SU PLEASE PAY CLOSE ATTENTION TO THE ORIENTATION OF ALL THE PANELS. SCREWS First screw the bolts (A) to the panels (13), (14) and (15), then 6X40 MM assemble the Left back panel (16) in between (13) and (14), and the Right back panel (17) in between(14) and (15) as shown and as explained in page 5.
  • Page 9 RTA-3841SU Attach the bracket (25) to panel (14) using screws (I) asshown. Open the sliders (11) and using screws (B), attachthem to the panels (13) and (14) on the front first, then slide them to find the back hole, and secure them using screws (B) as shown.
  • Page 10 P.10 RTA-3841SU P.10 if necessary, fix 4 screws Assemble the Hinges (23) to panel (16) using screws (G). If the SCREWS door doesn't close smoothly, you can fine-tune the hinges for 4X16 MM proper alignment. The screws indicated with (A) adjust the horizontal alignment and the screw indicated with (B) adjusts the vertical alignment.
  • Page 11 P.11 RTA-3841SU P.11 SCREWS 6X35 MM SCREW VERY LOOSE TO ALLOW FLEXIBILITY AND PROPER ALIGNMENT, TIGHTEN AFTER ALL THE SCREWS ARE IN PLACE. 6X50 MM Assemble the Bottom panel (18) to the structures (1) and (2) using screws (H), and to the bar (3) using screws (F) as shown.
  • Page 12 P.12 RTA-3841SU P.12 SCREWS 3X15 MM Attach the Drawer connectors (12) to the Drawer side panels (7) and (8) on their FRONT END using screws (B) as shown. SCREWS 4X35 MM Assemble the Drawer back panel (10) to the Drawer side panels (7) and (8) using screws Insert the Drawer bottom panel (9) into the grooves of panels (7), (8) and (10).
  • Page 13 P.13 RTA-3841SU P.13 Extend the drawer sliders to the front and assemble the drawer using screws (B) as shown. SCREWS 3X15 MM HOW TO OPERATE THE SIT TO STAND TABLETOP To raise the tabletop, put your left hand To lower the tabletop, put your left hand on...
  • Page 14 P.14 RTA-3841SU P.14...
