RTA Techni Mobili -S07 Assembly Instructions Manual
  1. Manuals
  2. Brands
  3. RTA Manuals
  4. Indoor Furnishing
  5. Techni Mobili RTA-S07
  6. Assembly instructions manual

RTA Techni Mobili -S07 Assembly Instructions Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
MODEL RTA-S07
MODEL RTA-S07

Advertisement

loading
Need help?

Need help?

Do you have a question about the Techni Mobili RTA-S07 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RTA Techni Mobili RTA-S07

Summary of Contents for RTA Techni Mobili RTA-S07

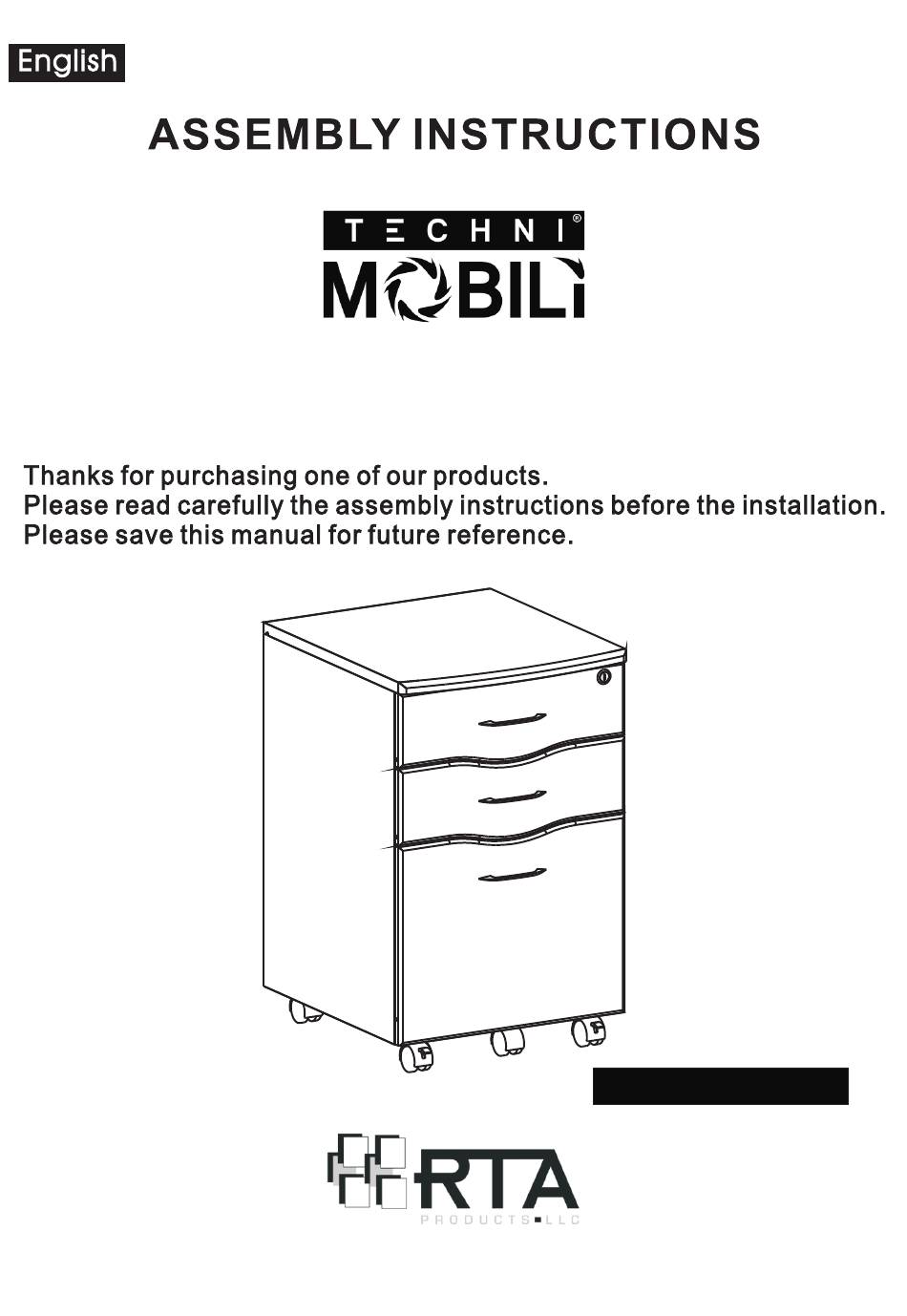

  • Page 1 MODEL RTA-S07 MODEL RTA-S07...

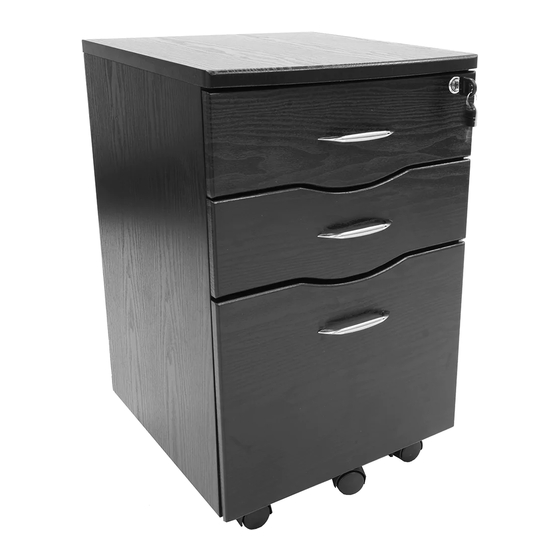

  • Page 2 RTA-S07 DIMENSIONS Small drawer inside space: 13.5"W x 13"D x 3"H File drawer inside space: 13.5"W x 13"D x 10.4"H Product Size: 17"W x 16"D x 25"H MAXIMUM WEIGHT CAPACITIES DO NOT exceed this limit Please use care and good judgement...

  • Page 3: Parts List

    RTA-S07 PARTS LIST Top Drawer Front Small Drawer Left Small Drawer Right Caster Panel Panel Panel Small Drawer Back File Drawer Left File Drawer Right Drawer Bottom Panel Panel Panel Panel Right Left Right Left File Drawer Front File Drawer Back...

  • Page 4: Screws List

    RTA-S07 Right Panel Handle Left Panel Bottom Panel Bracket and nut, SET Back Panel Top Panel File Drawer Caster Middle Drawer Front Locking Fittings Panel SCREWS LIST PART QTY. ITEM PART QTY. ITEM 6X40 MM 4X14 MM 4X35 MM 6X12 MM...
  • Page 5 RTA-S07 HOW TO ASSEMBLE USING BOLTS AND CAM LOCKS: Cam lock Cam bolt In the other panel, insert Screw the bolt into the Turn the cam lock. and align the cam lock. corresponding panel. Join the panels. If the panel already comes with the cam lock inserted, make sure is aligned:...
  • Page 6 RTA-S07...

  • Page 7: Assembly Steps

    RTA-S07 ASSEMBLY STEPS: Tighten the metal plates on the marked position of the metal bar Insert the metal fittings into the bar (22E) in the following order: (22A)x1, (22C)x3, (22A)x1. Then tighten the (22C) on the marked positions of the bar (22E).
  • Page 8 RTA-S07 Right Left Grab all the flat shaped sliders (12) and set aside the “L” shaped ones. Assemble the sliders to the inside face of the Left & Right Panels (14&15) with using Screws (C). The wheels will be located at the front and facing down.
  • Page 9 RTA-S07 Screw the Bolts (A) to the bottom face of the Top Use Screws (E) to assemble the Casters (3) to the Panel (18), then assemble it to the cabinet by turning Bottom Panel (16). the corresponding cam locks. SCREWS...
  • Page 10 RTA-S07 P.10 SCREWS Screw Bolts (A) to the holes on the inside face of Top Drawer Front Panel (4) 6X40 MM and Middle Drawer Front Panel (21). Then assemble the Small Drawer Left & 8PCS Right Panels (1&2) to Top Drawer Front Panel (4) and Middle Drawer Front Panel (21) as shown by turning the cam locks.
  • Page 11 RTA-S07 P.11 Right Right Right Left Left Left SCREWS Place the small drawers upside-down. Grab the “L” shaped sliders (12) and 3X15 MM assemble them to the drawers using Screws (C), with the wheels facing towards the back of the drawers. Make sure the sliders are touching the side 8PCS panels, and that they are not “up in the air”.
  • Page 12 RTA-S07 P.12 SCREWS 4X14 MM 2PCS 6X12 MM Assemble the Bracket (19) to the bottom of the inside face of the File Drawer Front Panel (9) using Screws (E) & (F) as shown. Attach the File Drawer Caster (20) to the Bracket (19) using the nut and tighten with the wrench.
  • Page 13 RTA-S07 P.13 Slide the Drawer Bottom Panel (5) thru the channels in between panels (7), (8) and (9) as shown. Make sure the panel fits inside all the channels. Assemble the File Drawer Back Panel (10) to the File Drawer Left &...
  • Page 14 RTA-S07 P.14 Right Right Left Left SCREWS Place the file drawer upside-down. Grab the “L” shaped sliders (12) and assemble them to the file drawer using Screws (C), with the 3X15 MM wheels facing towards the back of the drawer. Make sure the sliders are touching the side panels, and that they are not “up in the air”.
