MODEL RTA - 325
Thanks for purchasing one of our products.
Please read carefully the assembly instructions before the installation.
Please save this manual for future reference.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Techni Mobili RTA-325 and is the answer not in the manual?

Questions and answers

Summary of Contents for RTA Techni Mobili RTA-325

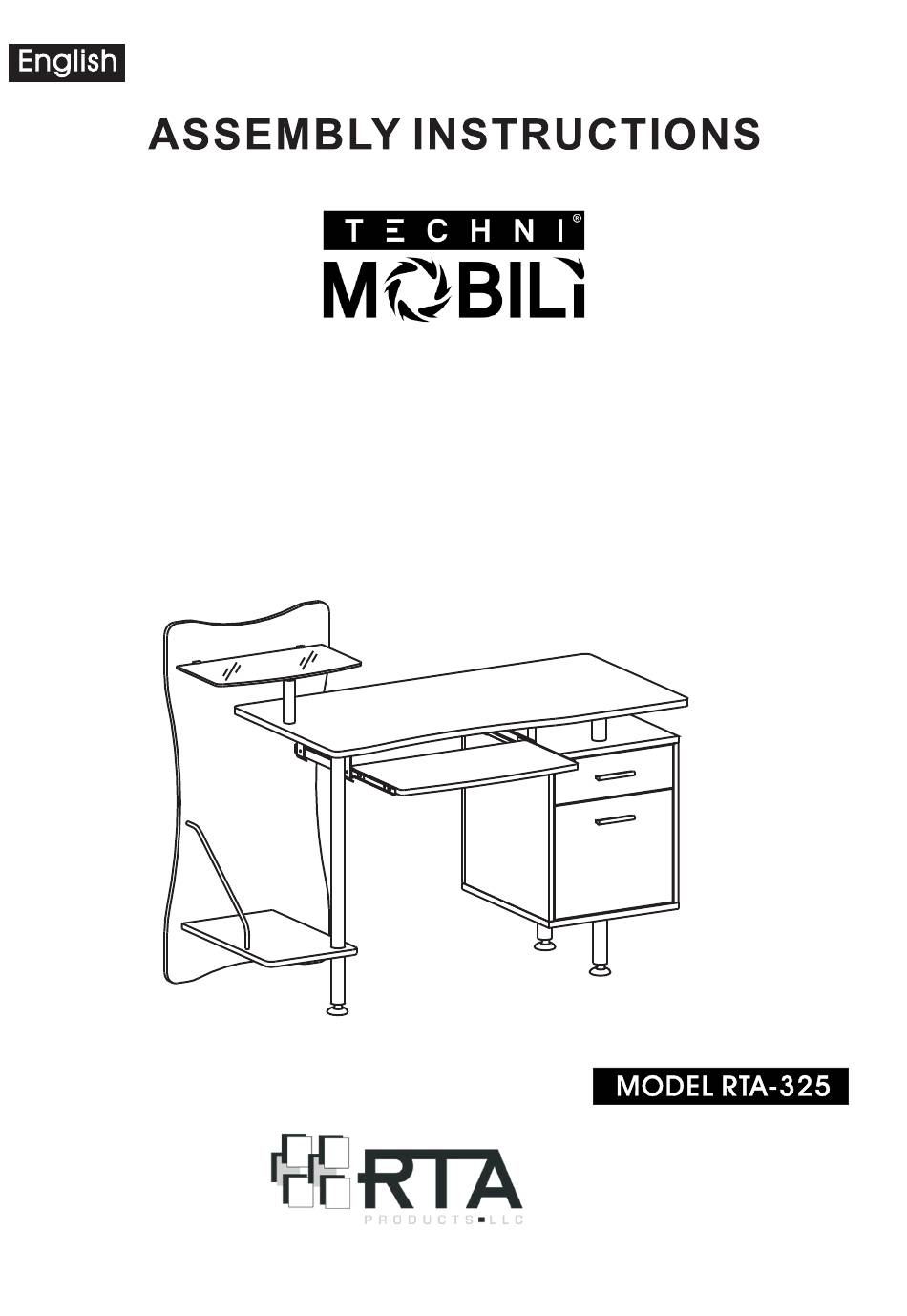

  • Page 1 MODEL RTA - 325 Thanks for purchasing one of our products. Please read carefully the assembly instructions before the installation. Please save this manual for future reference.
  • Page 2 RTA-325 DIMENSIONS Product Size: 51-1/5"W x 22-1/4"D x 39-3/8"H MAXIMUM WEIGHT CAPACITIES DO NOT exceed this limit Please use care and good judgement when placing objects on wood surface...
  • Page 3 Left Back Panel CPU Tube Screw stud CPU Panel Long Tube Right Panel Short Tube Left Panel Right Back Panel Top Panel Long Support Tube Bottom Panel X1 SET Main Table Top Keyboard Slider Short Support Tube Slider Base...
  • Page 4 Small Drawer Left Small Drawer Front Keyboard Panel Small Drawer Right Panel Panel Panel X2 SET Small Drawer Back File Drawer Left Small Drawer Bottom Drawer Slider Panel Panel Panel File Drawer Front File Drawer Back File Drawer Right File Drawer Bottom Panel Panel Panel...
  • Page 7 Grab all the flat shaped Drawer Sliders (23) and set aside the “L” shaped ones. With the Left & Right Panels (7&8) oriented as illustrated, assemble one pair of flat sliders (23) to the top holes on their inside faces. The wheels will be located at the front and facing down.
  • Page 8 Screws the Bolts (B) to the corresponding holes on the inside face of Bottom Panel (10), then assemble the Bottom Panel (10) to (7), (8) & (9) by turning all the corresponding cam locks. Please pay close attention to the orientation of all the parts as illustrated.
  • Page 9 Use Screws (D) to assemble the Short Tube (5) and Long Tube (6) to the CPU Panel (4) with the plastic Use Screws (E) to assemble the CPU Panel (4) to washers (M) in between the tubes and the panel. Then the Left Back Panel (1).
  • Page 10 P.10 Use Screws (G) to affix the Slider Bases (16) to the Main Panel (14). Use Screws (H) to fix the Keyboard Slider (15) to the Slider Bases (16) as illustrated. Please note the position of the tabs on the sliders. ATTENTION: A second person is required to assist with this step.
  • Page 11 P.11 Use Screws (C) to assemble the Long Tube (6) to the Main Panel (14). Use Screw (I) to assemble the Short Support Tube (13) to the Top Panel (11). Use Screws (E) to assemble the Left Back Panel (1) to the Main Panel (14).
  • Page 12 P.12 Use Screw (K) to assemble the Top Support Tube (32) to the Top Glass (31). Use Screws (A) to affix the Metal Fittings (22) to the Left Back Panel (1). Insert the Top Glass (31) into the Metal Fittings (33), but do not tighten their screws yet. Then, place the plastic washer (N) in between the Top Tube (32) and the Main Panel (14), and use Screw (I) to affix the Top Tube.
  • Page 13 P.13 Assemble the Small Drawer Back Panel (22) between the Small Drawer Left & Right Panels (18&19) using Screws (L) as shown. Slide the Small Drawer Bottom Panel (21) thru the channels between panels (18) & (19) as shown. Make sure the panel fits inside all the channels.
  • Page 14 P.14 Assemble the File Drawer Back Panel (28) to the File Drawer Left & Right Panels (24&25) using Screws (L) as shown. Slide the File Drawer Bottom Panel (27) thru the channels between panels (24) & (25) as shown. Make sure the panel fits inside all the channels.
  • Page 15 P.15 Carefully insert all the drawers starting from the bottom. Make sure the wheels from the drawers engage and roll in the middle of the sliders. FINISHED! ENJOY YOUR NEW UNIT!
  • Page 16: Care And Maintenance

    CARE AND MAINTENANCE English - DO NOT EXPOSE THE SURFACES TO DIRECT SUNLIGHT, OR TO EXTREME ENVIRONMENTAL CONDITIONS. EXPOSURE WILL DAMAGE THE PRODUCT, WHICH IS NOT COVERED BY THE WARRANTY. - CLEAN THE SURFACES PREFERABLE WITH A SOLUTION OF A SMOOTH SOAP AND WATER, THEN CLEAR WITH A DRY TOWEL.
