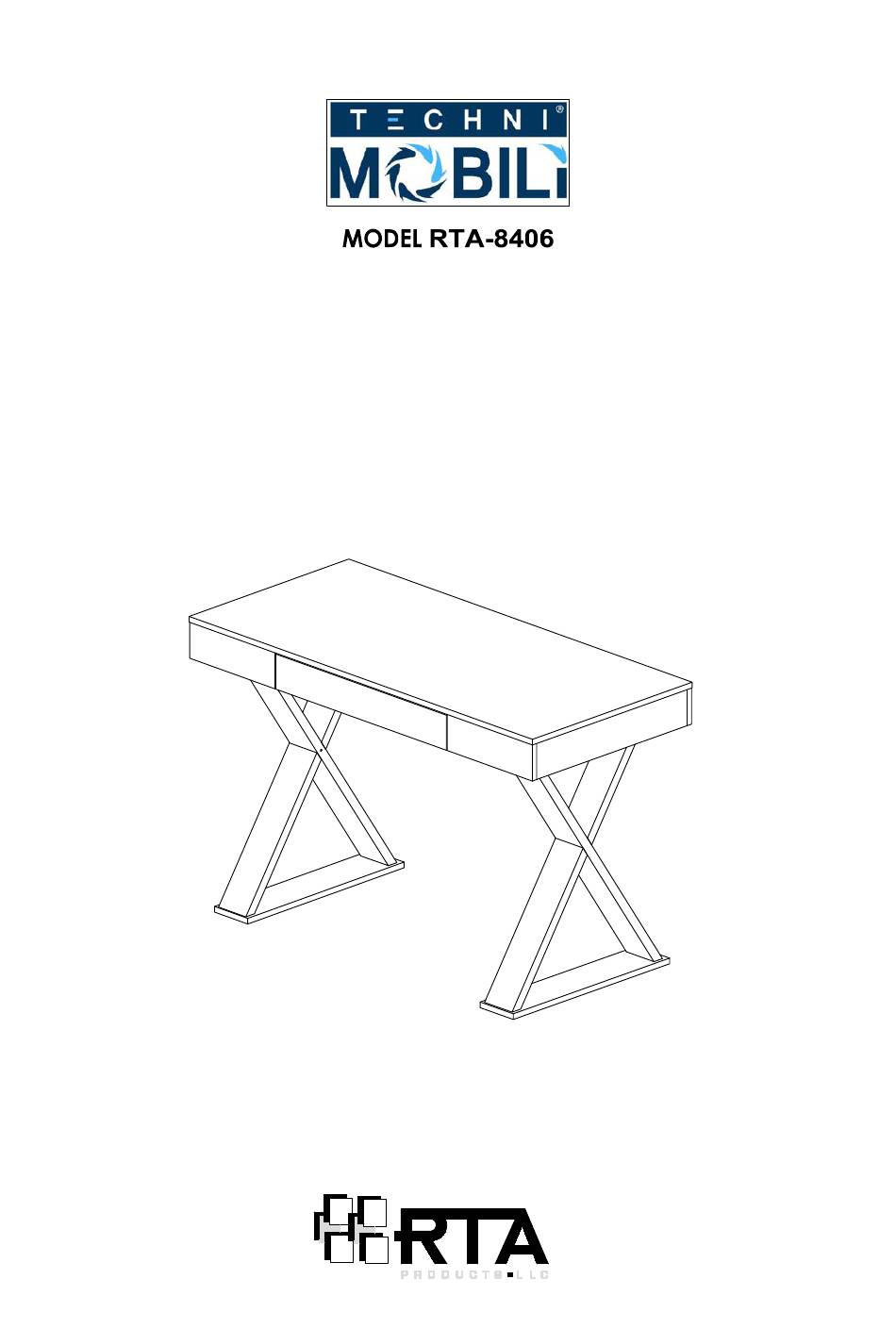

- Page 1 ASSEMBLY INSTRUCTIONS Thanks for purchasing one of our products. Please read carefully the assembly instructions before the installation. Please save this manual for future reference.
- Page 3 ▪ Tabletop Exterior Side Panel x 2 Middle Panel Interior Side Left Stand Panel Right Stand Panel Left Front Panel Right Front Panel Panel x 2 Drawer Left Cross Leg Cross Leg Drawer Front Panel Panel x 2 Panel x 2 Panel Drawer Right Drawer Back...
- Page 4 SMALL BOX LONG BOX PART QTY. ITEM PART QTY. ITEM 48Pcs Wooden Pin Drawer Metal 1Set Sliders Set 12Sets Cam Lock EuroScrew 4Pcs - 5 x 8mm 50Pcs Screw - 3.5 x 15mm 4Pcs Screw - 4 x 38mm 12Pcs Screw - 5 x 38mm 2Pcs Hole Covers...
- Page 7 Attach the flat Drawer Metal Sliders (12) to the Stand Panels Left (F) and Right (G) using screws (3) as shown. For better orientation, and to assure the correct assembly of the sliders, position the panels as shown.
- Page 8 Using screws (4) install L Brackets (10) to all the panels shown in the illustrations. For better orientation, and to assure the correct assembly of the bracket, position the panels as shown. K x2 J x2 E x2 C x2 Assemble the Middle Panel (D) in between the Interior Side Panels (E) using screws (6) as shown.
- Page 9 Assemble the Back Panel (B) to panels (E) using the Cam Locks (2) as shown and as explained in page 4. Assemble the Exterior Side Panels (C) to the Back Panel (B) using the Cam Locks (2) as shown and as explained in page 4.
- Page 10 Assemble the Cross Leg Panel (J) to Assemble the Bottom Panel (L) to Panel (K) using screw (9) as shown. the bottom end of the Cross Legs (J) Repeat for the second leg. and (K) using screws (6) as shown. Then attach the Plastic Feet (8) as shown.
- Page 11 Using screws (6), assemble the Left Stand Panel (F) and the Right Stand Panel (G) to the Middle Panel (D) in their respective sides as shown. PAY ATTENTION TO THE ORIENTATION OF THE PANELS! Assemble the Left Front Panel (H) and the Right Front Panel (I) to the respective sides on the frame using Cam Locks (2) as shown and as explained in page 4.
- Page 12 Carefully place the Tabletop (A) upside-down, then with the help of another person, place the frame over the tabletop making sure the wooden pins enter in the holes. Then using screws (4), assemble the Tabletop (A) to the brackets on the frame. Carefully turn the table to its normal upright position.
- Page 13 Assemble the Drawer Back Panel (P) in between the side panels (O) and (N) using screws (5). Attach the Hole Covers (7) to the Cam Locks as shown.
- Page 14 (12) with the wheels towards the back. VERY IMPORTANT: Make sure to install them won't fit in the desk. Left Insert the drawer into the desk as shown. Then attach the Screw Caps (11) to the Cross Legs (J) as shown.
