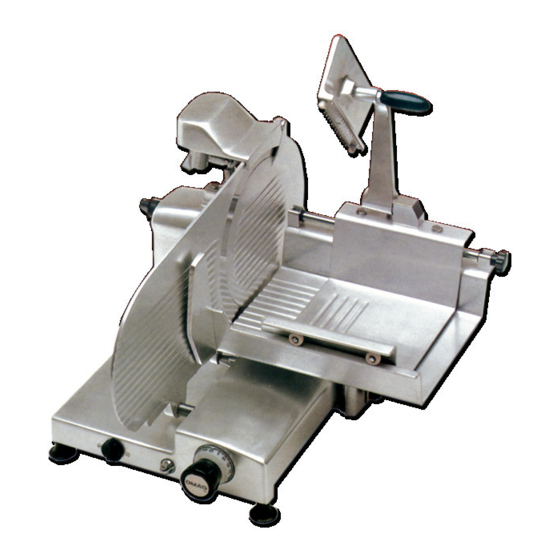

Horizontal Gear-Driven Slicers
Model MS-IT-0300-H, 0330-H, 0350-PM
Items 13655, 13656, 13657
Instruction Manual
Revised - 11/10/2016
Toll Free: 1-800-465-0234
Fax: 905-607-0234
Email: service@omcan.com
www.omcan.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MS-IT-0300-H and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Omcan MS-IT-0300-H

Summary of Contents for Omcan MS-IT-0300-H

  • Page 1 Horizontal Gear-Driven Slicers Model MS-IT-0300-H, 0330-H, 0350-PM Items 13655, 13656, 13657 Instruction Manual Revised - 11/10/2016 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...

  • Page 2: Table Of Contents

    Table of Contents Model MS-IT-0300-H / Model MS-IT-0330-H / Model MS-IT-0350-PM Section Page General Information --------------------------------------------------------------------------- 3 - 4 Safety and Warranty -------------------------------------------------------------------------- 4 - 5 Technical Specifications -------------------------------------------------------------------------- 6 Installation --------------------------------------------------------------------------------------- 6 - 7 Operation --------------------------------------------------------------------------------------------- 7 Maintenance ------------------------------------------------------------------------------------ 7 - 9...

  • Page 3: General Information

    If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents.

  • Page 4: Safety And Warranty

    Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia.
  • Page 5 1 YEAR PARTS AND BENCH WARRANTY Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule a drop off to either an Omcan authorized service depot in the area, or to an Omcan Service warehouse to repair the equipment.

  • Page 6: Technical Specifications

    Technical Specifications Model MS-IT-0300-H MS-IT-0330-H MS-IT-0350-PM Blade Size 12” / 300 mm 13” / 330 mm 14” / 350 mm Power 0.35 HP / 0.26 kW 0.35 HP / 0.26 kW 0.35 HP / 0.26 kW Cheese Slicing* Slicing Volume*...

  • Page 7: Installation

    Installation use. • The blade cover (6) must be in position over the knife and secured by tightening the hand knob (7). • The Iast slice device (4) must be used when slicing it keep your hands away from the knife. When the slicer is not running, the slicer thickness control (2) must be set to zero (fully clockwise) to prevent the blade edge from being exposed.

  • Page 8: Maintenance

    Maintenance • With the hand knob removed, grasp the edge of the blade cover and carefully lift it straight off the knife. WARNING: The slicer blade is very sharp. Use extreme caution when working near the blade. • CAREFULLY wash both sides of the blade with the slice thickness control turned fully clockwise. •...
  • Page 9 (14) adjusted closer to the blade. REFERENCE Item Number Model Number Description Manufacturer Model Number Meat Slicer Gear Driven Horizontal 13655 MS-IT-0300-H 12” / 300mm Blade 0.35 HP / 261 W H300 110V/60/1 NSF cETL cULus Meat Slicer Gear Driven Horizontal 13656 MS-IT-0330-H 13”...

  • Page 10: Illustrated Drawings

    Illustrated Drawings...

  • Page 11: Parts Breakdown

    Parts Breakdown Model MS-IT-0300-H 13655 Model MS-IT-0330-H 13656 Model MS-IT-0350-PM 13657...
  • Page 12 Parts Breakdown Model MS-IT-0300-H 13655 Model MS-IT-0330-H 13656 Model MS-IT-0350-PM 13657...
  • Page 13 Parts Breakdown Model MS-IT-0300-H 13655 Model MS-IT-0330-H 13656 Model MS-IT-0350-PM 13657...
  • Page 14 Parts Breakdown Model MS-IT-0300-H 13655 Model MS-IT-0330-H 13656 Model MS-IT-0350-PM 13657...
  • Page 15 Parts Breakdown Model MS-IT-0300-H 13655 Model MS-IT-0330-H 13656 Model MS-IT-0350-PM 13657...
  • Page 16 Parts Breakdown Model MS-IT-0300-H 13655 Model MS-IT-0330-H 13656 Model MS-IT-0350-PM 13657...
  • Page 17 Parts Breakdown Model MS-IT-0300-H 13655 Model MS-IT-0330-H 13656 Model MS-IT-0350-PM 13657 Item No. Description Position Item No. Description Position Item No. Description Position Sharpening Assembly (Support & Stones) Bushing, Funnel H-L-C (OMAS) for H300, 17272 A1003 78265 B6110 19645 Nut M10 for H300, H330, H350...
  • Page 18 Parts Breakdown Model MS-IT-0300-H 13655 Model MS-IT-0330-H 13656 Model MS-IT-0350-PM 13657 Item No. Description Position Item No. Description Position Item No. Description Position Gauge Plate Flat Bar VS for H300, 17369 Switch 4 x 20 for H300, H330, H350 I3647...
  • Page 19 Parts Breakdown Model MS-IT-0300-H 13655 Model MS-IT-0330-H 13656 Model MS-IT-0350-PM 13657 Item No. Description Position Item No. Description Position Item No. Description Position Washer 17 x 30 x 4 for H300, H330, Screw TC AUT.D7971 2.9 x 13 for H300,...

  • Page 20: Electrical Schematics

    Electrical Schematics Model MS-IT-0300-H 13655 Model MS-IT-0330-H 13656 Model MS-IT-0350-PM 13657 marrone / brown rosso / red azzurro / blue nero / black viola / violet bianco / white rosa / pink grigjo / grey giallo / yellow 1 = primary...

  • Page 21: Notes

    Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________...

  • Page 22: Notes

    Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________...

  • Page 23: Warranty Registration

    Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté...
  • Page 24 Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers.
