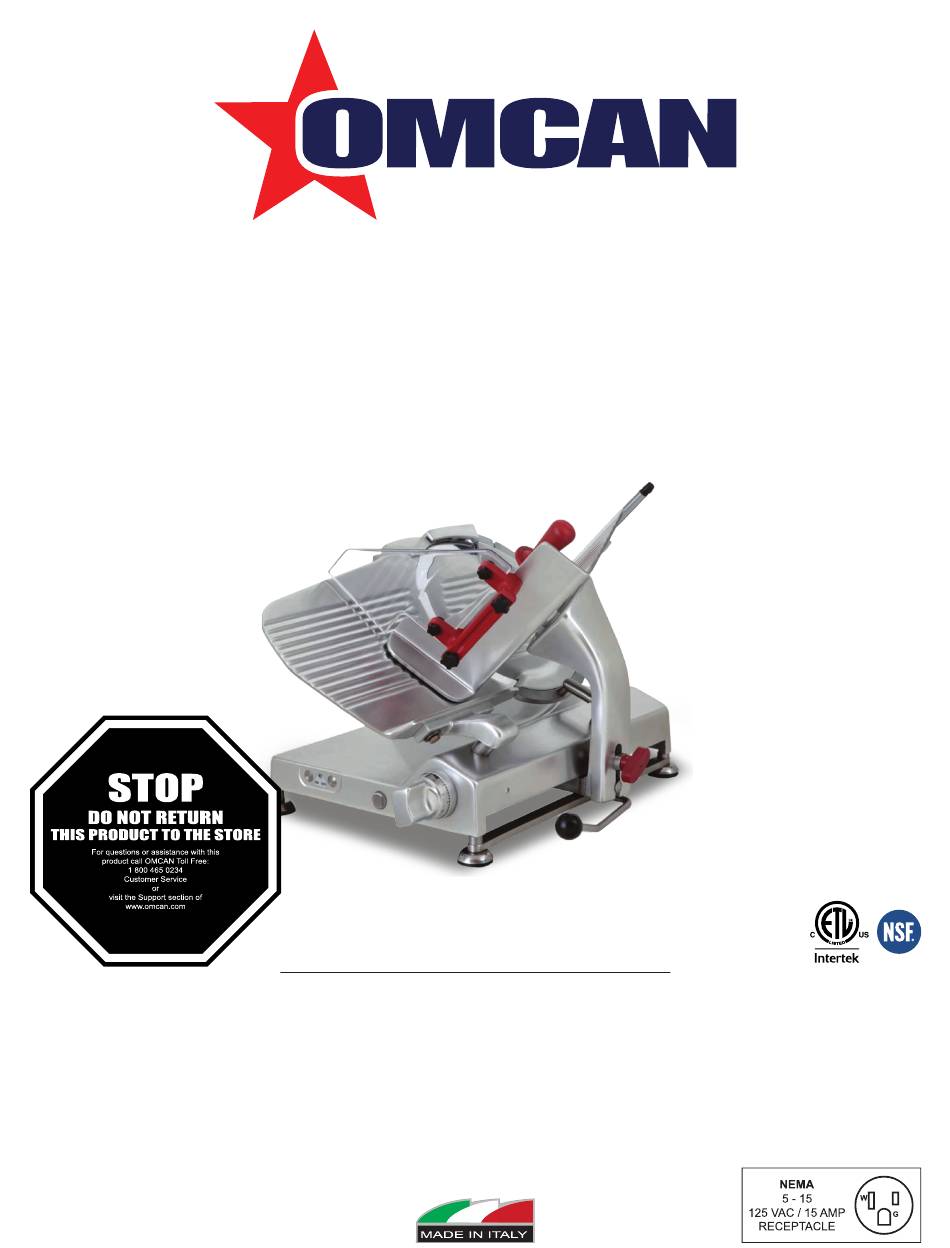

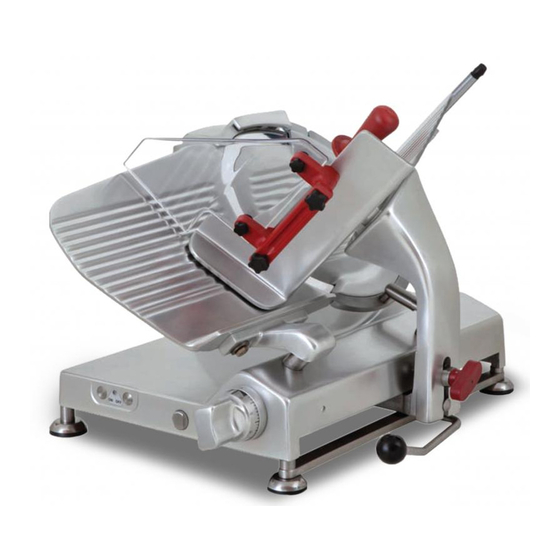

Gear-Driven Meat Slicer
Model MS-IT-0330-C
Item 38917
Instruction Manual
Revised - 10/14/2021
Toll Free: 1-800-465-0234
Fax: 905-607-0234
Email: service@omcan.com
www.omcan.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MS-IT-0330-C and is the answer not in the manual?

Questions and answers

Related Manuals for Omcan MS-IT-0330-C

Summary of Contents for Omcan MS-IT-0330-C

  • Page 1 Gear-Driven Meat Slicer Model MS-IT-0330-C Item 38917 Instruction Manual Revised - 10/14/2021 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...

  • Page 2: Table Of Contents

    Table of Contents Model MS-IT-0330-C Section Page General Information --------------------------------------------------------------------------- 3 - 4 Safety and Warranty --------------------------------------------------------------------------- 4 - 5 Technical Specifications --------------------------------------------------------------------------- 6 Installation -------------------------------------------------------------------------------------------- 6 Operation ----------------------------------------------------------------------------------------- 6 - 7 Maintenance ----------------------------------------------------------------------------------- 7 - 10 Parts Breakdown ---------------------------------------------------------------------------- 11 - 20...

  • Page 3: General Information

    If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents.

  • Page 4: Safety And Warranty

    Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia.
  • Page 5 1 YEAR PARTS AND LABOR BENCH WARRANTY Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule a drop off to either an Omcan authorized service depot in the area, or to an Omcan Service warehouse to repair the equipment.

  • Page 6: Technical Specifications

    Technical Specifications Model MS-IT-0330-C Blade 13” / 330mm Power 0.35 kW / 0.47 HP Slicing Volume* 8 hours or more □ 10.6” x 6.7” / 269 x 170mm Cutting Size ○ 9.5” / 240mm Cut Thickness 0 - 0.6” / 0 -14mm...

  • Page 7: Operation

    Operation HOW TO LOAD THE PRODUCT TO CUT 1. Place the product to cut against the product holder and the thickness plate sides. 2. Lay the last slice device on the product to cut, far from the slice thickness plate. The product is fed to the slice thickness plate by gravity, this makes the cut easier.

  • Page 8: Maintenance

    Maintenance 3. Rotate the slice thickness control to zero to make sure that the blade is covered by the slice thickness plate. 4. Lift the sharpener cover. 5. Slip off completely the sharpener and spin it 180 degrees. 6. Put the sharpener device. 7.
  • Page 9 Maintenance COMPONENTS REMOVAL DANGER: During the cleaning operations be careful: danger of accident. PRODUCT HOLDER 1. Position on zero the slice thickness control. 2. Loosen up completely the product holder clamping handle rotating it counterclockwise. 3. Pull the product holder towards the operator to block it. The metallic click means that the product holder is clamped.
  • Page 10 Maintenance LUBRICATION OF THE GUIDE BAR OF THE PRODUCT HOLDER: 1. Drop some oil on the bar. 2. Let the last slice device slide on the guide bar. LUBRICATION OF THE GUIDE BAR OF THE PRODUCT HOLDER CARRIAGE: 1. Push the product holder towards stroke end. 2.

  • Page 11: Parts Breakdown

    Parts Breakdown Model MS-IT-0330-C 38917...
  • Page 12 Parts Breakdown Model MS-IT-0330-C 38917...
  • Page 13 Parts Breakdown Model MS-IT-0330-C 38917...
  • Page 14 Parts Breakdown Model MS-IT-0330-C 38917...
  • Page 15 Parts Breakdown Model MS-IT-0330-C 38917...
  • Page 16 Parts Breakdown Model MS-IT-0330-C 38917...
  • Page 17 Parts Breakdown Model MS-IT-0330-C 38917...
  • Page 18 Parts Breakdown Model MS-IT-0330-C 38917 Item No. Description Position Item No. Description Position Item No. Description Position Spacer per Registro M10 p.1x33 for 36535 Assy Sharpener for 38917 A1036 36584 All Sharpener Cover for 38917 C1637 36654 D5457 38917 Spacer Fixing Sharpener Cover for 17279 Ring EL.Benzing 5 for 38917...
  • Page 19 Parts Breakdown Model MS-IT-0330-C 38917 Item No. Description Position Item No. Description Position Item No. Description Position 65624 Impugn.Graduata Ass. for 38917 I2184 36794 Carr. Plate Lock Pivot for 38917 P3440 19674 Washer 44.5x51.5x0.2 for 38917 R6848 62453 Nylon Gear for 38917...
  • Page 20 Parts Breakdown Model MS-IT-0330-C 38917 Item No. Description Position Item No. Description Position Item No. Description Position Stainless Steel Screw U6110 M10x30 79283 Shaft Pin for 38917 T9742 19697 Screw M5x16 for 38917 V6211 65654 V706915 for 38917 Screw TSP AUT.U6952 4.2x16 INOX...

  • Page 21: Electrical Schematics

    Electrical Schematics Model MS-IT-0330-C 38917...

  • Page 22: Notes

    Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________...

  • Page 23: Warranty Registration

    Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté...
  • Page 24 Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers.
