USER MANUAL

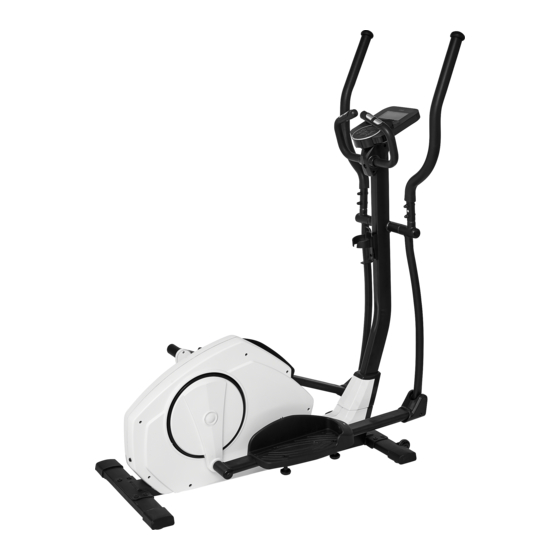

Casall XT100
93018

Advertisement

loading

Related Manuals for Casall XT100

Summary of Contents for Casall XT100

  • Page 1 USER MANUAL Casall XT100 93018...
  • Page 2  Important: Please locate your serial number and record in the box below for service support purposes. Serial number  Serial number here:...
  • Page 3 93018/XT100 L-21 Flat washer Ø6xØ13x1t (4) L-11: Sleeve Ø7xØ12x30L L-13: Spring washer Ø6 (8) L-7: Flat washer Ø8.5xØ25x2t (4) L-12: Knob (foot pedal)M6xP1.0 (8) L-8: Semicircle washer Ø17.5xØ25x0.3t (4) L-5: Hex bolt L-4: Semicircle washer M8*P1.0*30L(4) L-6: Gasket (4) Ø8xØ19x2t (4) 93018/XT100 L-20: Fixing bolt M7xP1.0x30L (2)

  • Page 5: Parts List

    Parts List Number Description Q'ty A, A-1 Console & screw Front handlebar Foam grip for front handlebar Hand pulse Cap for Front handlebar Screw M4x20L Semicircle washer 1.5t Wire for hand pulse Upper handlebar (Left) Cap for upper handlebar Foam grip for upper handlebar Upper handlebar (Right) Handlebar post Upper console cable...
  • Page 6 DC cable F-10 Main frame Flat washer φ8xφ19x2t F-12 F-13 Allen bolt M8xP1.25x16L F-14 Bearing F-15 Sensor box F-16 Screw M4x12L C-type φ20 F-17 Wave washer φ20xφ30x0.3t F-18 Flat washer φ20.3xφ30x1t F-19 F-20 Belt pulley F-21 Hex. screw M8xP1.25x12Lx5t F-22 Belt F-23 Bushing...
  • Page 7 Spring washer φ6 I-4, F-11 Gear box w/cable Hex. nut M6 Rear stabilizer Adjustment pad for rear stabilizer End cap for rear stabilizer Front stabilizer Adjustment pad for front stabilizer End cap for front stabilizer Nylon nut M8 Flat washer φ8xφ16x1t Transport wheel Screw M8xP1.25x40L Left pedal arm...
  • Page 8 Assembly Stage #1 Attach the front stabilizer (J-3) to the main frame (F-10) using four Allen bolts (L-10). Attach the rear stabilizer (J) to the main frame (F-10) using four Allen bolts (L-10). 3. Please remove the handlebar post cover (F-7) from the main frame (F-10). After the assembly, the machine can be adjusted to a slightly uneven ground by adjusting the height of the foot caps at the front and back.
  • Page 9 Assembly Stage #3 1. Put the R/L pedal (K-5, K-6) onto the pedal arm (K-L/R) and tighten it using a knob (L-12), flat washers (L-21), spring washers (L-13), sleeves (L-11) and carriage screws (L-14) on each side. Please keep in mind, the left and right pedals need to be placed in identical positions. L-14 L-21 Ø6xØ13x1t...
  • Page 10 Assembly Stage #5 1. Take the axle (D-6) and pass it through the handlebar post (D). 2. Pass the axle through the wave washer (L-8) and the lower handlebar (E-R/L), then fix with the flat washers (L-7), gaskets (L-6) and Allen bolts (L-5) on each side. 3.
  • Page 11 Assembly Stage #6 1. Please remove the four sets of from the screws (K-1) pedal arms (K-L/R). 2. Assemble the front cover L/R (K-2, K-4) to the pedal arms (K-L/R) by adding screws (K-1) on each side. 3. Pass the hand-pulse wire (B-6) through the handlebar post (D) hole. 4.
  • Page 12 Assembly Stage #7 1. Connect the computer cables (D-1) and hand pulse wire (B-6) to the computer, then attach the computer (A) to the computer bracket with the enclosed screws (A-1). 2. Please remove the from the handlebar post (D) screw (D-2) 3.
  • Page 13 Assembly Stage #8 1. Attach the R/L upper handlebar (C-1, C-4) to the lower handlebar (E-R/L) by adding the carriage bolts (L-2), nuts (L-3) and semicircle washers (L-4). 2. Remove the pre-installed Screws (D-2) on the handlebar post first, and then assemble the Bottle holder (D-8) using Screw (D-2).

  • Page 14: Display Functions

    SM1790-67 SERIES INSTRUCTION MANUAL DISPLAY FUNCTIONS ITEM DESCRIPTION TIME Count up – No preset target. Time will count up from 00:00 to maximum 99:59 with each increment being 1 minute. Count down – If training with preset Time, Time will count down from reset to 00:00.

  • Page 15: Key Function

    MANUAL Manual mode workout. PROGRAM 12 PROGRAM selection. USER User creates resistance level profile. PROGRAM H.R.C. Target HR training mode. WATT WATT constant training mode. PROGRAM KEY FUNCTION ITEM DESCRIPTION Increase resistance level (Encoder) Setting selection. Decrease resistance level Down (Encoder) Setting selection.

  • Page 16: Workout Selection

    Hand sensor for pluse measurement * The profile displayed in the center field depends on the type of exercise that has been set. The computer provides a number of ways to vary the exercise session and make it more motivating. The following exercising are available: -Manual Training (training without programs) -Training with Programs (there are 12 programs preset, P01~P12)
  • Page 17 Drawing 4 Drawing 5 Drawing 6 Manual Mode Press START in main menu to start workout in manual mode. 1. Use UP or DOWN (Encoder) to select workout program, choose MANUAL and press MODE / ENTER to get into. 2. Use UP or DOWN (Encoder) to preset TIME (Drawing 7), DISTANCE (Drawing 8), CALORIES (Drawing 9), PULSE (Drawing 10) and press...
  • Page 18 Drawing 12 User Program Mode 1. Use UP or DOWN (Encoder) to select your workout program, choose User Program mode and press MODE / ENTER to get into. 2. Use UP or DOWN (Encoder) to create a user profile (Drawing 13). There are a total of 20 columns, the user can adjust each column’s load level.
  • Page 19 Drawing 16 Measuring your pulse with the hand sensors The hand sensors are not medical products, but rather exercising tools designed for the approximate measurement and display of the pulse rate when exercising with the crosstrainer. You can measure your pulse with the two- hand sensor on the handle.
