Summary of Contents for Casall INFINITY 1.2X 93008

  • Page 1 Casall INFINITY 1.2X CROSSTRAINER 93008...
  • Page 2 Important: Please locate your serial number and record in the box below for service support purposes. Serial number here:    ...
  • Page 3 INFINITY 1.2X P- 1 P- 9 P- 13 P- 12 P- 6 S c r e w M 3 * 1 4 L ( 2 ) Al l en Bol t M 7*P1. 0*30L( 2) A c o r n N u t f o r M 8 B o l t ( 2 )
  • Page 4 INFINITY 1.2X P- 16 B o x S p a n n e r ( 1 ) A l l e n K e y ( 2 ) P- 17 P- 19 Knob ( f oot pedal ) M 6*P1. 0 ( 4) P- 18 P i v o t T u b e ( 4 ) Spr i ng W asher f or handl ebar bol t...

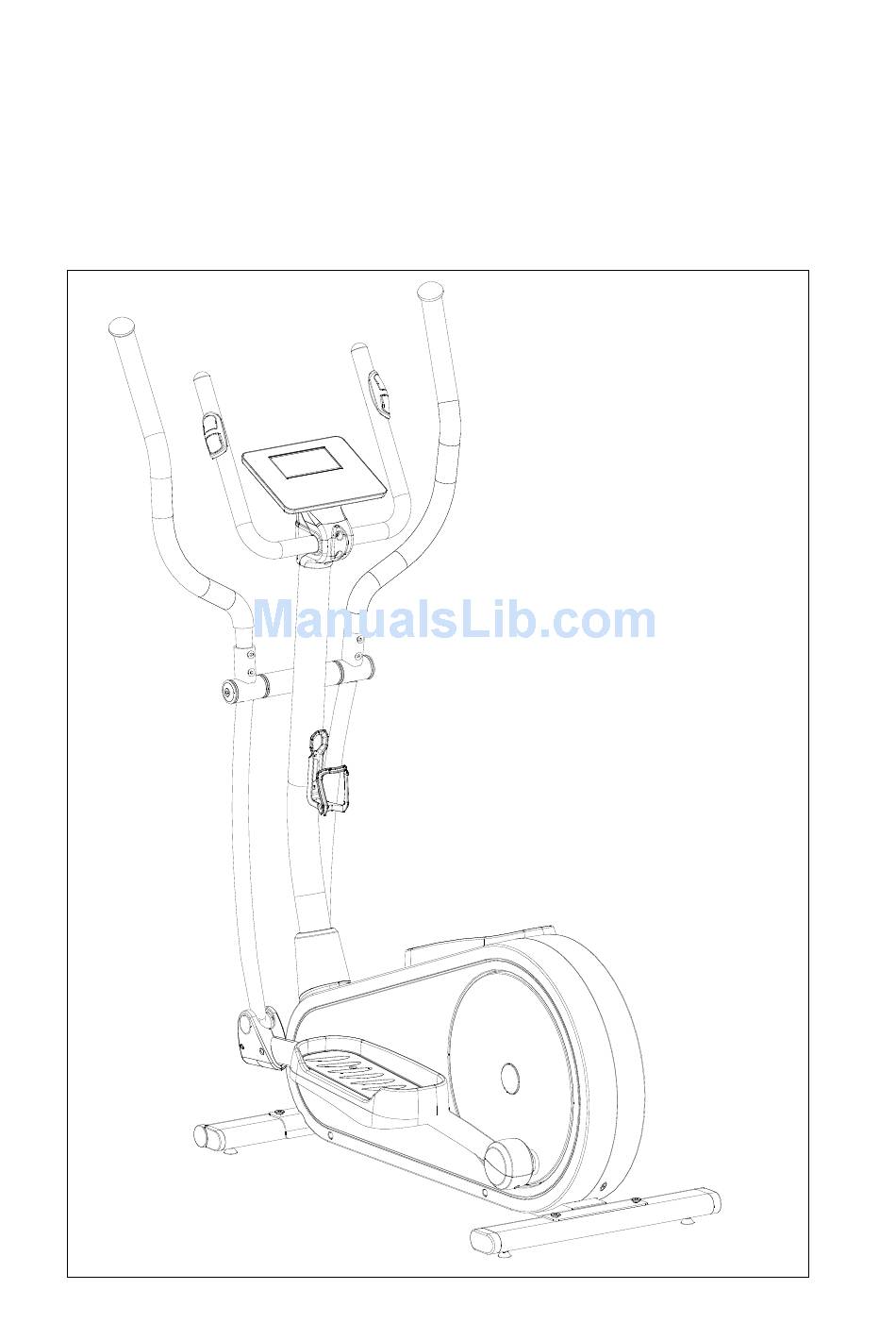

  • Page 5 Assembly Diagram...

  • Page 6: Exploded Diagram

    EXPLODED DIAGRAM H- 8...

  • Page 7: Parts List

    PARTS LIST Item spec. Q'ty A , A-1 Computer & Screw for computer 1SET Front handlebar Foam grip for front handlebar 2PCS End cap for foam grip φ7/8" 2PCS Hand pulse WP1007-33B 1SET Screw M3x20L 2 PCS Wire for hand pulse 1 PC Upper handlebar ( L) 1SET...
  • Page 8 L-1~L-11 Idler wheel set 1SET Front cover for computer Rear cover for computer Bottle holder Front cover (Left) for pedal post 2PCS Front cover (Right) for pedal post 2PCS Pedal (Left) M-7,M8 Left rear cover (upper/down) for pedal post 1SET Pedal (Right) M-10,M-11 Right rear cover (upper/down) for pedal post 1SET...

  • Page 9: Assembly Steps

    ASSEMBLY STEPS STEP 1 Attach the Front Stabilizer (pt.J-1) to the Main Frame (pt.F-1) using two Allen bolt (pt.P-7) Attach the Rear Stabilizer (pt.K-1) to the Main Frame (pt.F-1) using two Allen bolt (pt.P-7). K - 1 M8*16L STEP 2 1.
  • Page 10 STEP 3 1. Attach the Front handlebar (pt.B-1) to the Handlebar post (pt.D-1) using the clamp cover (pt.P-3), and then fix with two Flat Washers (pt.P-2), two Spring Washers (pt.P-4), two Fixing Bolt (pt.P-1). 2. Pass the hand-pulse wire (pt.B-6) through the hole. 3.
  • Page 11 STEP 4 1. Remove the pre-installed Screws (pt.D-3) on the handlebar post first. 2. Attach the Rear cover (pt.M-2) using two of Screws (pt.P-6) and one of Screws (pt.D-3) . 3. Attach the Front cover (pt.M-1) using Screws (pt.D-3) 4. Remove the pre-installed Screws (pt.D-7) on the handlebar post, and then assemble the Bottle holder (pt.M-3) by Screw (pt.
  • Page 12 Fix the two Lower handlebar (pt.E-1) to the Handlebar Post (pt.D-1) with STEP 5 one Axle (pt.M-19), two sets of Wave washer (pt.P-13), Flat washers (pt.P- 12) and Gasket (pt.P-11) and Allen bolt (pt.P-10). Pay attention : Please use two allen key tools to fix bolt ( P-10 ) on both side at the same time.
  • Page 13 STEP 6 1. Attach the Left and Right lower Handlebar (pt.E-1 L/R) to the Left and Right pedal post (pt.I-1 & I-3) using two Allen bolt (pt.P-14), four Flat washers (pt.P-15) and two Nylon nuts (pt.P-9). --- Figure A 2. Attach the Pedal post (pt.I-1 & I-3) onto the Crank connation set using one of Nylon nuts (pt.S-4), Flat washers (pt.S-3) and Plastic washers (pt.S-8).
  • Page 14 STEP 7 1. Remove the pre-installed screws (pt.I-2) on the Pedal post first. 2. Attach the Lower handlebar (E-1 R/L) to the left and right pedal post (I-1), and then close the cover (M-4 & M-5) using screws (pt.P-5 & I-2). 3.
  • Page 15 Slide the Upper handlebar post (C-1,C-4) (R/L) into the Lower handlebar (E-1) STEP 8 and then fix with the eight Allen bolts (P-8) M8*12L STEP 9 Connect the adaptor (N) to the DC hole (located on the back of the chain cover).
  • Page 16 INSTRUCTIONAL MANUAL FOR CASALL INFINITY 1.2X CONSOLE Program 3 Program 4 Program 1 Program 2 Program 5 Program 6 Manual mode Program 7 User program Program 8 Program 9 Program 10 H.R.C. Watt control Program 11 Program 12...

  • Page 17: Button Function

    【BUTTON FUNCTION】 Increase resistance level ‧ ‧ Setting selection. DOWN Decrease resistance level ‧ ‧ Setting selection. ENTER ‧ Confirm setting or selection. RESET ‧ Press and hold for 2 seconds to reboot the computer and start from user setting. ‧...

  • Page 18: User Profile Set Up

    USER PROFILE SET UP – 2-1 Use UP (▲) and DOWN (▼) key to select a user profile from U1~U4. Press “ENTER” to confirm when a user profile is chosen. 2-2 Press “ENTER” each time when data is determined for Sex(♀♂), Age(A), Height(H), and Weight(W).
  • Page 19 4. Press START/STOP button to pause workout. Press RESET to return to main menu. (Manual Mode) Program Mode Choose a preset workout program. Press UP or DOWN to select workout program. Choose (Program) and press ENTER to confirm. Press UP or DOWN to set workout LEVEL and TIME. Press START/STOP button to start workout.
  • Page 20 H.R.C mode Target a heart rate for the workout. 1. Press UP or DOWN to select workout program, choose (H.R.C.) and press ENTER to confirm. 2. Press UP or Down to select 55%.75%.90% or TA (Target heart rate.). (default: 100). *Formula: (220-Age) X ___% *Example: Age 25 choosing 75%, you will target your heart rate to (220-25) x 75%= 146/min 3.
  • Page 21 2. Hold on to the handgrips for 8 seconds and computer will show BMI (B) and FAT% (F) value. *Please see reference Body Fat chart below to determine body fat range. *Please see reference BMI chart below to determine the BMI range. 3.
