Manual
WAGO-I/O-SYSTEM 757

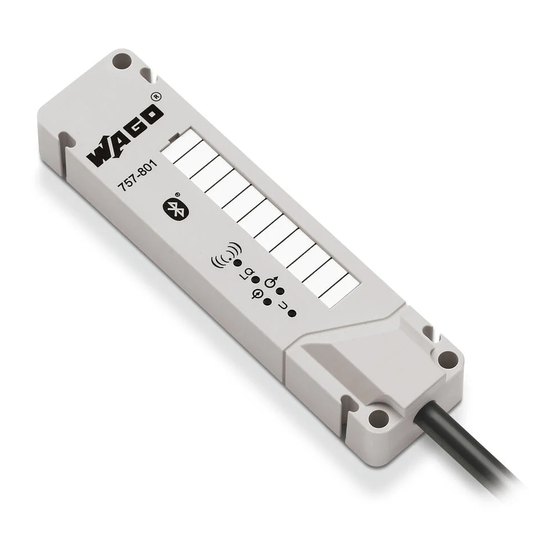

Bluetooth® Module RS-232
757-801
Version 1.0.0
Pos : 3 /Alle Serien (Allgemeine M odul e)/Hinweise z ur Dokumentation/Impres sum für Standardhandbüc her - allg. Angaben, Ansc hriften, Tel efonnummer n und E-Mail-Adres sen @ 3\mod_1219151118203_21.doc x @ 21060 @ @ 1
Advertisement
Chapters
Table of Contents
Related Manuals for WAGO 757-801
Summary of Contents for WAGO 757-801

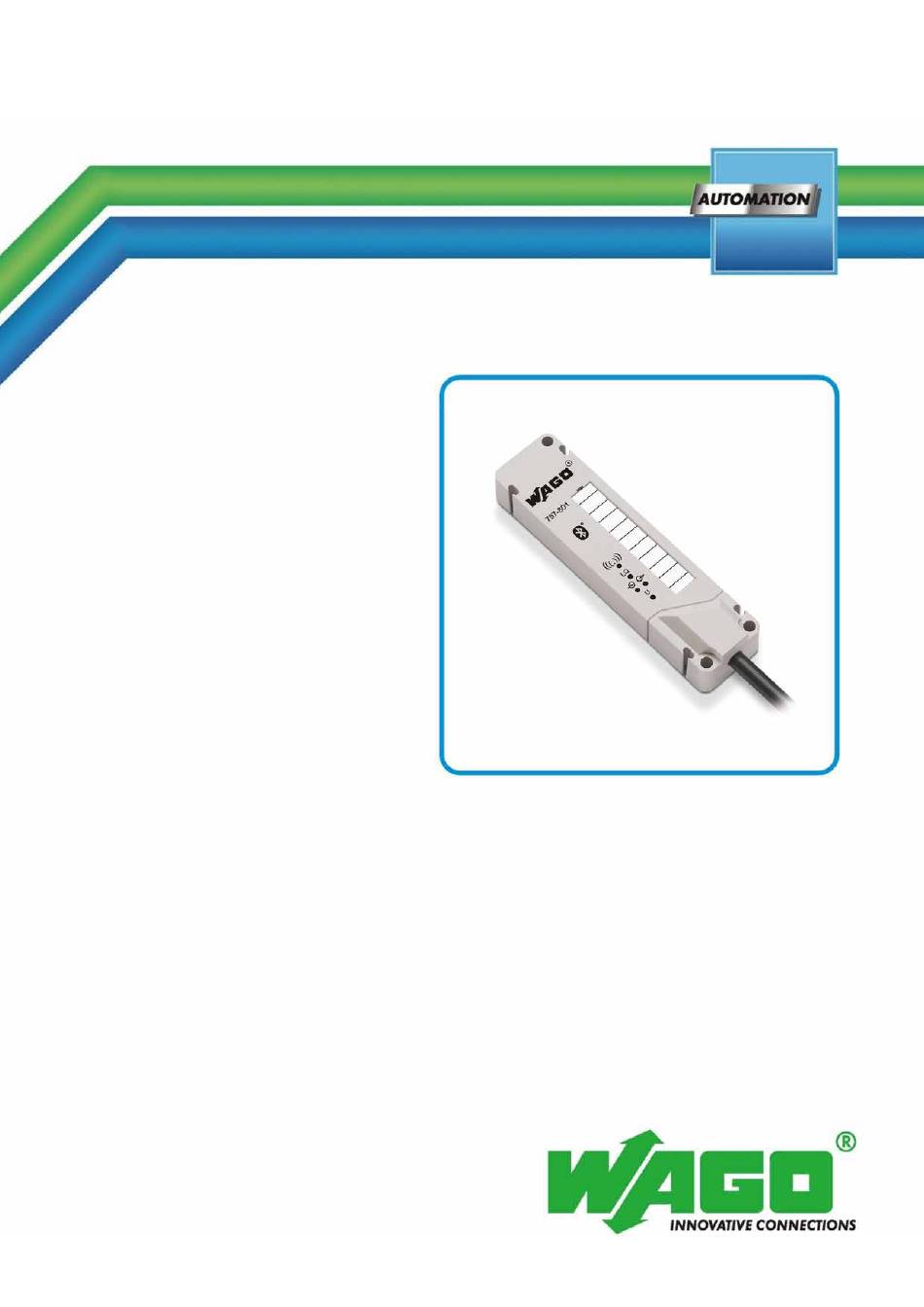

- Page 1 Pos : 2 /D okumentati on allgemein/Ei nband/Ei nband H andbuch - Dec kbl att ohne Variantenfel d (Standar d) @ 9\mod_1285229289866_0.doc x @ 64941 @ @ 1 Manual WAGO-I/O-SYSTEM 757 Bluetooth® Module RS-232 757-801 Version 1.0.0 Pos : 3 /Alle Serien (Allgemeine M odul e)/Hinweise z ur Dokumentation/Impres sum für Standardhandbüc her - allg. Angaben, Ansc hriften, Tel efonnummer n und E-Mail-Adres sen @ 3\mod_1219151118203_21.doc x @ 21060 @ @ 1...
- Page 2 WAGO-I/O-SYSTEM 757 757-801 Bluetooth® Module RS-232 © 2013 by WAGO Kontakttechnik GmbH & Co. KG All rights reserved. WAGO Kontakttechnik GmbH & Co. KG Hansastraße 27 D-32423 Minden Phone: +49 (0) 571/8 87 – 0 Fax: +49 (0) 571/8 87 – 1 69 E-Mail: info@wago.com...
-
Page 3: Table Of Contents
WAGO-I/O-SYSTEM 757 Table of Contents 757-801 Bluetooth® Module RS-232 Pos : 5 /D okumentati on allgemein/Verzeic hnisse/Inhalts verz eichnis - Ü berschrift oG und Verzei chnis @ 3\mod_1219151230875_21.doc x @ 21063 @ @ 1 Table of Contents Notes about this Documentation ..............7 Validity of this Documentation .............. - Page 4 Table of Contents WAGO-I/O-SYSTEM 757 757-801 Bluetooth® Module RS-232 Connection Examples ................41 6.3.1 Using the WAGO Interface Module 289-383 ........41 6.3.2 Using the WAGO Interface Module 289-384 ........43 6.3.3 Connecting a PC RS-232 Interface ............. 44 6.3.4 Connecting the 750-652 I/O Module ..........
- Page 5 WAGO-I/O-SYSTEM 757 Table of Contents 757-801 Bluetooth® Module RS-232 9.3.7 Subgroup “AT BTSEC TRUSTED” ..........68 9.3.7.1 AT BTSEC TRUSTED ? ............... 68 9.3.7.2 AT BTSEC TRUSTED DEL = <Index> ........68 9.3.7.3 AT BTSEC TRUSTED CLEAR ........... 68 Group “AT CON”: Configuration of Outbound Connections ....68 9.4.1...
- Page 6 Table of Contents WAGO-I/O-SYSTEM 757 757-801 Bluetooth® Module RS-232 9.12.1 AT STATUS CON ? ................78 9.12.2 AT STATUS HWVERS ? ..............78 9.12.3 AT STATUS SERIAL ? ..............79 9.12.4 AT STATUS STATS ? ............... 79 9.12.5 AT STATUS SWVERS ? ..............79 9.12.6...
-
Page 7: Notes About This Documentation
Pos : 9 /Alle Serien (Allgemeine M odul e)/Übersc hriften für all e Serien/Hi nweis z ur Dokumentation/Gültig keits ber eich - Übersc hrift 2 @ 12\mod_1338912448776_21.doc x @ 96469 @ 2 @ 1 Validity of this Documentation Pos : 10 /Serie 757 (Funkadapter IP67)/Hi nweis e z ur D okumentation/Gültigkeits bereic h 757-801 @ 14\mod_1358943551854_21.doc x @ 109270 @ @ 1 ®... -
Page 8: Symbols
WAGO-I/O-SYSTEM 757 757-801 Bluetooth® Module RS-232 Pos : 11.3 /All e Seri en ( Allgemei ne Module)/Ü bers chriften für alle Serien/Hinweis z ur D okumentati on/Symbole - Ü berschrift 2 @ 13\mod_1351068042408_21.doc x @ 105270 @ 2 @ 1 Symbols Pos : 11.4.1 /All e Serien ( Allgemei ne Module)/Wic htige Erläuterungen/Sicherheits- und sons tige Hinweis e/Gefahr/Gefahr: _War nung vor Personenschäden allgemei n_ - Erl äuter ung @ 13\mod_1343309450020_21.doc x @ 101029 @ @ 1... - Page 9 WAGO-I/O-SYSTEM 757 Notes about this Documentation 757-801 Bluetooth® Module RS-232 Additional Information: Refers to additional information which is not an integral part of this documentation (e.g., the Internet). Pos : 11.5 /Dokumentation allgemei n/Glieder ungs elemente/---Seitenwechs el--- @ 3\mod_1221108045078_0.doc x @ 21810 @ @ 1 Manual 1.0.0...
-
Page 10: Number Notation
Notes about this Documentation WAGO-I/O-SYSTEM 757 757-801 Bluetooth® Module RS-232 Pos : 11.6 /All e Seri en ( Allgemei ne Module)/Hi nweis e zur D okumentati on/Zahlens ysteme @ 3\mod_1221059454015_21.doc x @ 21711 @ 2 @ 1 Number Notation Table 1: Number notation... -
Page 11: Important Notes
Thus, the existence of such rights cannot be excluded. Pos : 17 /Serie 757 (Funkadapter IP67)/Wic htige Erläuterungen/Pers onalqualifi kation 757-801 @ 14\mod_1358946224988_21.doc x @ 109414 @ 3 @ 1 2.1.2... -
Page 12: Safety Advice (Precautions)
Pos : 23.1 /Serie 757 (Funkadapter IP67)/Wichtige Erläuterungen/Sic herheits- und sonstige Hinweis e/Gefahr/Gefahr : 757-801 Nur SELV/PELV- Spannungsquell e ver wenden! @ 14\mod_1359010090702_21.doc x @ 109722 @ @ 1 Use SELV/PELV power source only! ®... - Page 13 Pos : 25.2 /Serie 757 (Funkadapter IP67)/Wichtige Erläuterungen/Sic herheits- und sonstige Hinweis e/Achtung/Achtung: Hi nweis für offene Ans chl üss e 757-801 @ 14\mod_1363346830510_21.doc x @ 114562 @ @ 1 Pre-assemble free cable ends! ®...
- Page 14 Important Notes WAGO-I/O-SYSTEM 757 757-801 Bluetooth® Module RS-232 Cleaning only with permitted materials! Clean soiled contacts using oil-free compressed air or with ethyl alcohol and leather cloths. Pos : 25.4 /All e Seri en ( Allgemei ne Module)/Wic htige Erläuterungen/Sicherheits- und sons tige Hi nweis e/Ac htung/Achtung: Kei n Kontaktspr ay ver wenden! @ 6\mod_1260181290808_21.doc x @ 46755 @ @ 1 Do not use any contact spray! Do not use any contact spray.
-
Page 15: Device Description
WAGO-I/O-SYSTEM 757 Device Description 757-801 Bluetooth® Module RS-232 Pos : 27 /All e Seri en (Allgemei ne Module)/Ü berschriften für alle Serien/Gerätebesc hreibung/Gerätebeschr eibung - Übersc hrift 1 @ 3\mod_1233756084656_21.doc x @ 27096 @ 1 @ 1 Device Description Pos : 28 /Serie 757 (Funkadapter IP67)/Ger ätebesc hrei bung/Ei nlei tung/Gerätebeschr eibung 757- 801, Ei nlei tung @ 14\mod_1358952576882_21.doc x @ 109515 @ @ 1 ®... -
Page 16: View
Device Description WAGO-I/O-SYSTEM 757 757-801 Bluetooth® Module RS-232 Pos : 30 /All e Seri en (Allgemei ne Module)/Ü berschriften für alle Serien/Gerätebesc hreibung/Ansic ht - Ü berschrift 2 @ 4\mod_1240984217343_21.doc x @ 31958 @ 2 @ 1 View Pos : 31 /Serie 757 (Funkadapter IP67)/Ger ätebesc hrei bung/Ansic ht/Gerätebes chr eibung 757- 801, Ansic ht @ 14\mod_1358963076682_21.doc x @ 109708 @ @ 1 Figure 1: View of device Table 3: Legend for “View of device”... -
Page 17: Labeling
Pos : 33 /All e Seri en (Allgemei ne Module)/Ü berschriften für alle Serien/Gerätebesc hreibung/Bedruc kung - Übersc hrift 2 @ 4\mod_1241082409515_21.doc x @ 32035 @ 2 @ 1 Labeling Pos : 34 /Serie 757 (Funkadapter IP67)/Ger ätebesc hrei bung/Bedruc kung/757-801 Bedr uc kung @ 14\mod_1359030656691_21.doc x @ 109910 @ @ 1 A label containing device-specific information is attached to the side of the device. -
Page 18: Connectors
Pos : 36 /All e Seri en (Allgemei ne Module)/Ü berschriften für alle Serien/Gerätebesc hreibung/Ansc hlüsse - Übersc hrift 2 @ 4\mod_1240984262656_21.doc x @ 31961 @ 2 @ 1 Connectors Pos : 37 /Serie 757 (Funkadapter IP67)/Ger ätebesc hrei bung/Ansc hlüsse/757-801 Ansc hlüs se @ 15\mod_1365676089989_21.doc x @ 116970 @ 33 @ 1 3.3.1 Connecting Cable The end of the cable is cut straight in the as-delivered condition. -
Page 19: Antenna
WAGO-I/O-SYSTEM 757 Device Description 757-801 Bluetooth® Module RS-232 3.3.2 Antenna The WSA has an integrated antenna with low directivity. The antenna is located near the company logo. If there is line of sight between two communicating devices, the WSA must be aligned such that the company logo is facing the front of the other device (see figure “Alignment of the WSA”). -
Page 20: Figure 7: Antenna Diagram; Reception Characteristics Based On Device Alignment
Device Description WAGO-I/O-SYSTEM 757 757-801 Bluetooth® Module RS-232 Figure 7: Antenna diagram; reception characteristics based on device alignment Table 6: Legend for antenna diagram Legend WSA mounted on metallic surface, horizontal measurement WSA mounted on metallic surface, vertical measurement WSA not mounted on metallic surface, horizontal measurement WSA not mounted on metallic surface, vertical measurement Pos : 38 /D okumentation allgemei n/Glieder ungs elemente/---Seitenwechs el--- @ 3\mod_1221108045078_0.doc x @ 21810 @ @ 1... -
Page 21: Display Elements
WAGO-I/O-SYSTEM 757 Device Description 757-801 Bluetooth® Module RS-232 Pos : 39 /All e Seri en (Allgemei ne Module)/Ü berschriften für alle Serien/Gerätebesc hreibung/Anz eigeel emente - Übersc hrift 2 @ 4\mod_1240984390875_21.doc x @ 31964 @ 2 @ 1 Display Elements Pos : 40 /Serie 757 (Funkadapter IP67)/Ger ätebesc hrei bung/Anz eigeelemente/Gerätebes chr eibung 757- 801, Anz eigeel emente @ 14\mod_1358963634904_21.doc x @ 109711 @ @ 1... -
Page 22: Table 8: Indicators During System Start
Device Description WAGO-I/O-SYSTEM 757 757-801 Bluetooth® Module RS-232 The LEDs flash when the system is started and to indicate the time frame for mode switchover. Table 8: Indicators during system start Status Description Single flash Initial flashing after applying power... -
Page 23: Technical Data
Pos : 42 /All e Seri en (Allgemei ne Module)/Ü berschriften für alle Serien/Gerätebesc hreibung/Technisc he Daten - Ü berschrift 2 @ 3\mod_1232967587687_21.doc x @ 26924 @ 2 @ 1 Technical Data Pos : 43 /Serie 757 (Funkadapter IP67)/Ger ätebesc hrei bung/T echnisc he Daten/T ec hni sche D aten 757-801 @ 14\mod_1358966283354_21.doc x @ 109714 @ 333 @ 1 3.5.1 Device Data Table 11: Technical data –... -
Page 24: Bluetooth Communication
Device Description WAGO-I/O-SYSTEM 757 757-801 Bluetooth® Module RS-232 ® 3.5.3 Bluetooth Communication ® Table 13: Technical data – Bluetooth communication ® Bluetooth version Radio/Range Class 1 / max. 100 m Antenna integrated RF output power max. +10 dBm RF input sensitivity typ. -
Page 25: Approvals
WAGO-I/O-SYSTEM 757 Device Description 757-801 Bluetooth® Module RS-232 Pos : 45 /All e Seri en (Allgemei ne Module)/Ü berschriften für alle Serien/Gerätebesc hreibung/Zul ass ungen - Übersc hrift 2 @ 3\mod_1224055364109_21.doc x @ 24030 @ 2 @ 1 Approvals Pos : 46.1 /All e Seri en ( Allgemei ne Module)/Z ulassungen/Standardz ulassungen/C E (Konformi täts kennz eichnung) @ 3\mod_1224494777421_21.doc x @ 24276 @ @ 1 Conformity Marking Pos : 46.2 /All e Seri en ( Allgemei ne Module)/Z ulassungen/Standardz ulassungen/Bluetooth @ 5\mod_1250677059984_21.doc x @ 40825 @ @ 1... -
Page 26: Function Description
Pos : 49.3 /Serie 757 (Funkadapter IP67)/F unktions beschr eibung/Funkti onsbesc hrei bung 757-801 und 750-921: WSA über Befehls schnittstelle konfigurier en @ 16\mod_1374666978621_21.doc x @ 126899 @ @ 1 The WSA can be configured via an AT command interface. This AT command interface can be used to define settings that enable a radio link to be set up by external devices. -
Page 27: Radio Interface
RS-232 device with a defined baud rate of 19200 baud, which would normally not be possible via a direct RS-232 wired link. Pos : 49.5 /Serie 757 (Funkadapter IP67)/F unktions beschr eibung/Funkti onsbesc hrei bung 757-801 und 750-921: F unksc hni ttstelle @ 16\mod_1374667256319_21.doc x @ 126905 @ 2 @ 1 Radio Interface Most of the functions of the WSA require that a radio link exist between it and ®... -
Page 28: Spp Service "Data
For a detailed description of this refer to the section “AT Command Interface”. Pos : 49.7 /Serie 757 (Funkadapter IP67)/F unktions beschr eibung/Funkti onsbesc hrei bung 757-801: AT-Befehls schnittstelle Di agramm @ 16\mod_1375180211712_21.doc x @ 127276 @ 2 @ 1 AT Command Interface Access to the AT command interface of the WSA is gained either via the RS-232 interface, or via the radio interface, but not via both of these simultaneously. -
Page 29: Figure 10: Link Management
Pos : 49.8 /Serie 757 (Funkadapter IP67)/F unktions beschr eibung/Funkti onsbesc hrei bung 757-801 und 750-921: AT-Befehls schnittstelle T ext @ 16\mod_1375180322252_21.doc x @ 127279 @ @ 1 Besides allowing the configuration to be modified, the AT command interface also enables exporting of status and diagnostics information and text output of context-based help texts. -
Page 30: Factory Default Settings
Configuration of the serial interface “Group AT UART” Pos : 49.9 /Serie 757 (Funkadapter IP67)/F unktions beschr eibung/Funkti onsbesc hrei bung 757-801: Wer ksei nstellung @ 16\mod_1374667336835_21.doc x @ 126908 @ 2 @ 1 Factory Default Settings On delivery, the device configuration is preset with the following values:... -
Page 31: Operating Modes
WAGO-I/O-SYSTEM 757 Function Description 757-801 Bluetooth® Module RS-232 Table 16: Factory settings Parameter Default value Serial port of the external device to which 0 (auto) an outbound connection is established Blocked radio frequencies (none) Advanced coexistence measures inactive Use modified device discovery... -
Page 32: Security Settings For The Radio Communications Interface
Function Description WAGO-I/O-SYSTEM 757 757-801 Bluetooth® Module RS-232 Table 17: Operating modes Power Operating Modes Interruptions Normal operation The device is operated normally. The previously configured settings are used. Preparation for switching of operating mode Automatic switching to normal operation. This mode serves only to protect against accidental activation of mode switching, e.g. -
Page 33: Encryption
WAGO-I/O-SYSTEM 757 Function Description 757-801 Bluetooth® Module RS-232 Connectivity of the WSA The device can be configured such that it accepts a direct link setup by an external device always, never or only when no radio link currently exists. The AT command “AT BTSEC PAG”... - Page 34 Function Description WAGO-I/O-SYSTEM 757 757-801 Bluetooth® Module RS-232 links for outgoing links (see section “Reference AT Commands”> … > “AT CON TAR PIN”). ® Bluetooth Standard 2.1 or newer ® For an external device is a device compliant with Bluetooth Standard 2.1 or...
-
Page 35: Figure 11: Authentication Based On Configuration And Bluetooth ® Standard
WAGO-I/O-SYSTEM 757 Function Description 757-801 Bluetooth® Module RS-232 Saved authentication available? ® Bluetooth version 2.1 or higher supported by the external device? Secure External device entered authentication as the outbound required? connection? Check against Check against configured Check against the list... -
Page 36: Special Coexistence Properties
Function Description WAGO-I/O-SYSTEM 757 757-801 Bluetooth® Module RS-232 Special Coexistence Properties ® Bluetooth technology uses the unlicensed ISM frequency band for international use from 2.4 GHz for data transfer. This frequency band is also used by devices that use other technologies such as WLAN in accordance with IEEE 802.11 b/g. -
Page 37: Diagnostics Functions
WAGO-I/O-SYSTEM 757 Function Description 757-801 Bluetooth® Module RS-232 • Configurable channel map The user can manually specify which frequencies are not used by the device for data transfer and thus configure in advance one's own frequency usage plan. Certain frequency ranges can be exclusively reserved for certain technologies or devices. -
Page 38: Mounting
Mounting WAGO-I/O-SYSTEM 757 757-801 Bluetooth® Module RS-232 Pos : 51 /All e Seri en (Allgemei ne Module)/Ü berschriften für alle Serien/Monti eren - D emontieren/M ontier en - Übersc hrift 1 @ 3\mod_1225446744750_21.doc x @ 24900 @ 1 @ 1 Mounting Pos : 52.1 /Serie 757 (Funkadapter IP67)/M onti eren/757- 801 Montage @ 14\mod_1363354143104_21.doc x @ 114589 @ @ 1... -
Page 39: Figure 13: Wsa Fixing Holes
WAGO-I/O-SYSTEM 757 Mounting 757-801 Bluetooth® Module RS-232 Figure 13: WSA fixing holes Table 18: Legend for “WSA fixing holes” figure Fixing hole Diameter Length 4 mm/0.157 in 16 mm 4 mm/0.157 in 16 mm 4 mm/0.157 in 16 mm Pos : 53 /D okumentation allgemei n/Glieder ungs elemente/---Seitenwechs el--- @ 3\mod_1221108045078_0.doc x @ 21810 @ @ 1 Manual 1.0.0... -
Page 40: Connect Devices
Class 2 transformer in compliance with UL 1310 or UL 1585. Pos : 55.2 /Serie 757 (Funkadapter IP67)/Wichtige Erläuterungen/Sic herheits- und sonstige Hinweis e/Achtung/Achtung: Hi nweis für offene Ans chl üss e 757-801 @ 14\mod_1363346830510_21.doc x @ 114562 @ @ 1 Pre-assemble free cable ends! ®... -
Page 41: Attaching The Connecting Cable
6.3.1 Using the WAGO Interface Module 289-383 The WAGO 289-383 interface module enables the WSA to be connected using a 9-pole D-Sub socket. The fed-in power supply is filtered and the shielding is connected to the DIN rail to discharge disruptions to the ground potential. -
Page 42: Figure 15: Wago 289-383 Interface Module
Shield (screen) Shield clamping saddle Shield (screen) - Power supply for the WSA is fed in via the second terminal block. Table 21: Connection to the WAGO 289-383 interface module, power supply Power supply WAGO 289-383 Interface Module Terminals Description... -
Page 43: Using The Wago Interface Module 289-384
757-801 Bluetooth® Module RS-232 6.3.2 Using the WAGO Interface Module 289-384 You can use the WAGO 289-384 interface module to connect the WSA with electrical isolation to the service interface of fieldbus couplers or PLCs of the WAGO-I/O SYSTEM 750. -
Page 44: Connecting A Pc Rs-232 Interface
If the PC is not equipped with a D-Sub interface for connection via the RS-232 interface, you can use a USB to D-Sub adapter, such as the WAGO 761-9005. Table 24: Pin assignment for D-Sub 9-pole connector to the 757-801, data lines PC (D-Sub connector, Connecting Cable 757-801... -
Page 45: Connecting The 750-652 I/O Module
WAGO-I/O-SYSTEM 757 Connect Devices 757-801 Bluetooth® Module RS-232 Table 25: Pin assignment for D-Sub 9-pole connector to the 757-801, power supply Power supply Connecting Cable 757-801 Description Wire Color Description DC 24 V Brown 24 V Blue Pos : 57.4 /Serie 757 (Funkadapter IP67)/Ansc hließen/Anwendungsbeispi el: Bus klemme 750-652 ans chli eßen @ 14\mod_1359051641316_21.doc x @ 110036 @ 3 @ 1 6.3.4... -
Page 46: Table 28: Connection To The 767-5203 Module
Connect Devices WAGO-I/O-SYSTEM 757 757-801 Bluetooth® Module RS-232 Table 28: Connection to the 767-5203 module Module 767-5203 (X3/X4) Cable 756- Direction Connecting Cable 757-801 5311/060- Description Wire Color Wire Color Description Brown Green RTS(in) White Gray TX(in) ... -
Page 47: Configuration
Configuration 757-801 Bluetooth® Module RS-232 Pos : 59.1 /All e Seri en ( Allgemei ne Module)/Ü bers chriften für alle Serien/Inbetri ebnehmen - Konfigurier en - Parametri eren/Konfigurier en - Ü bersc hrift 1 @ 5\mod_1247578046546_21.doc x @ 37410 @ 1 @ 1 Configuration Pos : 59.2 /Serie 757 (Funkadapter IP67)/In Betrieb nehmen/757- 801 und 750- 921 Verwenden der AT-Befehls schnittstelle - Einl eitung @ 14\mod_1360253738126_21.doc x @ 111150 @ 23 @ 1... -
Page 48: Opening The At Command Interface
Configuration WAGO-I/O-SYSTEM 757 757-801 Bluetooth® Module RS-232 7.1.2 Opening the AT Command Interface There must be a link to the device’s AT command interface in order to use AT commands, i.e., you must either set up a radio link to the SPP service “CONFIG”, or you must switch the RS-232 interface to the AT command interface. -
Page 49: Basic Structure Of An At Command
WAGO-I/O-SYSTEM 757 Configuration 757-801 Bluetooth® Module RS-232 Figure 17: Welcome message in HTerm with Windows 7 Welcome message is hardware/software specific! The welcome message may not appear, depending on the hardware and software being used. In this case, use an AT command to test the connection, e.g. the welcome message is output again via “AT INFO.”... -
Page 50: Basic Structure Of Replies To At Commands
AT BTID NAME ? 00 SUCCESS bdname = “WAGO 757-801 SN012345“ > Pos : 59.6 /Serie 757 (Funkadapter IP67)/In Betrieb nehmen/757- 801 und 750- 921 Verwenden der AT-Befehls schnittstelle: HELP- Komando und Wir ks amkeit @ 16\mod_1375086751961_21.doc x @ 127105 @ 3 @ 1 The help for an AT command is output by entering after the command. -
Page 51: Effectiveness Of At Commands
WAGO-I/O-SYSTEM 757 Configuration 757-801 Bluetooth® Module RS-232 7.1.5 Effectiveness of AT Commands If the device configuration is modified by AT commands, the new setting is saved immediately. However, settings of some command groups only take effect after the device is restarted. In this case, the device should be restarted after completing the configuration before using the device further. -
Page 52: Commissioning
WAGO-I/O-SYSTEM 757 757-801 Bluetooth® Module RS-232 Pos : 61 /All e Seri en (Allgemei ne Module)/Ü berschriften für alle Serien/Inbetri ebnehmen - Konfigurier en - Parametri eren/In Betrieb nehmen - Ü berschrift 1 @ 4\mod_1240901452750_21.doc x @ 31570 @ 1 @ 1 Commissioning Pos : 62 /Serie 757 (Funkadapter IP67)/In Betrieb nehmen/757- 801 Betriebs modus umsc hal ten @ 14\mod_1361345897945_21.doc x @ 112410 @ 233 @ 1... -
Page 53: Figure 18: Operating Mode Status Diagram
WAGO-I/O-SYSTEM 757 Commissioning 757-801 Bluetooth® Module RS-232 Figure 18: Operating mode status diagram Table 33: Legend for status diagram Description [I],[II], [III], [IV] Start in operating mode … Wait for interruption of power supply within a time frame of 3 … 10 s... -
Page 54: Switching Of Operating Mode Using At Commands
Commissioning WAGO-I/O-SYSTEM 757 757-801 Bluetooth® Module RS-232 Response of the WSA on interruption of power supply In the event of power supply interruption outside the defined time frame, the WSA will be restarted in the operating mode [I]. 8.1.2 Switching of Operating Mode using AT Commands You can also define the operating mode III (“AutoConnect”... -
Page 55: External Devices Based On Bluetooth
WAGO-I/O-SYSTEM 757 Commissioning 757-801 Bluetooth® Module RS-232 If the external device is not equipped with a display and input means (e.g., touchscreen), or with an alternative form of automatic authentication, configure the devices to be linked such that secure authentication is not required. This does require however that the external device accepts informal authentication. -
Page 56: Example: Connecting To Another Wsa
WAGO-I/O-SYSTEM 757 757-801 Bluetooth® Module RS-232 Pos : 65 /Serie 757 (Funkadapter IP67)/In Betrieb nehmen/757- 801 Beispi el: Mit weiterem 757-801 ver binden @ 14\mod_1360345075475_21.doc x @ 111280 @ 2 @ 1 Example: Connecting to Another WSA Proceed as described below to automatically connect 2 WSAs with one another:... -
Page 57: Example: Connecting With A Bluetooth Interface In Windows 7
WAGO-I/O-SYSTEM 757 Commissioning 757-801 Bluetooth® Module RS-232 Pos : 67 /Serie 757 (Funkadapter IP67)/In Betrieb nehmen/757- 801 Beispi el: Mit Wi ndows 7 PC ver binden @ 14\mod_1360948579632_21.doc x @ 112055 @ 2 @ 1 ® Example: Connecting with a Bluetooth... -
Page 58: Figure 19: Properties Of The Wsa; "Services" Tab (Example)
Commissioning WAGO-I/O-SYSTEM 757 757-801 Bluetooth® Module RS-232 Figure 19: Properties of the WSA; “Services” tab (example) You can now use the configured COM interfaces in terminal programs. Pos : 68 /D okumentation allgemei n/Glieder ungs elemente/---Seitenwechs el--- @ 3\mod_1221108045078_0.doc x @ 21810 @ @ 1 Manual 1.0.0... -
Page 59: Example: Configuration With A Pc Using The Spp Service "Config
WAGO-I/O-SYSTEM 757 Commissioning 757-801 Bluetooth® Module RS-232 Pos : 69 /Serie 757 (Funkadapter IP67)/In Betrieb nehmen/757- 801 Beispi el: Mit PC konfiguri eren @ 14\mod_1360345245766_21.doc x @ 111283 @ 22 @ 1 Example: Configuration with a PC using the SPP Service “CONFIG”... - Page 60 Commissioning WAGO-I/O-SYSTEM 757 757-801 Bluetooth® Module RS-232 Set up the connection (“Connect”). Enter the following character string “+++”. Do not send a “carriage return” after entering this string! The character string “+++” is not an AT command and is therefore not terminated with a “carriage return”.
-
Page 61: Example: Connecting To An Android Smartphone
Samsung Galaxy S3 (Android 4.1.1) • Samsung Galaxy Note (Android 4.1.2) WAGO cannot, however, provide any guarantee that a link can be set up with your smartphone, on account of the large variety and rapid development of standard versions and configurations. - Page 62 Commissioning WAGO-I/O-SYSTEM 757 757-801 Bluetooth® Module RS-232 If your smartphone does not appear in this list repeat the search procedure from Step 7. Add your smartphone to the list of accepted devices: “AT BTSEC ADEV ADD = FOUND 0”. The “0” in the example shown here denotes the first device in the list of discovered devices.
-
Page 63: Reference At Commands
WAGO-I/O-SYSTEM 757 Reference AT Commands 757-801 Bluetooth® Module RS-232 Pos : 73 /All e Seri en (Allgemei ne Module)/Ü berschriften für alle Serien/R efer enz AT-Befehl e - Ü bersc hrift 1 @ 15\mod_1365685898070_21.doc x @ 116973 @ 1 @ 1 Reference AT Commands Pos : 74.1 /Serie 757 (Funkadapter IP67)/In Betrieb nehmen/757- 801 und 750- 921 AT-Befehle, allgemein @ 14\mod_1360828313531_21.doc x @ 111830 @ 2233333234443333334442333334444344442344444333344222333322233333442333333233333233333 @ 1... -
Page 64: At Btid Help
Reference AT Commands WAGO-I/O-SYSTEM 757 757-801 Bluetooth® Module RS-232 CoD structure: Table 34: CoD structure Description Default position values 23..16 “Major Service Class” ® Not assigned according to the Bluetooth specification 00000000 15, 14 Reserved “Limited Discoverable Mode” ® Temporary visibility according to the Bluetooth specification. -
Page 65: Group "At Btsec": Security
WAGO-I/O-SYSTEM 757 Reference AT Commands 757-801 Bluetooth® Module RS-232 If the WSA is reset to the factory settings, the device keeps the last value, i.e. a device name assigned by the user stays until it is changed again explicitly. Example: AT BTID NAME = MyName1 Group “AT BTSEC”: Security... -
Page 66: At Btsec Adev Del =
Reference AT Commands WAGO-I/O-SYSTEM 757 757-801 Bluetooth® Module RS-232 To add device in the list of found devices under index 2 to the list of allowed devices: AT BTSEC ADEV ADD = FOUND 2 To add device in the list of trusted devices under index 4 to the list of... -
Page 67: At Btsec Inq
WAGO-I/O-SYSTEM 757 Reference AT Commands 757-801 Bluetooth® Module RS-232 AT BTSEC HELP AT BTSEC ADEV { ? | CLEAR } AT BTSEC ADEV ADD = {(bdadr)| { FOUND|TRUSTED }(index)} AT BTSEC ADEV DEL = (index) AT BTSEC AUTH { ? | (bool) }... -
Page 68: Subgroup "At Btsec Trusted
Reference AT Commands WAGO-I/O-SYSTEM 757 757-801 Bluetooth® Module RS-232 Pay attention to matching PINs! Make sure that the input options on the other side can set the selected PIN. For example, some external devices only support the characters 0 to 9. -
Page 69: At Con Auto
WAGO-I/O-SYSTEM 757 Reference AT Commands 757-801 Bluetooth® Module RS-232 9.4.1 AT CON AUTO command automatically connects to another WSA. AT CON AUTO AutoConnect must be enabled on both radio adapters to establish the connection. Only use other AT commands after establishing the connection! AutoConnect can take several minutes. -
Page 70: At Con Retry Cycle = 5
Reference AT Commands WAGO-I/O-SYSTEM 757 757-801 Bluetooth® Module RS-232 9.4.5.3 AT CON RETRY CYCLE This command queries (AT CON RETRY CYCLE ?) if or determines (AT CON RETRY CYCLE = <cycle>) when (after how many seconds) to (re)establish connections. Example: AT CON RETRY CYCLE = 5 9.4.5.4... -
Page 71: At Con Tar Clear
WAGO-I/O-SYSTEM 757 Reference AT Commands 757-801 Bluetooth® Module RS-232 Examples AT CON TAR ADR = 00:11:22:33:44:55 • Explicit MAC ID: AT CON TAR ADR = TRUSTED 2 • List of trusted devices: (for index “2”) • List of found devices: AT CON TAR ADR = FOUND 1 (for index “1”) -
Page 72: At Eco Blk
Reference AT Commands WAGO-I/O-SYSTEM 757 757-801 Bluetooth® Module RS-232 9.5.1.1 AT ECO BLK This command queries (AT ECO BLK ?) or determines (AT ECO BLK = <channel map>) which radio frequencies the WSA may use for data transmission. ® The value represents a channel map for the 79 possible Bluetooth channels where each channel is encoded as a bit starting with the lowest. -
Page 73: At Eco Blk Clear
WAGO-I/O-SYSTEM 757 Reference AT Commands 757-801 Bluetooth® Module RS-232 9.5.1.5 AT ECO BLK CLEAR clears possible channel blocking. All 79 channels are AT ECO BLK CLEAR allowed. Output: chnmap = “ff.ff.ff.ff.ff.ff.ff.ff.ff.f7“ > 9.5.2 AT ECO ENA This command queries (AT ECO ENA... -
Page 74: At Eco Txpwr Max = 4
Reference AT Commands WAGO-I/O-SYSTEM 757 757-801 Bluetooth® Module RS-232 If a value is set that cannot be applied, the WSA uses the next smallest valid value. Example: AT ECO TXPWR DEF = 4 9.5.5.2 AT ECO TXPWR MAX This command queries... -
Page 75: At Info
WAGO-I/O-SYSTEM 757 Reference AT Commands 757-801 Bluetooth® Module RS-232 AT INFO command outputs a status text that contains some of the device AT INFO information. This status text is also output once automatically if the AT command interface is opened. -
Page 76: At Inq Start
Reference AT Commands WAGO-I/O-SYSTEM 757 757-801 Bluetooth® Module RS-232 9.8.4 AT INQ START ® command starts the searching for Bluetooth devices in AT INQ START range. After completion, a list of MAC IDs found is output together with the strength of the signal received. -
Page 77: At Rdev Help
WAGO-I/O-SYSTEM 757 Reference AT Commands 757-801 Bluetooth® Module RS-232 Output: 00 SUCCESS results: * adr=“00:09:dd:50:11:1c” name=“PC96585” > 9.11.3 AT RDEV HELP command lists the syntax of all AT commands starting AT RDEV HELP with RDEV. 9.11.4 AT RDEV NAME <Device>... -
Page 78: At Rdev Port Name
Reference AT Commands WAGO-I/O-SYSTEM 757 757-801 Bluetooth® Module RS-232 9.11.5.2 AT RDEV PORT NAME <Device> command queries the names of the AT RDEV PORT NAME <device> SPP services that the target device provides. For a definition of the target device, see section “AT RDEV NAME <device>.”... -
Page 79: At Status Serial
WAGO-I/O-SYSTEM 757 Reference AT Commands 757-801 Bluetooth® Module RS-232 9.12.3 AT STATUS SERIAL ? command outputs the serial number. AT STATUS SERIAL ? 9.12.4 AT STATUS STATS ? command displays various counter values. The AT STATUS STATS ? counters are reset at each restart of the WSA. If the maximum value of 65535 is reached, the counters roll over to the 0 with the next increase. -
Page 80: Group "At Sys": Output Format, Factory Default Settings
Reference AT Commands WAGO-I/O-SYSTEM 757 757-801 Bluetooth® Module RS-232 9.13 Group “AT SYS”: Output Format, Factory Default Settings AT commands starting with “AT SYS” are used to configure the AT command interface, to reset the WSA to the factory default settings and to query or save a user-defined character string. -
Page 81: At Sys Output
WSA. 9.14.1 AT UART This command queries (AT UART ?) or sets (AT UART = baud parity stopb) the configuration for all parameters regarding the configuration of the service interface of the field coupler or WAGO PLC. Manual 1.0.0... -
Page 82: At Uart Baud
AT UART BAUD This command queries (AT UART BAUD ?) or determines (AT UART BAUD = <baud>) the baud rate of the service interface of the fieldbus coupler or WAGO PLC currently used. Valid baud rates are: • “9600“ • “19200“... -
Page 83: At Uart Seg
WAGO-I/O-SYSTEM 757 Reference AT Commands 757-801 Bluetooth® Module RS-232 9.14.7 AT UART SEG This command queries (AT UART SEG ?) or determines (AT UART SEG = <x>) whether recognition of associated segments is active (x = “1”) or not (x = “0”). -
Page 84: Glossary
Pos : 76 /D okumentation allgemei n/Verz eic hniss e/Glossar - Übersc hrift oG @ 6\mod_1257145774656_21.doc x @ 44134 @ @ 1 Glossary Pos : 77 /Serie 757 (Funkadapter IP67)/Gl oss ar/757-801 und 750-921 Gloss ar - ( Bluetooth) @ 14\mod_1363593626109_21.doc x @ 114631 @ @ 1 (Adaptive Frequency Hopping) The adaptive frequency hopping process is used to temporarily skip faulted or occupied sections of the total available frequency band and use other channels. - Page 85 WAGO-I/O-SYSTEM 757 Glossary 757-801 Bluetooth® Module RS-232 Channel A (transmission) channel is a mechanism or resource that enables data transmission over space or time. Channel map The channel map defines for a quantity of available channels the portion thereof that is to be used or not used. This makes it possible to reserve certain frequencies for transmission by other devices or technologies.
- Page 86 Glossary WAGO-I/O-SYSTEM 757 757-801 Bluetooth® Module RS-232 (Functional Earth) FE is used for discharging electromagnetic faults. It is used only an EMC ground connector and does not fulfill the protective earth (ground) (PE) function according to VDE 0100. FHSS (Frequency Hopping Spread Spectrum) General: The frequency hopping process known as “Frequency Hopping Spread...
- Page 87 (Programmable Logic Controller) A PLC is a device used to control a machine or system and is programmed on a digital basis, such as a WAGO fieldbus controller. RS-232 The RS-232 (official designation ANSI/EIA/TIA-232-F-1997) is a serial interface for point-to-point connections.
- Page 88 Local wireless network, usually referring to a standard of the IEEE-802.11 family. A synonym for this is Wi-Fi. Pos : 78 /Serie 757 (Funkadapter IP67)/Gl oss ar/757-801 Gl oss ar - Eintr ag WSA @ 16\mod_1375090108501_21.doc x @ 127111 @ @ 1 (Wireless Serial Adapter) ®...
-
Page 89: List Of Figures
Pos : 80 /D okumentation allgemei n/Verz eic hniss e/Abbil dungs verz eic hnis - Übersc hrift oG und Verz eichnis @ 3\mod_1219222916765_21.doc x @ 21080 @ @ 1 List of Figures Figure 1: View of device ..................16 Figure 2: 757-801 side marking/label (example) ..........17 Figure 3: 757-801 back marking (example) ............17 Figure 4: End of cable in as-delivered condition ..........18 Figure 5: Example of end of cable with separated wires and wire mesh (shield) . -
Page 90: List Of Tables
Table 22: Connection to the WAGO 289-384 interface module ......43 Table 23: Connection to the WAGO 289-384 interface module, power supply ... 43 Table 24: Pin assignment for D-Sub 9-pole connector to the 757-801, data lines 44 Table 25: Pin assignment for D-Sub 9-pole connector to the 757-801, power supply ...................... - Page 91 WAGO-I/O-SYSTEM 757 List of Tables 757-801 Bluetooth® Module RS-232 === Ende der Liste für T extmar ke Verzeic hnis_hi nten === Manual 1.0.0...
