Manual
WAGO I/O SYSTEM 750 XTR
750-624/040-00x
Field Supply Filter 24 VDC HI XTR
Filter Module for Field-Side Power Supply (Surge);
24 VDC; Higher Isolation; Extreme
Version 1.4.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 750-624/040-00 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for WAGO 750-624/040-00 Series

  • Page 1 Manual WAGO I/O SYSTEM 750 XTR 750-624/040-00x Field Supply Filter 24 VDC HI XTR Filter Module for Field-Side Power Supply (Surge); 24 VDC; Higher Isolation; Extreme Version 1.4.0...
  • Page 2 We wish to point out that the software and hardware terms as well as the trademarks of companies used and/or mentioned in the present manual are generally protected by trademark or patent. WAGO is a registered trademark of WAGO Verwaltungsgesellschaft mbH. Manual Version 1.4.0...
  • Page 3: Table Of Contents

    WAGO I/O SYSTEM 750 XTR Table of Contents 750-624/040-00x Field Supply Filter 24 VDC HI XTR Table of Contents Notes about this Documentation .............. 5 Validity of this Documentation ..............5 Copyright....................5 Symbols ....................6 Number Notation ..................7 Font Conventions ..................
  • Page 4 Table of Contents WAGO I/O SYSTEM 750 XTR 750-624/040-00x Field Supply Filter 24 VDC HI XTR Use in Hazardous Environments ............40 Marking Configuration Examples ............41 6.1.1 Marking for Europe According to ATEX and IECEx ......41 6.1.2 Marking for the United States of America (NEC) and Canada (CEC) ....................
  • Page 5: Notes About This Documentation

    (without blade contacts) The I/O module 750-624/040-00x shall only be installed and operated according to the instructions in this manual, in the system description for the WAGO I/O SYSTEM 750 XTR and in the manual for the used fieldbus coupler/controller.
  • Page 6: Symbols

    Notes about this Documentation WAGO I/O SYSTEM 750 XTR 750-624/040-00x Field Supply Filter 24 VDC HI XTR Symbols Personal Injury! Indicates a high-risk, imminently hazardous situation which, if not avoided, will result in death or serious injury. Personal Injury Caused by Electric Current! Indicates a high-risk, imminently hazardous situation which, if not avoided, will result in death or serious injury.
  • Page 7: Number Notation

    WAGO I/O SYSTEM 750 XTR Notes about this Documentation 750-624/040-00x Field Supply Filter 24 VDC HI XTR Additional Information: Refers to additional information which is not an integral part of this documentation (e.g., the Internet). Number Notation Table 2: Number Notation...
  • Page 8: Important Notes

    2.1.1 Subject to Changes WAGO Kontakttechnik GmbH & Co. KG reserves the right to provide for any alterations or modifications. WAGO Kontakttechnik GmbH & Co. KG owns all rights arising from the granting of patents or from the legal protection of utility patents.
  • Page 9: Technical Condition Of Specified Devices

    These modules contain no parts that can be serviced or repaired by the user. The following actions will result in the exclusion of liability on the part of WAGO Kontakttechnik GmbH & Co. KG: •...
  • Page 10: 2.1.4.1.2 Packaging

    Important Notes WAGO I/O SYSTEM 750 XTR 750-624/040-00x Field Supply Filter 24 VDC HI XTR • Observe national and local regulations for the disposal of electrical and electronic equipment. • Clear any data stored on the electrical and electronic equipment.
  • Page 11: Safety Advice (Precautions)

    WAGO I/O SYSTEM 750 XTR Important Notes 750-624/040-00x Field Supply Filter 24 VDC HI XTR Safety Advice (Precautions) For installing and operating purposes of the relevant device to your system the following safety precautions shall be observed: Do not work on devices while energized! All power sources to the device shall be switched off prior to performing any installation, repair or maintenance work.
  • Page 12 Important Notes WAGO I/O SYSTEM 750 XTR 750-624/040-00x Field Supply Filter 24 VDC HI XTR Do not touch hot surfaces! The surface of the housing can become hot during operation. If the device was operated at high ambient temperatures, allow it to cool off before touching it.
  • Page 13 WAGO I/O SYSTEM 750 XTR Important Notes 750-624/040-00x Field Supply Filter 24 VDC HI XTR Avoid electrostatic discharge! The devices are equipped with electronic components that may be destroyed by electrostatic discharge when touched. Please observe the safety precautions against electrostatic discharge per DIN EN 61340-5-1/-3. When handling the devices, please ensure that environmental factors (personnel, work space and packaging) are properly grounded.
  • Page 14: Device Description

    -000). This means that in combination with the 750-624/040-001 and 750-626/040-000 filter modules, the WAGO 750 XTR I/O-SYSTEM can also be used in shipbuilding applications and onshore/offshore installations (e.g., platforms, loading facilities). This is possible via certification under the standards of leading agencies such as Germanischer Lloyd and Lloyd‘s Register.
  • Page 15 WAGO I/O SYSTEM 750 XTR Device Description 750-624/040-00x Field Supply Filter 24 VDC HI XTR Do not exceed maximum values via power contacts! The maximum current that can flow through the power jumper contacts is 10 A. The power jumper contacts can be damaged and the permissible operating temperature can be exceeded by higher current values.
  • Page 16: View

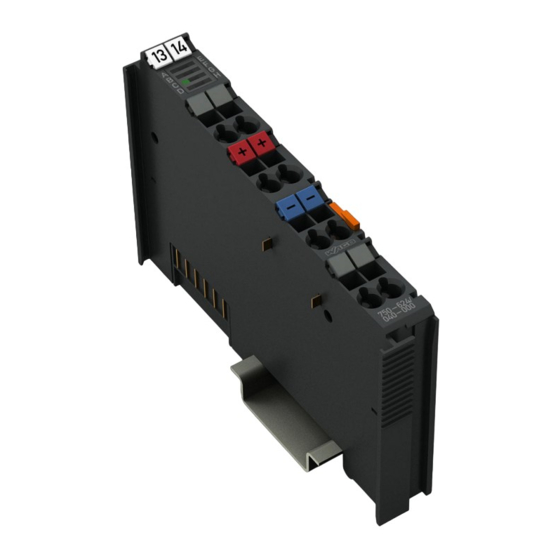

    Device Description WAGO I/O SYSTEM 750 XTR 750-624/040-00x Field Supply Filter 24 VDC HI XTR View Figure 1: View (Variant 750-624/040-000) Variant 750-624/040-001 without blade contacts! The variant 750-624/040-001 does not have any power jumper contacts designed as blade contacts on the left side! Table 4: Legend for Figure “View”...
  • Page 17: Connectors

    WAGO I/O SYSTEM 750 XTR Device Description 750-624/040-00x Field Supply Filter 24 VDC HI XTR Connectors 3.2.1 Data Contacts/Local Bus Communication between the fieldbus coupler/controller and the I/O modules as well as the system supply of the I/O modules is carried out via the local bus. The contacting for the local bus consists of 6 data contacts, which are available as self-cleaning gold spring contacts.
  • Page 18: Power Jumper Contacts/Field Supply

    Device Description WAGO I/O SYSTEM 750 XTR 750-624/040-00x Field Supply Filter 24 VDC HI XTR 3.2.2 Power Jumper Contacts/Field Supply The 750-624/040-00x I/O module has two self-cleaning power contacts that transmit power for the field side. These contacts are located on the right side of the I/O module are designed as spring contacts.
  • Page 19: Variant 750-624/040-001

    WAGO I/O SYSTEM 750 XTR Device Description 750-624/040-00x Field Supply Filter 24 VDC HI XTR 3.2.2.2 Variant 750-624/040-001 Figure 1: Power Jumper Contacts Table 6: Legend for Figure “Power Jumper Contacts” Contact Type Function Spring contact Potential feed-in (Uv) for field supply...
  • Page 20: Cage Clamp ® Connectors

    Device Description WAGO I/O SYSTEM 750 XTR 750-624/040-00x Field Supply Filter 24 VDC HI XTR 3.2.3 CAGE CLAMP ® Connectors Figure 4: CAGE CLAMP ® Connectors Table 7: Legend for Figure “CAGE CLAMP ® Connectors” Designation Connector Function Input field supply: 24 V...
  • Page 21: Display Elements

    WAGO I/O SYSTEM 750 XTR Device Description 750-624/040-00x Field Supply Filter 24 VDC HI XTR Display Elements Figure 5: Display Elements Table 8: Legend for Figure “Display Elements” Designation State Function Status of No 24 V field supply voltage on the power operating jumper contacts.
  • Page 22: Schematic Diagrams

    Device Description WAGO I/O SYSTEM 750 XTR 750-624/040-00x Field Supply Filter 24 VDC HI XTR Schematic Diagrams Figure 6: Schematic Diagram – Variant 750-624/040-000 Figure 7: Schematic Diagram – Variant 750-624/040-001 Manual Version 1.4.0...
  • Page 23: Technical Data

    WAGO I/O SYSTEM 750 XTR Device Description 750-624/040-00x Field Supply Filter 24 VDC HI XTR Technical Data 3.6.1 Device Data Table 9: Technical Data – Device Width 12 mm Height (from upper edge of DIN-rail) 60.6 mm Depth 100 mm...
  • Page 24: Connection Type

    Device Description WAGO I/O SYSTEM 750 XTR 750-624/040-00x Field Supply Filter 24 VDC HI XTR 3.6.3 Connection Type Table 11: Technical Data – Field Wiring Wire connection CAGE CLAMP ® Cross section 0.25 mm² … 2.5 mm² / AWG 24 … 14 Stripped lengths 8 mm …...
  • Page 25: Approvals

    Approvals More information about approvals. Detailed references to the approvals are listed in the document “Overview Approvals WAGO I/O SYSTEM 750”, which you can find via the internet under: www.wago.com  DOWNLOADS  Documentation  System Description. The following approvals were granted for the 750-624/040-00x I/O module:...
  • Page 26 Device Description WAGO I/O SYSTEM 750 XTR 750-624/040-00x Field Supply Filter 24 VDC HI XTR The following shipbuilding approvals are pending for the 750-624/040-00x I/O module: ABS (American Bureau of Shipping) DNV GL LR (Lloyd’s Register) PRS (Polski Rejestr Statków) Manual Version 1.4.0...
  • Page 27: Standards And Guidelines

    WAGO I/O SYSTEM 750 XTR Device Description 750-624/040-00x Field Supply Filter 24 VDC HI XTR Standards and Guidelines 750-624/040-00x I/O modules meet the following standards and guidelines: Table 16: Standards and Rated Conditions for Explosion Protection Applications ATEX acc. Directive 2014/34/EU...
  • Page 28: Table 17: Climatic And Mechanical Environmental Conditions And Shipbuilding

    Device Description WAGO I/O SYSTEM 750 XTR 750-624/040-00x Field Supply Filter 24 VDC HI XTR Table 17: Climatic and Mechanical Environmental Conditions and Shipbuilding Standard Test Value Transport EN 60870-2-2 Ct2(2k4) (except precipitation/water/moisture) Mechanical Environmental Conditions EN 61850-3 Achieved EN 60870-2-2...
  • Page 29: Table 18: Emc - Immunity To Interference

    WAGO I/O SYSTEM 750 XTR Device Description 750-624/040-00x Field Supply Filter 24 VDC HI XTR The I/O module 750-624/040-00x meets the following EMC standards as these standards relate to the I/O module: Table 18: EMC – Immunity to Interference Standard...
  • Page 30 Device Description WAGO I/O SYSTEM 750 XTR 750-624/040-00x Field Supply Filter 24 VDC HI XTR Table 18: EMC – Immunity to Interference Standard Test Value Alternating Components of the Voltage to DC Line Connections • EN 61000-4-17 15 % • EN 60255-26 Damped Oscillatory Waves •...
  • Page 31: Table 19: Emc - Emission Of Interference

    WAGO I/O SYSTEM 750 XTR Device Description 750-624/040-00x Field Supply Filter 24 VDC HI XTR Table 19: EMC – Emission of Interference Standard Test Value Enclosure Emission of Interference • EN 61000-6-3 30 dB(µV/m), QP, 30 MHz … 230 MHz •...
  • Page 32: Table 20: Standards And Rated Conditions For Rail Applications (En 50155)

    EN 50121-3-2 5.5 EMC (Emission of Interference, EN 50121-3-2 Immunity to Interference) EN 50121-4 EN 50121-5 9.11 Materials (Fire Protection) EN 45545-2 Hazard level HL3 WAGO is a company certified in accordance with the IRIS quality standard. Manual Version 1.4.0...
  • Page 33: Mounting

    750-624/040-00x Field Supply Filter 24 VDC HI XTR Mounting Mounting Sequence Fieldbus couplers, controllers and I/O modules of the WAGO I/O SYSTEM 750 are snapped directly on a carrier rail in accordance with the European standard EN 60175 (DIN 35).
  • Page 34: Inserting And Removing Devices

    Mounting WAGO I/O SYSTEM 750 XTR 750-624/040-00x Field Supply Filter 24 VDC HI XTR Inserting and Removing Devices Do not touch hot surfaces! The surface of the housing can become hot during operation. If the device was operated at high ambient temperatures, allow it to cool off before touching it.
  • Page 35: Removing The I/O Module

    WAGO I/O SYSTEM 750 XTR Mounting 750-624/040-00x Field Supply Filter 24 VDC HI XTR Press the I/O module into the assembly until the I/O module snaps into the carrier rail. Figure 9: Snap the I/O Module into Place (Example) With the I/O module snapped in place, the electrical connections for the data contacts and power jumper contacts (if any) to the fieldbus coupler/controller or to the previous or possibly subsequent I/O module are established.
  • Page 36: Connect Devices

    Do not connect more than one conductor at one single connection! If more than one conductor must be routed to one connection, these must be connected in an up-circuit wiring assembly, for example using WAGO feed- through terminals. For opening the CAGE CLAMP insert the actuating tool into the opening ®...
  • Page 37: Power Supply Concept

    750-624/040-00x Field Supply Filter 24 VDC HI XTR Power Supply Concept The following figure shows the power supply concept of a fieldbus node of the WAGO-I/O-SYSTEM 750 XTR for standard-compliant use in shipping, station control, telecontrol, or railway engineering. Figure 12: Power Supply Concept Manual Version 1.4.0...
  • Page 38: Table 21: Legende For Figure "Power Supply Concept

    Connect Devices WAGO I/O SYSTEM 750 XTR 750-624/040-00x Field Supply Filter 24 VDC HI XTR Table 21: Legende for Figure “Power Supply Concept” Pos. Description XTR Fieldbus coupler / controller Supply filter; 24 VDC; higher isolation; extreme (750-626/040-000) XTR I/O modules Filter module for field-side power supply (surge);...
  • Page 39: Power Supply Units

    Connect Devices 750-624/040-00x Field Supply Filter 24 VDC HI XTR 5.2.1 Power Supply Units The WAGO I/O SYSTEM 750 XTR requires 24 VDC voltage (system supply) for operation. Recommendation A stable power supply cannot always be assumed everywhere. Therefore, you should use regulated power supplies to ensure the quality of the supply voltage (see also table “WAGO power supply units”).
  • Page 40: Use In Hazardous Environments

    750-624/040-00x Field Supply Filter 24 VDC HI XTR Use in Hazardous Environments The WAGO I/O SYSTEM 750 (electrical equipment) is designed for use in Zone 2 hazardous areas and shall be used in accordance with the marking and installation regulations.
  • Page 41: Marking Configuration Examples

    WAGO I/O SYSTEM 750 XTR Use in Hazardous Environments 750-624/040-00x Field Supply Filter 24 VDC HI XTR Marking Configuration Examples 6.1.1 Marking for Europe According to ATEX and IECEx Figure 13: Marking Example According to ATEX and IECEx Figure 14: Text Detail – Marking Example According to ATEX and IECEx Manual Version 1.4.0...
  • Page 42: Table 22: Description Of Marking Example According To Atex And Iecex

    Use in Hazardous Environments WAGO I/O SYSTEM 750 XTR 750-624/040-00x Field Supply Filter 24 VDC HI XTR Table 22: Description of Marking Example According to ATEX and IECEx Marking Description TUEV 07 ATEX 554086 X Approving authority resp. certificate numbers IECEx TUN 09.0001 X...
  • Page 43: Figure 15: Marking Example For Approved Ex I I/O Module According To

    WAGO I/O SYSTEM 750 XTR Use in Hazardous Environments 750-624/040-00x Field Supply Filter 24 VDC HI XTR Figure 15: Marking Example for Approved Ex i I/O Module According to ATEX and IECEx Figure 16: Text Detail – Marking Example for Approved Ex i I/O Module According to ATEX and...
  • Page 44: Table 23: Description Of Marking Example For Approved Ex I I/O Module According To Atex And Iecex

    Use in Hazardous Environments WAGO I/O SYSTEM 750 XTR 750-624/040-00x Field Supply Filter 24 VDC HI XTR Table 23: Description of Marking Example for Approved Ex i I/O Module According to ATEX and IECEx Marking Description TUEV 12 ATEX 106032 X Approving authority resp.
  • Page 45: Marking For The United States Of America (Nec) And Canada (Cec)

    WAGO I/O SYSTEM 750 XTR Use in Hazardous Environments 750-624/040-00x Field Supply Filter 24 VDC HI XTR 6.1.2 Marking for the United States of America (NEC) and Canada (CEC) Figure 17: Marking Example According to NEC Figure 18: Text Detail – Marking Example According to NEC 500...
  • Page 46: Figure 19: Text Detail - Marking Example For Approved Ex I I/O Module

    Use in Hazardous Environments WAGO I/O SYSTEM 750 XTR 750-624/040-00x Field Supply Filter 24 VDC HI XTR Figure 19: Text Detail – Marking Example for Approved Ex i I/O Module According to NEC 505 Table 25: Description of Marking Example for Approved Ex i I/O Module According to NEC 505...
  • Page 47: Figure 21: Text Detail - Marking Example For Approved Ex I I/O Modules

    WAGO I/O SYSTEM 750 XTR Use in Hazardous Environments 750-624/040-00x Field Supply Filter 24 VDC HI XTR Figure 21: Text Detail – Marking Example for Approved Ex i I/O Modules According to CEC 18 attachment J Table 27: Description of Marking Example for Approved Ex i I/O Modules According to CEC 18...
  • Page 48: Installation Regulations

    Special Notes including Explosion Protection The following warning notices are to be posted in the immediately proximity of the WAGO I/O SYSTEM 750 (hereinafter “product”): WARNING – DO NOT REMOVE OR REPLACE FUSED WHILE ENERGIZED! WARNING – DO NOT DISCONNECT WHILE ENERGIZED! WARNING –...
  • Page 49 WAGO I/O SYSTEM 750 XTR Use in Hazardous Environments 750-624/040-00x Field Supply Filter 24 VDC HI XTR Explosive atmosphere occurring simultaneously with assembly, installation or repair work must be ruled out. Among other things, these include the following activities •...
  • Page 50: Special Notes Regarding Ansi/Isa Ex

    Use in Hazardous Environments WAGO I/O SYSTEM 750 XTR 750-624/040-00x Field Supply Filter 24 VDC HI XTR 6.2.2 Special Notes Regarding ANSI/ISA Ex For ANSI/ISA Ex acc. to UL File E198726, the following additional requirements apply: • Use in Class I, Division 2, Group A, B, C, D or non-hazardous areas only •...
  • Page 51: List Of Figures

    WAGO I/O SYSTEM 750 XTR List of Figures 750-624/040-00x Field Supply Filter 24 VDC HI XTR List of Figures Figure 1: View (Variant 750-624/040-000) ............16 Figure 2: Data Contacts ..................17 Figure 3: Power Jumper Contacts ............... 18 Figure 4: CAGE CLAMP Connectors ..............
  • Page 52: List Of Tables

    List of Tables WAGO I/O SYSTEM 750 XTR 750-624/040-00x Field Supply Filter 24 VDC HI XTR List of Tables Table 1: Variants ....................5 Table 2: Number Notation ..................7 Table 3: Font Conventions ..................7 Table 4: Legend for Figure “View” ............... 16 Table 5: Legend for Figure “Power Jumper Contacts”...
  • Page 53 WAGO I/O SYSTEM 750 XTR 750-624/040-00x Field Supply Filter 24 VDC HI XTR Manual Version 1.4.0...
