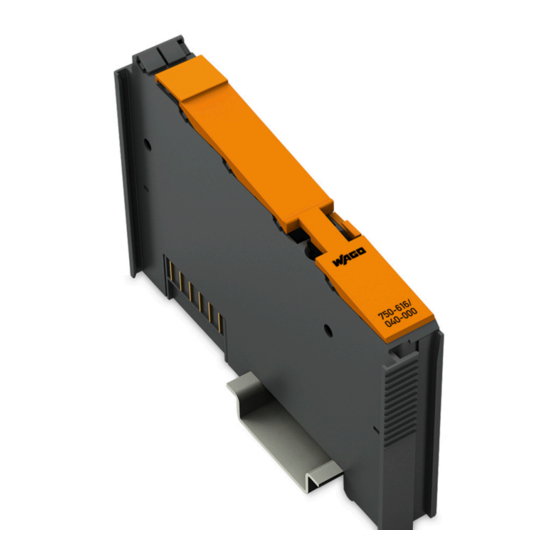

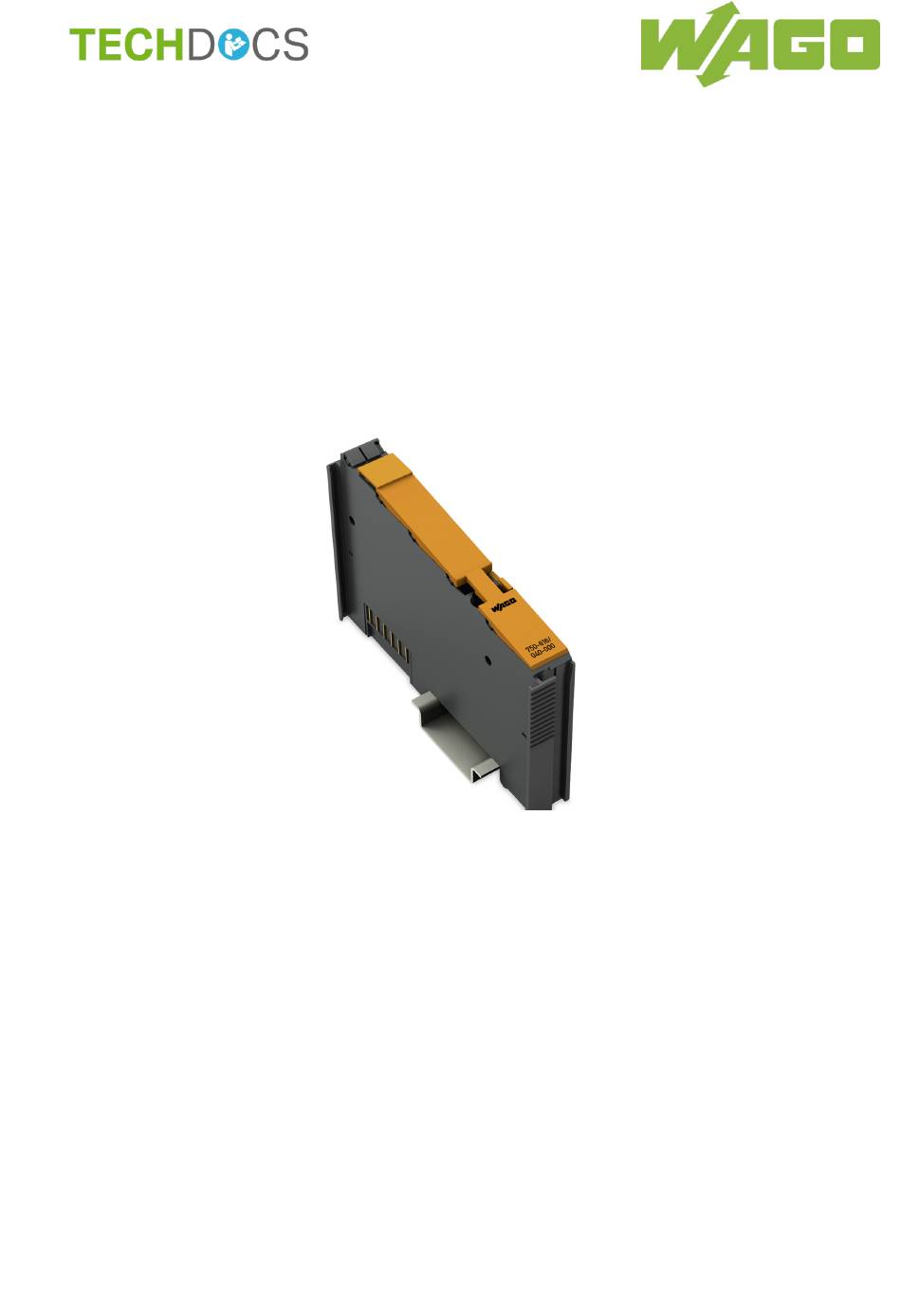

- Page 1 Manual WAGO-I/O-SYSTEM 750 XTR 750-616/040-000 Distance Module XTR Distance Module; Extreme Version 1.1.0...
- Page 2 We wish to point out that the software and hardware terms as well as the trademarks of companies used and/or mentioned in the present manual are generally protected by trademark or patent. WAGO is a registered trademark of WAGO Verwaltungsgesellschaft mbH. Manual Version 1.1.0...
-
Page 3: Table Of Contents
WAGO-I/O-SYSTEM 750 XTR Table of Contents 750-616/040-000 Distance Module XTR Table of Contents Notes about this Documentation ............. 5 Validity of this Documentation..............5 Copyright ....................5 Symbols ....................6 Number Notation ..................7 Font Conventions ................... 7 Important Notes ..................8 Legal Bases .................... - Page 4 Table of Contents WAGO-I/O-SYSTEM 750 XTR 750-616/040-000 Distance Module XTR Use in Hazardous Environments ............29 Marking Configuration Examples ............30 5.1.1 Marking for Europe According to ATEX and IECEx ......30 5.1.2 Marking for the United States of America (NEC) and Canada (CEC) ....................
-
Page 5: Notes About This Documentation
(Distance Module XTR). The I/O module 750-616/040-000 shall only be installed and operated according to the instructions in this manual, in the system description for the WAGO-I/O- SYSTEM 750 XTR and in the manual for the used fieldbus coupler/controller. Consider power layout of the WAGO-I/O-SYSTEM 750 XTR! In addition to these operating instructions, you will also need the system description “Design Notes XTR –... -
Page 6: Symbols
Notes about this Documentation WAGO-I/O-SYSTEM 750 XTR 750-616/040-000 Distance Module XTR Symbols Personal Injury! Indicates a high-risk, imminently hazardous situation which, if not avoided, will result in death or serious injury. Personal Injury Caused by Electric Current! Indicates a high-risk, imminently hazardous situation which, if not avoided, will result in death or serious injury. -
Page 7: Number Notation
WAGO-I/O-SYSTEM 750 XTR Notes about this Documentation 750-616/040-000 Distance Module XTR Additional Information: Refers to additional information which is not an integral part of this documentation (e.g., the Internet). Number Notation Table 1: Number Notation Number Code Example Note Decimal... -
Page 8: Important Notes
2.1.1 Subject to Changes WAGO Kontakttechnik GmbH & Co. KG reserves the right to provide for any alterations or modifications. WAGO Kontakttechnik GmbH & Co. KG owns all rights arising from the granting of patents or from the legal protection of utility patents. -
Page 9: Technical Condition Of Specified Devices
These modules contain no parts that can be serviced or repaired by the user. The following actions will result in the exclusion of liability on the part of WAGO Kontakttechnik GmbH & Co. KG: •... -
Page 10: 2.1.4.1.2 Packaging
Important Notes WAGO-I/O-SYSTEM 750 XTR 750-616/040-000 Distance Module XTR • Observe national and local regulations for the disposal of electrical and electronic equipment. • Clear any data stored on the electrical and electronic equipment. • Remove any added battery or memory card in the electrical and electronic equipment. -
Page 11: Safety Advice (Precautions)
WAGO-I/O-SYSTEM 750 XTR Important Notes 750-616/040-000 Distance Module XTR Safety Advice (Precautions) For installing and operating purposes of the relevant device to your system the following safety precautions shall be observed: Do not work on devices while energized! All power sources to the device shall be switched off prior to performing any installation, repair or maintenance work. - Page 12 Power from SELV/PELV power supply only! All field signals and field supplies connected to this XTR I/O module (750-616/040-000) must be powered from SELV/PELV power supply(s)! Do not touch hot surfaces! The surface of the housing can become hot during operation. If the device was operated at high ambient temperatures, allow it to cool off before touching it.
- Page 13 WAGO-I/O-SYSTEM 750 XTR Important Notes 750-616/040-000 Distance Module XTR Do not reverse the polarity of connection lines! Avoid reverse polarity of data and power supply lines, as this may damage the devices involved. Avoid electrostatic discharge! The devices are equipped with electronic components that may be destroyed by electrostatic discharge when touched.
-
Page 14: Device Description
750-616/040-000 Distance Module XTR Device Description Dabei The 750-616/040-000 I/O Module (Distance Module XTR) visually and electrically divides a fieldbus node into sections (e.g., different functional units). Use a power supply module! Use a power supply module for field-side power supply of downstream I/O modules. -
Page 15: View
WAGO-I/O-SYSTEM 750 XTR Device Description 750-616/040-000 Distance Module XTR View Figure 1: View Table 3: Legend for Figure “View” Pos. Description Details See Section Data contacts “Device Description” > “Connectors” Release tab “Mounting” > ”Inserting and Removing Devices” Manual Version 1.1.0... -
Page 16: Connectors
Do not touch any conducting parts, e.g., data contacts. 3.2.2 Power Jumper Contacts/Field Supply Use a power supply module! Use a power supply module for field-side power supply of downstream I/O modules. The I/O module 750-616/040-000 has no power jumper contacts. Manual Version 1.1.0... -
Page 17: Cage Clamp ® Connectors
750-616/040-000 Distance Module XTR ® 3.2.3 CAGE CLAMP Connectors ® The I/O module 750-616/040-000 has no CAGE CLAMP connectors. Display Elements The I/O module 750-616/040-000 has no display elements. Operating Elements The I/O module 750-616/040-000 has no operating elements. Manual... -
Page 18: Technical Data
Device Description WAGO-I/O-SYSTEM 750 XTR 750-616/040-000 Distance Module XTR Technical Data 3.5.1 Device Data Table 4: Technical Data – Device Width 12 mm Height (from upper edge of DIN-rail) 62 mm Depth 100 mm Weight 35 g Degree of protection IP20 3.5.2... -
Page 19: Approvals
Approvals More information about approvals. Detailed references to the approvals are listed in the document “Overview Approvals WAGO-I/O-SYSTEM 750”, which you can find via the internet under: www.wago.com DOWNLOADS Documentation System Description. The following approval has been granted to 750-616/040-000 I/O modules:... -
Page 20: Standards And Guidelines
Device Description WAGO-I/O-SYSTEM 750 XTR 750-616/040-000 Distance Module XTR Standards and Guidelines 750-616/040-000 I/O modules meet the following standards and guidelines: Table 8: Standards and Rated Conditions for Explosion Protection Applications ATEX acc. Directive 2014/34/EU General Requirements EN 60079-0:2012 + A11:2013... -
Page 21: Table 9: Climatic And Mechanical Environmental Conditions And
WAGO-I/O-SYSTEM 750 XTR Device Description 750-616/040-000 Distance Module XTR Table 9: Climatic and Mechanical Environmental Conditions and Shipbuilding Standard Test Value Transport EN 60870-2-2 Ct2(2k4) (except precipitation/water/moisture) Mechanical Environmental Conditions EN 61850-3 Achieved EN 60870-2-2 EN 60721-3-1 EN 60721-3-3 EN 60068-2-6... -
Page 22: Table 10: Emc - Immunity To Interference
Device Description WAGO-I/O-SYSTEM 750 XTR 750-616/040-000 Distance Module XTR The I/O module 750-616/040-000 meets the following EMC standards as these standards relate to the I/O module: Table 10: EMC – Immunity to Interference Standard Test Value Electrostatic Discharge • EN 61000-4-2 8 kV (contact discharge) •... - Page 23 WAGO-I/O-SYSTEM 750 XTR Device Description 750-616/040-000 Distance Module XTR Table 10: EMC – Immunity to Interference Standard Test Value Line Frequency Disturbances • EN 60255-26 Class A (150 V conductor/conductor / 300 V conductor/ground) Alternating Components of the Voltage to DC Line Connections •...
-
Page 24: Table 11: Emc - Emission Of Interference
Device Description WAGO-I/O-SYSTEM 750 XTR 750-616/040-000 Distance Module XTR Table 11: EMC – Emission of Interference Standard Test Value Enclosure Emission of Interference • EN 61000-6-3 30 dB(µV/m), QP, 30 MHz … 230 MHz • EN 55032 Class B 37 dB(µV/m), QP, 230 MHz … 1 GHz 70 dB(µV/m), Peak, 1 GHz …... -
Page 25: Table 12: Standards And Rated Conditions For Rail Applications (En 50155)
EN 50121-3-2 5.5 EMC (Emission of Interference, EN 50121-3-2 Immunity to Interference) EN 50121-4 EN 50121-5 9.11 Materials (Fire Protection) EN 45545-2 Hazard level HL3 WAGO is a company certified in accordance with the IRIS quality standard. Manual Version 1.1.0... -
Page 26: Mounting
750-616/040-000 Distance Module XTR Mounting Mounting Sequence Fieldbus couplers, controllers and I/O modules of the WAGO-I/O-SYSTEM 750 are snapped directly on a carrier rail in accordance with the European standard EN 60175 (DIN 35). The reliable positioning and connection is made using a tongue and groove system. -
Page 27: Inserting And Removing Devices
WAGO-I/O-SYSTEM 750 XTR Mounting 750-616/040-000 Distance Module XTR Inserting and Removing Devices Do not touch hot surfaces! The surface of the housing can become hot during operation. If the device was operated at high ambient temperatures, allow it to cool off before touching it. -
Page 28: Removing The I/O Module
Mounting WAGO-I/O-SYSTEM 750 XTR 750-616/040-000 Distance Module XTR Figure 4: Snap the I/O Module into Place (Example) With the I/O module snapped in place, the electrical connections for the data contacts and power jumper contacts (if any) to the fieldbus coupler/controller or to the previous or possibly subsequent I/O module are established. -
Page 29: Use In Hazardous Environments
Use in Hazardous Environments 750-616/040-000 Distance Module XTR Use in Hazardous Environments The WAGO-I/O-SYSTEM 750 (electrical equipment) is designed for use in Zone 2 hazardous areas and shall be used in accordance with the marking and installation regulations. The following sections include both the general identification of components (devices) and the installation regulations to be observed. -
Page 30: Marking Configuration Examples
Use in Hazardous Environments WAGO-I/O-SYSTEM 750 XTR 750-616/040-000 Distance Module XTR Marking Configuration Examples 5.1.1 Marking for Europe According to ATEX and IECEx Figure 6: Marking Example According to ATEX and IECEx Figure 7: Text Detail – Marking Example According to ATEX and IECEx Manual Version 1.1.0... -
Page 31: Table 13: Description Of Marking Example According To Atex And Iecex
WAGO-I/O-SYSTEM 750 XTR Use in Hazardous Environments 750-616/040-000 Distance Module XTR Table 13: Description of Marking Example According to ATEX and IECEx Marking Description TUEV 07 ATEX 554086 X Approving authority resp. certificate numbers IECEx TUN 09.0001 X Dust Equipment group: All except mining... -
Page 32: Figure 8: Marking Example For Approved Ex I I/O Module According To Atex
Use in Hazardous Environments WAGO-I/O-SYSTEM 750 XTR 750-616/040-000 Distance Module XTR Figure 8: Marking Example for Approved Ex i I/O Module According to ATEX and IECEx Figure 9: Text Detail – Marking Example for Approved Ex i I/O Module According to ATEX and... -
Page 33: Table 14: Description Of Marking Example For Approved Ex I I/O Module According To Atex And Iecex
WAGO-I/O-SYSTEM 750 XTR Use in Hazardous Environments 750-616/040-000 Distance Module XTR Table 14: Description of Marking Example for Approved Ex i I/O Module According to ATEX and IECEx Marking Description TUEV 12 ATEX 106032 X Approving authority resp. certificate numbers... -
Page 34: Marking For The United States Of America (Nec) And Canada (Cec)
Use in Hazardous Environments WAGO-I/O-SYSTEM 750 XTR 750-616/040-000 Distance Module XTR 5.1.2 Marking for the United States of America (NEC) and Canada (CEC) Figure 10: Marking Example According to NEC Figure 11: Text Detail – Marking Example According to NEC 500... -
Page 35: Figure 12: Text Detail - Marking Example For Approved Ex I I/O Module
WAGO-I/O-SYSTEM 750 XTR Use in Hazardous Environments 750-616/040-000 Distance Module XTR Figure 12: Text Detail – Marking Example for Approved Ex i I/O Module According to NEC 505 Table 16: Description of Marking Example for Approved Ex i I/O Module According to NEC 505... -
Page 36: Figure 14: Text Detail - Marking Example For Approved Ex I I/O Modules
Use in Hazardous Environments WAGO-I/O-SYSTEM 750 XTR 750-616/040-000 Distance Module XTR Figure 14: Text Detail – Marking Example for Approved Ex i I/O Modules According to CEC 18 attachment J Table 18: Description of Marking Example for Approved Ex i I/O Modules According to CEC 18... -
Page 37: Installation Regulations
WAGO-I/O-SYSTEM 750 XTR Use in Hazardous Environments 750-616/040-000 Distance Module XTR Installation Regulations For the installation and operation of electrical equipment in hazardous areas, the valid national and international rules and regulations which are applicable at the installation location must be carefully followed. - Page 38 Use in Hazardous Environments WAGO-I/O-SYSTEM 750 XTR 750-616/040-000 Distance Module XTR Explosive atmosphere occurring simultaneously with assembly, installation or repair work must be ruled out. Among other things, these include the following activities • Insertion and removal of components •...
-
Page 39: Special Notes Regarding Ansi/Isa Ex
WAGO-I/O-SYSTEM 750 XTR Use in Hazardous Environments 750-616/040-000 Distance Module XTR 5.2.2 Special Notes Regarding ANSI/ISA Ex For ANSI/ISA Ex acc. to UL File E198726, the following additional requirements apply: • Use in Class I, Division 2, Group A, B, C, D or non-hazardous areas only •... -
Page 40: List Of Figures
List of Figures WAGO-I/O-SYSTEM 750 XTR 750-616/040-000 Distance Module XTR List of Figures Figure 1: View ....................15 Figure 2: Data Contacts ..................16 Figure 3: Insert I/O Module (Example) ..............27 Figure 4: Snap the I/O Module into Place (Example) ..........28 Figure 5: Removing the I/O Module (Example) ...........28 Figure 6: Marking Example According to ATEX and IECEx ........30... -
Page 41: List Of Tables
WAGO-I/O-SYSTEM 750 XTR List of Tables 750-616/040-000 Distance Module XTR List of Tables Table 1: Number Notation ................... 7 Table 2: Font Conventions .................. 7 Table 3: Legend for Figure “View” ..............15 Table 4: Technical Data – Device ...............18 Table 5: Technical Data – Data Contacts ............18 Table 6: Technical Data –... - Page 42 WAGO Kontakttechnik GmbH & Co. KG Postfach 2880 • D - 32385 Minden Hansastraße 27 • D - 32423 Minden Phone: +49 571 887 – 0 Fax: +49 571 887 – 844169 E-Mail: info@wago.com Internet: www.wago.com...
