Kimball Office Aspire Assembly Instructions

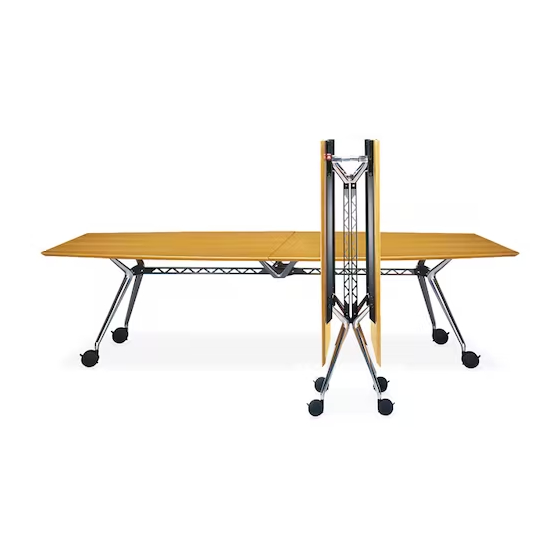

Aspire ®
Attach Legs to Non-Folding
Table

Tools Required

#5 Hex Drive

Package Contents

Table/Frame Assembly
Non-Folding Legs

Installation

Caution: There are factory-installed locating screws inserted
on the underside of the table worksurface at each end. The
locating screws aid in the correct positioning of the top on the
table frame and the customer/installer should NOT tamper
with these locating screws at any time. Driving the locating
screws all the way in WILL CAUSE DAMAGE to the topside
worksurface. The manufacturer is not responsible for any
damage caused by driving the locating screws in. (See Figure D
for example of locating screw position).

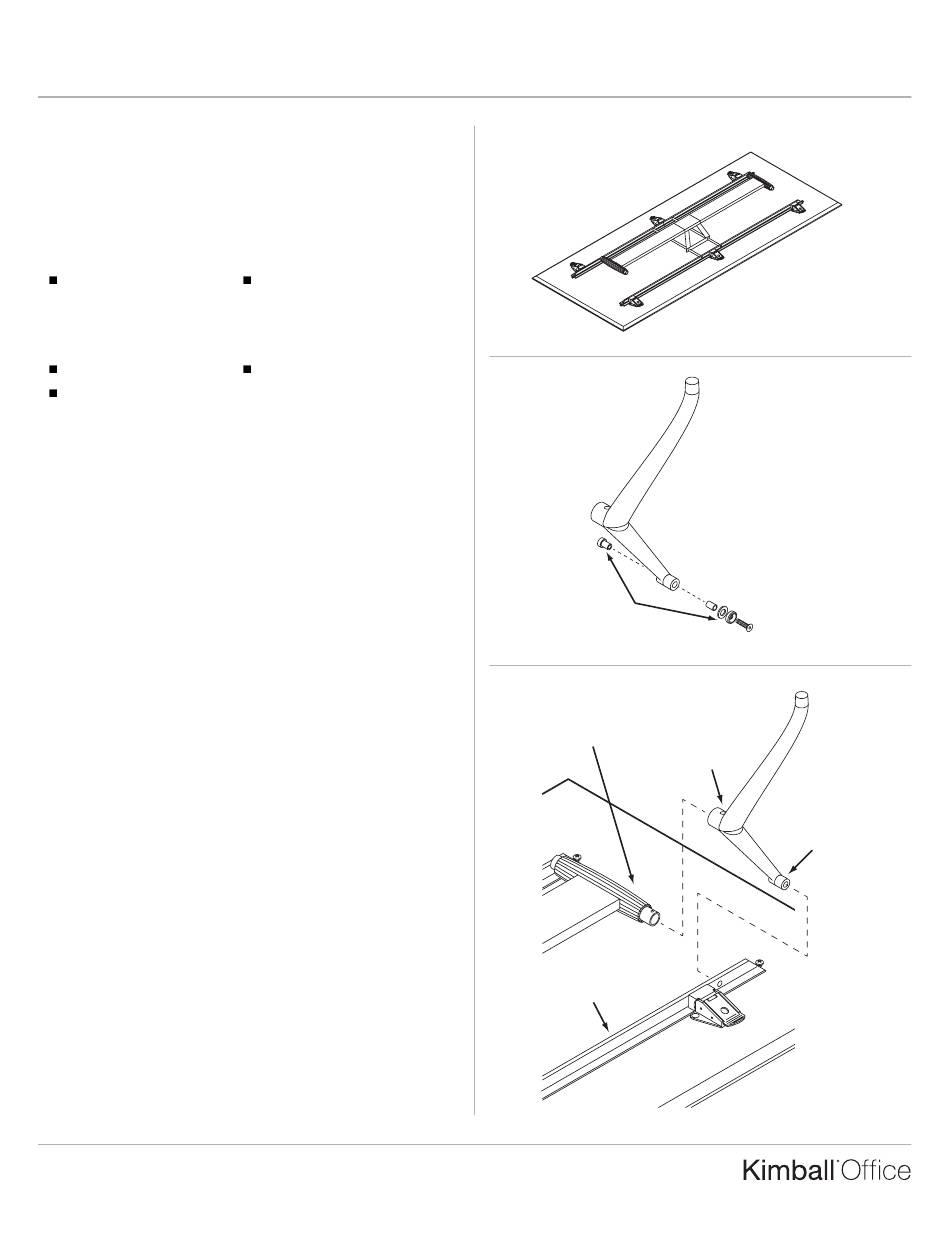

1. Place table/frame assembly face down on a smooth, solid
surface. Be careful to not mar the worksurface. (Figure A).
2. Remove mounting hardware from each leg. (Figure B).
3. The center tube of each leg mounts to the frame tube at
each end of the table frame. The flange of each leg mounts
to the inside of the T-beam. The hole on the flange must
align with its corresponding hole in the T-beam. (Figure C).
Make sure each leg aligns correctly with its mounting holes.
If the flange does not align with a mounting hole, the leg
must be moved to a different position on the frame.
(Figure D).
Proper product installation, in accordance with these instructions, is the responsibility of the installing agent.
If you have any questions concerning these instructions, please call Kimball Office Customer Care.
Part No. 1741585 Revision B-04
Adjustable Wrench
Glides or Casters
Tables Assembly Instructions
Figure A
Figure B
Remove all hardware
from leg
Figure C
Frame Tube
T-Beam
Page 1 of 3
Center Tube
Flange
