Aspire
®
Field Install Bolt
To Lock Static Leg

Tools Required

#5 Hex Driver

Package Contents

1 Table/Frame Assembly
4 Casters or Glides

Installation

1. Place table assembly face down on a smooth, solid surface.
Be careful not to mar the worksurface. (Figure A).
2. Rotate one leg assembly to the vertical position and align
the holes in the leg assembly with the holes in the table
frame. Screw in one machine screw on each side to secure
legs. (Figure B).
3. Repeat Step 2 to secure second leg assembly. (Figure C).
Proper product installation, in accordance with these instructions, is the responsibility of the installing agent.
If you have any questions concerning these instructions, please call Kimball Office Customer Care.
Part No. 1741648 Revision B-05
Adjustable Wrench
4 Bolts
Tables Assembly Instructions

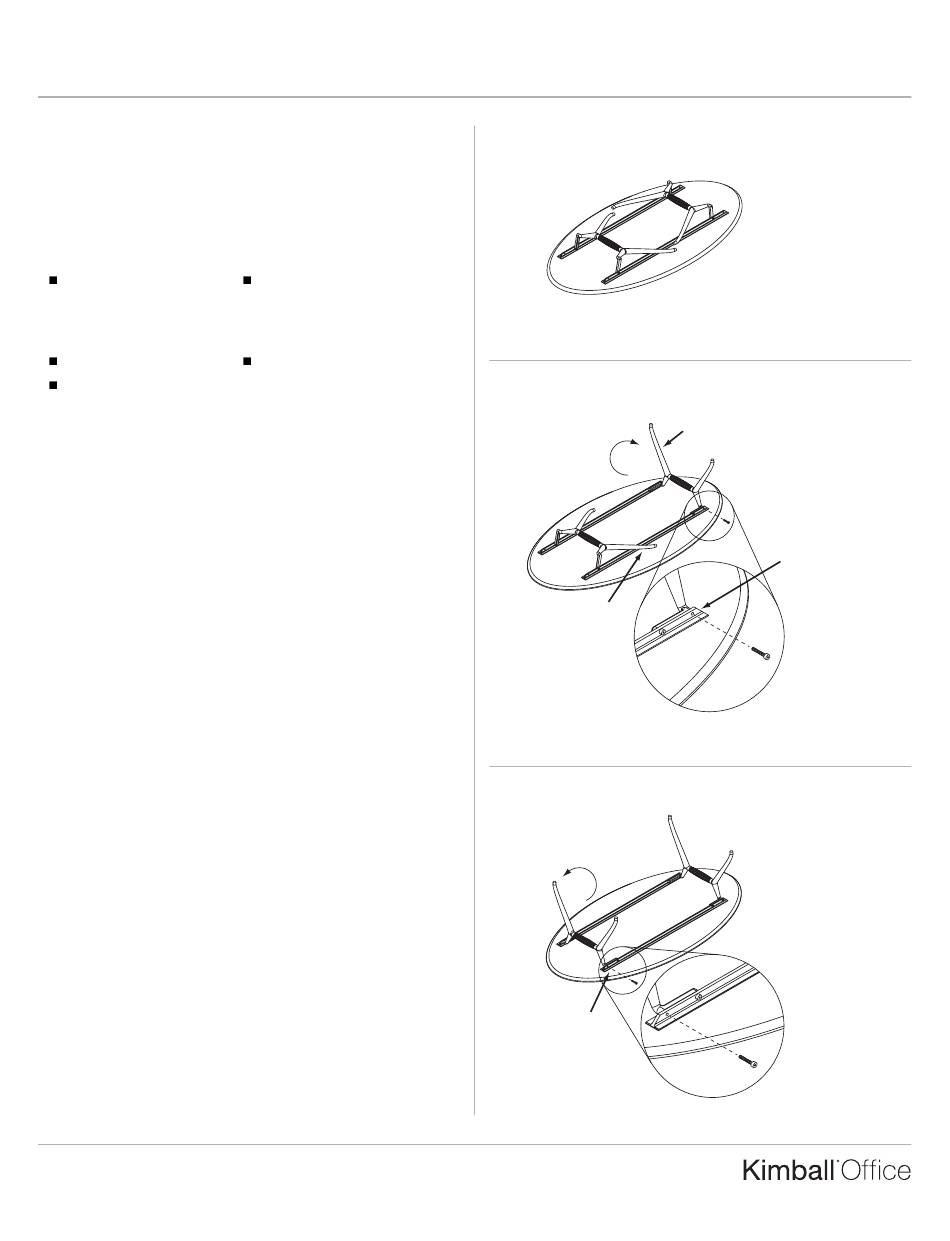

Figure A
Figure B
Rotate
upward
Leg assembly
Figure C
Rotate
upward
Align holes
Page 1 of 2
Leg assembly
Align holes
