- Page 1 Keysight 16034E Test Fixture Operation and Service Manual...
- Page 2 FAR and the DFARS agreement and written consent from used or copied only in accordance and are set forth specifically in Keysight Technologies, Inc. as with the terms of such license. writing elsewhere in the EULA. governed by United States and...
-
Page 3: Table Of Contents
Maintenance ............. . . 11 Keysight 16034E Test Fixture... - Page 4 Contents Keysight 16034E Test Fixture...
-
Page 5: Operation

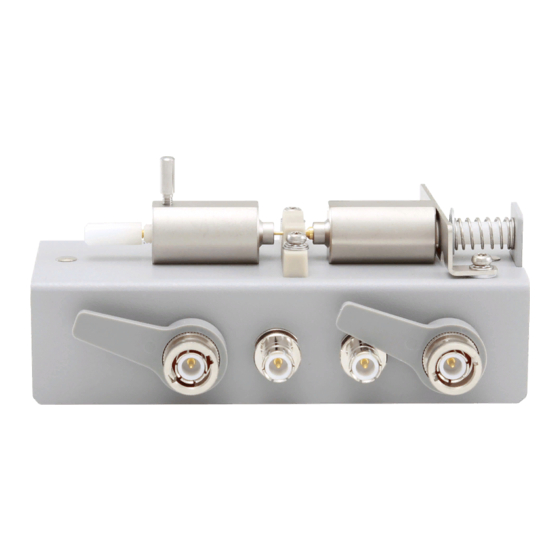

This test fixture is designed to facilitate easy and accurate measurements of chip type components and similar types not furnished with lead wires. Connection of sample components to the 16034E is done by simply pressing the loading lever to left, inserting sample components in the V-mount center section (between fixture jaws) and releasing lever. -
Page 6: Operation
Operation The set up and measurement procedure is as follows: 1. Set the cable length to 0m. 2. Connect the 16034E directly to the UNKNOWN terminals. 3. Loosen the knob A. Figure 1-2 4. Adjust the contact pin position on the V-mount center section with the knob B to adapt your DUT size. - Page 7 Figure 1-4 DO NOT APPLY MORE THAN ± 42V OF DC BIAS VOLTAGE TO THE UNKNOWN TERMINALS. AN ELECTRICAL SHOCK HAZARD WILL EXIST DURING OPERATION WHEN THE DC BIAS VOLTAGE IS GREATER THAN ± 42V DC. Keysight 16034E Test Fixture...
-
Page 8: Specifications
Operation Specifications Specifications Table 1-1 Specification of the 16034E Function: For use with 4 terminal-pair LCR Meters and Impedance Analyzers. Measurable Chip type components (Not furnished with lead wires) components: Dimension of measurable components: Frequency: 40 MHz Maximum Voltage: ± 42 V peak max.(AC + DC) Dimensions of test 128 (W) ×... - Page 9 Operation Specifications Figure 1-5 Keysight 16034E Test Fixture...
- Page 10 Operation Specifications Keysight 16034E Test Fixture...
-
Page 11: Service
RoHS support part backward incompatible with non-RoHS 16034E. Special handling is needed while using the RoHS replacement part on non-RoHS 16034E. The original support part number is replaced by the respective “RoHS Compliant Replacement Part”. - Page 12 Service Maintenance Figure 2-1 Parts Identification Keysight 16034E Test Fixture...
- Page 13 1460-0323 16034-01202 BRACKET Not used (No more used) 16034-25004 KNOB 16034-25004 2360-0201 SCREW 16034-60005 3050-0228 WASHER Not used 16034-05001 LEVER 16034-60005 16034-23001 SHAFT 16034-23001 16034-25002 COLLAR 16034-25002 0510-0083 ERING 0510-0083 3050-1138 WASHER 16034-60005 2420-0006 16034-60005 (2420-0003) Keysight 16034E Test Fixture...
- Page 14 BNC ASS’Y 5012-8617 (5012-8617) 1250-1798 5012-8628 (5012-8628) 16034-00222 BOTTOM COVER 16034-60005 (16034-00242) 2950-0043 2950-0043 2190-0016 WASHER 2190-0016 16034-00601 SHIELD PLATE 16034-00601 16047-40000 STOPPER Not used 2190-0206 WASHER Not used 2200-0105 SCREW Not used 16034-68021 J.W.L 16034-61601 Keysight 16034E Test Fixture...
- Page 15 Service Maintenance Table 2-1 Parts Identification lists Non-RoHS Description RoHS Compliant Part Number Replacement Part 16047-00617 PLATE 16034-60005 Keysight 16034E Test Fixture...
- Page 16 Service Maintenance Keysight 16034E Test Fixture...
- Page 17 This information is subject to change without notice. © Keysight Technologies 1992-2020 Edition 5, January 2020 *16034-90041* 16034-90041 www.keysight.com...
