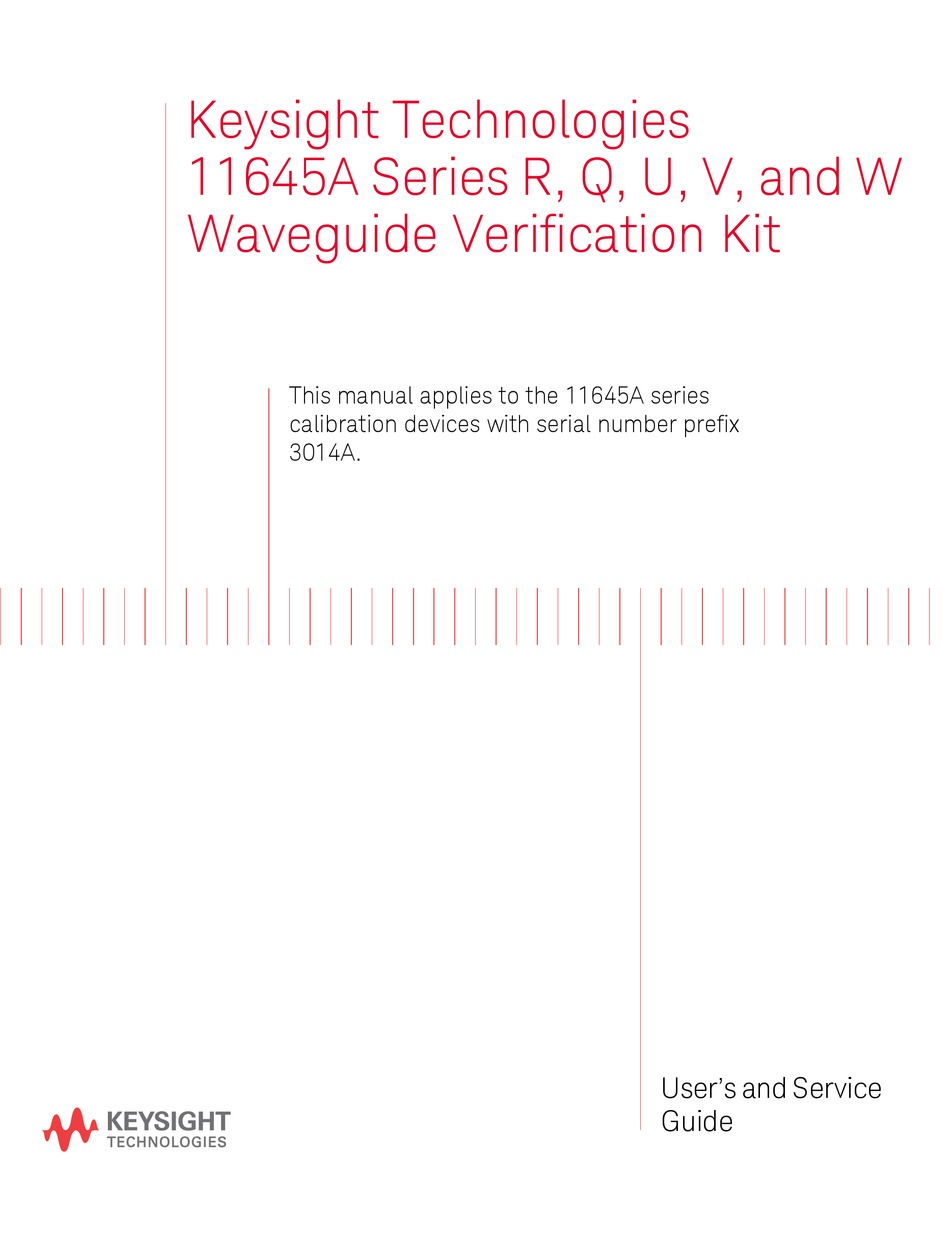

- Page 1 Keysight Technologies 11645A Series R, Q, U, V, and W Waveguide Verification Kit This manual applies to the 11645A series calibration devices with serial number prefix 3014A. User’s and Service Guide...
- Page 2 11645A...
- Page 3 FAR 52.227-19 (June 1987) or any equivalent agency regulation or contract clause. Use, duplication or disclosure of Software is subject to Keysight Technologies’ standard commercial license terms, and non-DOD Departments and Agencies of the U.S. Government will receive no greater than Restricted Rights as defined in FAR 52.227-19(c)(1-2) (June 1987).
- Page 4 Printing Copies of Documentation from the Web To print copies of documentation from the Web, download the PDF file from the Keysight web site: • Go to www.keysight.com. • Enter the document’s part number (located on the title page) in the Search box. •...
-
Page 5: Table Of Contents
Returning a Kit or Device to Keysight Technologies........ - Page 6 Contents Replacing the Verification Data ..............4-2 Copying Replacement Device Verification Data to the Original Verification Data Media.
-
Page 7: General Information
General Information... -
Page 8: Verification Kit Overview

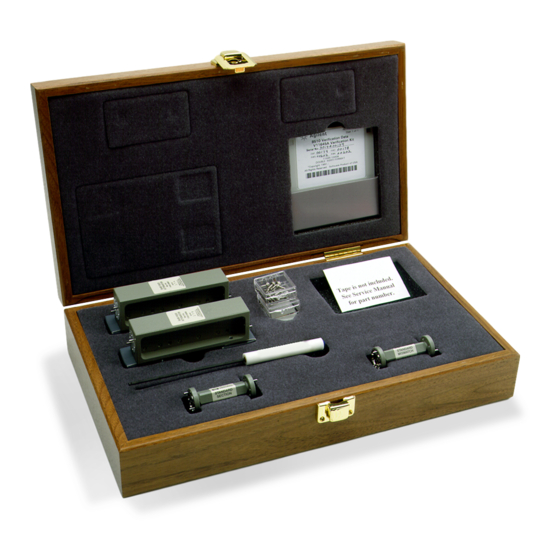

Verification Kit Overview Verification Kit Overview The 11645A series of verification kits provide a set of standards with known characteristics, traceable to a reference (golden) standard in Keysight Technologies calibration lab. The sets of standards are used to verify your measurement calibration and also to verify that your PNA series network analyzer system is operating within its specifications. -
Page 9: Equipment Required But Not Supplied
General Information Incoming Inspection Calibration Kit Definitions Web page at http://na.support.keysight.com/pna/caldefs/stddefs.html. addition, the calibration definitions may be entered manually from the front panel. Refer to your PNA Help system for instructions. Equipment Required but Not Supplied Cleaning supplies and various electrostatic discharge (ESD) protection devices are not supplied with the verification kit but are required to ensure successful operation of the kit. -
Page 10: Recording The Device Serial Numbers
General Information Recording the Device Serial Numbers Recording the Device Serial Numbers In addition to the kit serial number, the devices in this kit are individually serialized (serial numbers are labeled into the body of each device). Record these serial numbers in the appropriate table. Recording the serial numbers will prevent confusing the devices in this kit with similar devices from other kits. -
Page 11: Specifications
Specifications... -
Page 12: Environmental Requirements
Specifications Environmental Requirements Environmental Requirements Table 2-1 Environmental Requirements Parameter Required Values/Ranges Temperature +20 C to +26 C (+68 F to +79 F) Operating 1 C (1.8 F) of measurement calibration temperature Error-corrected range Altitude Operating < 4,500 meters (ª15,000 feet) Storage <... -
Page 13: Electrical Specifications
Certification Keysight Technologies certifies that this product met its published specifications at the time of shipment from the factory. Keysight further certifies that its calibration measurements are traceable to the United States National Institute of Standards and Technology (NIST) to the extent allowed by the institute’s calibration facility, and to the calibration facilities of other International Standards Organization members. - Page 14 Specifications Electrical Specifications 2- 4 11645A...
-
Page 15: Use, Maintenance, And Care Of The Devices
Use, Maintenance, and Care of the Devices... -
Page 16: Electrostatic Discharge
Use, Maintenance, and Care of the Devices Electrostatic Discharge Electrostatic Discharge Protection against ESD (electrostatic discharge) is essential while connecting, inspecting, or cleaning connectors attached to a static-sensitive circuit (such as those found in test sets). Static electricity can build up on your body and can easily damage sensitive internal circuit elements when discharged. -
Page 17: Visual Inspection
Use, Maintenance, and Care of the Devices Visual Inspection Visual Inspection Examine the mating surfaces first for obvious defects or damage. If necessary, cleaning should be done every time a connection is made. Metal particles or dirt may fall onto the mating surface during the connection and disconnection process. -
Page 18: Cleaning The Mating Plane Surfaces
Use, Maintenance, and Care of the Devices Cleaning the Mating Plane Surfaces Cleaning the Mating Plane Surfaces 1. Use Compressed Air or Nitrogen Clean mating surfaces are essential for ensuring the integrity of the waveguide. WARNING Always use protective eyewear when using compressed air or nitrogen. Use compressed air (or nitrogen) to loosen particles on the mating plane surfaces. -
Page 19: Connections
Use, Maintenance, and Care of the Devices Connections Connections Good connections require a skilled operator. Instrument sensitivity and mechanical tolerances are such that slight errors in operator technique can have a significant effect on measurements and measurement uncertainties. The most common cause of measurement error is bad connections. Connecting Waveguide Devices IMPORTANT Unlike threaded devices, the WR-28, WR-22, WR-19, WR-15, and WR-10 waveguide mating planes are flanges (often precision) that you must carefully screw together. -
Page 20: How To Connect
Use, Maintenance, and Care of the Devices Connections How to Connect: R-band WR-28 Always connect the waveguide with the same flange orientation. For example, always connect a device with the label facing the same direction. Follow theses recommendations for optimum connection technique: 1. - Page 21 Use, Maintenance, and Care of the Devices Connections screw. 4. In an X pattern (for equal compression), use the hex ball driver to tighten all four screws. Do not over-tighten. 5. Visually inspect the connection: a. Place an electric light or white paper behind the connection. b.
-
Page 22: Handling And Storage
Use, Maintenance, and Care of the Devices Handling and Storage Handling and Storage • Do install the protective end caps over the mating surfaces and store the devices in the foam-lined storage case when not in use. • Do keep devices clean. •... -
Page 23: Performance Verification
Performance Verification... -
Page 24: Introduction
Introduction Introduction The performance of your verification kit can only be verified by returning the kit to Keysight Technologies for recertification. The equipment and calibration standards required to verify the specifications of the devices in the kit have been specially manufactured and are not commercially available. -
Page 25: Recertification
A list of NIST traceable numbers may be purchased upon request to be included in the calibration report. Keysight Technologies offers a Standard calibration for the recertification of the kit. For more information, contact Keysight Technologies. Refer to “Contacting Keysight” on page 5-7. - Page 26 Performance Verification Recertification 4- 4 11645A...
-
Page 27: Troubleshooting
Troubleshooting... -
Page 28: Troubleshooting Process
Troubleshooting Troubleshooting Process Troubleshooting Process This manual contains limited information about PNA network analyzer system operation. For complete information, refer to the instrument documentation. If your PNA does not pass performance verification, follow the steps in Figure 5-1 to determine the cause of the failure and the correct action to take to correct the failure. 5- 2 11645A... - Page 29 Troubleshooting Troubleshooting Process Figure 5-1 Troubleshooting Flowchart 11645A...
-
Page 30: Compatible Network Analyzers
Troubleshooting Compatible Network Analyzers Compatible Network Analyzers The devices in this kit and their data are compatible with the PNA series network analyzers. The USB drive provided contains the unique factory-measured S-parameter data for each device in this kit. It also contains the factory measurement uncertainty used in the PNA system verification procedure to calculate the test limits. -
Page 31: Where To Look For More Information
Troubleshooting Where to Look for More Information Where to Look for More Information This manual contains limited information about PNA series network analyzer system operation. For detailed information on using a PNA, refer to the PNA Help system. To do so, press the Help key on the front panel of the PNA. -
Page 32: Returning A Kit Or Device To Keysight Technologies
Returning a Kit or Device to Keysight Technologies Returning a Kit or Device to Keysight Technologies If your kit or device requires service, contact Keysight Technologies for information on where to send it. See “Contacting Keysight” on page 5-7 for contact information. Include a service tag (located at the back of this manual) on which you provide the following information: •... -
Page 33: Contacting Keysight
Troubleshooting Contacting Keysight Contacting Keysight Assistance with test and measurements needs and information on finding a local Keysight office are available on the Web at: www.keysight.com/find/assist If you do not have access to the Internet, please contact your Keysight field engineer. NOTE In any correspondence or telephone conversation, refer to the Keysight product by its model number and full serial number. - Page 34 Troubleshooting Contacting Keysight 5- 8 11645A...
-
Page 35: Replaceable Parts
Replaceable Parts... -
Page 36: Replacing The Verification Data
Replaceable Parts Replacing the Verification Data Replacing the Verification Data The verification data contains unique performance data that applies to the individual verification devices. No two devices have the same performance data. It is not a trivial matter to replace lost or damaged data, so it is important to make one or more backup copies. -
Page 37: Copying Replacement Device Verification Data To The Original Verification Data Media
Replaceable Parts Copying Replacement Device Verification Data to the Original Verification Data Media Copying Replacement Device Verification Data to the Original Verification Data Media IMPORTANT The information in the following two processes applies only to writable USB drives. If the USB drive shipped with your verification kit or replacement device has either the Keysight or Keysight logo on it, it is read-only, and the following two processes do not apply. - Page 38 Replaceable Parts Copying Replacement Device Verification Data to the Original Verification Data Media 4. Remove the new USB drive from your computer or PNA. 5. Insert the old verification device data media (floppy disk or USB) into your computer or PNA and view the contents with Windows Explorer.
-
Page 39: Replaceable Parts
To order a listed part, note the description, the part number, and the quantity desired. Telephone or send your order to Keysight Technologies. Refer to “Contacting Keysight” on page 5-7 for further information. - Page 40 Replaceable Parts Replaceable Parts Figure 6-1 R-Band Component Identification Sheet 6- 6 11645A...
- Page 41 Replaceable Parts Replaceable Parts Table 6-3 Replaceable Parts for the Q11645A WR-22 Description Keysight Per Kit Part Number Attenuators 20 dB attenuator with data Q11645AR01 50 dB attenuator with data Q11645AR02 Airlines Match line with data Q11645AR03 Mismatch line with data Q11645AR04 Miscellaneous Items 11645-80027...
- Page 42 Replaceable Parts Replaceable Parts Figure 6-2 Q-Band Component Identification Sheet 6- 8 11645A...
- Page 43 Replaceable Parts Replaceable Parts Table 6-4 Replaceable Parts for the U11645A WR-19 Description Keysight Per Kit Part Number Attenuators 20 dB attenuator with data U11645AR01 50 dB attenuator with data U11645AR02 Airlines Match line with data U11645AR03 Mismatch line with data U11645AR04 Miscellaneous Items 11645-80027...
- Page 44 Replaceable Parts Replaceable Parts Figure 6-3 U-Band Component Identification Sheet 6- 10 11645A...
- Page 45 Replaceable Parts Replaceable Parts Table 6-5 Replaceable Parts for the V11645A WR-15 Description Keysight Per Kit Part Number Attenuators 20 dB attenuator with data V11645AR01 50 dB attenuator with data V11645AR02 Airlines Match line with data V11645AR03 Mismatch line with data V11645AR04 Miscellaneous Items 11645-80028...
- Page 46 Replaceable Parts Replaceable Parts Figure 6-4 V-Band Component Identification Sheet 6- 12 11645A...
- Page 47 Replaceable Parts Replaceable Parts Table 6-6 Replaceable Parts for the W11645A WR-10 Description Keysight Per Kit Part Number Attenuators 20 dB attenuator with data W11645AR01 50 dB attenuator with data W11645AR02 Airlines Match line with data W11645AR03 Mismatch line with data W11645AR04 Miscellaneous Items 11645-80028...
- Page 48 Replaceable Parts Replaceable Parts Figure 6-5 W-Band Component Identification Sheet 6- 14 11645A...
- Page 49 Replaceable Parts Replaceable Parts Table 6-7 Items Not Included in the Verification Kit Description Keysight Part Number ESD Protection Devices Grounding wrist strap 9300-1367 5 ft grounding cord for wrist strap 9300-0980 2 ft by 4 ft conductive table mat with 15 ft grounding wire 9300-0797 ESD heel strap 9300-1308...
- Page 50 Replaceable Parts Replaceable Parts 6- 16 11645A...
- Page 51 Index wear part numbers 4-15 constants, calibration, See agreements calibration definitions customer assistance contacting Keysight Technologies maintenance flange, connecting airline, part numbers 4-11 flowchart, troubleshooting contents 4-13 drawing of 4-10 4-11 alcohol, isopropyl verification kit precautions for use of general information...
- Page 52 Index MID-STD standard, calibration standards international National Institute of Standards and Technology (NIST) National Institute of Standards and Technology (NIST) nitrogen, for cleaning static discharge numbers storage replaceable parts 4-11 4-13 storage case, part number 4-11 4-13 serial, recording strap heel and wrist, part number 4-15 supplies...
- Page 53 This information is subject to change without notice. © Keysight Technologies 1995 - 2015 January 2015 *11645-90013* 11645-90013 www.keysight.com...
