Summary of Contents for Keysight Technologies 16192A

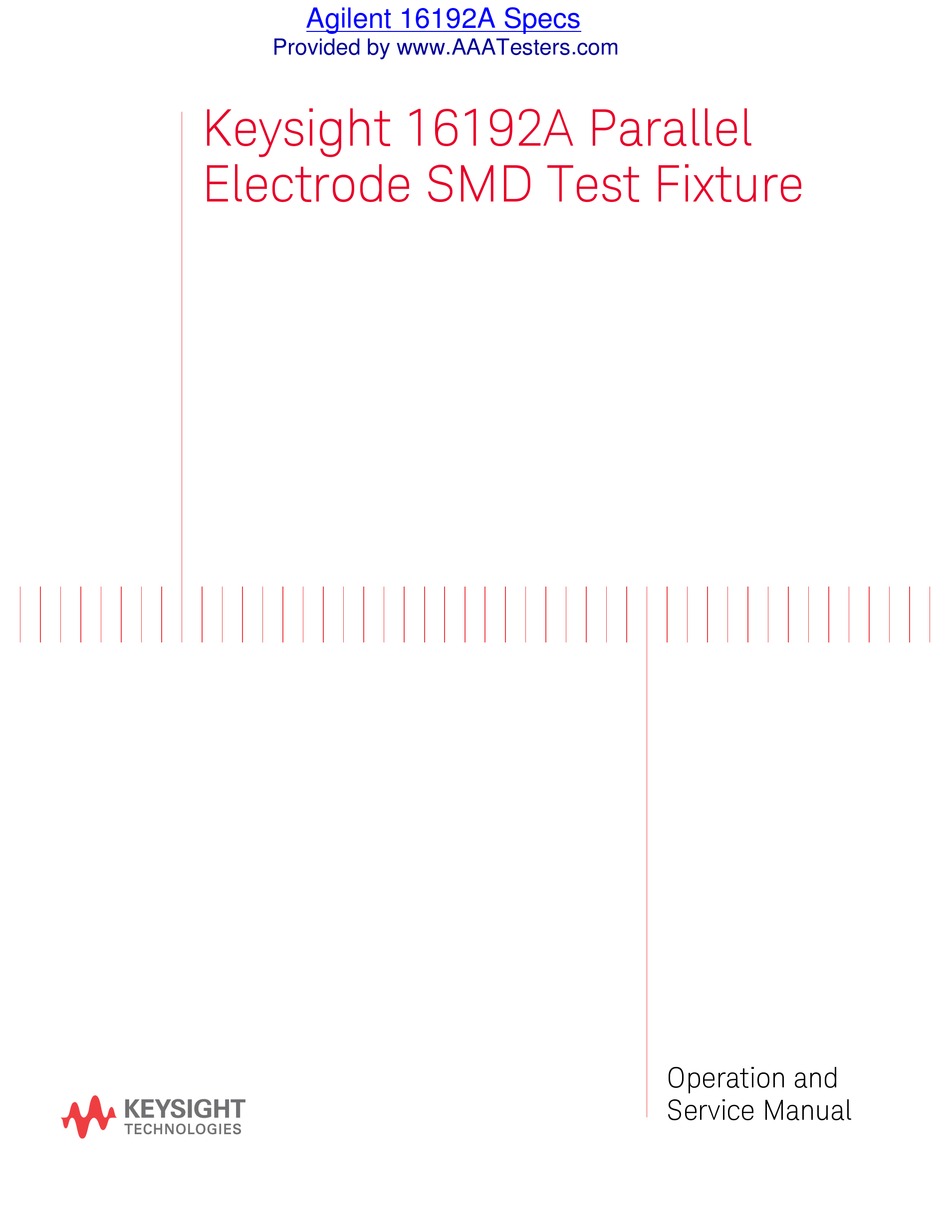

- Page 1 Agilent 16192A Specs Provided by www.AAATesters.com Keysight 16192A Parallel Electrode SMD Test Fixture Operation and Service Manual...
- Page 3 Agilent 16192A Parallel Electrode SMD Test Fixture Operation and Service Manual Agilent Part No. 16192-90040 Printed in JAPAN May 2003 Seventh Edition...
- Page 4 Notice The information contained in this document is subject to change without notice. This document contains proprietary information that is protected by copyright. All rights are reserved. No part of this document may be photocopied, reproduced, or translated to another language without the prior written consent of the Agilent Technologies.
- Page 5 Manual Printing History The manual printing date and part number indicate its current edition. The printing date changes when a new edition is printed. (Minor corrections and updates that are incorporated at reprint do not cause the date to change.) The manual part number changes when extensive technical changes are incorporated.
- Page 6 Safety Summary The following general safety precautions must be observed during all phases of operation, service, and repair of this instrument. Failure to comply with these precautions or with speci c WARNINGS given elsewhere in this manual violates safety standards of design, manufacture, and intended use of the instrument.
- Page 7 Operating Precaution Do not exceed the operating input power, voltage, and current level and signal type appropriate for the instrument being used, refer to your instrument's operation manual. Caution Electrostatic discharge ( esd ) can damage the highly sensitive microcircuits in your instrument.
- Page 8 Limitation Of Warranty The foregoing warranty shall not apply to defects resulting from improper or inadequate maintenance by Buyer, Buyer-supplied software or interfacing, unauthorized modi cation or misuse, operation outside of the environmental speci cations for the product, or improper site preparation or maintenance. No other warranty is expressed or implied.
- Page 9 Safety Symbols General de nitions of safety symbols used on equipment or in manuals. Instruction manual symbol: the product is marked with this symbol when it is necessary for the user to refer to the instruction manual in order to protect against damage to the instrument.
- Page 10 APC-7 is a U.S. registered trademark of the Bunker Ramo Corporation. viii...
-
Page 11: Table Of Contents
Contents 1. General Information Introduction ....... . . Manual Summary ......Product Description . - Page 12 ......2-1. 16192A Product Overview ......
-
Page 13: General Information Introduction
General Information Introduction The purpose of this manual is to enable you to use your 16192A Parallel Electrode SMD Test Fixture eciently and con dently. Manual Summary This manual contains the following: The speci cations of the 16192A (see this chapter). Installing the 16192A (see Chapter 2). -
Page 14: Options Available
Options Available The following option is supplied for the 16192A: Option 010 Add industry standard size short bar set Option 701 Short bars set (1x1x2.4, 1.6x2.4x2, 3.2x2.4x2.4, 4.5x2.4x2.4)mm Option 710 Add the magnifying lens and tweezers Accessories Supplied The following accessories are supplied with the 16192A: Table 1-1. -
Page 15: Speci Cations
Speci cations This section lists the complete 16192A speci cations. These speci cations are the performance standards and limits against which the 16192A is tested. When shipped from the factory, the 16192A meets the following speci cations: Maximum DC Bias Voltage : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : :... -
Page 16: Residual Inductance Of The Shorting Bar
Figure 1-1. Applicable DUT Size Residual Inductance of the Shorting Bar The usual method to compensate the test xture's residual inductance is to let SHORT = 0H. In this method, the measurement result is the relative value of the measured impedance to the shorting bar's impedance. - Page 17 Table 1-3. Option 010 Shorting Device Residual Inductance (Typical) Shorting Bar l [mm] d [mm] h [mm] O set [mm] Connector Inductance (Typical) P/N 16191-29005 0.75 3.5 mm 0.5 nH P/N 16191-29006 0.45 3.5 mm 0.4 nH P/N 16191-29007 7 mm 0.9 nH P/N 16191-29008 7 mm...
-
Page 19: Preparation For Use
Preparation for Use Introduction This chapter explains how to install the 16192A. The topics include the following: Initial inspection. Connecting the test xture for use. Repackaging the test xture for shipment. Measurement error correcting function for each instrument. Initial Inspection The parallel electrode SMD test xture has been carefully inspected before being shipped from the factory. -
Page 20: 16192A Product Overview
Figure 2-1. 16192A Product Overview Table 2-1. 16192A Contents Description Agilent Part Quantity Number Test xture 16192A Operation and Service Manual P/N 16192-90040 Shorting device 2.4[mm]) P/N 16191-29001 (1.6 2[mm]) P/N 16191-29002 (2.4 3.2[mm]) P/N 16191-29003 (2.4 4.5[mm]) P/N 16191-29004... -
Page 21: Adjusting The Con Guration To Smd Size
Adjusting the Con guration to SMD Size The 16192A's applicable SMD size is 1 mm to 20 mm, changing the electrodes con guration as follows. Figure 2-2. Electrodes con guration and SMD Size Preparation for Use... -
Page 22: Connecting The Test Fixture For Use
Connecting the Test Fixture for Use Note Some instruments require an adapter to be connected to the 16192A (see \Applicable Instruments" in Chapter 1). 1. Calibrate your analyzer at the APC-7 connector plane before connecting test xture. See Table 2-2 for the applicable error correcting function. After calibration, disconnect any standards from the APC-7 connector. -
Page 23: Repackaging The Test Fixture For Shipment
SMD test xture in heavy paper and pack in anti-static plastic packing material. Use sucient shock absorbing material on all sides of the 16192A to provide a thick, rm cushion and to prevent movement. Seal the shipping container securely and mark it FRAGILE . -
Page 24: Measurement Error Correcting Function For Each Instrument
Measurement Error Correcting Function for Each Instrument Each LCR meter or analyzer has measurement error correcting functions. Table 2-2 shows the functions of the instrument that can be used for calibration, setting the electrical length, and Open/Short/Load compensation. Table 2-2. Measurement Error Correcting Functions for Each Instrument Instrument Calibration Electrical length... -
Page 25: Operation Introduction
DUT: indicates procedures in the following pages.) Described in Chapter 2. The 16192A's electrical length is 11 mm (typical value). To set the electrical length, see your analyzer's Operation Manual. To set the xture and devices for xture compensation, see: \How to set the SHORT condition, and the OPEN condition"... -
Page 26: Overview
Overview Figure 3-1. 16192A Test Fixture Overview Length positioning stage Slides to x an electrode. Length locking knob Fixes the length positioning stage. Device stage Te on sheet to place the device. Device holder Fixes a device. Width locking knob Fixes the width positioning stage. -
Page 27: How To Set The Short Condition, And The Open Condition
How to set the SHORT condition, and the OPEN condition Setting the SHORT condition Operation... -
Page 28: Setting The Open Condition
Setting the OPEN condition Operation... -
Page 29: How To Connect The Dut
How to connect the DUT Operation... -
Page 31: Service Introduction
When you repair the 16192A, put on lint-free groves to avoid contaminating inner parts of the 16192A. Agilent Technologies supplies lint-free groves (Agilent part number 9300-0163). General Information Table 4-1 shows all items included with the 16192A Parallel Electrode SMD Test Fixture. Service... -
Page 32: 16192A Product Overview
Figure 4-1. 16192A Product Overview Table 4-1. 16192A Product Overview Reference Agilent Part Designator Number Qty. Description (not assigned) Main Assembly 16193-60002 Magnifying Glass 16192-09002 Insulator 8710-2081 Tweezers 16191-29001 Shorting Device (1 2.4 mm) 16191-29002 Shorting Device (1.6 2 mm) 16191-29003 Shorting Device (2.4... -
Page 33: Assembly Replacement
Assembly Replacement This section includes Disassembly and Assembly Procedures and Replacement Parts for the Main Assembly. Disassembly and Assembly Procedure This section contains the information required to disassemble and assemble the Main Assembly. Length Positioning Stage Assembly Removal: 1. Loosen the Length Locking Knob (\1" in Table 4-3). 2. -
Page 34: Replaceable Parts
Replaceable Parts Table 4-2 through Table 4-5 show and list the replaceable parts for the 16192A. The parts listed can be ordered from your nearest Agilent Technologies Oce. Ordering information must include the Agilent part number and the quantity required. -
Page 35: Replaceable Parts For Length Positioning Stage Assembly
Figure 4-3. Replaceable Parts for Length Positioning Stage Assembly Table 4-3. Replaceable Parts for Length Positioning Stage Assembly Reference Agilent Part Designator Number Qty. Description 16192-24006 Length Locking Knob 16192-20002 Length Positioning Stage Block 16192-23001 16192-01202 Contact 0515-2421 Screw M1.4L3 (not assigned) Insertion Clip Assembly 3050-1066... -
Page 36: Replaceable Parts For Insertion Clip Assembly
Figure 4-4. Replaceable Parts for Insertion Clip Assembly Table 4-4. Replaceable Parts for Insertion Clip Assembly Reference Agilent Part Designator Number Qty. Description 0520-0133 Screw 2190-0014 Washer 16092-40010 Holder 16092-40016 Holder 16092-40011 Lever 16092-23010 Shaft 1460-0352 Spring Service... -
Page 37: Replaceable Parts For Width Positioning Stage Assembly
Figure 4-5. Replaceable Parts for Width Positioning Stage Assembly Table 4-5. Replaceable Parts for Width Positioning Stage Assembly Reference AgilentPart Designator Number Qty. Description 16192-24006 Width Positioning Knob 16192-24005 Device Holder Adjustment Knob 16192-24004 Holder 16192-25002 Device Holder L 16192-25003 Device Holder R 0515-0994 Screw Flat Head M2L6... -
Page 38: Replaceable Parts For Test Stage Assembly
Figure 4-6. Replaceable Parts for Test Stage Assembly Service... -
Page 39: Obsolete Parts Manufactured Earlier Than 1996
Contact-RF Connector Caution If your 16192A test xture was manufactured earlier than 1996 and you need to replace either the plate (Figure 4-7: 3) or the contact assembly (Figure 4-7: 5), it will be necessary to buy replacements for both parts (Figure 4-6: 3 and 5) since they were modi ed at the same time. -
Page 40: Troubleshooting
Troubleshooting This section includes the functional check procedure used to troubleshoot the 16192A Parallel Electrode SMD Test Fixture. Open Impedance Check 1. Adjust the electrode distance for connecting the 1 2.4 mm Shorting Device (PN 16191-29001). (Refer to Figure 4-8.) Figure 4-8. -
Page 41: Short Impedance Check
Table 4-7. Open Impedance Value Guideline Parameter Frequency Guideline (absolute value) 100 MHz 750 fF 300 fF 1 GHz 750 fF 300 fF Short Impedance Check 1. After the Open Impedance Check is completed, put the 1 2.4 mm Shorting Device (PN 16191-29001) between the electrodes (refer to Figure 4-8). - Page 43 REGIONAL SALES AND SUPPORT OFFICES For more information about Agilent Technologies test and measurement products, applications, services, and for a current sales office listing, visit our web site: http://www.agilent.com/find/tmdir. You can also contact one of the following centers and ask for a test and measurement sales representative. 11/29/99 (fax) (61 3) 9272 0749 United States:...
- Page 45 This information is subject to change without notice. © Keysight Technologies 1993 - 2015 Edition 8, February 2015 *16192-90040* 16192-90040 www.keysight.com...
