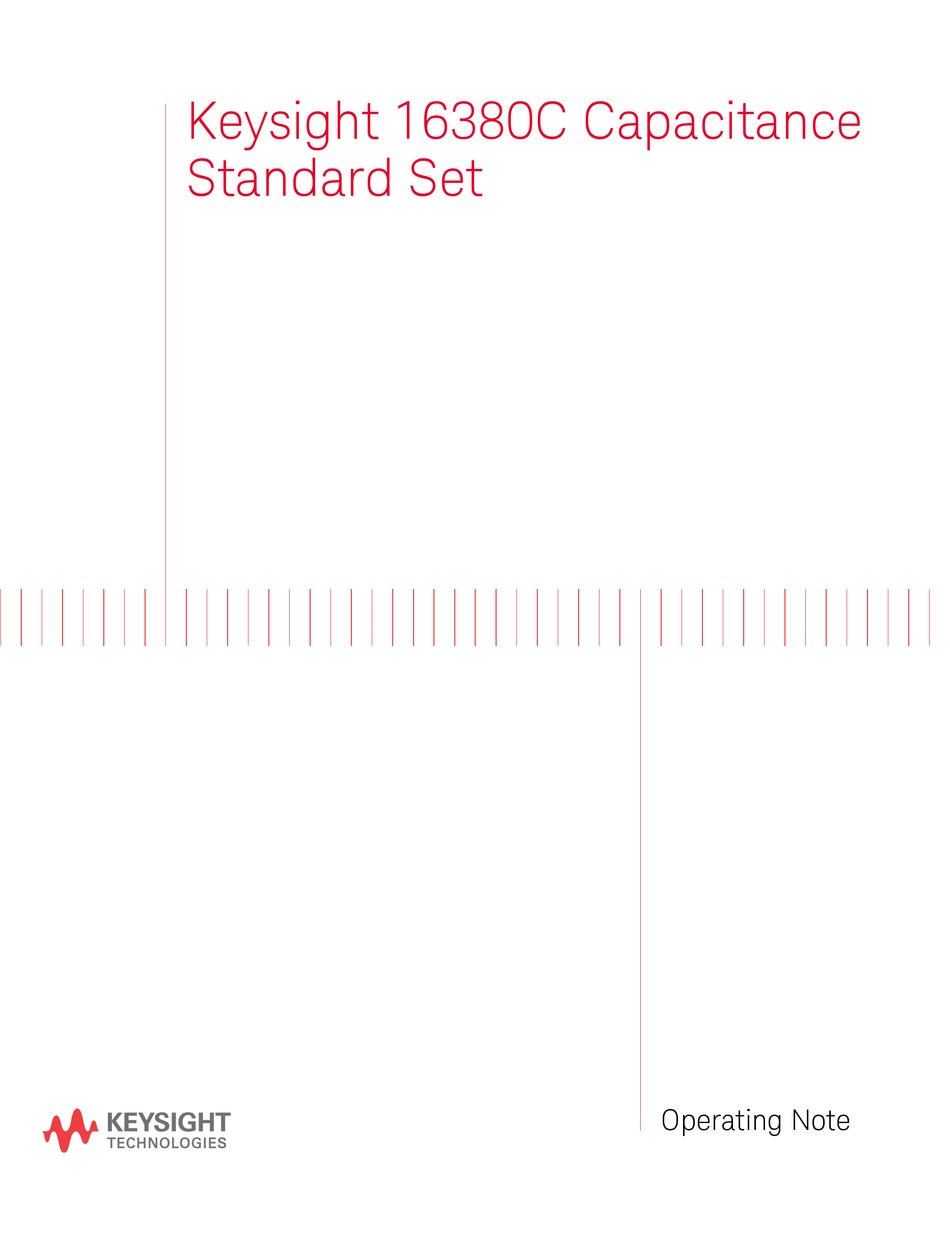

- Page 1 Keysight 16380C Capacitance Standard Set Operating Note...
- Page 4 WARNINGS elsewhere in this manual may impair the protection provided by the equipment. In addition it violates safety standards of design, manufacture, and intended use of the instrument. Keysight Technologies assumes no liability for the customer’s failure to comply with these requirements. NOTE 16380C comply with INSTALLATION CATEGORY I and POLLUTION DEGREE 2 in IEC61010-1.
- Page 5 Because of the danger of introducing additional hazards, do not install substitute parts or perform unauthorized modifications to the instrument. Return the instrument to a Keysight Technologies Sales and Service Office for service and repair to ensure that safety features are maintained.
- Page 6 For warranty service or repair, this product must be returned to a service facility designated by Keysight Technologies. Buyer shall prepay shipping charges to Keysight Technologies and Keysight Technologies shall pay shipping charges to return the product to Buyer. However, Buyer shall pay all shipping charges, duties, and taxes for products returned to Keysight Technologies from another country.
-
Page 7: Table Of Contents
Contents 1. General Information Description ................8 Contents . - Page 8 Contents...
- Page 9 General Information...
-
Page 10: Description
The 16380C was designed for use in calibrating precision impedance measuring instruments (such as LCR meters, impedance analyzers, etc.) that have capacitance ranges between 0.01 µF and 10 µF. The 16380C can be used to directly certify capacitance measurement accuracy over the 0.01 µF to 10 µF range. -
Page 11: Specifications And Supplemental Performance Charateristics
Specifications and Supplemental Performance Charateristics... -
Page 12: Specifications
Specifications and Supplemental Performance Charateristics Specifications Specifications Table 2-1 Model 16385A 16386A 16387A 16388A (opt.001) 0.01 µF 0.1 µF 1 µF 10 µF Nominal Value ±0.1% ±0.05% Nominal Accuracy ≤4×10 ≤5×10 ≤7×10 ≤5×10 Dissipation Factor *1.Specified at 1kHz under the following ambient conditions: Temperature: 23±5°C Operating Conditions Ambient Temperature: 23±5°C... -
Page 13: Supplemental Performance Characteristics
Specifications and Supplemental Performance Charateristics Supplemental Performance Characteristics Supplemental Performance Characteristics Capacitance Temperature Coefficient 16385A, 16386A, 16387A, and 16388A (opt.001): -20 to 35 ppm/°C Capacitance Stability 16385A, 16386A, 16387A, and 16388A (opt.001): <50ppm/year @ 1kHz, 23±5°C Maximum Allowable Voltage/Current 16385A, 16386A, 16387A, and 16388A (opt.001): 40 V peak (ac+dc)/100 mA rms Residual Capacitance Table 2-2 16385A... - Page 14 Specifications and Supplemental Performance Charateristics Supplemental Performance Characteristics Chapter 2...
-
Page 15: Service
Service... -
Page 16: Calibration
16380C calibrated, contact the nearest Keysight Sales and Service Office. Recommended Calibration Cycle The 16380C should be calibrated at least once a year. More frequent calibration may be required if the 16380C is used in very hot or very cold environments. Repair The 16380C contains no replaceable components. - Page 17 This information is subject to change without notice. © Keysight Technologies Japan, Ltd. 1985 - 2015 Edition 6, February 2015 *16380-90221* 16380-90221 www.keysight.com...
