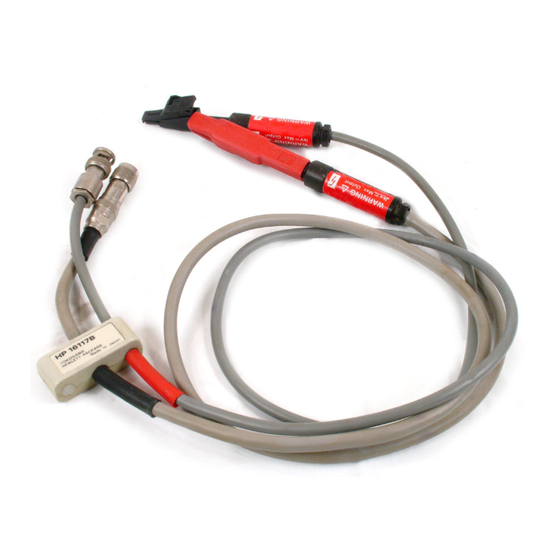

  • Page 1 Keysight 16117B Low Noise Test Lead Operation and Service Manual...
  • Page 10 Notice The information contained in this document is subject to change without notice. This document contains proprietary information which is protected by copyright. All rights are reserved. No part of this document may be photocopied, reproduced, or translated to another language without the prior written consent of the Agilent Technologies.
  • Page 11 Exclusive Remedies The remedies provided herein are the buyer's sole and exclusive remedies. Agilent Technologies shall not be liable for any direct, indirect, special, incidental, or consequential damages, whether based on contract, tort, or any other legal theory. Assistance Product maintenance agreements and other customer assistance agreements are available for Agilent Technologies products.
  • Page 12 Manual Printing History The manual printing date and part number indicate its current edition. The printing date changes when a new edition is printed. (Minor corrections and updates which are incorporated at reprint do not cause the date to change.) The manual part number changes when extensive technical changes are incorporated.
  • Page 13 The Agilent Technologies assumes no liability for the customer's failure to comply with these requirements. Note 16117B is designed for use in INSTALLATION CATEGORY I according to IEC 61010-1 and POLLUTION DEGREE 1 according to IEC 61010-1 and IEC 60664-1. 16117B is an INDOOR USE product.
  • Page 14 Safety Symbols General de nitions of safety symbols used on equipment or in manuals are listed below. Instruction manual symbol: the product is marked with this symbol when it is necessary for the user to refer to the instruction manual. Alternating current. Direct current.

  • Page 15: Table Of Contents

    Introduction ....... . . Using the 16117B ......
  • Page 16 Figures 2-1. Product Overview (with 16117B option 003) ....3-1. Adapter Features ......

  • Page 17: General Information Introduction

    General Information Introduction The purpose of this manual is to enable you to use your 16117B Low Noise Test Lead eciently and con dently. This manual contains both general and speci c information. To use the 16117B to perform a speci c function (without having to read the entire manual), follow the directions in \Using the 16117B".

  • Page 18: Options

    Speci cations This section lists the complete 16117B speci cations. These speci cations are the performance standards and limits against which the 16117B is tested. When shipped from the factory, the 16117B meets the speci cations listed in this section. Applicable Test Voltage : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : 1000 V maximum Applicable Test Current : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : 0.5 mA maximum...

  • Page 19: Preparation For Use

    Preparation for Use Introduction This chapter explains how to install the 16117B Low Noise Test Lead. The topics covered include initial inspection, ambient environmental considerations, connecting the adapter for use, and repackaging the adapter for shipment. Initial Inspection The adapter has been carefully inspected electrically and mechanically before being shipped from the factory.
  • Page 20 Table 2-1. Contents Description Agilent Part Number Quantity Low Noise Test Lead 16117B Operation and Service Manual 16117-90060 Furnished with Alligator Clips if you ordered the 16117B option 003. Operation and Service Manual is not shown in Figure 2-1. Preparation for Use...

  • Page 21: Ambient Environmental Considerations

    Alteratively, comparable packaging materials may be used. Wrap the adapter in heavy paper and pack in anti-static plastic packing material. Use sucient shock absorbing material on all sides of the 16117B to provide a thick, rm cushion and to prevent movement. Seal the shipping container securely and mark it FRAGILE .

  • Page 23: Operation Introduction

    Operation Introduction This chapter describes the features of the 16117B (see Figure 3-1), and its connection to the 4339B and DUT. Operation...
  • Page 24 2. Triaxial connector. The measured signal is carried on the center conductor of this connector. 3. BNC connector. This connector provides the source voltage to the 16117B. This is a high voltage BNC connector and is not compatible with standard BNC connectors.

  • Page 25: Connecting The Adapter For Use

    Connecting the Adapter for Use The 4339B connection with 16117B has two con gurations: oating and grounded DUT measurement con gurations. The connections are di erent for each con guration. The connections are as shown in Figure 3-2 and Figure 3-3. Warning Do NOT touch the electrode and UNKNOWN connector while the High Voltage indicator is lit which shows the 4339B's output is a high voltage of up to 1000 Vdc maximum.

  • Page 26: Open Correction

    1. Connect the 16117B to the UNKNOWN terminals of the 4339B. Refer to \Connecting the Adapter for Use". 2. Perform an OPEN correction as described in \OPEN Correction".

  • Page 27: Pin Probes (Option 001)

    Agilent Technologies shall NOT LIABLE for any damages or dangers to the operator incurred on use of a customized product except for the 16117B itself. Test xtures designed by users are exposed to voltages up to 1 kV. An operator may receive an electrical shock if he/she makes contact with test xture components.

  • Page 28: Checking Procedure

    Checking Procedure The 16117B and the 4339B is operated with high voltages of up to 1000 V. These products are designed so that the operator can make safe measurements. To maintain this safe condition, you must periodically perform the following safety veri cation procedure.

  • Page 29: Service Introduction

    This chapter gives the replaceable parts information for the 16117B. Replaceable Parts Table 4-1 identi es the replaceable parts. Do not disassemble the 16117B any further than shown in Table 4-1. The listed parts can be ordered from your nearest Agilent Technologies Oce.
  • Page 30 Table 4-1. Replaceable Parts List Reference Agilent Part Designator Number Qty. Description Note 16117-87101 Model Label 16117-40001 Holder 16117-40002 Holder (with Nuts) 16117-25001 Plug Hole for a holder 0515-1552 Screw Pan Head to x a holder 3050-0891 Washer Flat to x a holder 8710-2405 Clip (Red) Option 003...
  • Page 31 This information is subject to change without notice. © Keysight Technologies 2014 Edition 8, November 2014 *16117-90060* 16117-90060 www.keysight.com...
