Kimball XSEDE Assembly Instructions

XSEDE
™

Xsede Single Bench Assembly

Tools Required

•
Box Cutter/Utility Knife
•
Rubber Mallet
•
Cordless Drill w/#2 & #3 Phillips head bit drive
•
Set of Standard/Metric Allen wrench key/drives

Hardware Required

1 - Single C-base (standard/extended height)
1 - Right Back Panel (1, or 2 fasteners)
1 - Center Back Panel (0, 1, or 2 fasteners)
1 - Left Back Panel (1, or 2 fasteners)
1 - Right End Panel (optional)
1 - Left End Panel (optional)
1 - Worksurface
1 - Ganging Tray

Installation

1. Using a knife, open each individual box removing all pan-
els from their respective boxes. Note: keep left, right, and
center panels separate from each other.
2. If attaching c-base and worksurface ONLY, skip to step
12.
3. Lay back panels on a non-marring surface. Push panels
together and slide down to lock pre-installed mod-eez clips
and screws. Use a rubber mallet if needed. See Figure B.
4. Attach end panel brackets as shown in Figure C using drill,
#2 drive, and wood screws packed with bracket.
5. Repeat step 2 for end panels. Note: right panel will have
mod-eez screws and left end panel will have mod-eez
clips. See Figure C.
6. Locate single bench crossrails and attach as shown in Fig-
ure D using drill, #3 drive, and 1/4-20 machine screws for
all back panels. Note: there are left and right crossrails,
slide over the top of the end panel bracket.
Figure D
Left Crossrail
(16) 1/4-20 X 1
Zinc Machine
Screws
Part 3251672, Revision -
Right Crossrail
Proper product installation, in accordance with these instructions, is the responsibility of the installing agent.
If you have any questions concerning these instructions, please call Kimball Customer Care.

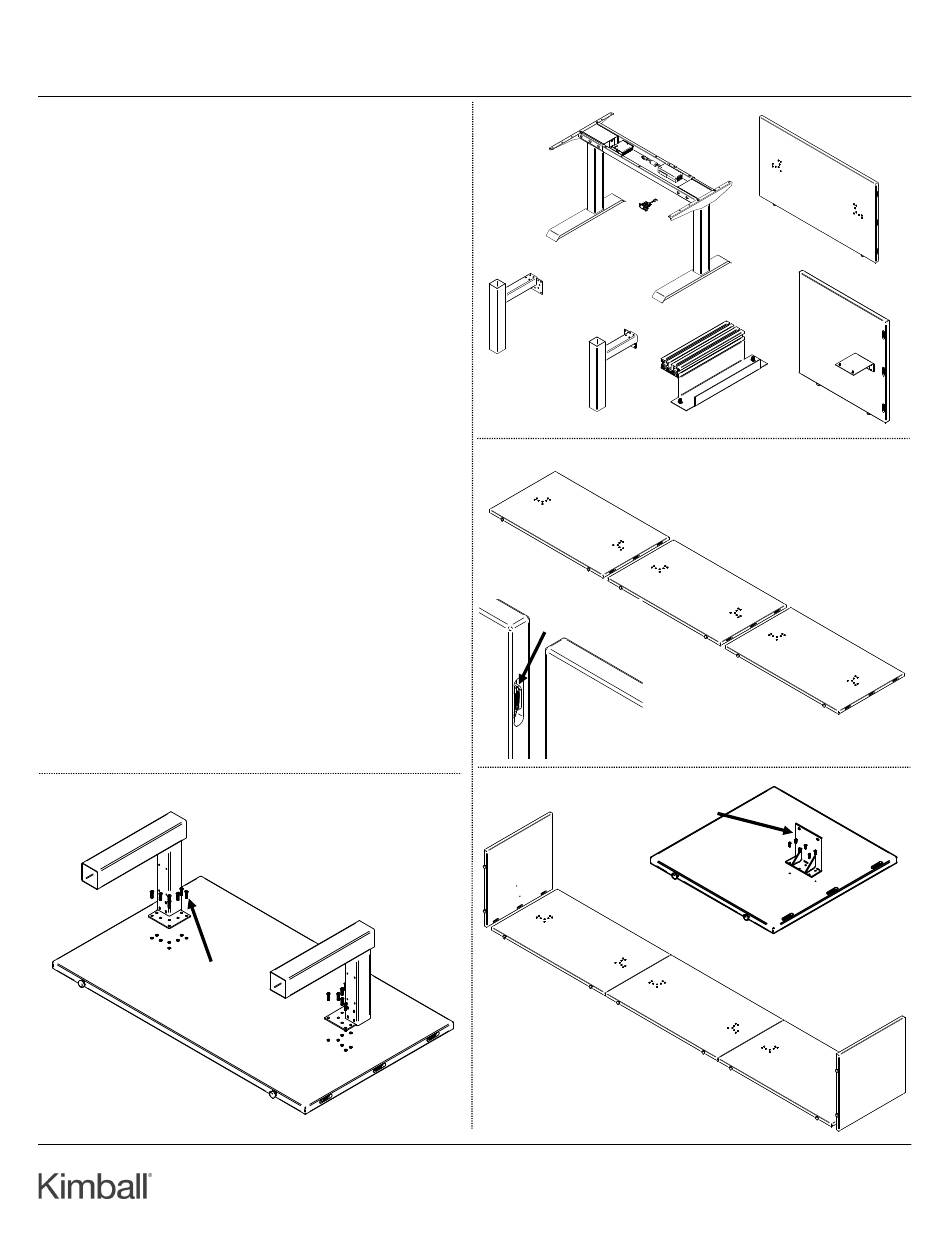

Figure A
Single C-Base
Left/Right
Crossrails
Figure B
Left Panel
Push screw into
mod-eez slot and
slide down to
lock panels
Figure C
End Panel Bracket
and wood screws
Assembly Instructions
Back Panel
Center, Left,
Right
End Panel:
Left & Right
Ganging
Tray
Center Panel
Right Panel
1
