Kimball EVERYSPACE Assembly Instructions

Benching single side

Advertisement

EVERYSPACE

Benching single side

Cordless Drill w/#2 Phillips head bit drive
5mm Allen key
Level
2 - Leg assemblies
3 - Work surface to beam brackets
6 - Beam attachment plates
4 - 5/16-a8 glides
12 - M8 x 14mm button head cap screws
16 - #10 x 3/4" pan head screws

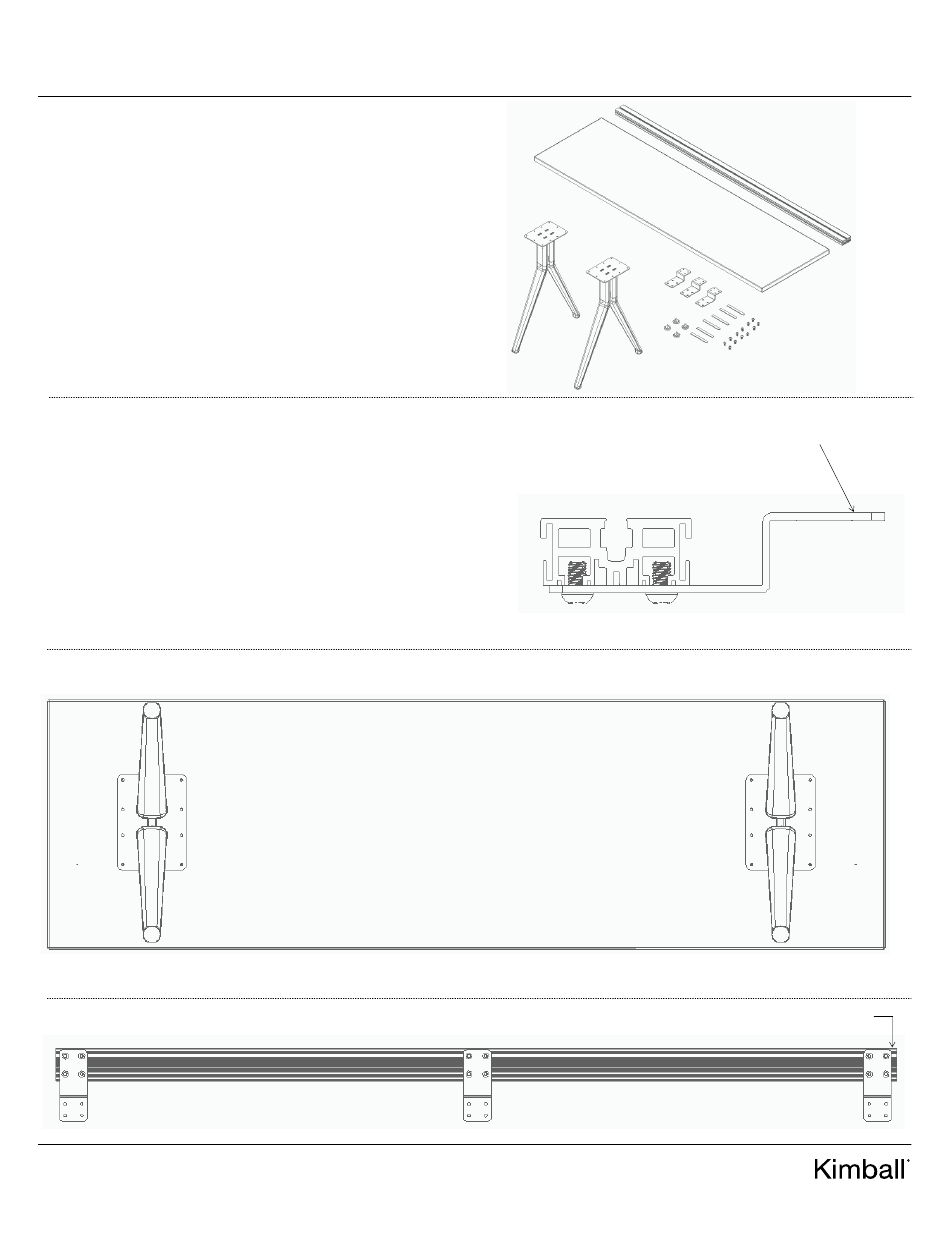

1.
With work surface laying of a soft surface, mounting holes
up, attach leg assemblies using #10 x 3/4" pan head screws
through mounting plates and into predrilled holes in the
work surface Figure A
2.
Place power beam on a soft surface, multiple channels fac-
ing up, mount the (3) work surface to beam brackets to the
beam (refer to DATA BEAM installation for attachment
plate usage) See Detail A for orientation of bracket.
Mount one work surface to beam bracket in the center of
the beam, the (2) outside brackets will be mounted 5/16"
from each end. Figure A
Figure J
Proper product installation, in accordance with these instructions, is the responsibility of the installing agent. If you have
any questions concerning these instructions, please call Kimball Customer Care.
Part 3558054,- Revision -
BEAM SIDE
USERS SIDE
Assembly Instructions
Detail A
Work surface to beam bracket
1
5/16" each end
