Kimball Xsede Assembly Instructions

Kimball Xsede Assembly Instructions

X beam/power panel post

Advertisement

Xsede®
X Beam/Power Panel Post

Tools Required

Box Cutter/Utility Knife
Cordless Drill w/#2 Phillips head bit drive
M4 Allen hex key
M5 Allen hex key
HARDWARE (included)
Legs
Jumpers
Wood Top Cap
Front Trim Cover
Front Lower Rail
Front Filler Panel
Attachment Plate
Pan Head Wood Screw #12 X 3/4"
Button Screw M8-1.25 X 12mm
Connector Bolts 1/4-20 X 17mm
Connector Nuts 1/4-20 X 30mm
Spacers

Installation

Electrical jumpers must be installed in the
STOP
connector PRIOR to leg attachment.

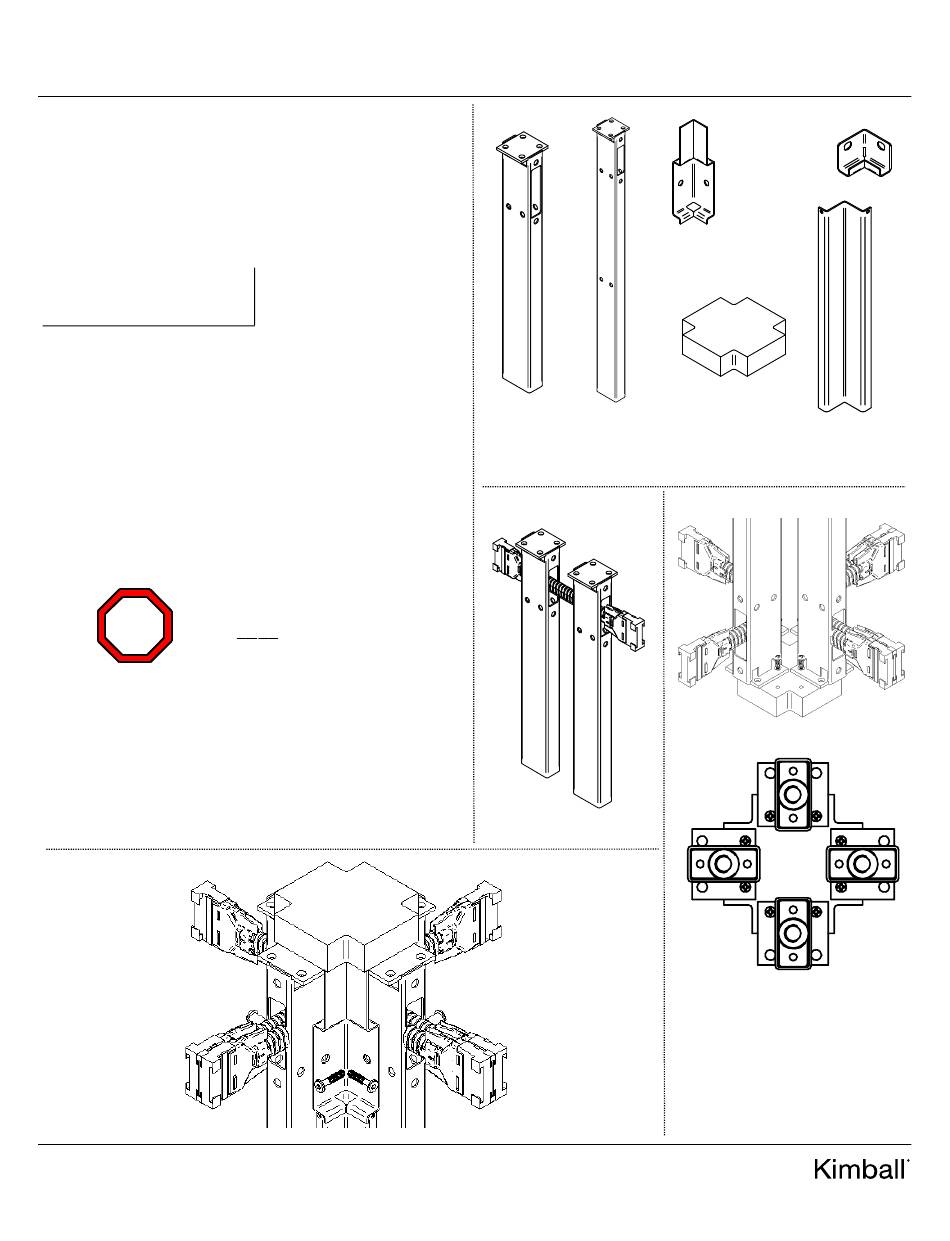

1.
Using a knife open boxes removing all components/
hardware carefully and place aside. See components in Fig-
ure A.
2.
See Figure B, run jumper through shared leg cutouts.
3.
Attach wood top cap using (4) #12 wood and cordless drill.
See Figure C.
4.
Locate trim covers front and back (left/right). Attach as
shown lining up holes on trim pieces with holes on shared
legs. See Figure D. Use M4 Allen key to tighten bolts/nuts.
Skip to step 7 if data beam X connector was ordered.
Figure D
Proper product installation, in accordance with these instructions, is the responsibility of the installing agent. If you have
any questions concerning these instructions, please call Kimball Customer Care.
Part 3144829, Revision -
Data Beam
Data Beam
Power
Short
Tall
Panel
4
4
4
3
3
3
1
1
1
4
4
4
N/A
N/A
4
N/A
N/A
4
8
8
8
8
8
8
16
16
16
4
4
8
4
4
8
N/A
N/A
8
Assembly Instructions
Figure A
Front Trim
Cover
Shared leg
Shared leg
Data Beam
Power Panel
(short/tall)
Figure B
Front
Lower Rail
Wood Top Cap
Front Filler
Panel
Figure C
Orientation
1
