Kimball Xsede Assembly Instructions

Xsede®

Xsede Fixed Center Screen

Accessory Rail Mount

Tools Required

•
Box Cutter/Utility Knife
•
Cordless Drill (optional; for M4 Allen drive ONLY)
•
(2) M4 Allen key/drive

Hardware Required

1 - Center Screen
4 - M6-1 X 12 Button Head Cap Machine Screws
4 - M6 Rhombus Nuts
4 - M8-1.25 X 8MM Set Screws

Installation

Note: Center Screens should be installed after bases/tops.
1. Using a knife open boxes removing all components/
hardware carefully and place aside. See components in Fig-
ure A.
2. Push button head screws through holes on brackets and
thread rhombus nuts onto button head screws on the bottom
side of bracket. See Figure B. Note: Thread rhombus
nuts loosely onto button head screws. Over threading
won't allow the rhombus nuts to turn in extrusion. See
Step 4.
3. Place screen carefully on top of aluminum extrusion, push-
ing rhombus nuts into grooves in extrusion. Center screen
in between data beam. See Figure C, Note: check rhom-
bus nuts are oriented as shown in Figure B correctly
before completing this step. This is to make sure screen
drops into accessory rail.
4. Tighten button head screws threading rhombus nuts using
M4 Allen drive. Rhombus nuts will turn as you tighten but-
ton head screws.
5. Sight down side view of data beam and check for alignment
of screen to screen requirements. If screens are leaning a
certain way, see next step.
Figure D
SIDE
VIEW
SCREEN 3
Proper product installation, in accordance with these instructions, is the responsibility of the installing agent. If you have
any questions concerning these instructions, please call Kimball Customer Care.
Part 3095953, Revision -
SCREEN 1
SCREEN 2
Assembly Instructions

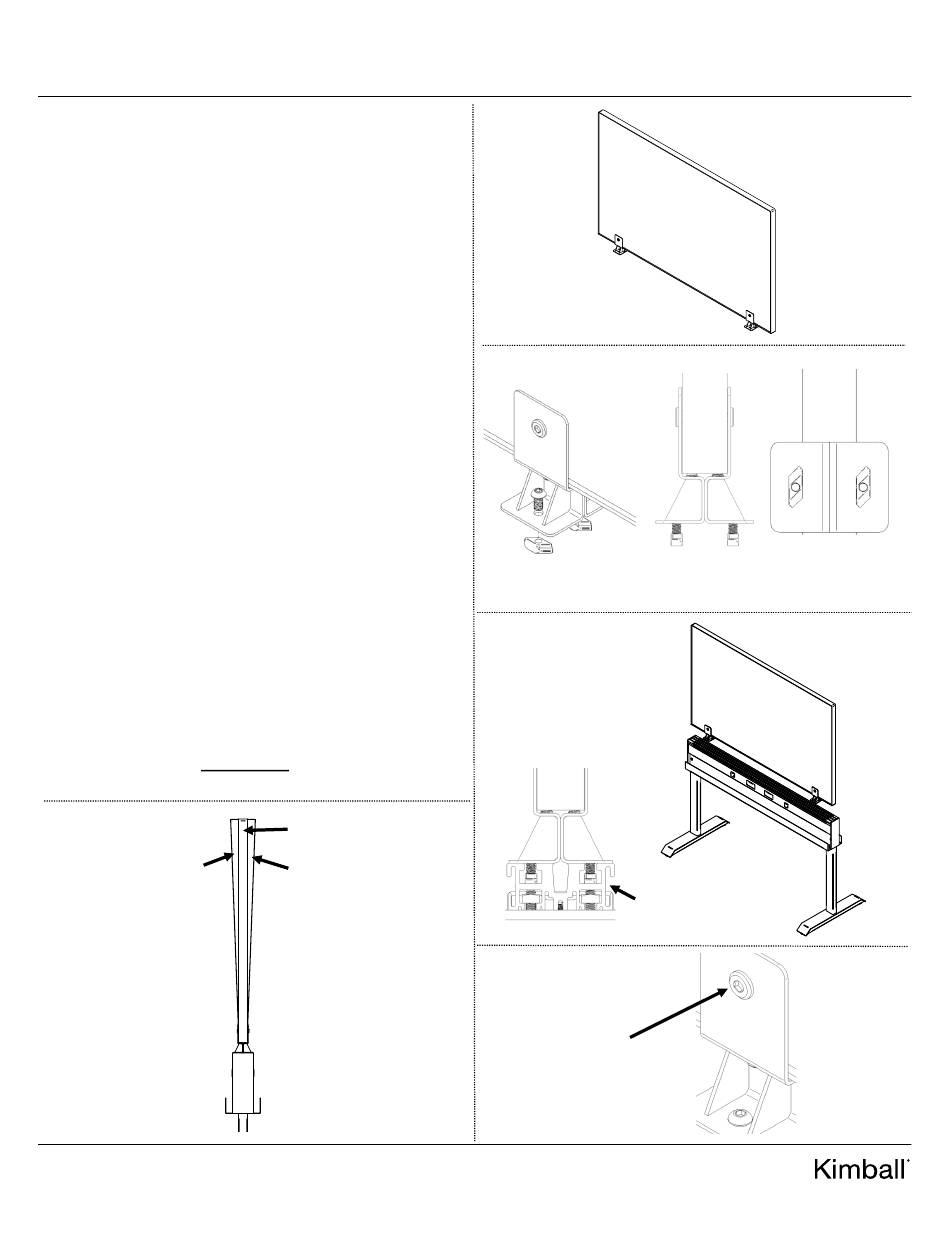

Figure A
Figure B
Fastener
Attachment
Figure C
SIDE VIEW
EXTRUSION
Figure E
LOOSEN
CONNECTOR
BOLT & NUT;
BOTH SIDES
OF SCREEN
Nut
Fastener
Orientation
Threading
(Bottom View)
