Kimball XSEDE Height Adjust Assembly Instructions

®
XSEDE Height Adjust
Xsede Freestanding Single
Column H
Tools Required Hardware
• 4—Round Head Socket 5/16-18 X 5/8"
3/16" Hex Drive
4—Flathead Socket 5/16-18 X 1"
•
#2 Phillips Drive
10-Panhead Phillips #8X3/4" Wood Screw
•
4– Panhead Phillips #8 X 5/8" Wood Screws
Drill
2-Cable ties.
1– Power supply Bracket

Installation

1. Assemble Foot to the Columns using supplied Socket Round
5/16-18 X 5/8" screws. Tighten Screws Firmly. See Figure B.
IMPORTANT: Make sure the correct screws are used. Using
longer screws may destroy the internal parts of the column.
2. Attach the crossbars on the long side of the base using sup-
plied Socket Flat Head 5/16-18 X 1" screws. See Figure C.
IMPORTANT: Make sure the correct screws are used. Using
longer screws may destroy the internal parts of the column.
Figure C– Attach Cossbar
Part 3050825,B
Proper product installation, in accordance with these instructions, is the responsibility of the installing agent.
If you have any questions concerning these instructions, please call Kimball Customer Care.
Assembly Instructions

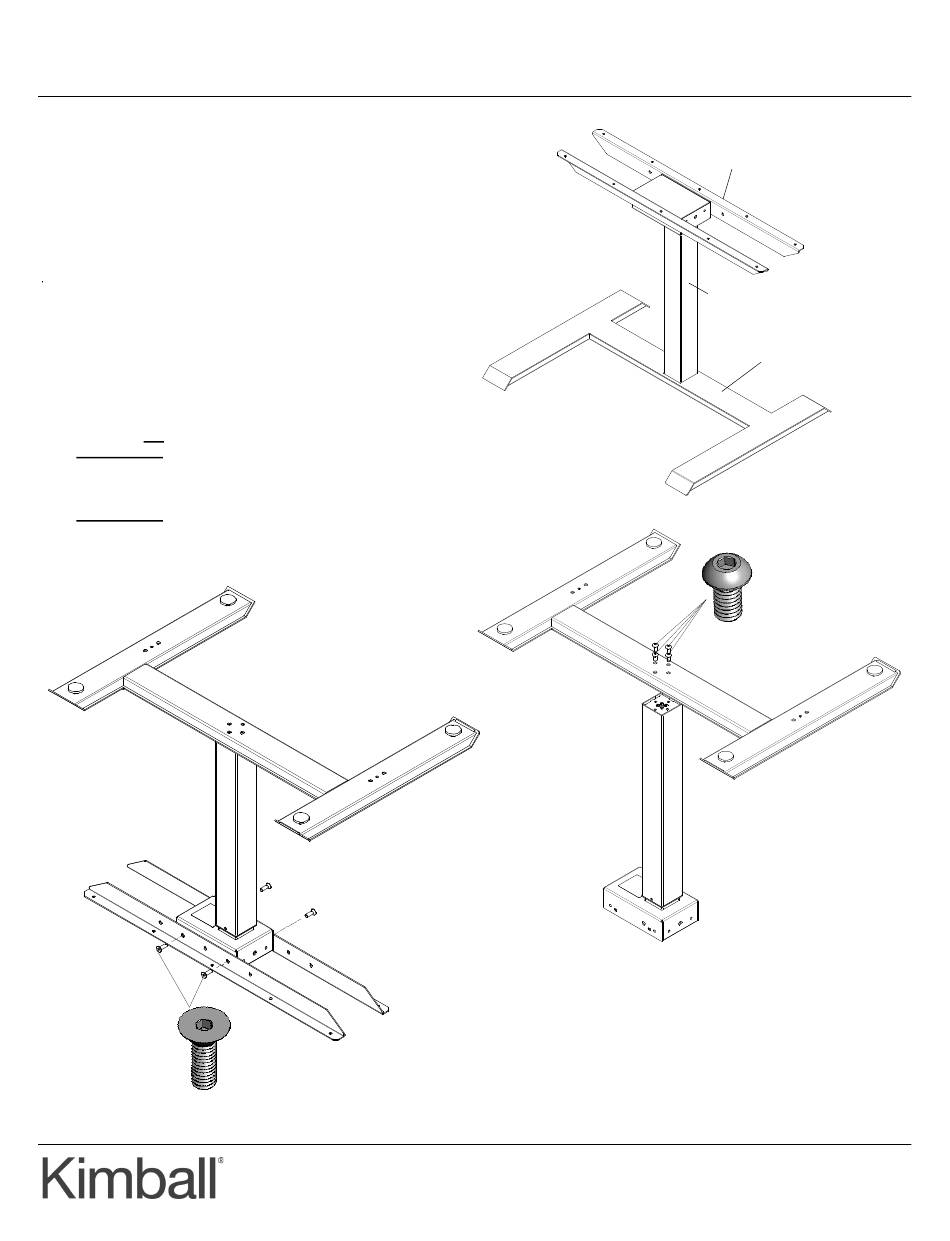

Figure A– Assembled Product
Figure B– Attach Feet
Crossbar
Column
Foot
1
