Kimball Xsede 48 Assembly Instructions

Xsede®

Power Panel Connectors

Tools Required

•
Box Cutter/Utility Knife
•
Drill and hand screwdriver w/#2 Phillips head bit drive
•
M4 Allen hex key
•
M5 Allen hex key

Hardware Required

1 - Power Panel Shared Leg
2 - Data Cover
1 - Electrical Extrusion Assembly
1 - End Trim
1 - Flanged Rail
2 - Filler Panel
1 - Pan Head Phillips #10-32 X 2" machine screw
1 - Flat Washer #10-32
4 - Connector Bolt 1/4-20 X 30MM
4 - Connector Nut 1/4-20 X 17MM
2 - Attachment Plates
6 - Button Head Screws M8-1.25 X 12mm

Installation

1. Using a knife open boxes removing all components/
hardware carefully and place aside. See components in Fig-
ure A and hardware required.
2. Align end trim weld studs with holes on t-legs as shown in
Figure B. Attach using screwdriver ONLY w/#2 Phillips
bit and screws/flat washers. Push button head screws up
through holes on t-legs/connector weld plates and thread
into attachment plates loosely. Note: thread loosely so
extrusion will slide easily under attachment plates.
3. Slide extrusion over t-leg/connector post (X,T,L,V,Y), us-
ing attachment plates as guides. Plates will slide into t-slots
on bottom of extrusion. Tighten M8 button head screws
with M5 Allen key. Use last threaded hole in plate for re-
maining 2 button head screws. See Figure C.
Figure C
Proper product installation, in accordance with these instructions, is the responsibility of the installing agent. If you have
any questions concerning these instructions, please call Kimball Customer Care.
Part 3118779, Revision -

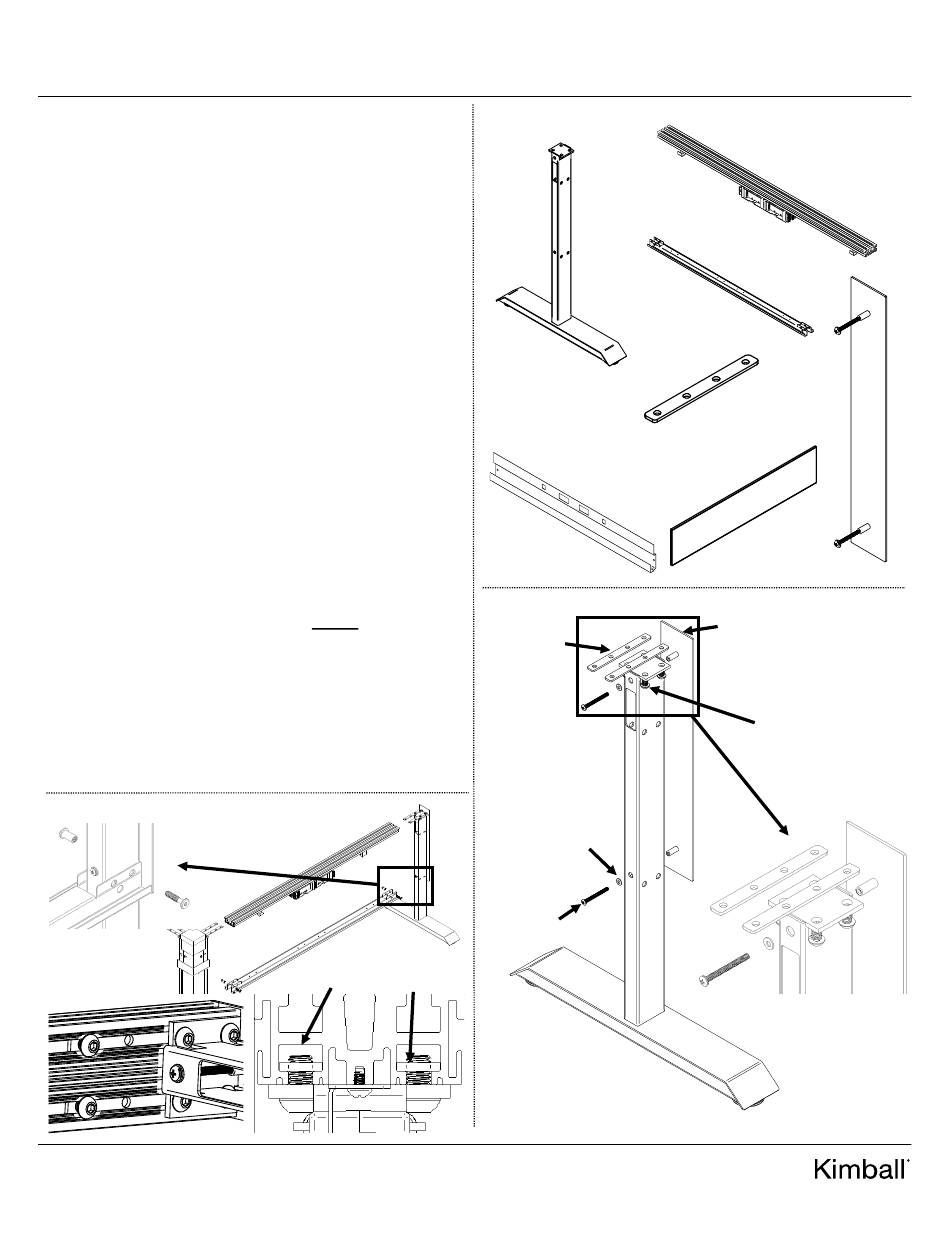

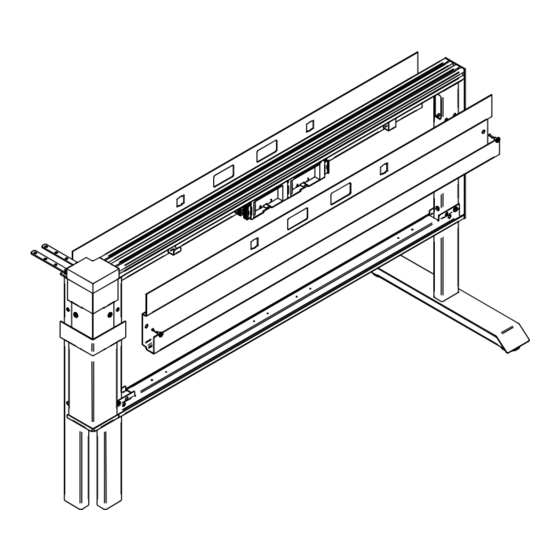

Figure A
Power
Panel
Shared
Leg
Figure B
Attachment
Attachment
T-Slot
Plate
Assembly Instructions
Data
Filler
Cover
Panel
Plates
Flat Washer
Pan Head Screw
Electrical
Extrusion
Assembly
Flanged
Rail
End Trim
Attachment
Plate
End Trim
Button
Head
Screws
1
