K o l o 6
A s s e m b l y I n s t r u c t i o n s
H E A D S U P !
· Review the Space Planning illustration on page 75 before building Kolo 6 units
· These instructions illustrate a Right-hand Reverse door orientation.
For Left-Hand Reverse door orientation instructions, contact Kimball

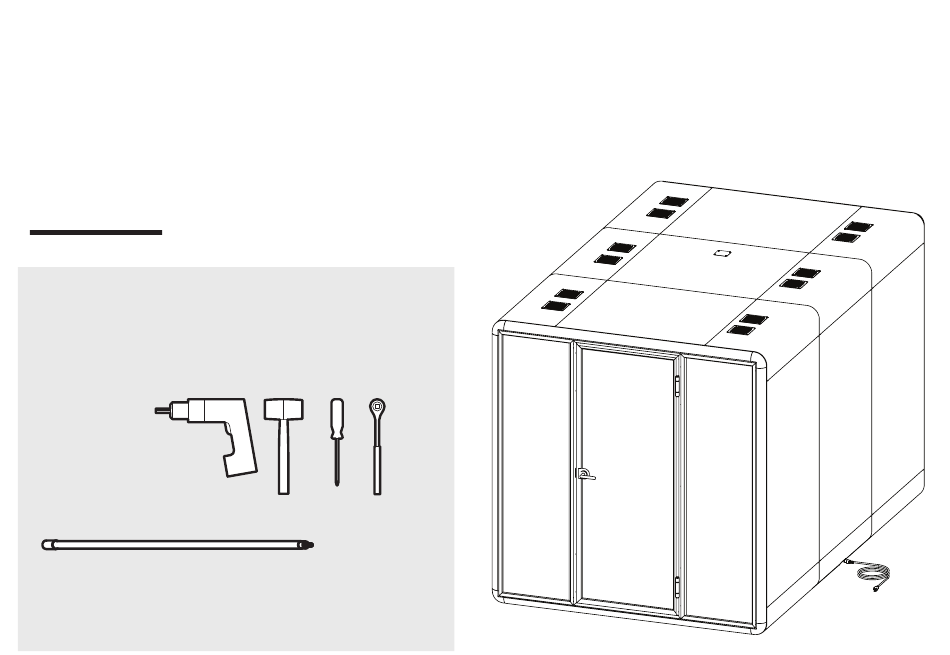

T O O L S R E Q U I R E D
· Drill
· Soft mallet
· Phillips screwdriver
· Ratchet with metric socket set
· Allen wrench set
T O O L S P R O V I D E D
·4 ft Drill bit
Kimball International
1600 Royal Street
Jasper, IN 47546
©2024 Kimball International, Inc.
CUSTOMER SERVICE
(800) 482-1717
v24
P A G E 1
