Kimball Senator Assembly Instructions

President/Senator
Drawer Removal, Adjustment,
and Unit Leveling

Tools Required

7 ⁄ " Nutdriver
32
Level

Installation

1. For Desk, Credenza, Return, Bridge, Lateral File & Drawer
or Door Storage and Bookcases as applicable: Remove all
drawers as required to access leveling glide adjustment
holes.
2. To remove drawers: Extend the box or file drawer to its
full extension. Locate the drawer slide release tab, in the
approximate location shown, on each side of the drawer
box. Press both tabs in and pull drawer straight out until
slide drawer members disengage from cabinet members.
(Figure A).
3. To remove lateral file drawers, extend the drawer forward.
(Figure B). Press the two quick-disconnect release tabs and
lift the drawer off the slide assembly. (Figure C).
Note: Shipping screws must be removed from drawer
suspensions before drawer can be removed.
4. Turn the leveling glides fully "in" (counterclockwise)
prior to leveling. Level the unit from front to back by
first extending the glides on the outside corners
(turn clockwise), then level the unit from side to side.
Check adjustments by placing the level at the four positions
shown. Adjust inside glides, if applicable, to help support
the unit. (Figure D).
5. Replace all drawers to their original locations. To re-install,
fully extend cabinet slide members, making sure the chrome
ball-bearing members are also forward. Carefully align
drawer slide members with cabinet slide members and
gently push drawer closed. Check for proper alignment by
inspecting drawer front margins for spacing and squareness.
Proper product installation, in accordance with these instructions, is the responsibility of the installing agent.
If you have any questions concerning these instructions, please call Kimball Office Customer Service.
Part No. 1741546 Revision A-05
Phillips Screwdriver
Tape Measure or Ruler
Casegoods Assembly Instructions

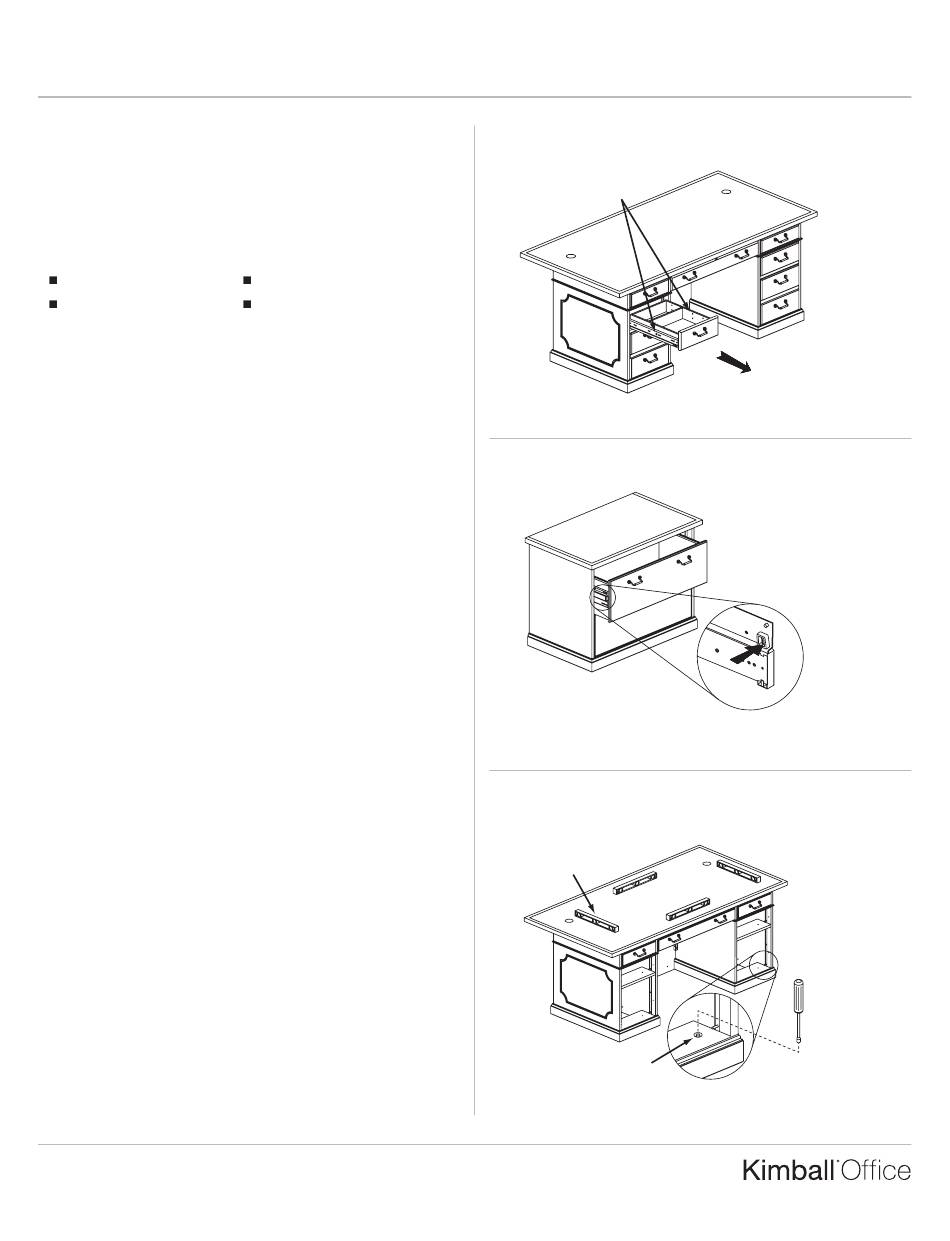

Figure A
Release
Tabs
Figure B
Figure D
Level;
Check at four locations
Leveling Glide
Adjustment Hole
Page 1 of 2
Figure C
7 ⁄ "
32
Nut Driver
