Kimball Narrate Assembly Instructions

Door Kit For Fold Down Tile

Tools Required

Tape Measure
•
Cordless Drill/Driver
•
#10 Phillips Screwdriver Bit
•
Channel Locks or Pliers
•

List of Kit Contents

Door: (6) #10-24 Pan Head Bolts
•
Pivot Arms (4) #10-24 Hex Nuts
•
Nylon Washers (1) Magnetic Catch
•
3/16" Pushnuts: (2) #6 x 1/2" Screws
•

Installation

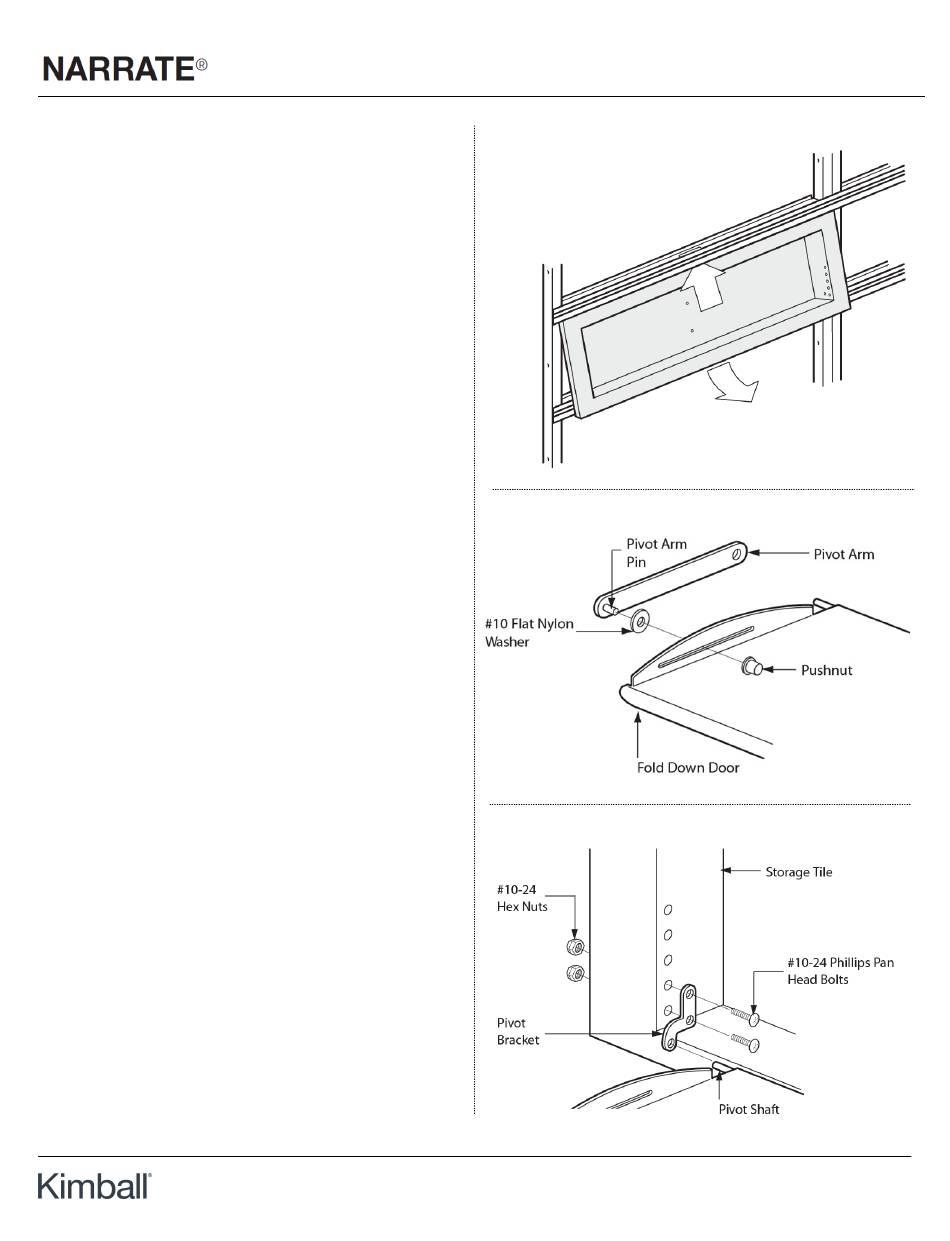

If adding to an installed tile, remove tile by
1.
lifting up and titlting out at bottom (Figure A).
On each pivot arm pin, install one #10 at nylon
2.
washer. Engage each pivot arm pin into slot on
each side of door. Place pushnut over pin and
press on with pliers or channel locks. Repeat
for opposite pushnut and pin (Figure B).
With curve of pivot bracket down, align holes
3.
in bracket with bottom two holes on inside of
tile. From inside of tile, insert two #10 x 1/2"
Phillips pan head bolts through bracket and tile
side. Install two #10-24 hex nuts to bolts and
tighten (Figure C).
Insert pivot shaft on door into hole on attached
4.
pivot bracket (Figure C).
Part 2958441, Revision B
Proper product installation, in accordance with these instructions, is the responsibility of the installing agent.
If you have any questions concerning these instructions, please call Kimball Customer Care.
Assembly Instructions
Figure A.
Figure B.
Figure B.
1
