Kimball XSEDE Height Adjust Assembly Instructions

Height adjust 3 column t-leg

Advertisement

®
XSEDE
Height Adjust
Xsede Height Adjust 3 Column
T-Leg

Tools Required

Hardware

4—Round Head Socket 5/16-18 X 5/8"
3/16" Hex Drive
12—Flathead Socket 5/16-18 X 1"
#2 Phillips Drive
4– Flathead Phillips 1/4-20 X 5/8"
Drill
12-Clear Bumpers 1/2" Round X 1/8"
4-Clear Bumpers 1/2" Square X 1/4"
8-Panhead Phillips #8X3/4" Wood Screw
12-Flathead Phillips #10-2 3/8" Wood Screw
4– Panhead Phillips #8 X 5/8" Wood Screws
4-Cable ties.
1— Power Supply Bracket

Installation

1.
Assemble Feet to two Columns using supplied Socket
Round 5/16-18 X 5/8" screws. Tighten Screws Firmly. See
Figure B.
IMPORTANT: Make sure the correct screws are used. Using
longer screws may destroy the internal parts of the column.
2.
Loosen the set screw and set the Crossbar length based on
top size as seen in Figure C below. Attach the crossbars on
the long side of the bases using supplied Socket Flat Head
5/16-18 X 1" screws. See Figure C.
IMPORTANT: Make sure the correct screws are used. Using
longer screws may destroy the internal parts of the column.
Figure C– Attach Cossbar
Do not use middle hole of cross bar
Part 3111703,-
Proper product installation, in accordance with these instructions, is the responsibility of the installing agent.
If you have any questions concerning these instructions, please call Kimball Customer Care.
Assembly Instructions

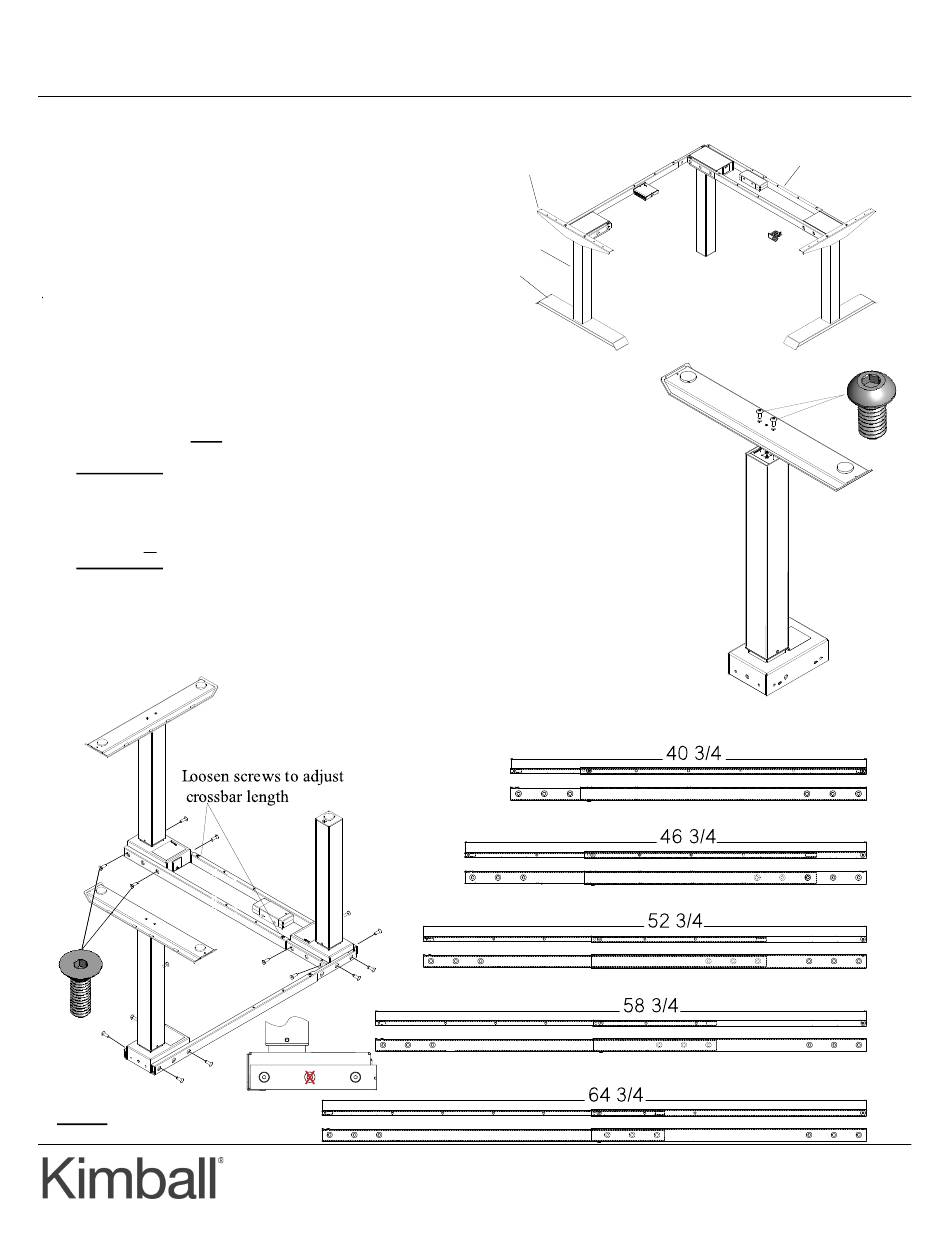

Figure A
Assembled Product
Sidebar
Column
Foot
Figure B– Attach Feet
1
Crossbar
Top
48"
54"
60"
66"
72"
