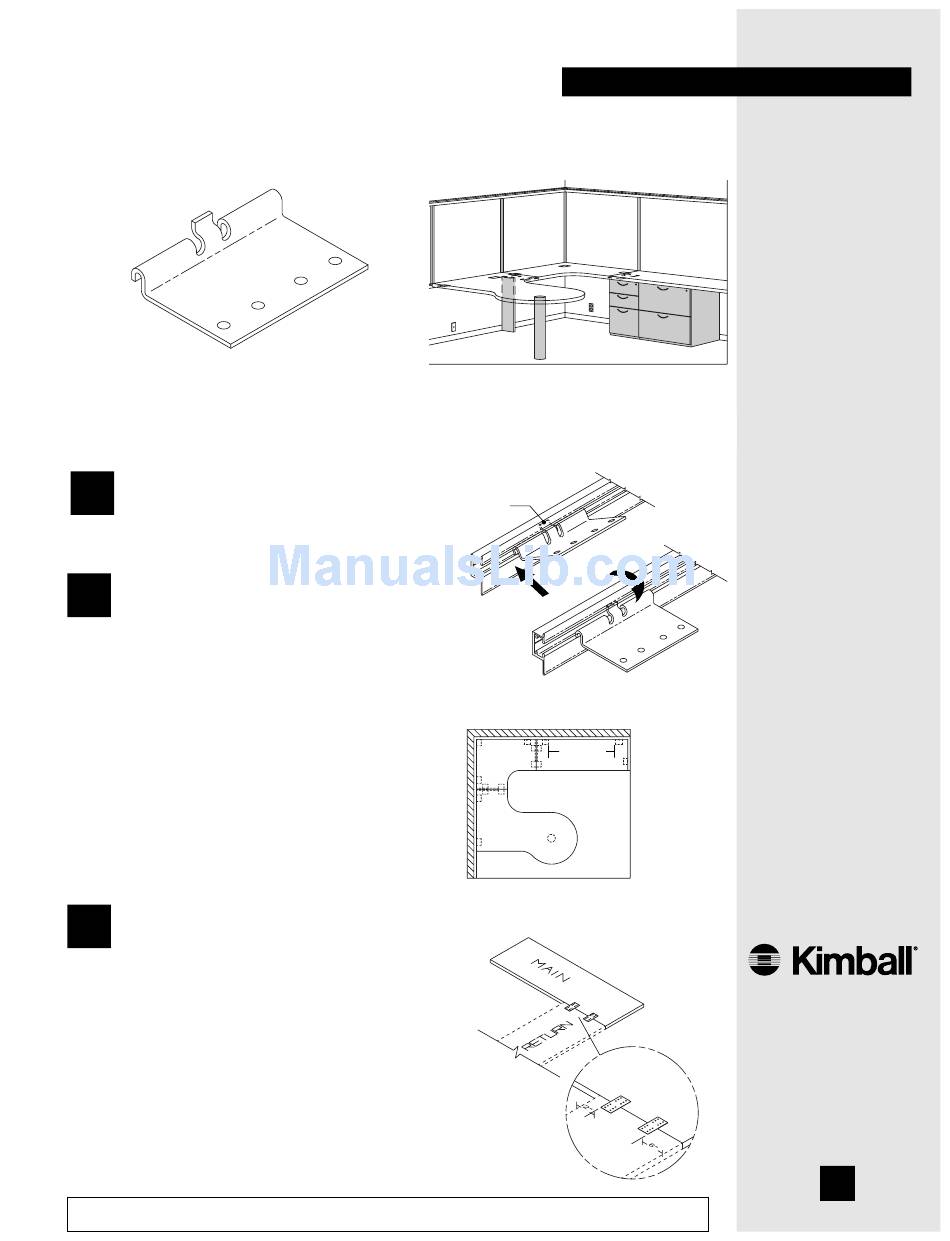

Figure A
Worksurface Brackets
Worksurfaces can be Traxx mounted with worksurface brackets (Figure A) and supported
with pedestals, end panels, and support bases (Figure B).
Insert hook on the top of the bracket
1
into the Traxx at a 45 degree angle
(Figure C).
Push the top of the bracket downward
2
allowing bracket to hang off of the
Traxx (Figure D).
Note:
The maximum distance between
brackets should be no greater than 48"
(Figure E). The maximum span of an
unsupported worksurface should not
exceed 60" for 1 3/16" worksurfaces and
72" for 1 9/16" worksurfaces. Support is
required within 6" of surfaces butted
end-to-end. This may be a pedestal or
12" deep support panel.
Place worksurface on clean, solid
3
surface, back side facing up. Install the
flat brackets on the main worksurface,
approximately 2" from front edge and
approximately 6" from back edge of the
adjoining worksurface using the screws
(ASC100) provided (Figure F). Ensure
that the flat bracket attachment does
not interfere with other brackets or
components. Two flat brackets are
required to join surfaces end to end or
at a right angle.
Proper product installation, in accordance with these instructions, is the responsibility of the installing agent.
If you have any questions concerning these instructions, please call Kimball Customer Care Teams.
Figure B
Pedestals, End Panels and Support Bases
Figure C
Hook
Figure D
Figure E
48 " or less
Figure F
S Y S T E M S
Cetra
®
Footprint
Assembly Instructions
TRAXX
®
Mounted
Worksurface
Installation
Recommended Tools
• Screw Gun with
Torque Option
• #2 Phillips Head Bit
• Tape Measure
Telephone 800.482.1818
Fax 812.482.8300
www.furniture.kimball.com
Form #AISYFP004B-01
#1202060
Printed in U.S.A
© 2001 Kimball International, Inc.
