InStallatIon of SyStem 3000

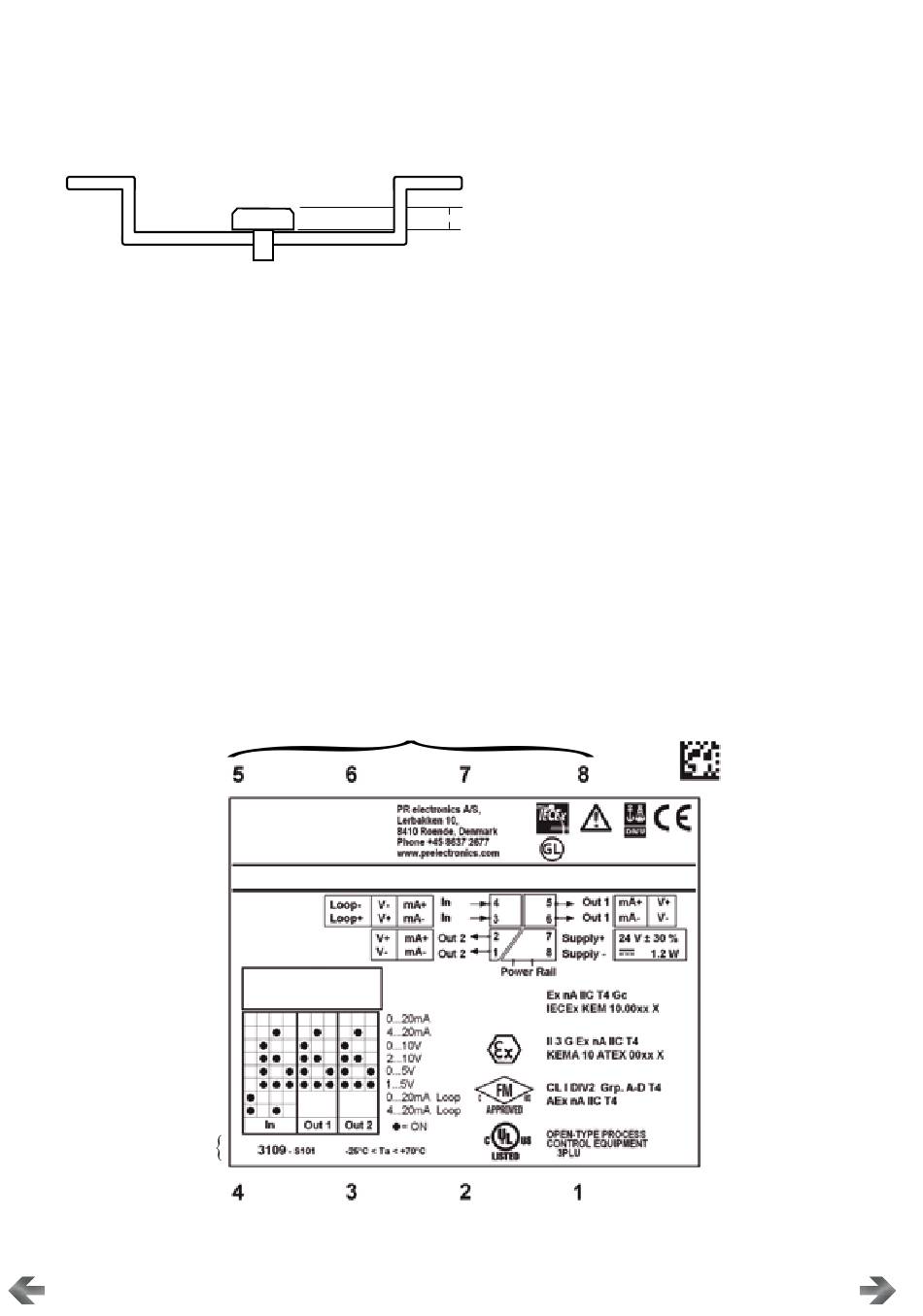

To avoid short circuit between the power rail connectors on the 3000 devices
and the screws holding the 7.5 mm DIN rail, the head of the screws shall be
no more than 3.5 mm high.
It is possible to supply the power rail via the supply terminals.
The terminals can pass a current of max. 400 mA.
}
DIP-switch
settings
Type no.
10
on 7.5 mm dIn raIl
3,5 mm

SUPPly of PoWer raIl

SIde label

Terminal numbers
3100V1 0 6 -I N
}
Pin
connections
}
Approvals
