Summary of Contents for PR 6 MM Series

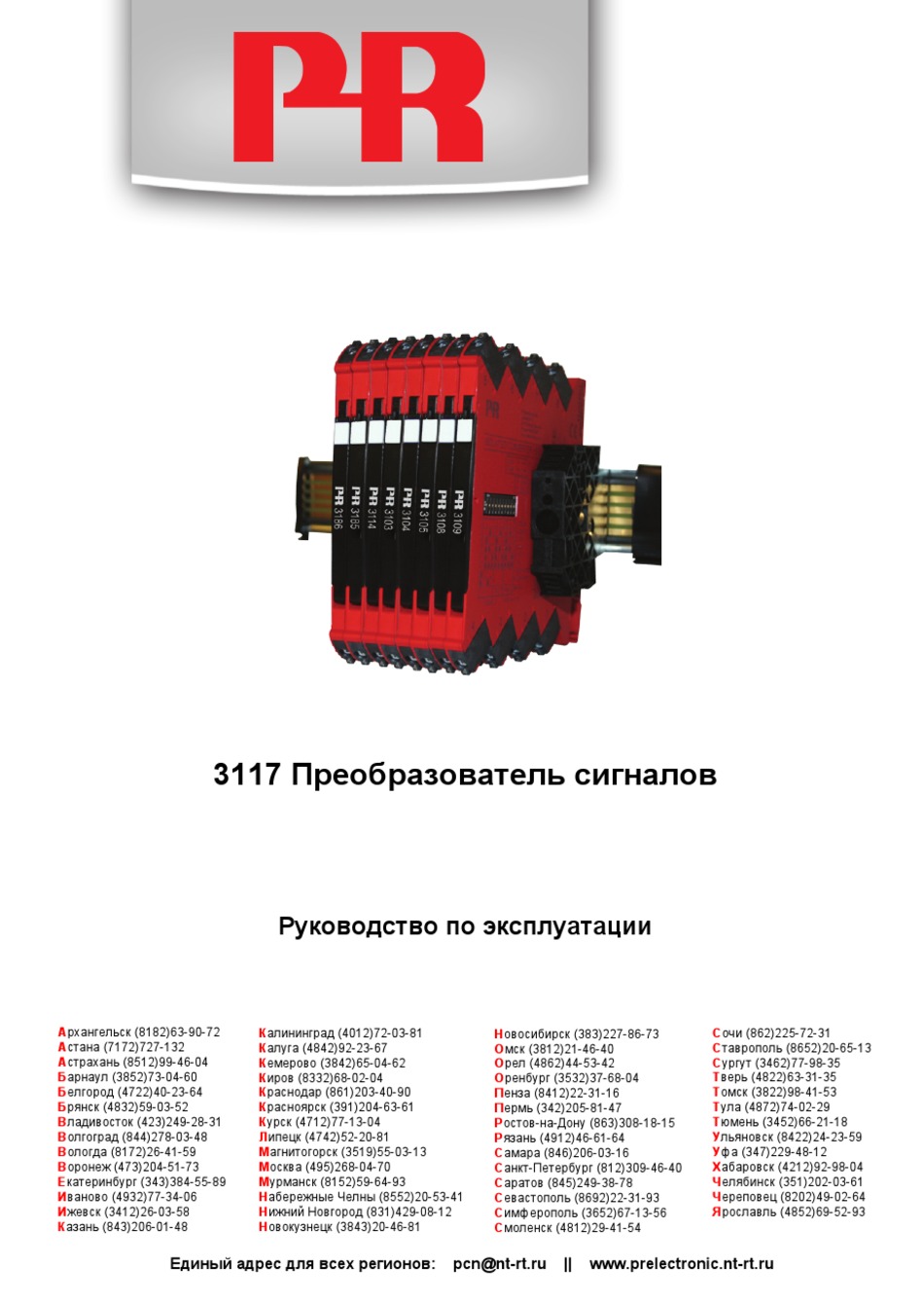

- Page 1 3117 (8182)63-90-72 (4012)72-03-81 (862)225-72-31 (383)227-86-73 (7172)727-132 (4842)92-23-67 (8652)20-65-13 (3812)21-46-40 (8512)99-46-04 (3462)77-98-35 (3842)65-04-62 (4862)44-53-42 (3852)73-04-60 (8332)68-02-04 (4822)63-31-35 (3532)37-68-04 (4722)40-23-64 (861)203-40-90 (3822)98-41-53 (8412)22-31-16 (4832)59-03-52 (391)204-63-61 (4872)74-02-29 (342)205-81-47 (423)249-28-31 (4712)77-13-04 (3452)66-21-18 (863)308-18-15 (844)278-03-48 (4742)52-20-81 (8422)24-23-59 (4912)46-61-64 (8172)26-41-59 (3519)55-03-13 (347)229-48-12 (846)206-03-16 (473)204-51-73 (495)268-04-70 (4212)92-98-04 (812)309-46-40 (343)384-55-89 (8152)59-64-93...
- Page 2 PR electronics A/S tilbyder et bredt program af analoge og digitale signalbehandlingsmoduler til industriel automation. Programmet består af Isolatorer, Displays, Ex-barrierer, Temperaturtransmittere, Universaltransmittere mfl. Vi har modulerne, du kan stole på i selv barske miljøer med elektrisk støj, vibrationer og temperaturud- sving, og alle produkter opfylder de strengeste internationale stan- darder.
-
Page 3: Table Of Contents
6 mm SERIES BIpoLAR ISoLATED coNvERTER 3117 coNTENTS Warning ..................Safety instructions ................Mounting and demounting of system 3100 ........Installation on DIN rail ..............Marking ................... Side label ..................EC declaration of conformity ............Applications ..................Technical characteristics .............. -
Page 4: Warning
Until the device is fixed, do not connect hazardous voltages to the device. Repair of the device must be done by pR electronics A/S only. In applications where hazardous voltage is connected to in-/ outputs of the device, sufficient spacing or isolation from wires, terminals and enclosure - to surroundings (incl. -
Page 5: Safety Instructions
SAFETy INSTRUcTIoNS REcEIpT AND UNpAcKING Unpack the device without damaging it. The packing should always follow the device until this has been permanently mounted. Check at the receipt of the device whether the type corresponds to the one ordered. ENvIRoNmENT Avoid direct sunlight, dust, high temperatures, mechanical vibrations and shock, as well as rain and heavy moisture. - Page 6 Where installed in outdoor or potentially wet locations the enclosure shall at a minimum meet the requirements of IP54. Warning: Substitution of components may impair suitability for zone 2 / division 2. Warning: To prevent ignition of the explosive atmospheres, disconnect power before servicing and do not separate connectors when energised and an explosive gas mixture is present.
-
Page 7: Mounting And Demounting Of System 3100
moUNTING AND DEmoUNTING oF SySTEm 3100 picture 1: Mounting on DIN rail. Click the device onto the rail. picture 2: Demounting from DIN rail First, remember to demount the connectors with hazardous voltages. Detach the device from the DIN rail by lifting the bottom lock. -
Page 8: Installation On Din Rail
> 24 mm < 3,5 mm Module stop 3117 must supported by module stops for marine applications. (PR part number 9404). mARKING The front cover of the 3000 series been designed with an area for affixation of a click-on marker. The area assigned to the marker measures 5 x 7.5 mm. -
Page 9: Side Label
SIDE LABEL Terminal numbers Type no. 3xxx connections DIP-switch settings Approvals 3 1 1 7 V 1 0 0 -UK... -
Page 10: Ec Declaration Of Conformity
Ec DEcLARATIoN oF coNFoRmITy As manufacturer pR electronics A/S hereby declares that the following product: Type: 3117 Name: Bipolar isolated converter is in conformity with the following directives and standards: The EMC Directive 2004/108/EC and later amendments EN 61326-1 : 2006 For specification of the acceptable EMC performance level, refer to the electrical specifications for the devices. -
Page 11: Applications
3117: BIpoLAR ISoLATED coNvERTER • Conversion of voltage and current bipolar process signals to unipolar signals • Multiple signal ranges are selectable via DIP-switches • Fast response time and high output load stability • Excellent accuracy, better than 0.05 % of selected range •... -
Page 12: Specifications
order codes for 3117: Type Specifications 3117 Bipolar isolated converter Accessories for 3117: Type Function 3405 Power rail connector unit 9400 Power rail 9404 Module stop Specifications Environmental conditions: Specifications range ........ -25°C to +70°C Storage temperature ........ -40°C to +85°C Calibration temperature....... 20...28°C Relative humidity ......... < 95% RH (non-cond.) Protection degree ........ - Page 13 Input specifications: current input: Programmable ranges ......... ± 10 and ± 20 mA Functional range .......... -23 ... +23 mA Input voltage drop ........ < 1 VDC @ 23 mA voltage input: Programmable ranges ......... ± 5 and ± 10 V Functional range .......... -11.5 ... +11.5 V Input resistance ........... ≥ 1 MW output specifications: current output: Programmable ranges ......... 0...20 and 4...20 mA Functional range ..........
-
Page 14: Dip-Switch Configuration
Approvals: EMC 2004/108/EC ........EN 61326-1 LVD 2006/95/EC .......... EN 61010-1 UL, Standard for Safety ......UL 61010-1 Safe Isolation ..........EN 61140 GOST R marine: Det Norske Veritas, Ships & Offshore ..Stand. f. Certific. No. 2.4 Germanischer Lloyd ........VI-7-2 ATEX 94/9/EC .......... -
Page 15: Connections
coNNEcTIoNS Current Voltage Voltage Current input input output output (±) (±) Input Output Supply + Supply Supply - 81 82 83 84 85 No connection Rail, +24 VDC Rail, Gnd. No connection No connection Safe Area or Zone 2 & Cl. 1, Div. 2, gr. A-D 3 1 1 7 V 1 0 0 -UK... - Page 16 Displays Programmable displays with a wide selection of inputs and outputs for display of temperature, volume and weight, etc. Feature linearisation, scaling, and difference measurement functions for programming via PReset software. Ex interfaces Interfaces for analogue and digital signals as well as HART signals between sensors / I/P converters / ®...
- Page 17 (8182)63-90-72 (4012)72-03-81 (383)227-86-73 (862)225-72-31 (7172)727-132 (4842)92-23-67 (3812)21-46-40 (8652)20-65-13 (4862)44-53-42 (8512)99-46-04 (3842)65-04-62 (3462)77-98-35 (3532)37-68-04 (3852)73-04-60 (8332)68-02-04 (4822)63-31-35 (4722)40-23-64 (861)203-40-90 (8412)22-31-16 (3822)98-41-53 (342)205-81-47 (4832)59-03-52 (391)204-63-61 (4872)74-02-29 (863)308-18-15 (423)249-28-31 (4712)77-13-04 (3452)66-21-18 (844)278-03-48 (4742)52-20-81 (4912)46-61-64 (8422)24-23-59 (846)206-03-16 (8172)26-41-59 (3519)55-03-13 (347)229-48-12 (812)309-46-40 (473)204-51-73 (495)268-04-70 (4212)92-98-04 (343)384-55-89 (8152)59-64-93 (845)249-38-78...
