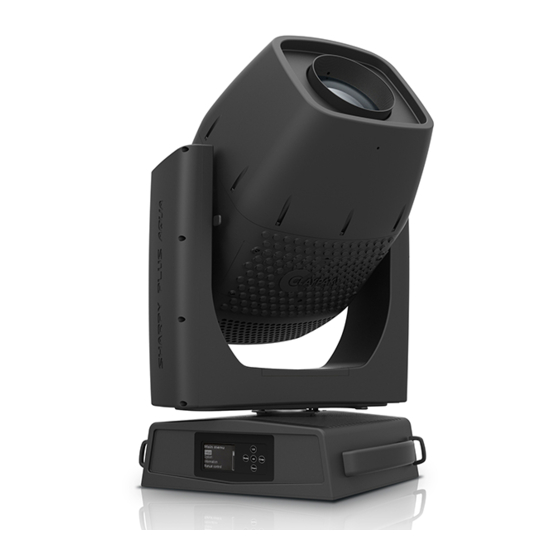

SH RPY PLUS QU
INSTRUCTION MANUAL
INDEX
Congratulations on choosing a Claypaky product
We thank you for your custom.
Please note that this product, as all the others in the
rich Claypaky range, has been designed and made with
total quality to ensure excellent performance and best
meet your expectations and requirements.
1
CD3002

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SHARPY PLUS AQUA and is the answer not in the manual?

Questions and answers

Related Manuals for Claypaky SHARPY PLUS AQUA

Summary of Contents for Claypaky SHARPY PLUS AQUA

  • Page 1: Table Of Contents

    We thank you for your custom. Safety information Please note that this product, as all the others in the rich Claypaky range, has been designed and made with Unpacking and preparation total quality to ensure excellent performance and best Installation and start-up meet your expectations and requirements.

  • Page 2: Safety Information

    1. SAFETY INFORMATION SAFETY INFORMATION IMPORTANT: Claypaky recommend you to carefully read and keep the safety information on this product, also available in digital format at the following link: www.claypaky.com Ref: [FIS01Z - Safety Information Sharpy Plus Aqua] INFORMAZIONI DI SICUREZZA...

  • Page 3: Unpacking And Preparation

    2. UNPACKING AND PREPARATION Lamp inside the fixture Omega bracket IP 65 connector Wi-fi receiver Packing contents - Fig. 1 LOCKED UNLOCKED PAN Mechanism Lock and Release every 90°) - Fig. 2 TILT Mechanism Lock and Release every 45°) - Fig. 3 SH RPY PLUS QU...

  • Page 4: Installation And Start-Up

    3. INSTALLATION AND START-UP 3.1 Installing the fixture Light collimation system This product contains internal light collimation system. Avoid intense light from any angle. Installing the projector - Fig. 4 The projector can be installed on the floor resting on special rubber feet, on a truss or on the ceiling or wall. WARNING: with the exception of when the projector is positioned on the floor, the safety cable must be fitted.

  • Page 5: Connecting The Signal Control Line: Dmx / Art-Net

    Mains Connecting to the mains supply - Fig. 7 3.3 Connecting the signal control line: DMX / Art-Net Connecting to the control signal line DMX) - Fig. 8 Use a cable compliant to the EIA RS-485 specifications: 2-pole twisted, shielded, 120Ohm characteristic impedance, 22-24 AWG, low capacity. Do not use microphone cables or other cables with characteristics differing from those specified.
  • Page 6 Reversal of the display - Fig. 10 To activate this function, press UP and DOWN keys simultaneously while the display is in the rest mode. This status will be memorised and maintained even for the next time it will be switched on. To return to the initial state, repeat the operation all over again. Setting the projector starting address On each projector, the starting address must be set for the control signal (addresses from 1 to 512).

  • Page 7: Maintenance

    - IP 65 fixture - Failure to completely remove power from fixture prior to servicing can lead to serious injury or death. For additonal service information please contact service@claypaky.it IMPORTANT The screws to be removed have rubber sleeve gaskets at the threaded end of the screw. DO NOT LOOSE these. They must be reinstalled when reassembly is done.

  • Page 8: Periodical Cleaning

    • General cleaning of internal parts. • Restoring lubrication of all parts subject to friction, using lubricants specifically supplied by Claypaky. • General visual check of the internal components, cabling, mechanical parts, etc.

  • Page 9: Effect Module Removal

    4.3 Effect module removal Lower side Extraction of the effect modules - Fig. 14. IMPORTANT: Grasp the modules using the support structure and not the details which could get damaged. Insertion of the effect modules: Repeat the operations indicated in Fig. 13, 14 and 15 in reverse order. NOTE: - Do not disconnect wiring harnesses when the fixture is switched on, to avoid to damage electronic boards.
  • Page 10 ADJUST ADJUST Lamp change - Fig 14. Take the new lamp out of its package and insert it in the fitting. WARNING: do not touch the lamp envelope with bare hands. Should this happen, clean the bulb with a cloth soaked in alcohol and dry it with a clean, dry cloth.

  • Page 11: Rotating Gobos

    - Original gobos have a special coating designed specifically to resist to high temperatures; - IMPORTANT The rotating gobo wheel only uses dichroic glass gobos. Do not use metal gobos. - For any additional information please contact Claypaky service center. Continue...

  • Page 12: Battery Removal

    4.5 Battery removal Battery removal - Fig. 18 This product contains a rechargeable battery. To preserve the environment, please dispose the battery at the end of its life according to the regulation in force. SH RPY PLUS QU...

  • Page 13: Specifications

    5. SPECIFICATIONS (25.59") (20.20") (18.03") (28.78") (24.37") (16.53") (13.23") POWER SUPPLIES ELECTRONICS SAFETY SPECIFICATIONS • AC 100 - 240V, 50/60 Hz. • Control signal USITT DMX 512/Art-Net • Minimum distance of illuminated objects 3 • Power input Neutrik-PowerCon True 1 ( IP65 ). •...
  • Page 14 Cause and solution of problems THE PROJECTOR WILL NOT SWITCH ON ELECTRONICS NON-OPERATIONAL PROBLEMS DEFECTIVE PROJECTION REDUCED LUMINOSITY POSSIBLE CAUSES CHECKS AND REMEDIES No mains supply. Check the power supply voltage. Lamp exhausted or defective. Replace the lamp. (See instructions). Signal transmission cable faulty or disconnected.
  • Page 15 SH RPY PLUS QU...
  • Page 16 CLAYPAKY - Via Pastrengo, 3/b - 24068 Seriate (BG) Italy - Tel. +39-035 -654311 - www.claypaky.com S.p.A.
