INDEX
Page Contents
2
Safety information
3
Unpacking and preparation
4
Installation and start-up
5
Control panel
9
Maintenance
10
Accessories
11
Cause and solution of problems
11
Technical information

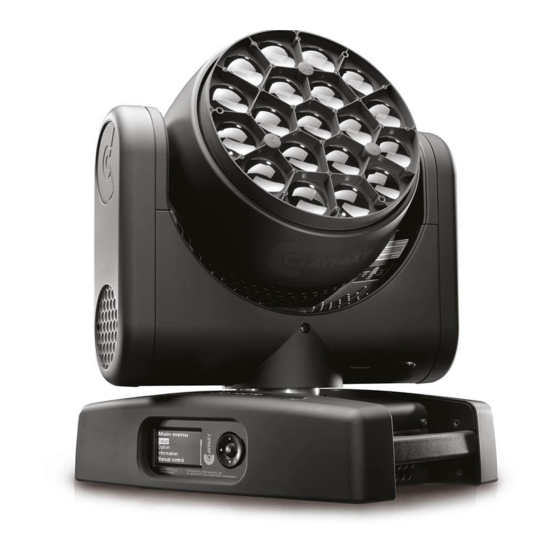

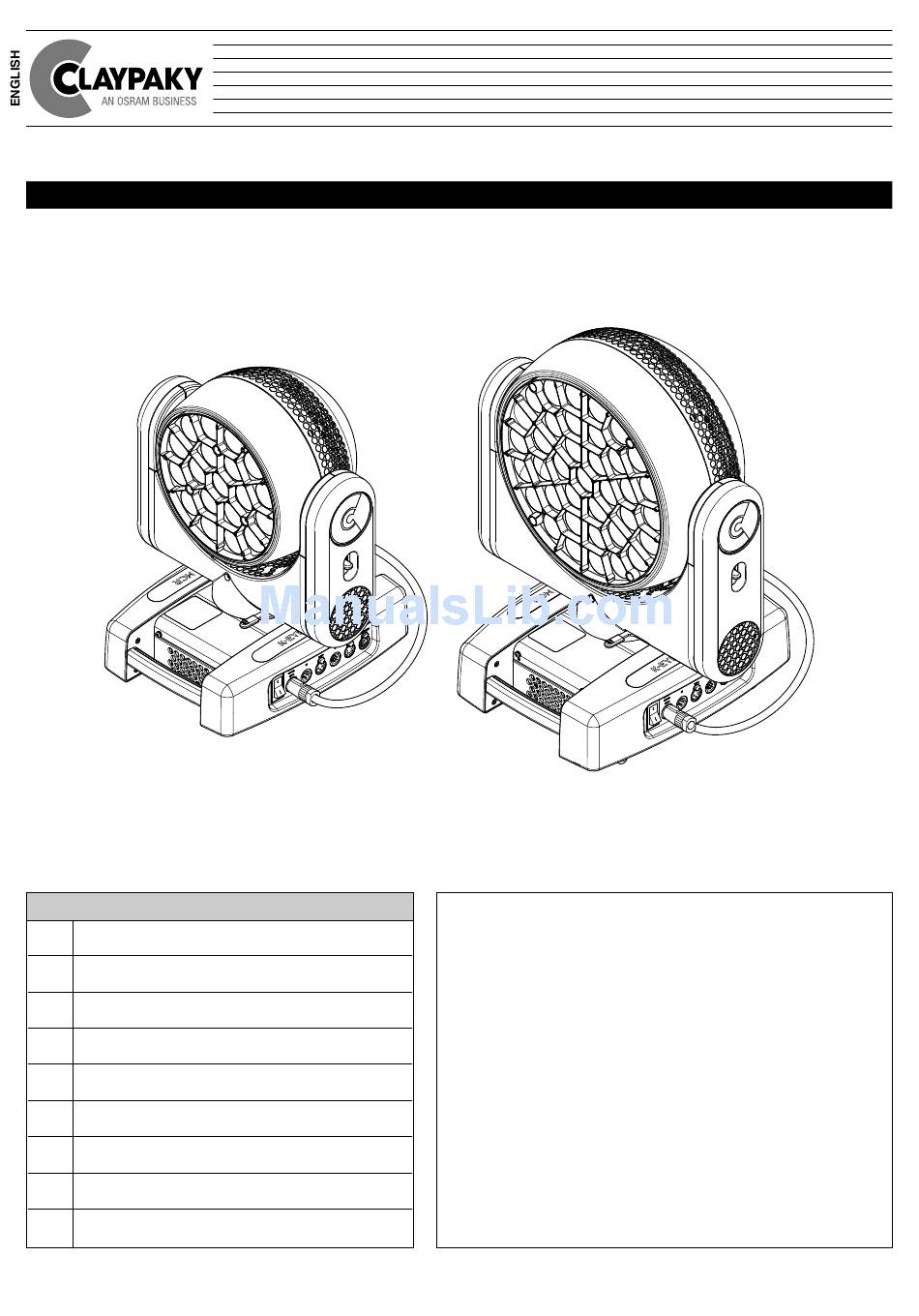

K-EYE K10 HCR
K-EYE K20 HCR
INSTRUCTION MANUAL
Congratulations on choosing a Claypaky product!
We thank you for your custom.
Please note that this product, as all the others in the rich
Claypaky range, has been designed and made with total quality
to ensure excellent performance and best meet your expectations
and requirements.
1
C61430
C61440
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Claypaky K-EYE K20 HCR
Summary of Contents for Claypaky K-EYE K20 HCR
- Page 1 Page Contents Please note that this product, as all the others in the rich Safety information Claypaky range, has been designed and made with total quality Unpacking and preparation to ensure excellent performance and best meet your expectations and requirements.
-
Page 2: Safety Information
SAFETY INFORMATION IMPORTANT: Claypaky recommends you carefully read and keep the safety information on this product, also SAFETY INFORMATION available in digital format at the following link: Ref: [FIS016 - Safety Information A.leda K-EYE series] www.claypaky.com IMPORTANTE: Claypaky raccomanda di leggere accuratamente e conservare le informazioni di sicurezza relative... -
Page 3: Unpacking And Preparation
UNPACKING AND PREPARATION 2 x 183102/805 Packing contents - Fig. 1 LOCKED UNLOCKED PAN Mechanism Lock and Release every 90°) - Fig. 2 TILT Mechanism Lock and Release every 45°) - Fig. 3 K-EYE K10 K20 HCR... -
Page 4: Installation And Start-Up
INSTALLATION AND START-UP Installing the projector - Fig. 4 The projector can be installed on the floor resting on special rubber feet, on a truss or on the ceiling or wall. WARNING: with the exception of when the projector is positioned on the floor, the safety cable must be fitted. (Cod. 105041/003 available on request). This must be securely fixed to the support structure of the projector and then connected to the fixing point at the centre of the base. -
Page 5: Control Panel
CONTROL PANEL Mains Connecting to the mains supply - Fig. 6 DMX 512 5 PIN SCREEN SIGNAL SIGNAL DMX 512 3 PIN SIGNAL SCREEN SIGNAL Connecting to the control signal line DMX) - Fig. 7 Use a cable conforming to specifications EIA RS-485: 2-pole twisted, shielded, 120Ohm characteristic impedance, 22-24 AWG, low capacity. Do not use microphone cable or other cable with characteristics differing from those specified. - Page 6 Reversal of the display - Fig. 9 To activate this function, press UP and DOWN keys simultaneously while the display is in the rest mode. This status will be memorised and maintained even for the next time it will be switched on. To return to the initial state, repeat the operation all over again. On each projector, the starting address must be set for the control signal (addresses from 1 to 512).
- Page 7 - General cleaning of internal parts. - Restoring lubrication of all parts subject to friction, using lubricants specifically supplied by Claypaky. - General visual check of the internal components, cabling, mechanical parts, etc. - Electrical, photometric and functional checks; eventual repairs.
- Page 8 Battery removal - Fig. 11 This product contains a rechargeable battery. To preserve the environment, please dispose the battery at the end of its life according to the regulation in force. K-EYE K10 K20 HCR...
-
Page 9: Maintenance
MAINTENANCE Opening the covers - Fig. 12 Removing/Assembling the lens unit - Fig. 13 Continue K-EYE K10 K20 HCR... -
Page 10: Accessories
It works as frost/gel holder as well. C21096 Optional Kit Top Hat K-EYE K10 HCR C21094 Filter holder Kit K-EYE K10 HCR C21097 Optional Kit Top Hat K-EYE K20 HCR C21095 Filter holder Kit K-EYE K20 HCR K-EYE K10... -
Page 11: Cause And Solution Of Problems
CAUSE AND SOLUTION OF PROBLEMS THE PROJECTOR WILL NOT SWITCH ON ELECTRONICS NON-OPERATIONAL PROBLEMS DEFECTIVE PROJECTION REDUCED LUMINOSITY POSSIBLE CAUSES CHECKS AND REMEDIES No mains supply. Check the power supply voltage. LED exhausted or defective. Call an authorised technician. Signal transmission cable faulty or disconnected. Replace the cables. - Page 12 Automatic internal data transmission error diagnostics Firmware upgrade with no power Firmware transfer from one light to another - Via Pastrengo, 3/b - 24068 Seriate (BG) Italy - Tel. +39-035-654311 - Fax +39-035-301876 - www.claypaky.com Clay Paky S.p.A.
