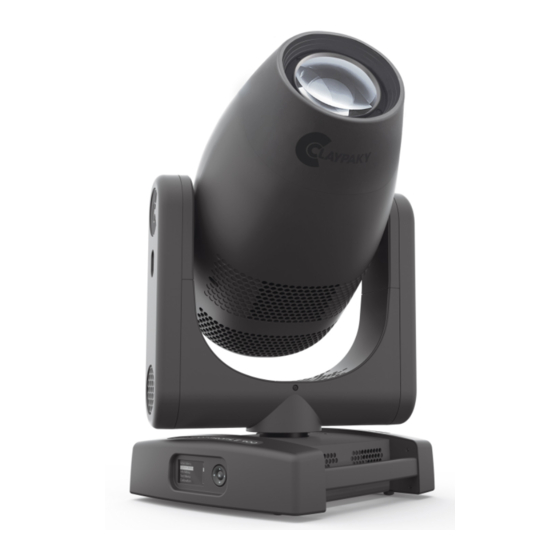

AXCOR PROFILE 600 AXCOR PROFILE 600 HC
AXCOR PROFILE 600 ST
AXCOR PROFILE 600 HC ST
INSTRUCTION MANUAL
INDEX
Congratulations on choosing a Claypaky product
We thank you for your custom.
Please note that this product, as all the others in the
rich Claypaky range, has been designed and made with
total quality to ensure excellent performance and best
meet your expectations and requirements.
C61705
C61706
C61708
C61709
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Claypaky AXCOR PROFILE 600
Summary of Contents for Claypaky AXCOR PROFILE 600
-
Page 1: Table Of Contents
We thank you for your custom. Safety information Please note that this product, as all the others in the rich Claypaky range, has been designed and made with Unpacking and preparation total quality to ensure excellent performance and best Installation and start-up meet your expectations and requirements. -
Page 2: Safety Information
1. SAFETY INFORMATION SAFETY INFORMATION IMPORTANT: Claypaky recommends you carefully read and keep the safety information on this product, also available in digital format at the following link: www.claypaky.com Ref: FIS00W - Safety Information Axcor 600 series INFORMAZIONI DI SICUREZZA... -
Page 3: Unpacking And Preparation
2. UNPACKING AND PREPARATION 2 x 183102/805 Packing contents - Fig. 1 LOCKED UNLOCKED PAN Mechanism Lock and Release (every 90°) - Fig. 2 TILT Mechanism Lock and Release (every 45°) - Fig. 3 AXCOR PROFILE 600... -
Page 4: Installation And Start-Up
This must be securely fixed to the support structure of the projector and then connected to the fixing point at the centre of the base. 3.2 Connecting to manis supply Connecting and disconnecting power cable - Fig. 5 AXCOR PROFILE 600... -
Page 5: Connecting The Control Signal Line: Dmx / Art-Net
During menu setting status, after a wait time (about 30 seconds) without any key having been pressed, the display automatically returns to rest status. It should be noted than when this condition occurs, any possible value that has been modified but not yet confirmed with the key will be cancelled. Continue AXCOR PROFILE 600... - Page 6 All that is needed is to press to momentarily activate the display and thus access the settings. Once the required operations have been carried out, the display will switch off again after a wait time of 30 seconds. AXCOR PROFILE 600...
-
Page 7: Maintenance
1/4 Turn 1/4 Turn CLICK!! Locking and releasing Pan and Tilt movements - Refer to the instructions in the UNPACKING AND PREPARATION section. Opening the head covers - Fig. 10. Closing the head covers - Fig. 11. Continue AXCOR PROFILE 600... -
Page 8: Periodical Cleaning
• General cleaning of internal parts. • Restoring lubrication of all parts subject to friction, using lubricants specifically supplied by Claypaky. • General visual check of the internal components, cabling, mechanical parts, etc. -
Page 9: Effects Module Removal
Extraction of the effect modules: Preliminary operations - Fig. 13. NOTE: - Do not disconnect wiring harnesses when the fixtures is switched-on, to avoid to damage electronic boards. - Do not switch-on the fixtures with wiring harness disconnected. Continue AXCOR PROFILE 600... - Page 10 Extraction of the effect modules: Preliminary operations - Fig. 14. NOTE: - Do not disconnect wiring harnesses when the fixtures is switched-on, to avoid to damage electronic boards. - Do not switch-on the fixtures with wiring harness disconnected. AXCOR PROFILE 600...
- Page 11 Extraction of the effect modules - Fig. 15. IMPORTANT: Grasp the modules using the support structure and not the details which could get damaged. Insertion of the effect modules: Repeat the operations indicated in Fig. 15, 16, 17 and 18 in reverse order. Continue AXCOR PROFILE 600...
- Page 12 Extraction of the effect modules - Fig. 16. IMPORTANT: Grasp the modules using the support structure and not the details which could get damaged. Insertion of the effect modules: Repeat the operations indicated in Fig. 15, 16, 17 and 18 in reverse order. AXCOR PROFILE 600...
- Page 13 Extraction of the effect modules - Fig. 17. IMPORTANT: Grasp the modules using the support structure and not the details which could get damaged. Insertion of the effect modules: Repeat the operations indicated in Fig. 15, 16, 17 and 18 in reverse order. Continue AXCOR PROFILE 600...
-
Page 14: Cleaning Of The Filters
4.4 - Cleaning of the filters 1/4 Turn Cleaning of the filters - Fig. 18. AXCOR PROFILE 600... - Page 15 1/4 Turn Cleaning of the filters - Fig. 19. Continue AXCOR PROFILE 600...
-
Page 16: Rotating Gobos
25 ±0.1 Replacing rotating gobos (max 20 mm image – thickness 1 mm) - Fig. 21 - Before use custom gobos contact Claypaky; - The original gobos have a special coating designed specifically to resist to the high temperatures; - The rotating gobo wheel only use dichroic glass gobos (it is not possible to use metal gobos);... - Page 17 To determine which side of a godo is coated, hold an odject up to it. On the uncoated side, there is a space between the object and its reflection. Gobo orientation - Fig. 22 The pictures shown the correct gobos orientation. AXCOR PROFILE 600...
-
Page 18: Battery Removal
4.6 Battery removal This product contains a rechargeable battery. To preserve the environment, please dispose the battery at the end of its life according to the regulation in force. AXCOR PROFILE 600... -
Page 19: Specifications
Versions available: PAN range 540° - CRI: at least 70, CT 6500K (Axcor Profile 600 and ST) TILT range 268° - CRI: at least 90, CT 5600K (Axcor Profile 600 HC and HC-ST) ELECTRONICS OPTICS Long life self-charging buffer battery. - Page 20 Clay Paky - Via Pastrengo, 3/b - 24068 Seriate (BG) Italy - Tel. +39-035-654311 - Fax +39-035-301876 - www.claypaky.com S.p.A.
