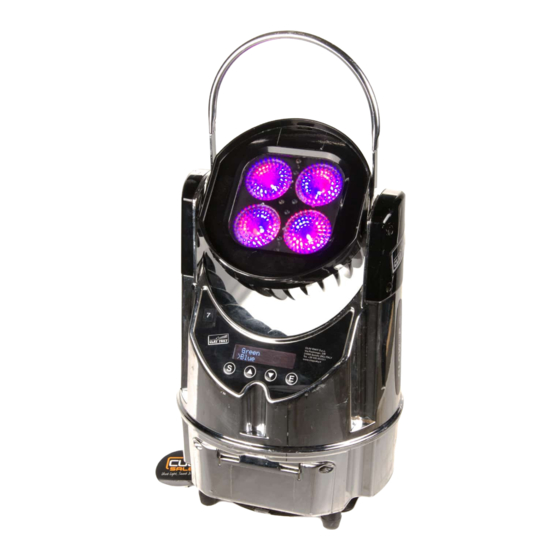

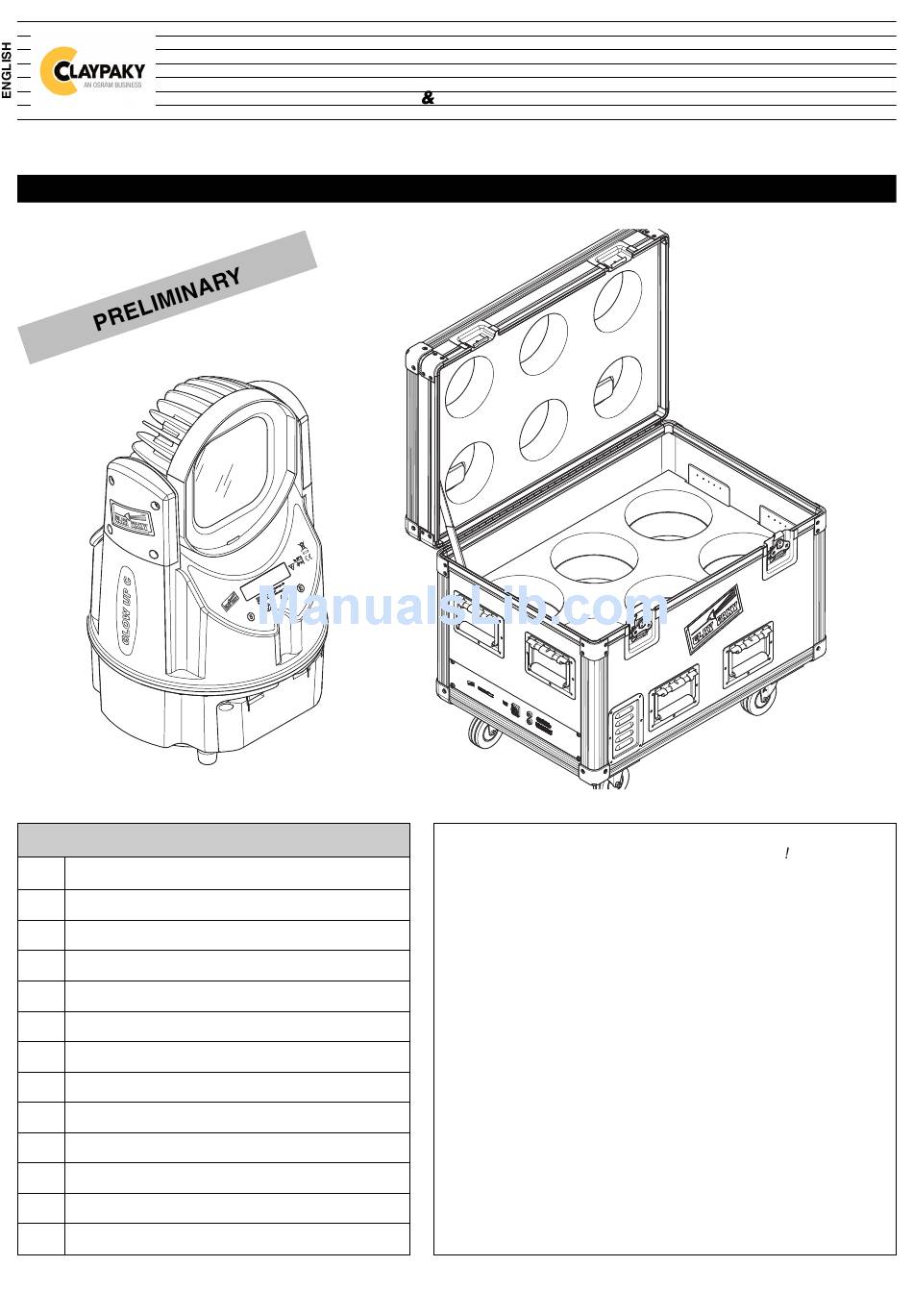

FLIGHT CASE
INSTRUCTIONS MANUAL
Congratulations on choosing a Clay Paky product
We thank you for your choice. Please note that this product,
as all the others in the rich Clay Paky range, has been
designed and manufactured with total quality to ensure
excellent performance and best meet your expectations and
requirements.
Carefully read this instruction manual in its entirety and keep it
safe for future reference.
It is essential to know the information and comply with the
instructions given in this manual in order to ensure the fitting is
installed, used and serviced correctly and safely.
CLAY PAKY S.p.A. disclaims all liability for damage to the
fitting or to the other property or persons deriving from
installation, use and maintenance that have not been carried
out in conformity with this instructions manual, which must
always accompany the fitting.
CLAY PAKY S.p.A. reserves the right to modify the
characteristics stated in this instructions manual at any time and
without prior notice.
1
C
C71050
TW
C71055
W
C71060
F21230
Advertisement
Table of Contents
Related Manuals for Claypaky GLOW UP
Summary of Contents for Claypaky GLOW UP
-
Page 1: Table Of Contents
C71050 GLOW UP C71055 C71060 FLIGHT CASE F21230 INSTRUCTIONS MANUAL CONTENTS Congratulations on choosing a Clay Paky product Page Contents We thank you for your choice. Please note that this product, as all the others in the rich Clay Paky range, has been... -
Page 2: Safety Information
This product contains a lithium iron tetraphosphate rechargeable battery. To protect the environment, please discard the battery at the end of its life cycle according to current law. Instructions on how to remove the battery from the equipment are available at www.claypaky.it. LiFePo... - Page 3 <Nessuno(a)> SAFETY INFORMATION FLIGHT CASE • Installation Ensure that the Flight Case, when used for charging Glow UP, is positioned at a distance of 15 cm from any surface or wall, to allow proper ventilation. • Maximum ambient temperature Do not operate the device if ambient temperature (Ta) exceeds 40°C.
-
Page 4: Unpacking And Preparation
When connecting the power cord the user can choose whether to use the GlowUp in one of the following ways: 1) Power cord connected for battery charge. 2) Power cord connected for projector power (thus bypassing battery operations). The GlowUp cannot work in both ways simultaneously. GLOW UP... -
Page 5: Control Panel
Switching on the projector - Fig. 6 The projector immediately turns on when the power cord is plugged in or, if used in battery mode, by pressing and holding down keys several seconds. Clay Paky GLOW UP Address xxx BAT xx GLOW UP Software release x.x x... - Page 6 Increases the value displayed (with auto-repetitions), or passes to the previous item on the menu For quick access to the maximum parameter value, press the DOWN key while holding down the UP key. ENTER Confirms the displayed value or activates the displayed function or opens the next menu. Continued GLOW UP...
- Page 7 Fuse 6,3x32mm 3AT 250Vac (030471) Fuse 6,3x32mm 10AT 250Vac (030470) Replacing flight case fuses - Fig. 9 Each flight-case has 2 fuses associated with the main power cord connection and one fuse for each Glow UP charge station. GLOW UP...
-
Page 8: Main Menu
Display Stop Strobe Contrast Preset Colors Battery Display Factory System Information Advanced version Uploader Charge Setup Model Charge Left CPU Reset Charge Hours Test Monitor Radio Setup Charge Battery hours Discharge Battery hours temperature Total LED hours Continued GLOW UP... - Page 9 (the display blinks for several seconds) or SELECT to keep the current settings and return to the previous Menu. By pressing any button when Glow Up is in idle status, the BUTTON FUNCTION menu is accessed. or II Symbol...
- Page 10 ROSCO 358 45 URBAN BLUE ROSCO 081 46 COOL BLUE ROSCO 066 47 LIGHT SALMON ROSCO 030 48 MAYAN SUN ROSCO 318 49 CHERRY ROSE ROSCO 332 50 FLESH PINK ROSCO 034 51 SKELTON EXOTIC SANGRIA ROSCO 039 GLOW UP...
- Page 11 • SLAVE PRIORITY: GlowUp runs as a Slave Press ENTER and use the UP and DOWN keys to select la priorità in ricezione del segnale DMX, in caso di conflitto tra segnale via cavo o wireless • Cable (default) • Wireless GLOW UP...
- Page 12 1) Press ENTER – current settings appear on the display. 2) Use the UP and DOWN keys to modify the value from 0 to 10 according to the desired contrast. 3) Press SELECT to return to the previous Menu. Continued GLOW UP...
- Page 13 2) Press SELECT to return to the previous Menu. CHARGE LEFT Charge Allows you to display the remaining time of battery charge. Left 3) Press ENTER to display the remaining hours. 4) Press SELECT to return to the previous Menu. GLOW UP...
- Page 14 L'accesso al sottomenu 'RDM discovery' viene fatto nel caso di sostituzione della scheda Radio a seguito di un'anomalia della stessa, serve per attivare la comunicazione tra la scheda Radio e la CPU del GlowUp. Continued GLOW UP...
- Page 15 (Reset) appears, confirm by pressing ENTER TOTAL LED HOURS Total LED hours Displays total LED working hours, dalla costruzione ad oggi. 1) Press ENTER – total LED working hours appear on the display. 2) Press SELECT to return to the previous Menu. GLOW UP...
- Page 16 MMRX C (non va in play) Wireless MMRX W Wireless to Cable + Repeat &Play MMRX W C Cable to Wireless + Repeat &Play MMRX C W Wireless to Cable + Repeater only Cable to Wireless + Repeater only GLOW UP...
-
Page 17: Manual Zoom
MANUAL ZOOM Antenna Aerial Manual zoom - Fig. 10 The GlowUP has a manual zoom located on the back of the projector head. MAINTENANCE 1/4 Turn GLOW UP... -
Page 18: Battery Removal
BATTERY REMOVAL This product contains lithium iron tetraphosphate rechargeable battery. To protect the environment, please discard the battery at the end of its working life according to current law. LiFePo 1/4 Turn GLOW UP... -
Page 19: Optional Accessories
• General cleaning of internal parts. • General visual check of internal parts, cabling, mechanical parts, etc. • Electrical, photometric and functional checks; eventual repairs. OPTIONAL ACCESSORIES MAGNETIC HOLDER 255036/001 black 255036/002 white PADLOCK Not commercialized from Clay Paky GLOW UP... -
Page 20: Technical Data
Replace LED. Signal transmission cable faulty or disconnected. Replace the cables. Incorrect addressing. Check addresses (see instructions). Fault in the electronic circuits. Call an authorised technician. Optic fault. Call an authorised technician. Dust or grease deposits. Clean (see instructions). GLOW UP... -
Page 21: Channel Functions
CHANNEL FUNCTIONS GLOW UP C CHANNEL CHANNEL MODE GREEN BLUE WHITE DIMMER STOP / STROBE MACRO COLOR MACRO TIMING MACRO FADING GLOW UP TW CHANNEL MODE CHANNEL INDEPENDENT CONSTANT INTENSITY MAX INTENSITY COOL WHITE 6200°K TUNABLE WHITE TUNABLE WHITE WARM WHITE 2700°K... - Page 22 • MACRO COLOR - channel 7 GLOW UP C EFFECT COLD TONE WARM TONE PASTEL TONE • COLOUR MIXING - channel 1 - 2 - 3 SEQ1 SKELTON EXOTIC SANGRIA Operation with option color mixing: RGB FLESH PINK CHERRY ROSE...
- Page 23 GLOW UP TW INDEPENDENT MODE CONSTANT INTENSITY & MAX INTENSITY MODE INDEPENDENT CONSTANT INTENSITY MAX INTENSITY COOL WHITE 6200°K TUNABLE WHITE TUNABLE WHITE WARM WHITE 2700°K DIMMER DIMMER STOP / STROBE STOP / STROBE STOP / STROBE CONSTANT INTENSITY MAX INTENSITY...
- Page 24 GLOW UP W • DIMMER - channel 1 EFFECT OPEN (LIGHT) CLOSED (BLACK) • STOP / STROBE - channel 2 CLAY PAKY г. Москва, Краснопахорское пос., д. Красная Пахра, д.57 Тел: +7 (495) 969-63-56, +7 (495) 542-17-72 Web: www.scircus.ru E-mail: info@scircus.ru...
